Cynthion LUN 837L USB 2.0 Protocol Analyzer | 3x USB-C, FPGA, Cross-Platform

Product Description

Specifications:
Product Name: Cynthion LUN USB Protocol Analyzer
Model Number: 837L
Device Type: Multifunctional USB Protocol Analysis and Testing Tool
Supported Standards: USB 2.0 low speed, high speed, full speed
Hardware Architecture: Reconfigurable FPGA core with dynamic function customization

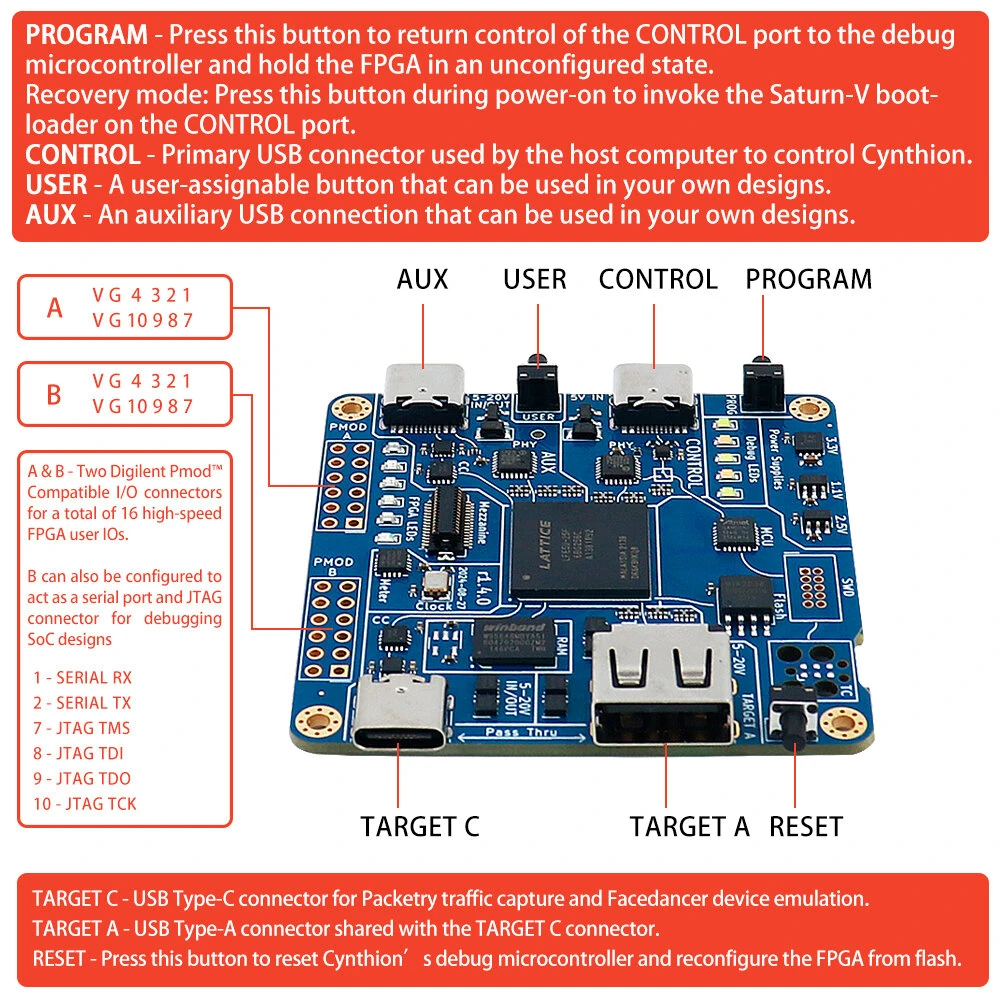

USB Interface: Three USB Type-C interfaces (supporting high-speed data transmission, compatible with USB 2.0 standards)
Expansion Interface: Up to 16 digital signal input/output channels for acquiring relevant signals
Protocol Analysis Capability: Passive USB communication traffic monitoring and capture; capable of parsing USB 2.0 FS/HS protocol frame structures
Gateway Software: LUN gateway software for device configuration and control interfaces
Development Libraries: Supports FaceDancer library and USB fuzzing test library
Operating System Compatibility: Windows/maOS/Linux cross-platform support

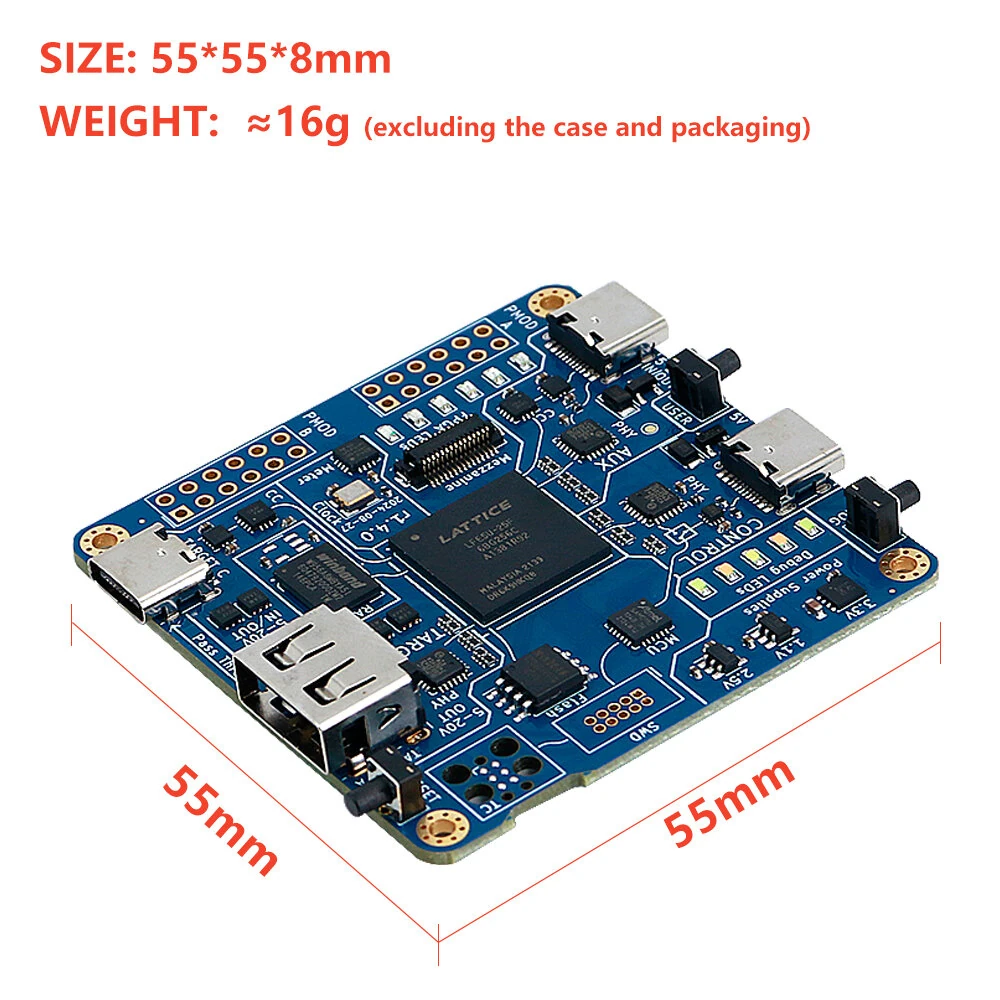

Product Dimensions: 55mm x 55mm x 8mm
Product Weight: Single product: 16 grams; Total weight (with packaging): 68 grams
Features:
1.Comprehensive Protocol Analysis
Enables detailed USB 2.0 traffic monitoring and frame structure parsing, perfect for security research and device validation.
2.High-Speed USB Type-C Interfaces
Offers three USB Type-C connectors supporting fast data transmission under USB 2.0 standards, enhancing operational versatility.
3.Reconfigurable FPGA Core
Ensures dynamic function customization to adapt to diverse testing requirements, making it suitable for advanced applications.
4.Cross-Platform Compatibility
Seamlessly works across Windows, maOS, and Linux environments for integration into various workflows.
5.Expansion Capability
Includes 16 digital signal I/O channels, providing enhanced flexibility for signal acquisition and testing scenarios.
Package Included:
1 x Cynthion motherboard (LFE-25F)
2 x Type-C cables
