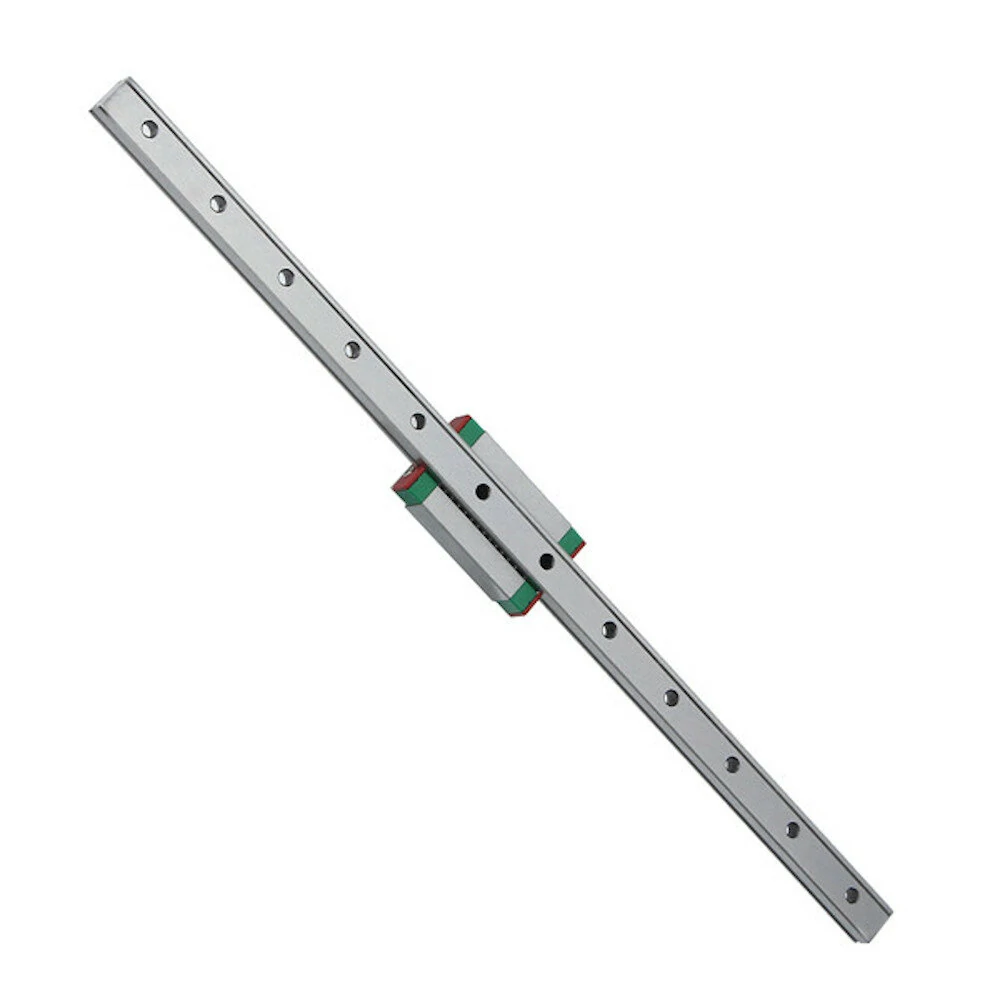

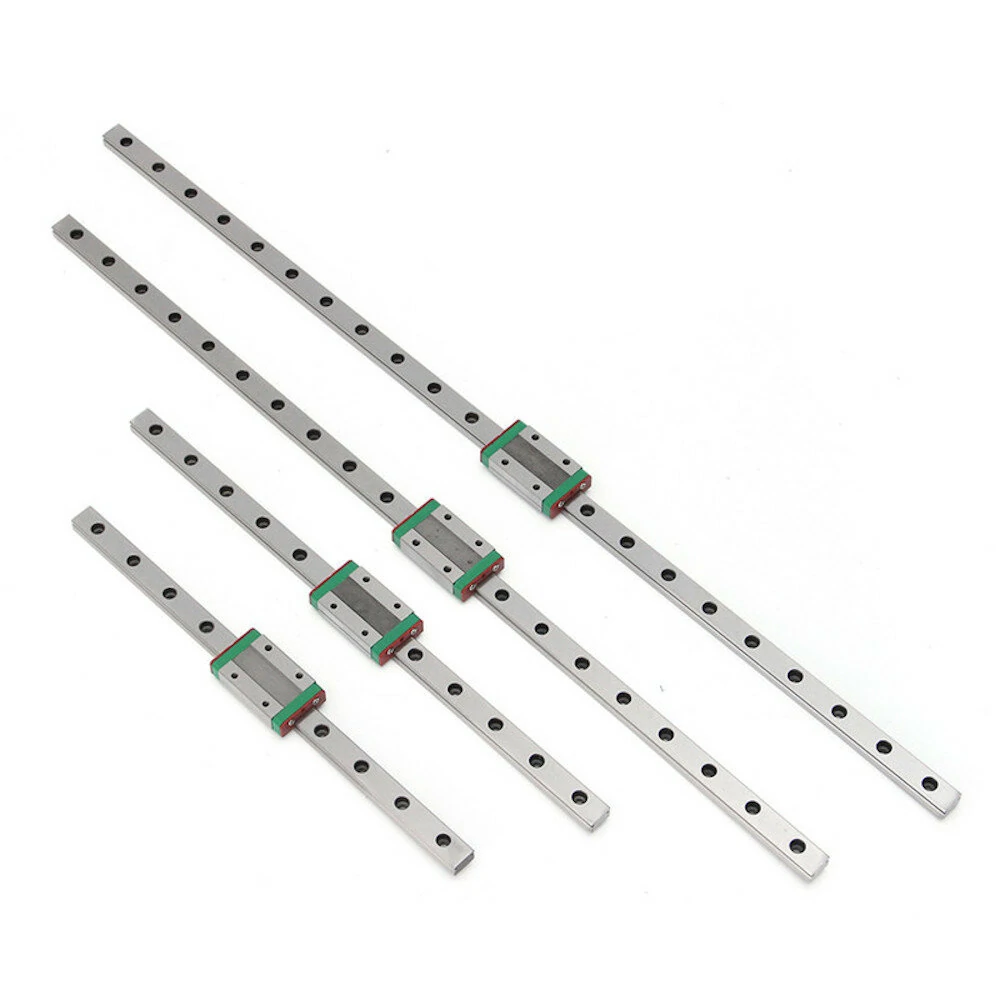

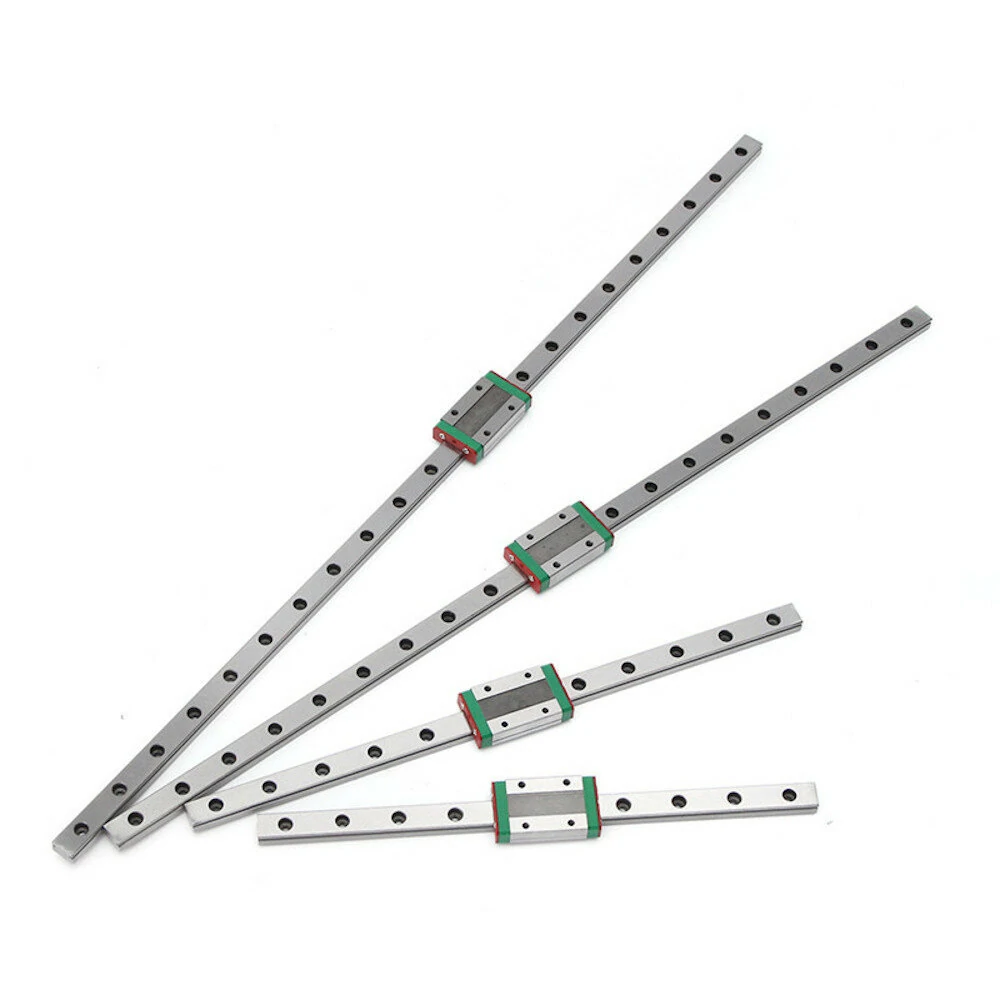

MGN12 Linear Guide Set - 250/300/500/550mm with Anti-Drop Slider | CNC Parts

Product Description

Features:-High precision, smooth, high wear resistance and low noise.-Advanced production technology, precise products, high hardness and durability.-High bearing capacity and low friction.-Widely used in CNC machine tools, machining centers, electronics, automated machinery, textile machinery, automotive woodworking machinery, printing machinery, etc.
Specification:

Height (Block)	10mm
Width (Block)	27mm
Length(Block)	46mm
Height (Rail)	8mm
Width(Rail)	12mm

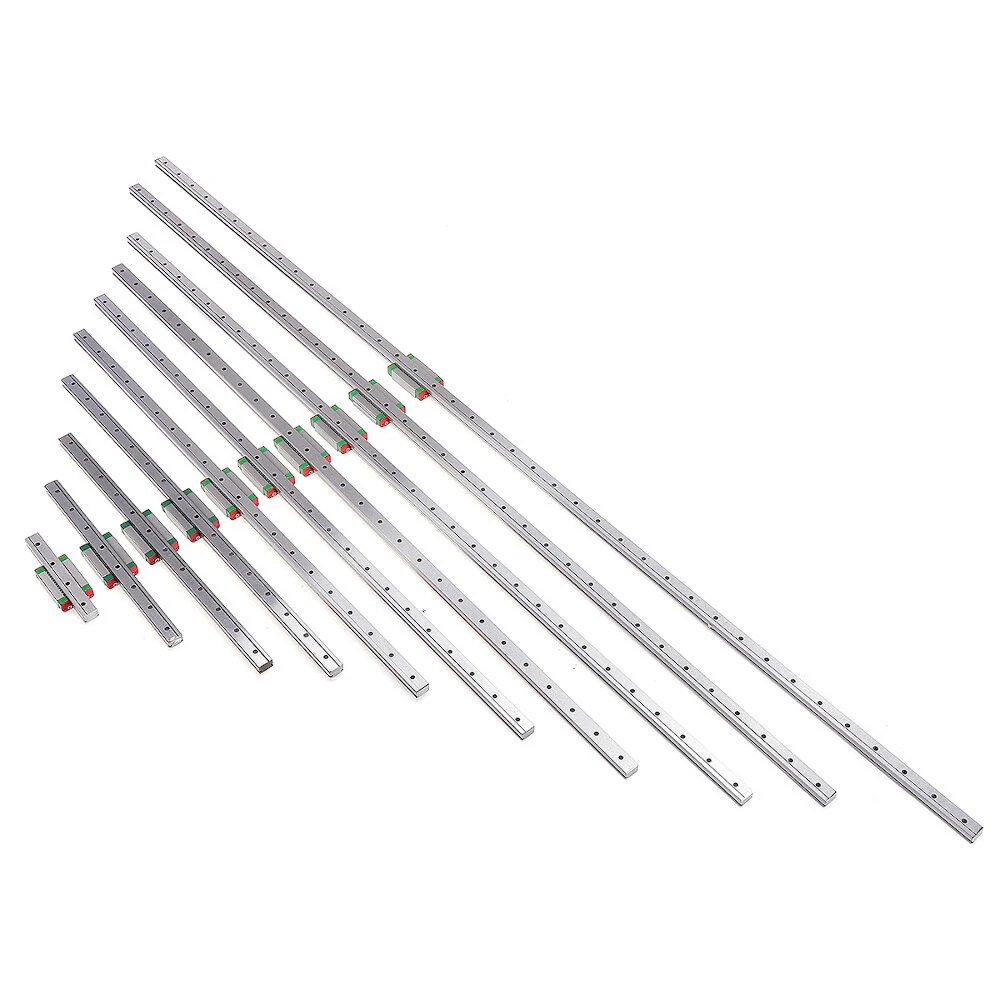

Length(Rail)	100mm/200mm/300mm/400mm/500mm 600mm/700mm/800mm/900mm/1000mm
Rolling bearing seat material	Bearing steel
Quantity	2pcs

Installation Precautions:When installing, do not remove the plastic rail in the slider in advance, otherwise it will easily cause the steel ball in the slider to fall out during assembly and cannot be installed and used normally. Installation steps:1. Align the end of the rail with the slider.2. Use the guide rail to slowly push out the plastic rail.3. The plastic rail falls naturally until the slider is completely loaded into the guide rail.
Package Included:

2 Pcs x	Miniature Guide Linear Slider
2 Pcs x	H Anti-drop bead slider
