Adjustable Cabinet Hardware Jig & Drill Guide Template - For Handles and Pulls Hole Punch Tool

Product Description

Features:

1. The main body of the small plane handle hole punch is made of aluminum alloy 6061, the surface is sandblasted, and the drill sleeve is stainless steel, which is wear-resistant and greatly prolongs the drilling life.

2. The hole distance of the double-hole handle is 64/96/128mm, and the punching specification is 4mm, which is suitable for most handle sizes on the market.

3. With a 4mm drill, the material is high-speed steel 6542, which can be used for metal.

Specifications:

Name: Handle punching locator

Material: Aluminum alloy

Opening margin: 10-100m (double-hole handle), 15-100mm (single-hole handle)

Handle hole distance: center hole/64mm/96mm/128mm

Drill sleeve size: 4mm

Drill size: 4mm

Optional Type: A / B /C

How to use:

1. Mark the midline.

2. The locator pointer is aligned with the midline.

3. According to the handle specification, make the corresponding drill sleeve opening.

4. Install the handle

Package included:(optional)

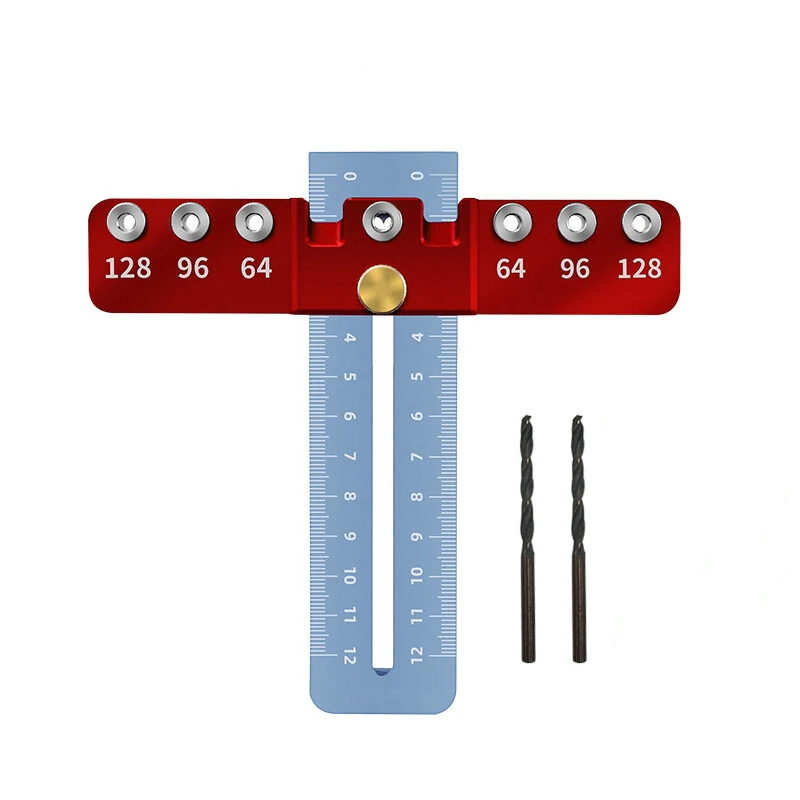

Type A:

1 x Drill Punch Locator

2 x 4mm Drills

Type B:

1 x Drill Punch Locator

4 x 4mm Drill Sleeves

2 x 4mm Drills

Type C:

1 x Drill Punch Locator

2 x 4mm Drill Sleeves

2 x 4mm Drills

2 x Fixed Clips
