W1308 220V Digital Thermostat | 0-300°C Temperature Controller with LED Display & Sensor Probe
$16.00
$19.18
-17% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Specifications:Product name: Microcomputer temperature control switchProduct model: W1308Temperature control range: 0-300??CInput power: 220VTemperature measurement accuracy: 0.2%FSTemperature control accuracy: 0.1??COutput: Relay output, capacity ??10AMachine size: 100* 48* 28mmWindow display: 37* 18mmEmbedded opening: 71 * 41mmFixing hole distance: M3 (screw) / (spacing) 86mmMeasurement input: 1 meter waterproof sensor
Set up1. Determine the working modePress SET for 3 seconds to display PO, press SET again to modify the PO value, H is heating mode, C is cooling mode.2. Set the return differenceThe hysteresis is to start after the set temperature is stopped and the hysteresis value is added. The default is 2??C. If you need to modify it, please press and hold SET to enter P1 to modify.3. Set stop temperatureAfter setting the mode and hysteresis, directly press ENT to confirm and return. At this time, the screen displays the real-time temperature. Press SET and the screen will display the stop temperature value, and then press the up and down keys to modify.
Package Includes:
1 * Microcomputer Digital Thermostat1 * Sensor1 * Bag of Screws Kit1 * User Manual

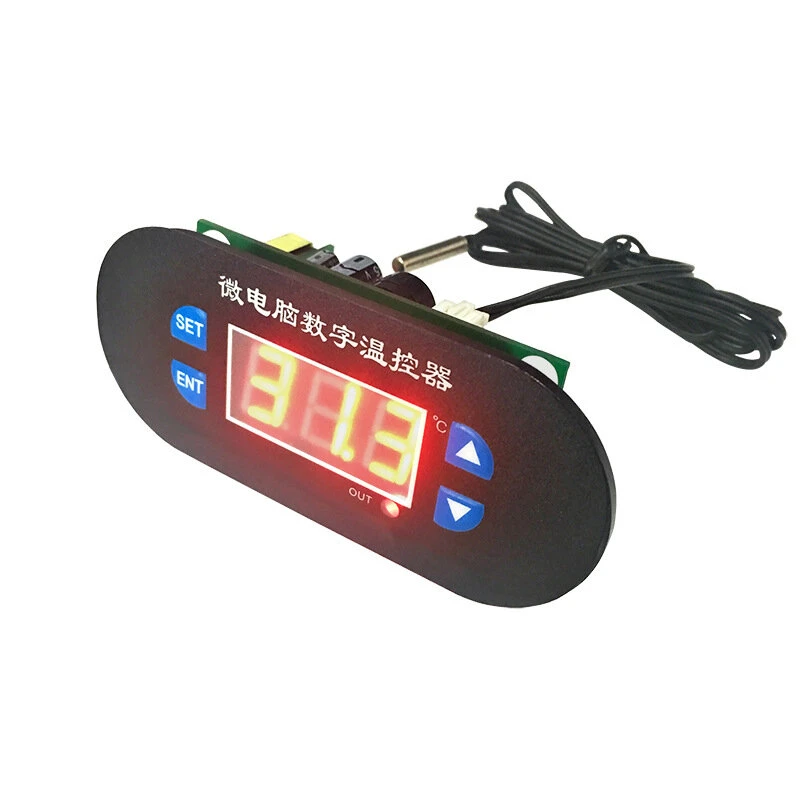

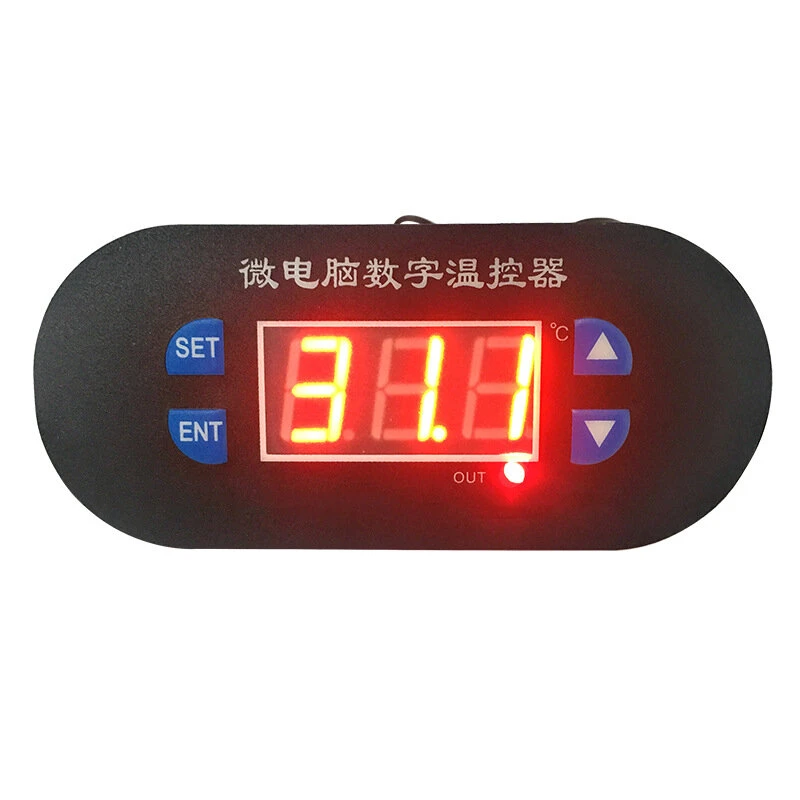

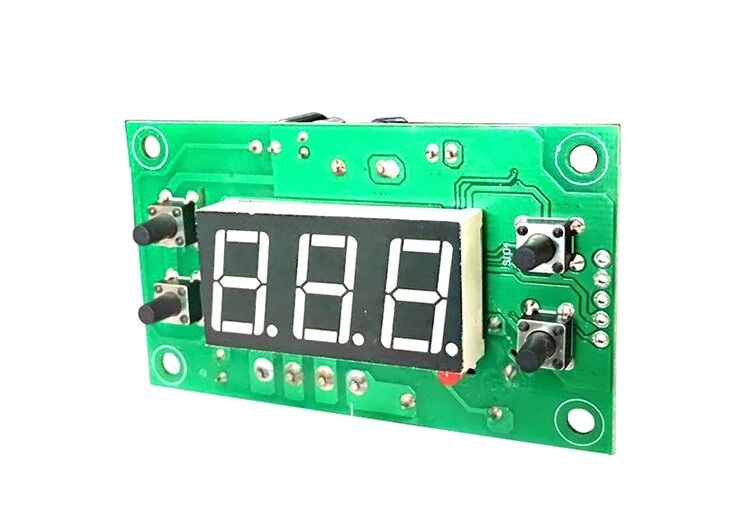

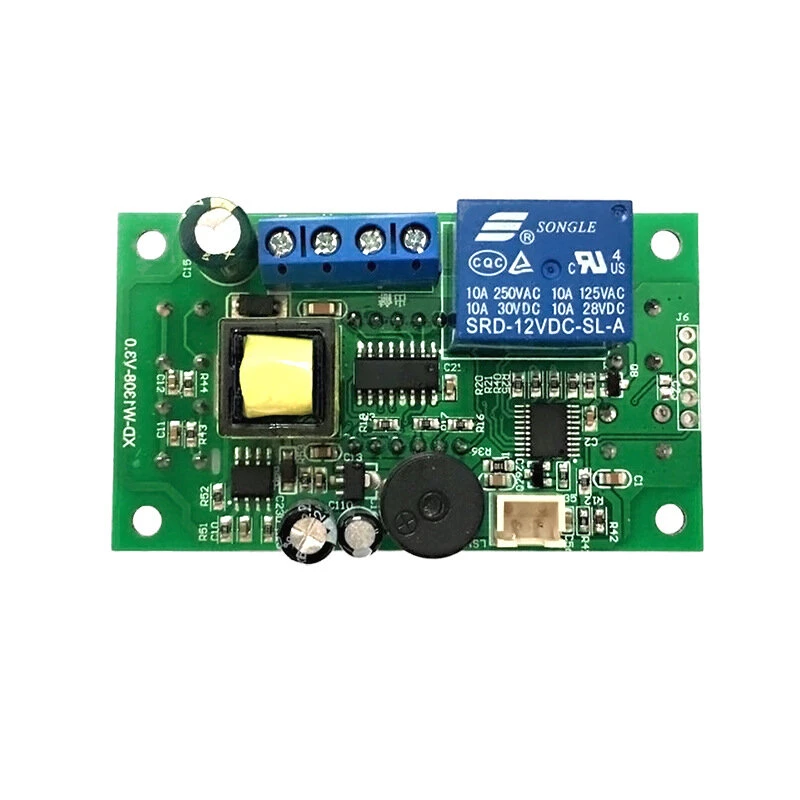

Details Picture:
