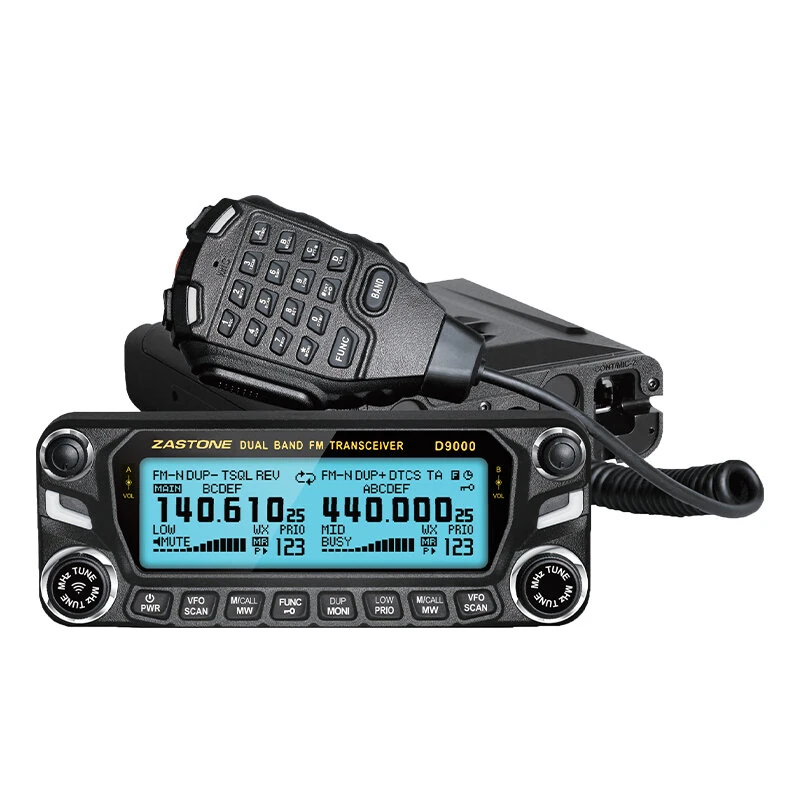

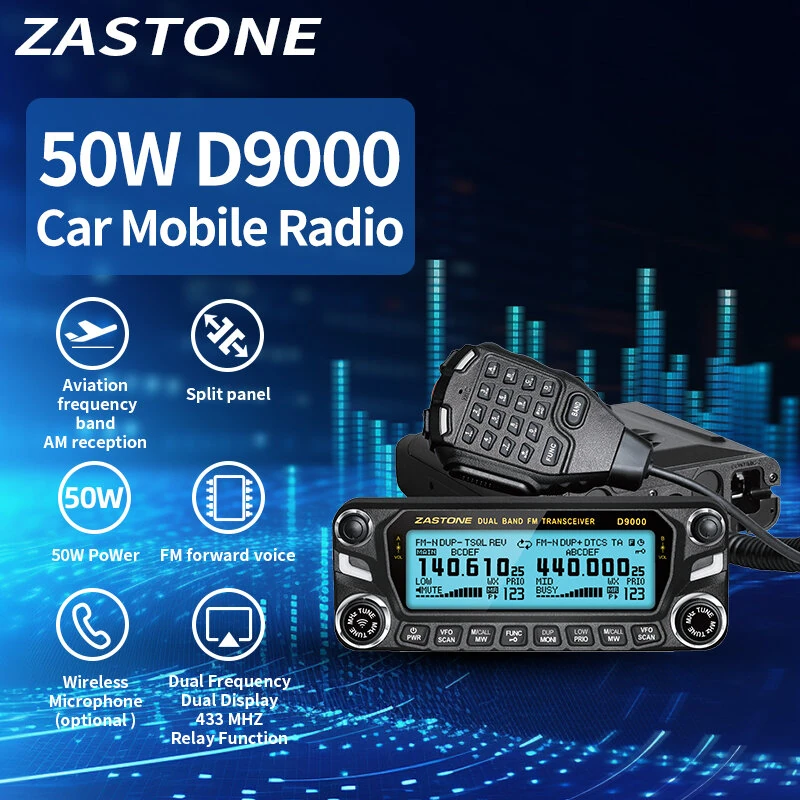

Zastone D9000 50W UHF/VHF Ham Radio | Dual Band 136-174/400-520MHz Transceiver

Product Description

>>Please click here to download the D9000 product manual<<

Tips??No Bluetooth, no wireless microphone.

Features:

Comprehensive Frequency Range and Dual Band Operation: The D9000 Auto Walkie Talkie covers an extensive frequency range for both transmission and reception, including 136-174MHz and 400-520MHz for TX, and an additional range for RX in various bands like AM and FM radio and Air Band. This wide coverage ensures reliable communication across multiple channels and modes, making it ideal for amateur radio operators as well as professionals.

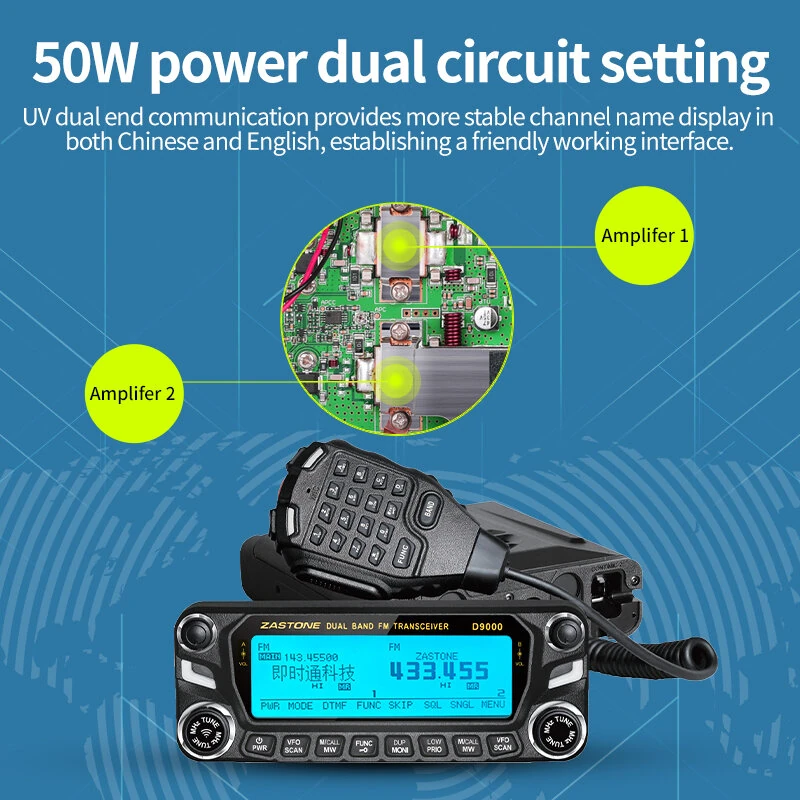

High Power Output with Variable Settings: This radio station offers robust power output with multiple settings: up to 50W for VHF and 40W for UHF, along with scalable lower power options for different needs (25W, 15W, 10W, and 5W). This flexibility allows you to adjust the power based on your operating conditions, ensuring clear communication while optimizing battery usage.

Enhanced Audio Quality and Sensitivity: The D9000 boasts superior receiver sensitivity (0.2uV or less for 12dB SINAD) and selectivity, ensuring clear and uninterrupted communication even in challenging environments. Combined with a maximum audio output of 2W with less than 10% distortion, you can expect high-quality audio output and reception, making it easier to communicate over long distances.

Multiple Channel Spacing and Step Options: With channel spacing options of 25KHz (Wide), 20KHz (Middle), and 12.5KHz (Narrow), along with frequency step choices ranging from 2.5KHz to 100KHz, the D9000 provides extensive configurability. This allows for precise tuning and efficient communication management, ensuring you can operate seamlessly across various frequencies and conditions.

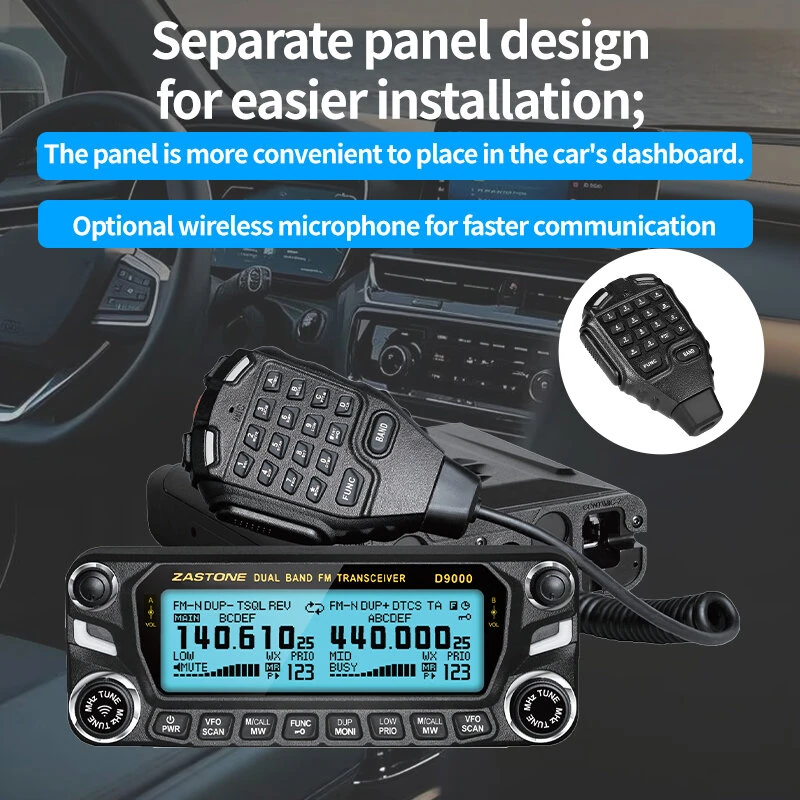

DurableConstruction and User-Friendly Design: Built to withstand a wide temperature range (-20??C to +60??C) and powered by a robust 13.8V DC supply, the Zastone D9000 is ideal for versatile environments. The compact remote controller (1505733mm) and main unit (15345150mm) are designed for easy installation in vehicles, providing user-friendly interface and controls for hassle-free operation.

Specifications:

Model: ZT-D9000

Frequency Range:

A/B band RX: 136-174MHz, 200-260MHz, 400-480MHz, 470-520MHz

B band RX (AM Radio): 153-279KHz, 0.5-1.8MHz, 2.3-30MHz, 64-108MHz (FM Radio), 113-137MHz (Air Band)

TX: 136-174MHz, 400-480MHz, 470-520MHz (optional)

Modes: F1D, F2D, F3E

Channel Spacing: 25KHz (Wide), 20K (Middle), 12.5K (Narrow)

Frequency Steps: 2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 20KHz, 25KHz, 30KHz, 50KHz, 100KHz

Power Supply: DC 12-24V ??15%, negative ground

Current:

Receiver: 0.5A (standby)

Transmit: 8.5A (144MHz), 8.0A (430MHz)

Frequency Stability: ??2.5ppm (-10??C to +60??C)

Operating Temperature: -20??C to +60??C

Dimensions:

Remote Controller: 150(W) x 57(H) x 33(D)mm

Main Unit: 153(W) x 45(H) x 150(D)mm

Weight: Approximately 1.6kg

Receiver (ETSI EN 300 086):

Sensitivity (12dB SINAD): 0.2uV or less

Selectivity (-6dB): Wide: 12KHz or more, Narrow: 10KHz or more

Selectivity (-60dB): Wide: 30KHz or less, Narrow: 24KHz or less

Maximum Audio Output: 2W@10% 8??, 5% distortion

Audio Output Impedance: 4-16??

Audio Output: >2W@10%

Transmitter (ETSI EN 300 086):

Power Output: 50W/25W/10W/5W (144MHz), 30W/20W/10W/5W (430MHz)

Modulation: Variable reactance modulation

Maximum Frequency Deviation: Wide: ??5KHz, Narrow: ??2.5KHz

Spurious Emissions: -60dB or less

Microphone Impedance: 2K??

Data Port Impedance: 10K??

Package Included:

1 x D9000 Radio Station

1 x Remote Controller

1 x Power Cable

1 x I/Q Audio Connection Cable

1 x DB9 Data Control Cable

1 x Operation Manual
