Xiegu G90 20W HF SDR Transceiver | 0.5-30MHz with Built-in Antenna Tuner

Product Description

Specifications:

- Receive frequency range: 0.5MHz to 30MHz

- Operating voltage range: 12 ~ 15V DC

- Transmitting frequency range: All amateur bands in the range of 1.8 to 29.999 MHz

- Standby operating current: 750mA @ Max

- Working mode: SSB/CW/AM/FM

- Transmit working current: 8A @ Max

- Operating temperature range: 0??C ~ 55??C

- Frequency stability: ??2ppm (after 30 minutes of power on)

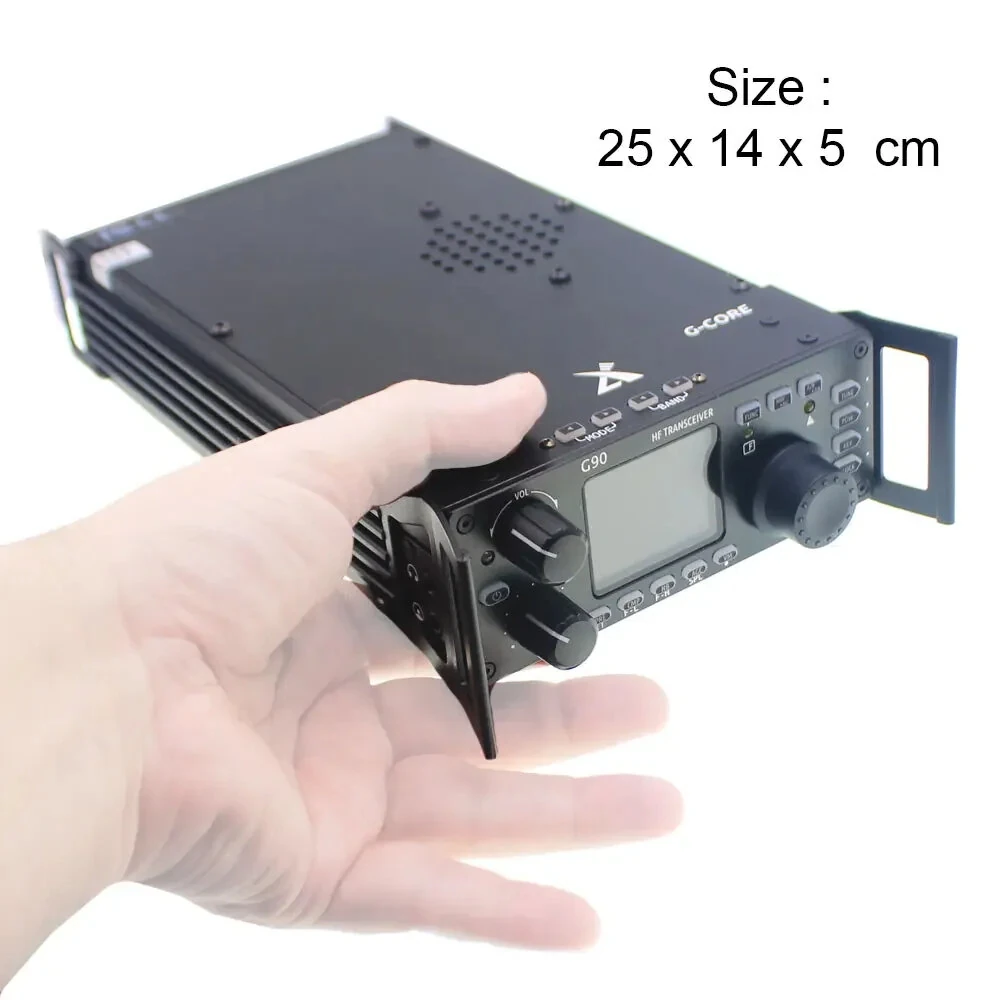

- Machine size: 120 x 45 x 210 mm (without protrusions, head unit combination status)

- Machine weight: About 1kg

Receiver parameters:

- Receive sensitivity: Better than 0.25uV @12dB Sinad (PRE: ON)

- Machine dynamic range: 90dB

- Adjacent channel suppression: 60dB

- Audio output power: 0.5W @ 4??

- Optional: SSB 2.4kHz / CW 300Hz

Transmitter parameters:

- RF output power: 20W

- Spurious suppression: ??50dB

- Carrier suppression: ??40dB

- Sideband suppression: ??50dB

Features:

1. Advanced SDR Architecture: The G90 utilizes Software-Defined Radio technology with a 24-bit data size at a 48kHz sampling rate, ensuring superior performance and flexibility in signal reception and transmission.

2. Detachable Display Unit: The design of the separable display unit allows for flexible setup, letting you arrange the transceiver and monitor according to your operating environment and convenience.

3. Built-in Auto Antenna Tuner: This transceiver includes a high-performance automatic antenna tuner, ensuring optimal antenna performance without the hassle of manual tuning, enhancing your radio experience.

4. Real-time Spectrum Display: Featuring a 1.8-inch high brightness color TFT LCD screen, the G90 provides ??24k bandwidth spectrum and waterfall display, offering comprehensive visual feedback on signal conditions and transceiver status.

5. User-friendly Interface: The panel and top button construction, along with highly configurable buttons and a multi-function encoder, ensure all operations are intuitive and quick, without cumbersome menu setups. Critical information is displayed clearly, making operation straightforward.

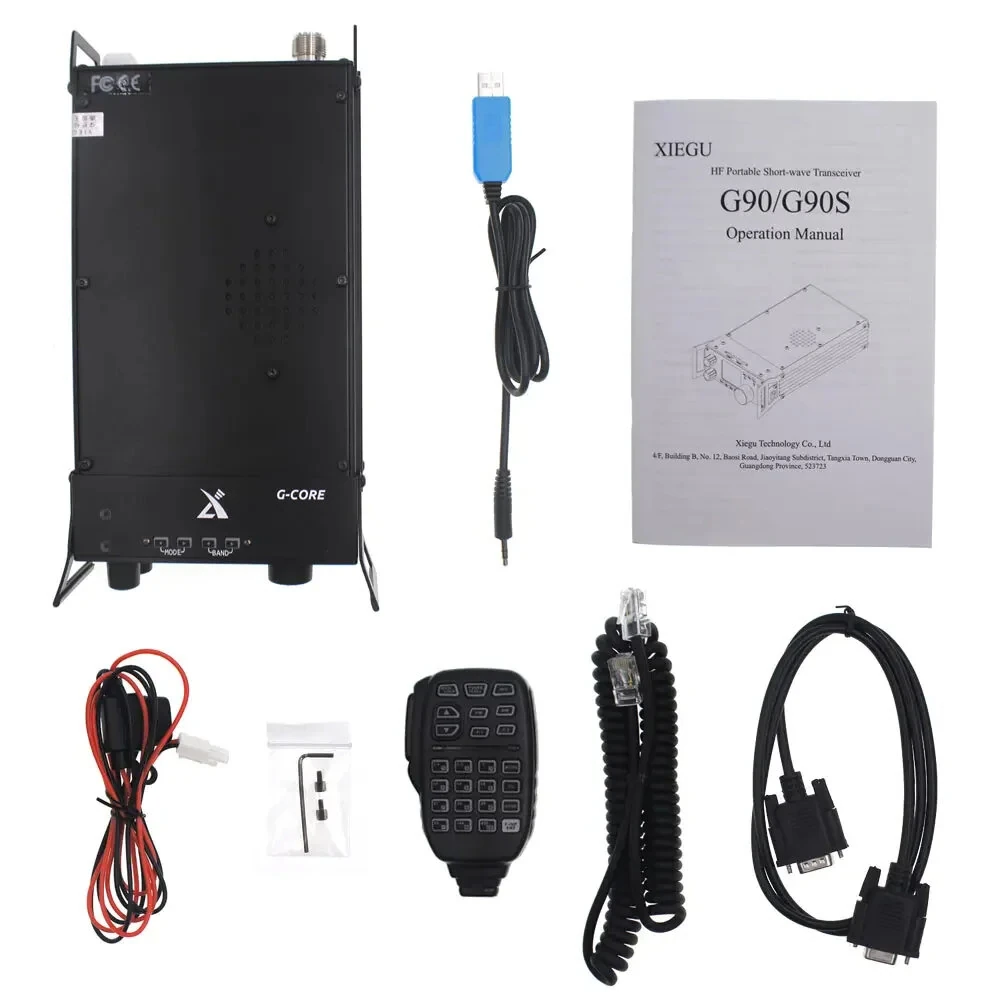

Package included:

1 x Xiegu G90 Transceiver Kit
