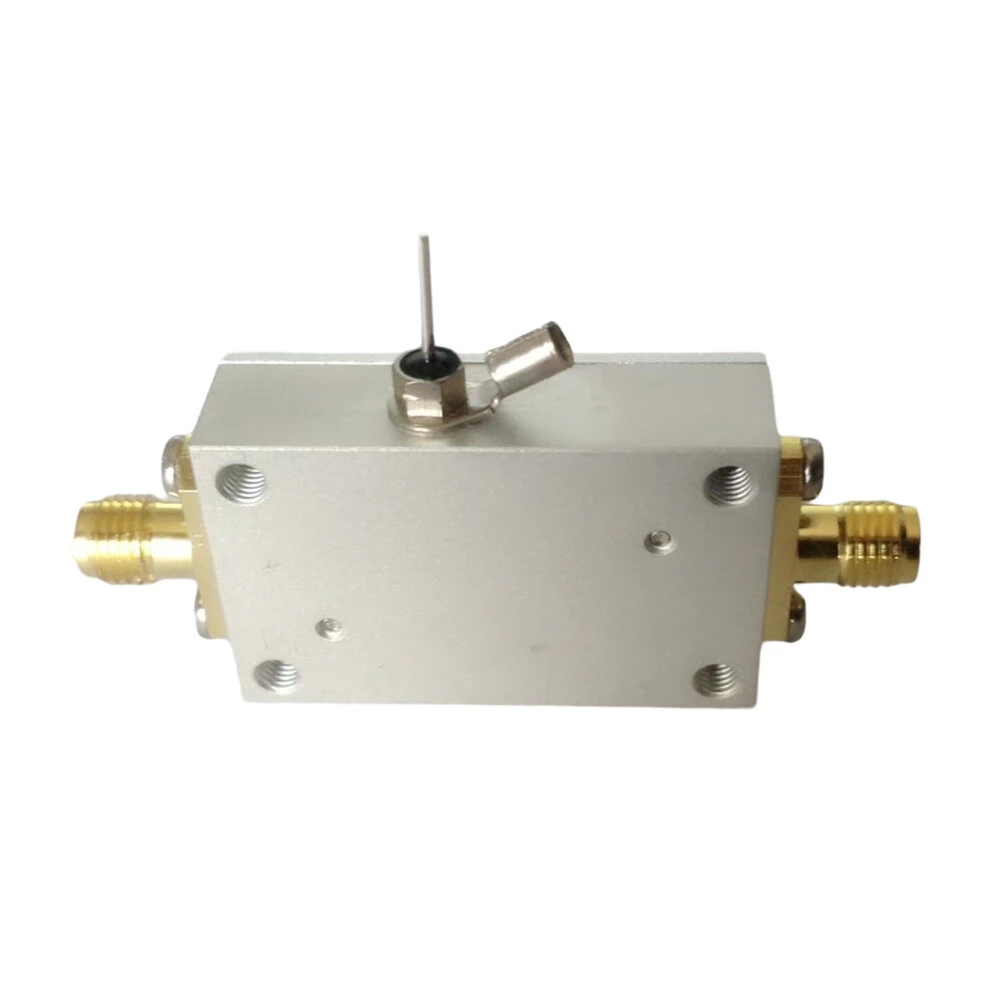

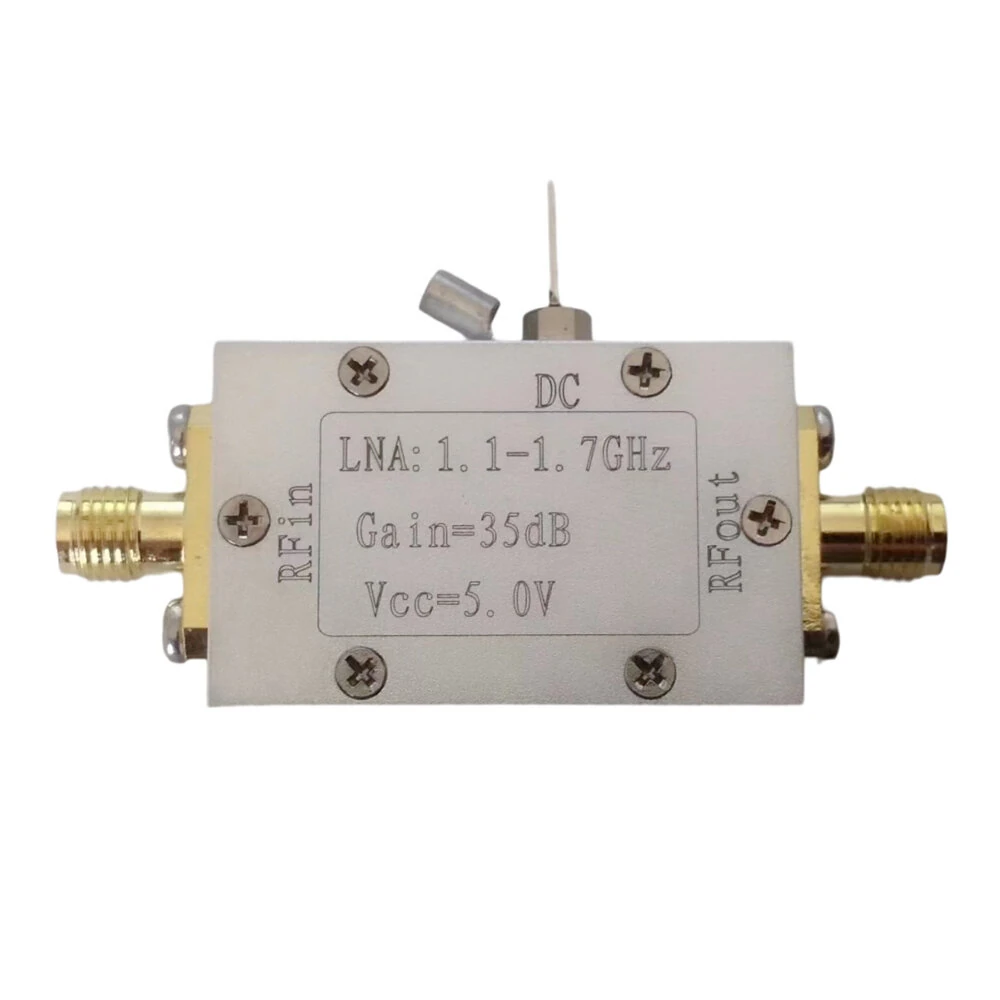

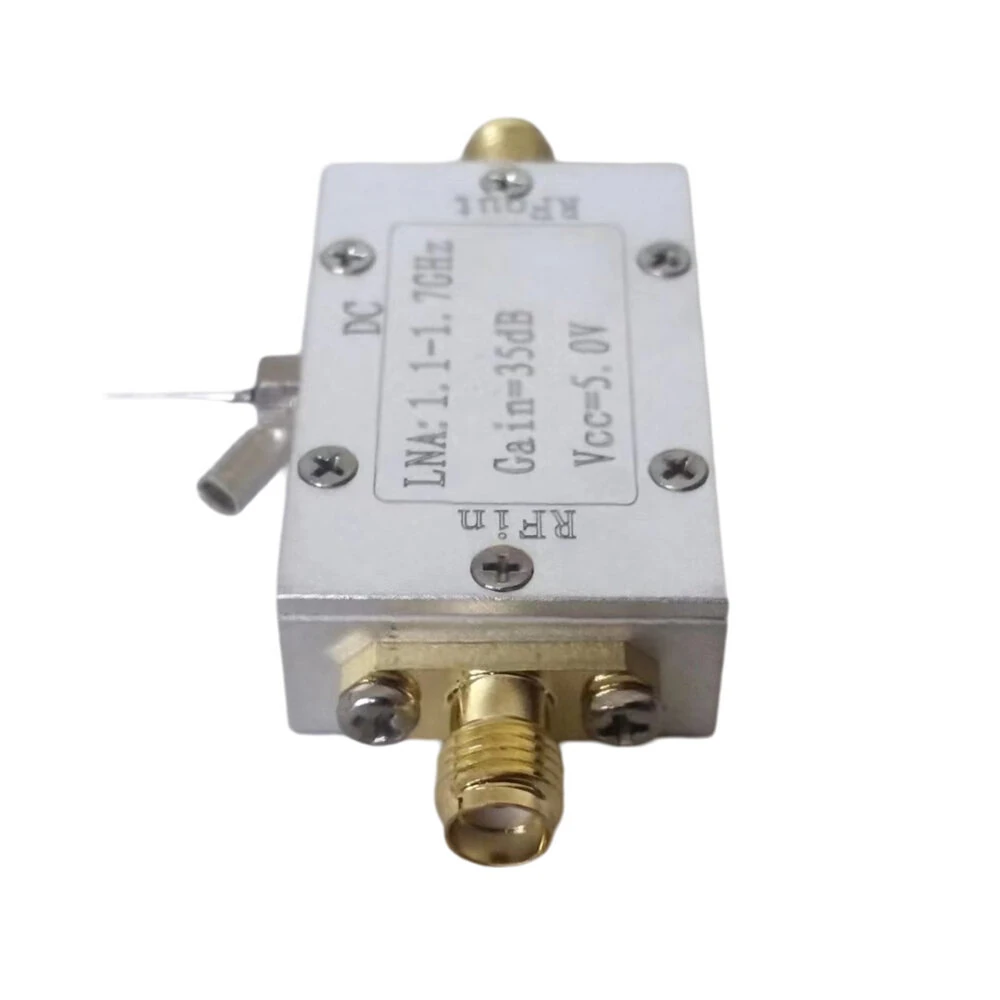

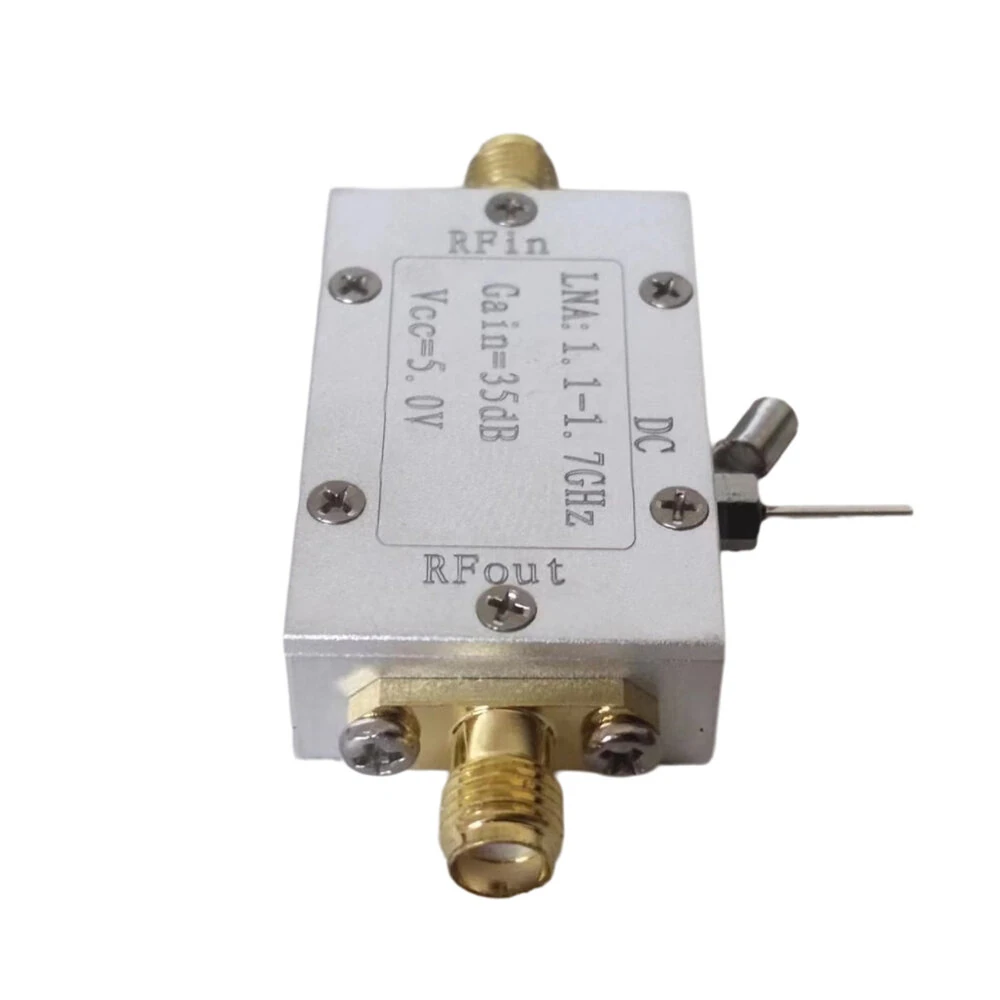

Wideband Low Noise Amplifier Module - 35dB Gain 0.6dB NF - 1.1-1.7GHz for GPS GLONASS Beidou

Product Description

Specifications:
Frequency Range: 1.1 - 1.7 GHz
Typical Gain: 35 dB
Gain Flatness: ??0.5 dB
Noise Figure: 0.6 dB
Output Power: +20 dBm (@ 1 dB compression point)
Operating Voltage: DC +5V
Operating Current: 130 mA
Input/Output Impedance: 50 ??
Connector Type: SMA-K (Female) or custom options based on demand
Dimensions: 35 mm x 22 mm x 11 mm (LxWxH)
Weight: Approx. 22 g
Features:
1.Ultra-low Noise Performance
With a noise figure of only 0.6 dB, this amplifier captures weaksatellite signals while significantly reducing background noise.
2.High Gain Capability
Offers a robust 35 dB typical gain, ensuring strong signal amplification for enhanced receiver sensitivity.
3.Broad Frequency Range
Designed to cover 1.1 to 1.7 GHz, seamlessly compatible with Beidou, GPS, GLONASS, and Galileosatellite navigation systems.
4.Exceptional Signal Quality
Features a +20 dBm output power at 1 dB compression point, maintaining signal fidelity even in the presence of strong in-band interference.
5.Easy Integration
Standard 50 ?? impedance with SMA-K connectors and compact dimensions (35mm x 22mm x 11mm) make it simple to incorporate into various RF systems.
Package Included:
1 x Low Noise Amplifier (LNA) Module
