NanoVNA Vector Network Analyzer 50KHz-900MHz | 2.8 TFT Screen | HF VHF UHF
$59.00
$73.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:??This is a DIY product that provides perfect vector network measurement capabilities in the size of a credit card.The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring.
??Simple and practical PC control software, you can export (snp) files for various radio design and simulation software through PC software. The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic. The extended 300M-600MHz band provides better than 50dB of dynamics, and the 600M-900M band is better than 40dB of dynamics.
Specification:
Name: Vector Network Analyzer
Color: As the pictures shown
Measurement Frequency: 50KHz ~ 300MHz (50KHz~900MHz, enable extended firmware)
RF Output: 0dbm (??2dB, fundamental wave)
Frequency Accuracy: <2ppm
Frequency Stability: <0.5ppm
Measurement Range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)
Port SWR: <1.1
Display: 2.8 Inch TFT (320 x240)
USB Interface: USB Type-C
Communication Mode: CDC (serial)
Power: USB 5V 120mA, Max. Charging Current 0.8A
Number of Calibration Points: 101 (fixed)
Number of Scanning Points: 101 (fixed)
Display Tracking: 4, Marking: 4, Setting Save: 5
PCB: 54mm x 85.5mm x 11mm/2.12" x 3.36" x 0.43" (without connectors, switches)
Functions: Measuring S parameters, voltage standing wave ratio, phase, delay, Smith chart...
Package Included:

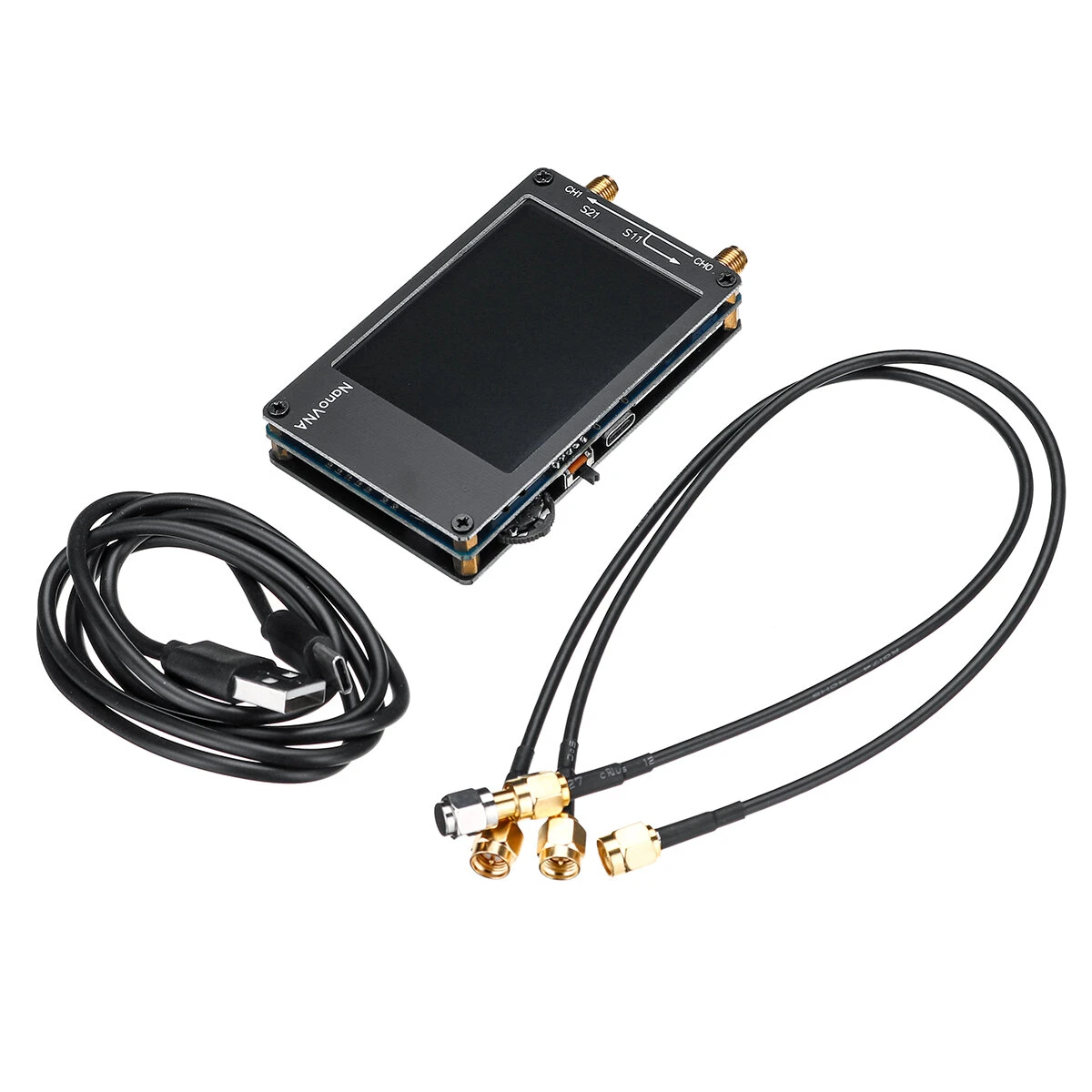

1 x NanoVNA Host (Battery NOT Included)
1 x USB Type-C Data Cable
2 x SMA male to male RG174 RF cable
