LNA High Flatness Receiver Amplifier - 20dB/30dB Gain - 50MHz-6GHz Wideband Low Noise - SMA

Product Description

Specifications:

Power Supply: TYPE-C line

Noise Figure: 4-5dB (varies by frequency)

Gain: 20dB, 30dB(varies by frequency)

Frequency Range: 50MHz - 6GHz

Dimensions: 4.5 x 3 x 1.4cm (excluding protruding SMA)

Weight: 66g (including host + TYPE-C cable)

Current: <100mA

P1dB: 18dBm @ 2GHz

Output Interface: SMA female, input-output impedance 50 ohms

Features:

Wide Frequency Range: Covers an extensive frequency range from 10MHz to 6GHz, making it versatile for various applications including GPS, FM radio, and radar reception.

High Gain Performance: Offers multiple gain options (20dB, 30dB) to suit different amplification needs, ensuring optimal signal strength.

Low Noise Figure: Features a competitive noise figure of 4-5dB, enhancing signal clarity and quality across different frequencies.

Compact and Lightweight: With dimensions of 4.5 x 3 x 1.4cm and weighing just 66g (including TYPE-C cable), it is easy to integrate into various systems without adding bulk.

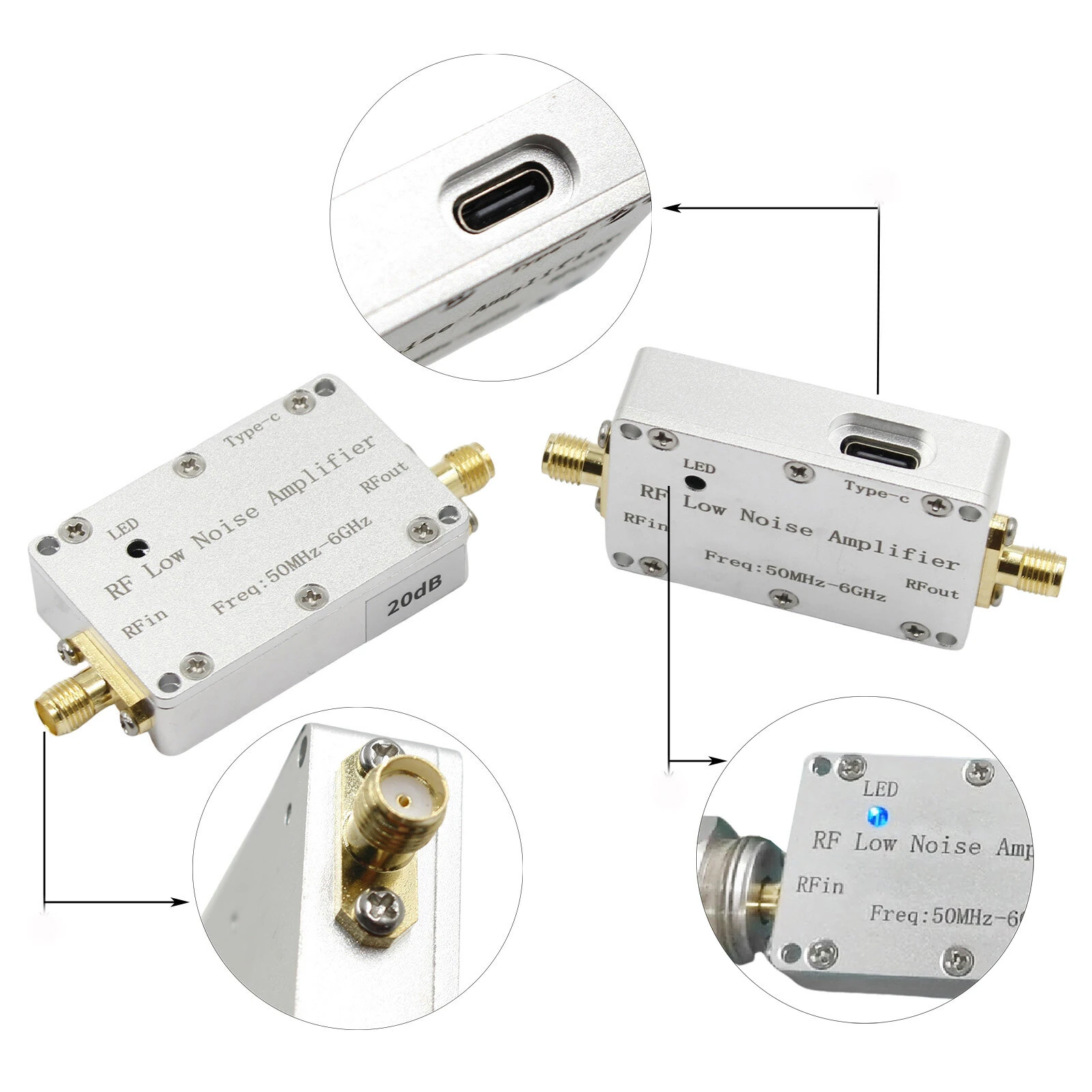

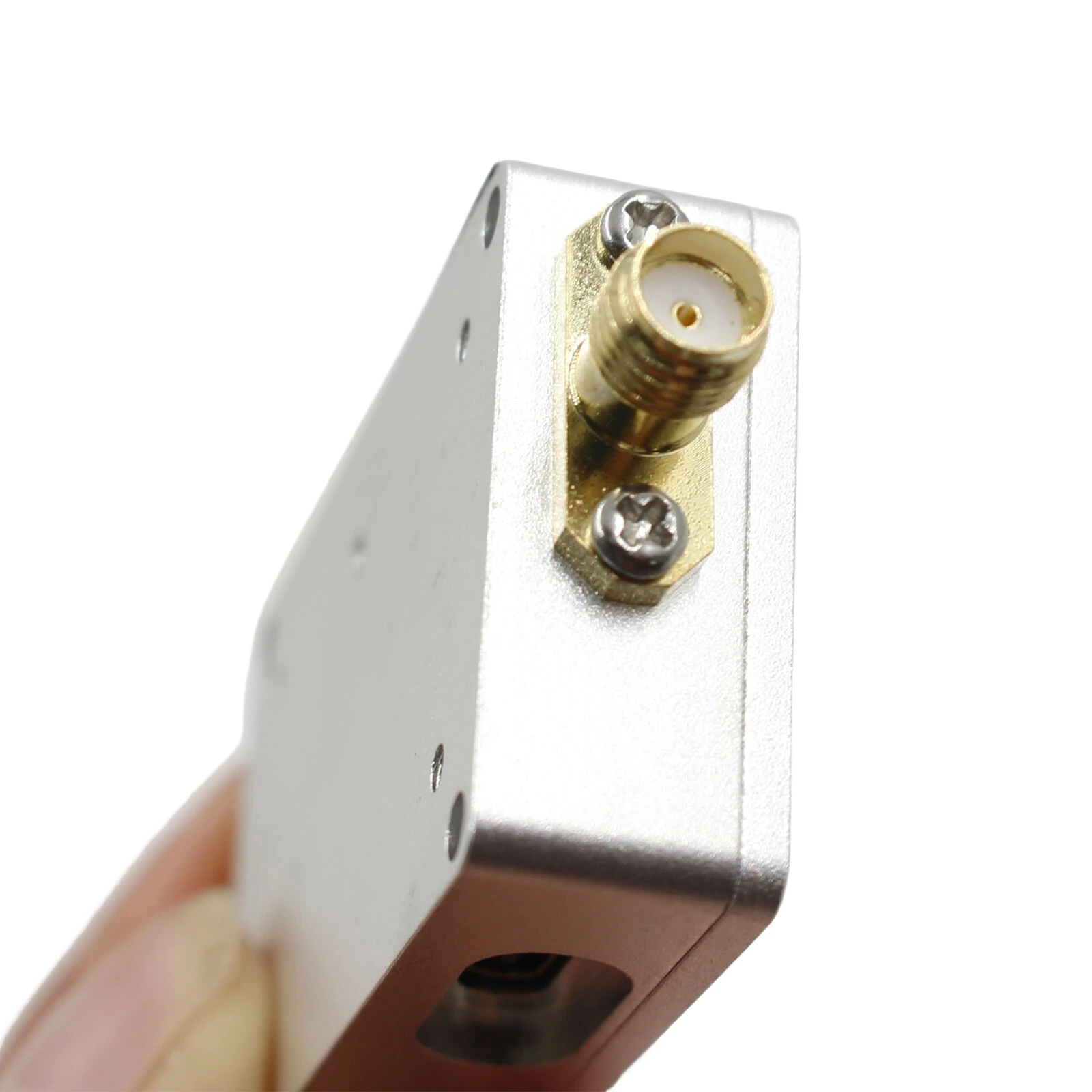

Robust Output Interface: Equipped with an SMA female output interface and 50-ohm impedance, ensuring stable connectivity and performance.

Package Included:

Type A:

1 x Host with Aluminum Alloy Shell (20db)

1 x TYPE-C Cable

Type B:

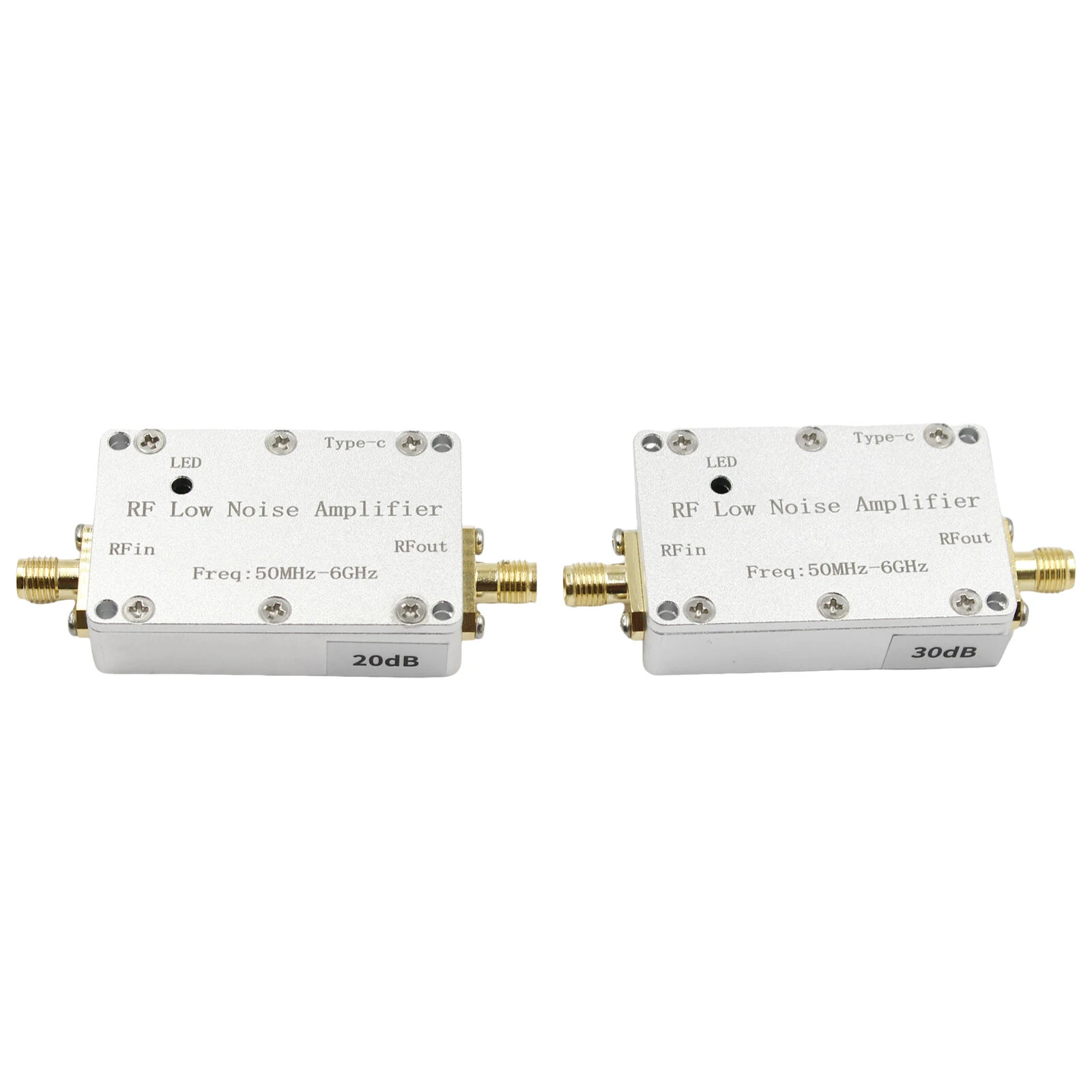

1 x Host with Aluminum Alloy Shell (30db)

1 x TYPE-C Cable
