HT004 Full Band Amplifier Preamplifier | 100kHz-6GHz 20dB Gain | Ultra-Low Noise 5V USB-C

Product Description

Features:

Wide Frequency Range and High Gain: The HT004 Full Band Amplifier Preamplifier covers a broad frequency range from 100kHz to 6GHz, making it versatile for various applications. It boasts a high gain of 20 dB at 1.95 GHz, enhancing weak signal reception significantly. This capability makes it an excellent choice for radio communication, signal analysis, and various RF applications.

Ultra-Low Noise and High Linearity: Featuring an ultra-low noise figure of just 0.4 dB at 1.95 GHz, the HT004 ensures minimal signal degradation and high-quality amplification. Additionally, it offers high linearity with an output IP3 of +35 dBm, making it capable of amplifying signals with minimal distortion, important for maintaining signal integrity in complex communication systems.

Robust Input Power Handling: Designed to handle high input power levels, the HT004 can withstand continuous wave input power of up to +22dBm. This rugged capability ensures reliable performance even under high-power conditions, making it suitable for a wide range of demanding applications.

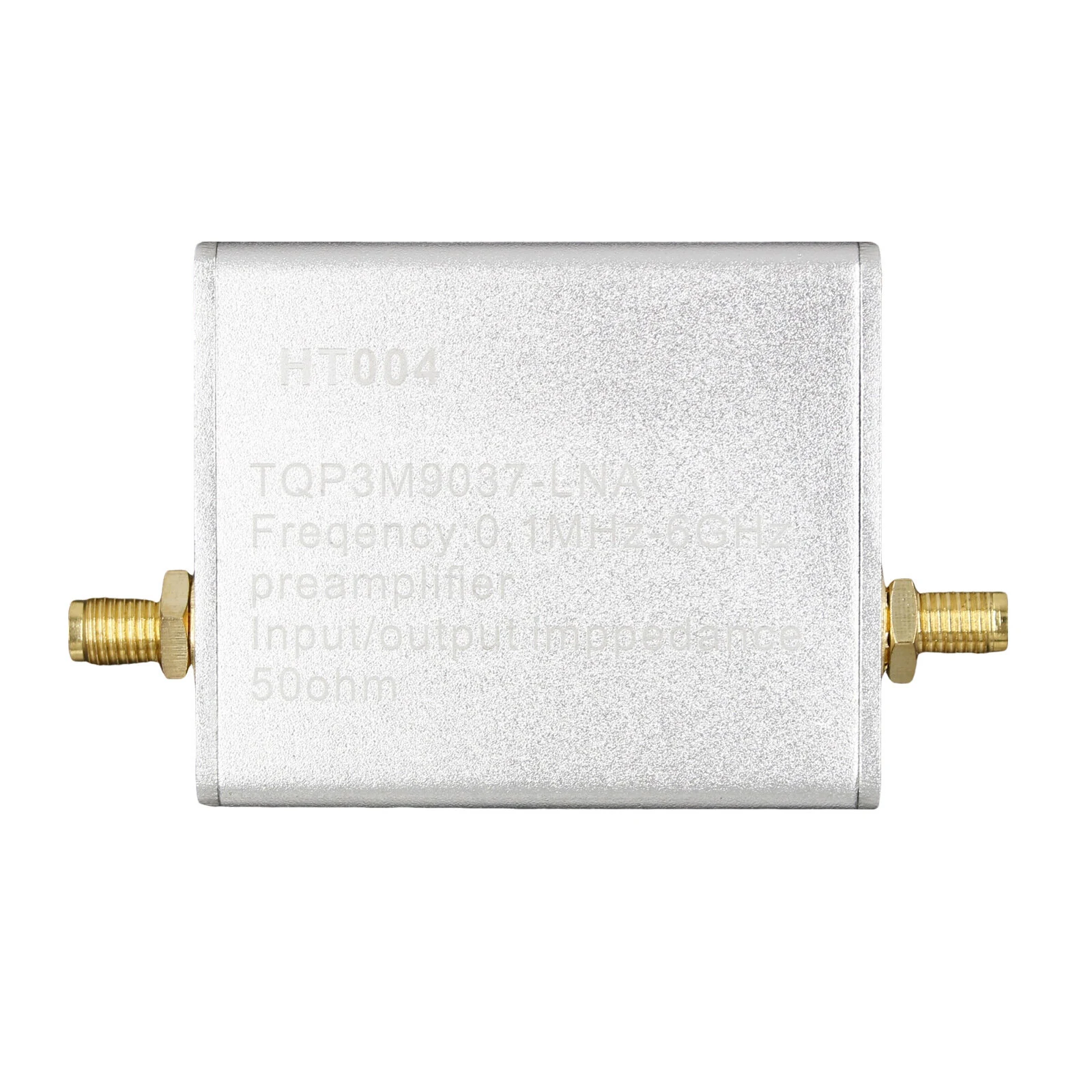

Stable Performance with Metal Shielding: The amplifier is encased in a high-end metal shield, which provides excellent protection against electromagnetic interference. This ensures stable performance and reliable operation in various environments. The 50-ohm input and output impedance also ensure compatibility with standard RF equipment, facilitating easy integration into existing systems.

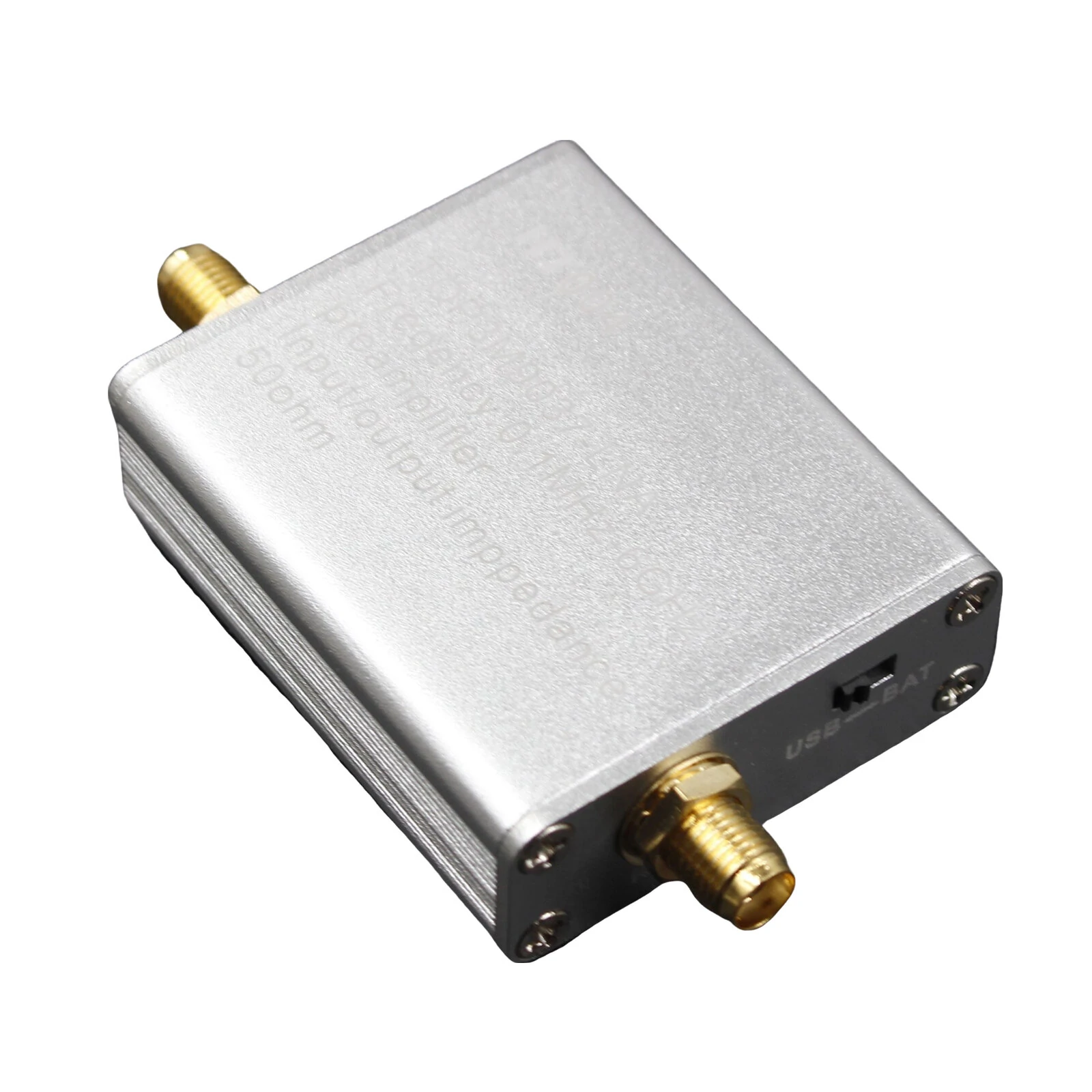

Compact and Convenient Design: With dimensions of 704515mm and a weight of just 32 grams, the HT004 is compact and lightweight, making it easy to incorporate into any setup. It comes with an SMA female connector for seamless connectivity. Additionally, it supports USB Type-C data cable power supply with an option to install a 3.7V 300mAh battery, providing flexibility in power management.

Specifications:

Product Name: 100k-6GHz Full Band Amplifier Preamplifier

Model: HT004

Power Supply: 5V 70mA

Frequency Range: 100kHz-6GHz

Noise Figure: 0.4 dB at 1.95 GHz

Gain: 20 dB at 1.95 GHz

Output IP3: +35 dBm

Input Power Handling: +22 dBm continuous wave

Impedance: 50 ohms (Input/Output)

Connector: SMA Female

Dimensions: 704515mm

Weight: 32 grams

Power Supply Option: USB Type-C Data Cable, 3.7V 300mAh battery (optional)

Packaging: Static Shielding Bag

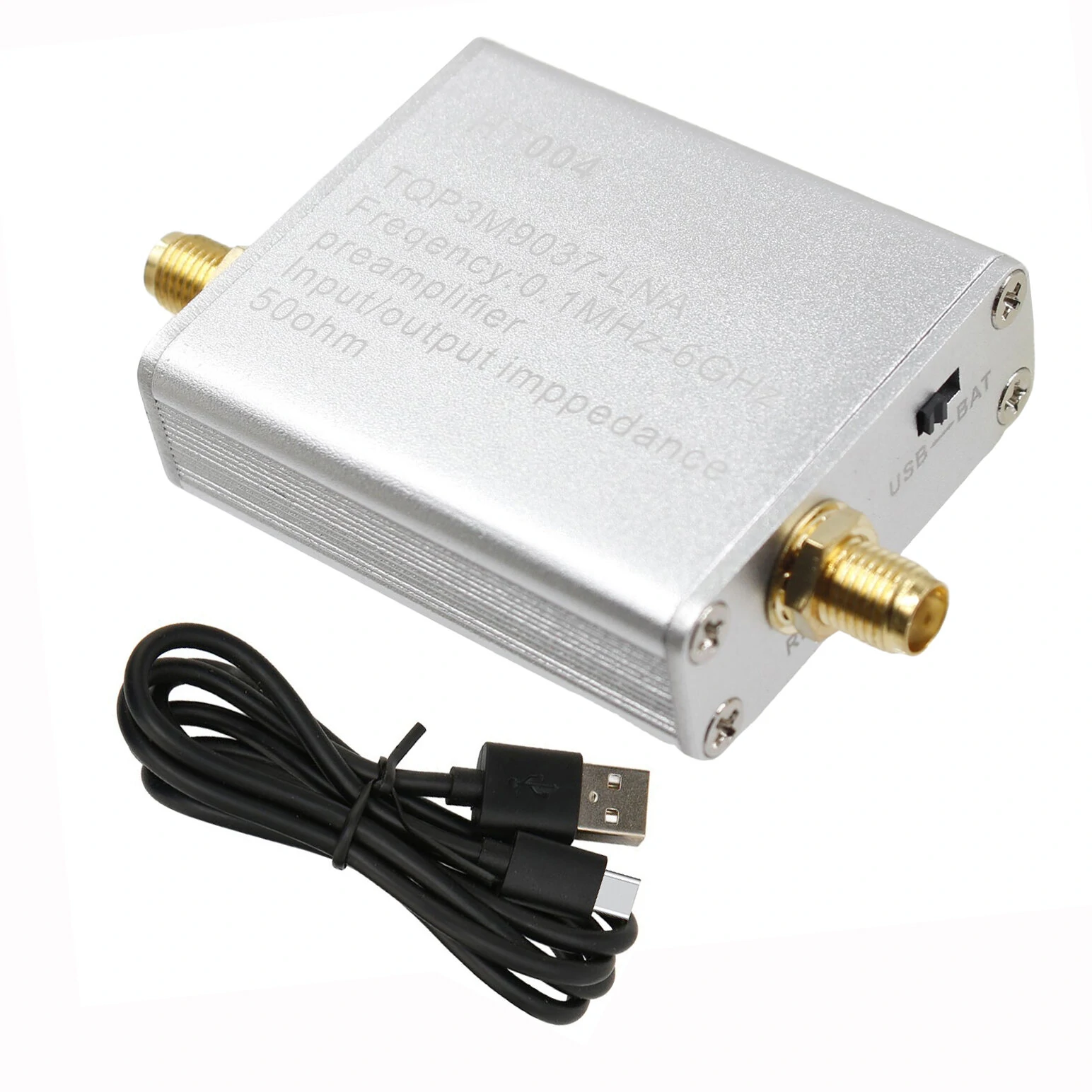

Package Included:

1 x HT004 Full Band Amplifier Preamplifier

1 x USB Type-C Data Cable
