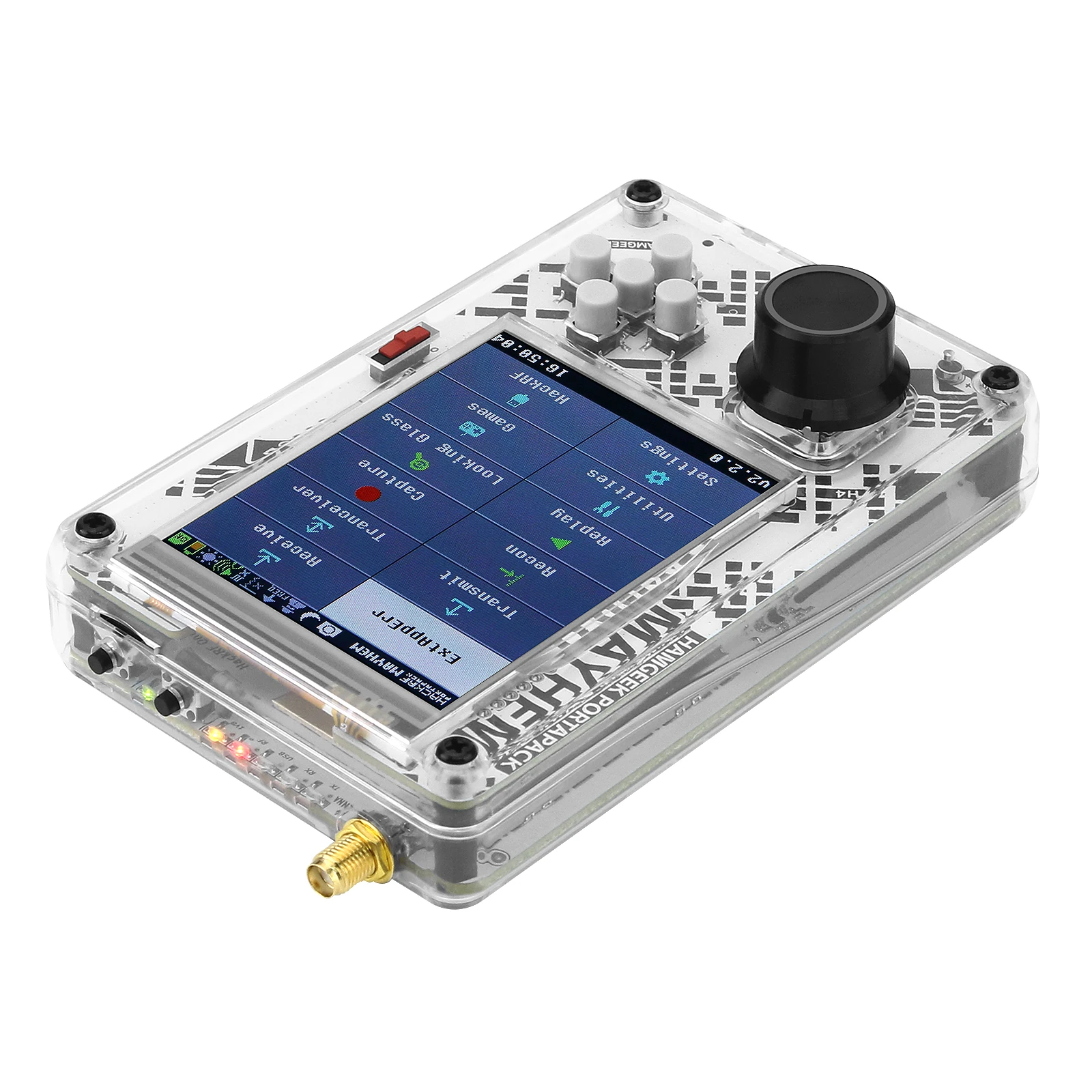

HackRF One R9C SDR - 1 MHz to 6 GHz, 20MSPS, USB-C | Open Source Programmable

Product Description

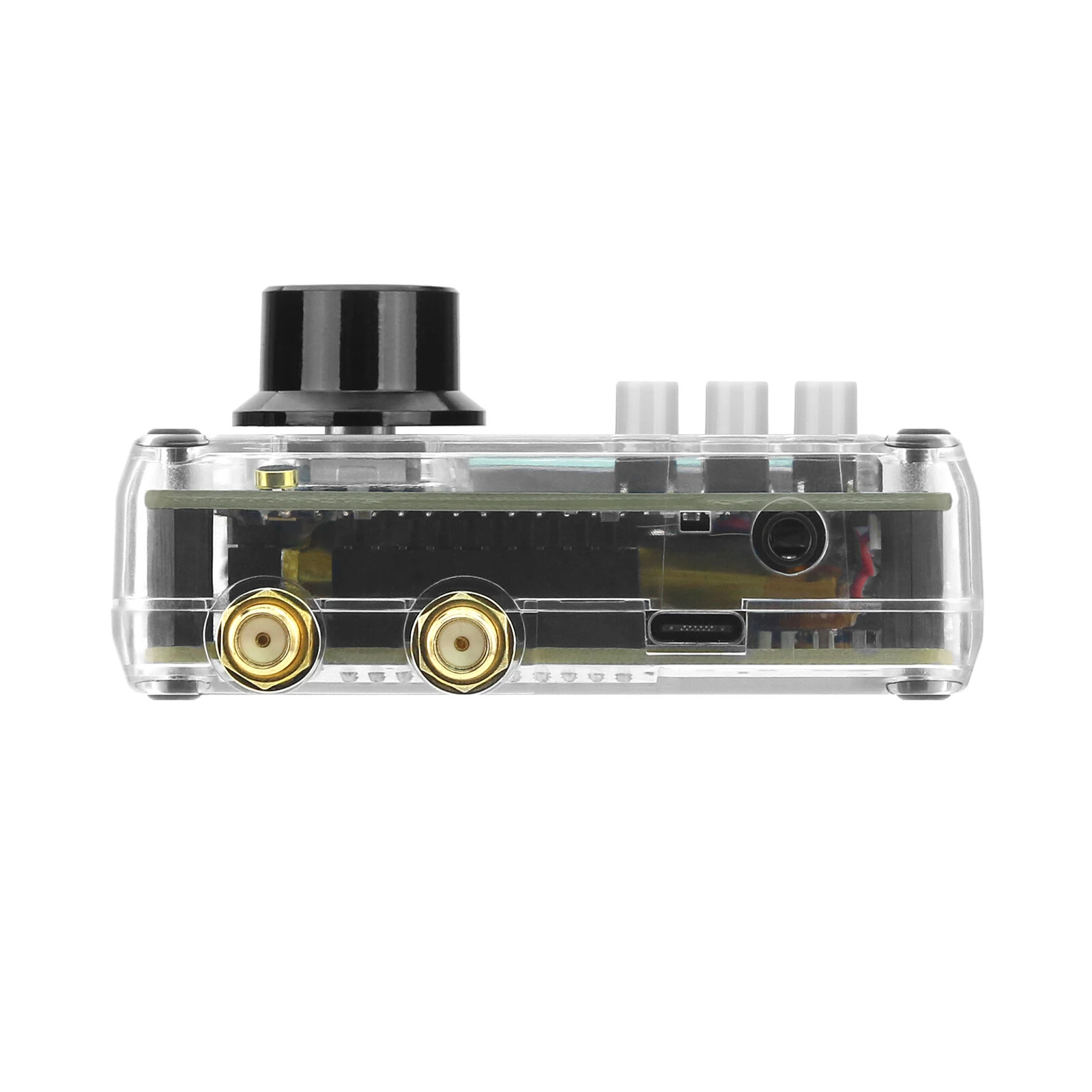

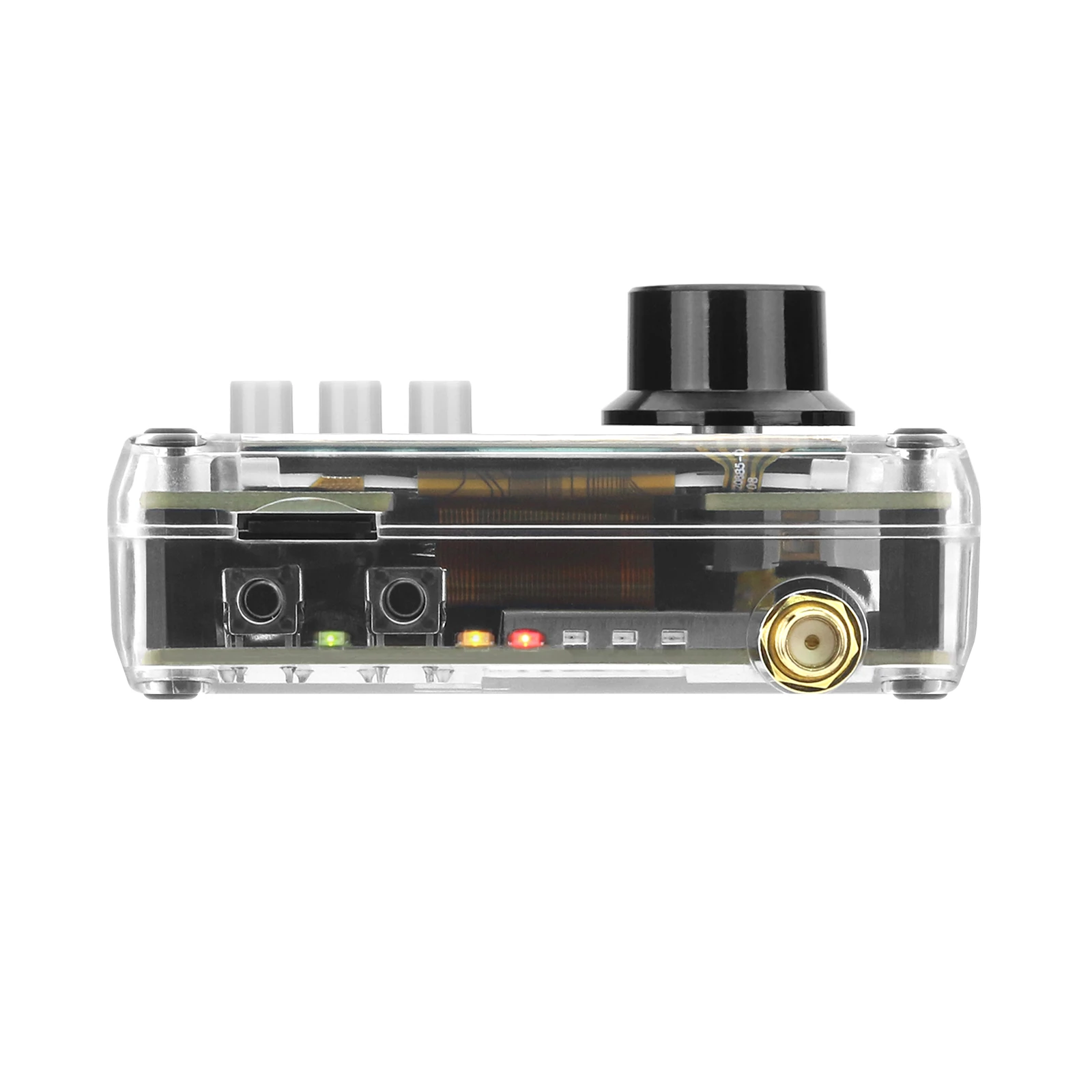

Specifications:Model: HackRF One R9COperating Frequency: 1 MHz to 6 GHzTransceiver Type: Half-duplex transmitter and receiverSampling Rate: Up to 20 million samples per secondSampling Resolution: 8-bit quadrature sampling (8-bit I and 8-bit Q)Compatibility: Works with software platforms such as GNU Radio and SDR#Configurable Components: Software-adjustable gain control and baseband filteringAntenna Port Power: Software-controlled (3.3 V at 50 mA)Connector Type: SMA female antenna connectorClock Sync Ports: SMA female clock input and output for synchronizationInterface: High-speed USB 2.0, Type-C connectionPower: USB-poweredExpansion Options: Internal pin header for additional developmentPlatform: Open-source hardware
Model: HAMGEEK MT1129 LNACharging Voltage: DC 5VBattery: 4.2V, 350mAhAntenna/Input Interface: SMA-KOutput Interface: SMA-JECharging Port: Type-CFrequency Range: 100 kHz to 6 GHzNoise Figure: < 0.8 dB NFGain: 20 - 35 dBImpedance: 50 OhmsNet Weight (with battery): 36 grams / 0.08 lbs
Features:1.Wide Frequency Range (1 MHz?C6 GHz): Easily capture, transmit, and analyze signals from a vast spectrum, supporting various radio frequencies via SDR technology for modern and future wireless communication exploration.2.Open-Source Programmable SDR Platform: HackRF One??s open-source hardware design caters to flexible development and compatibility, supporting advanced SDR programs like GNU Radio and SDR#.3.Enhanced Battery Management (H4): Enjoy battery status updates with an integrated screen showing charge percentage, voltage, and current flow, along with improved charging quality and automatic power-off when disconnected.4.Low Noise Amplifier (LNA with NF < 0.8 dB): Reduce signal degradation with the HAMGEEK MT1129??s ultra-low noise levels and boost reception quality for SDRs, radios, and analyzers.5.Outdoor-Friendly Screen Design: A built-in anti-glare display ensures clarity in bright sunlight, enabling effortless usage during field testing and analysis.

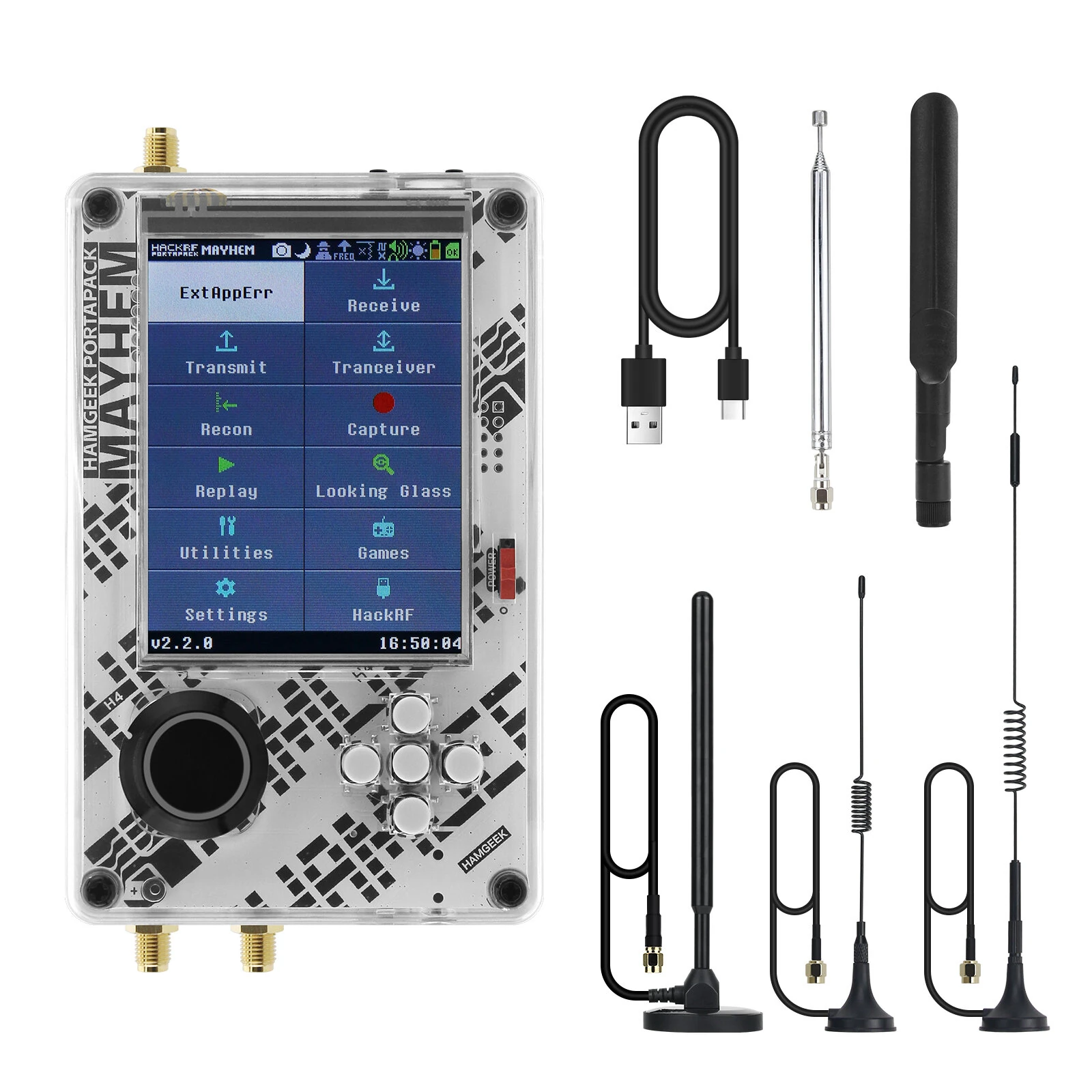

Package Included:Type A:1 x HackRF One R9C5 x Antennas1 x HAMGEEK MT1129 LNA1 x Type-C USB CableType B:1 x HackRF One R9C5 x Antennas1 x Type-C USB Cable
