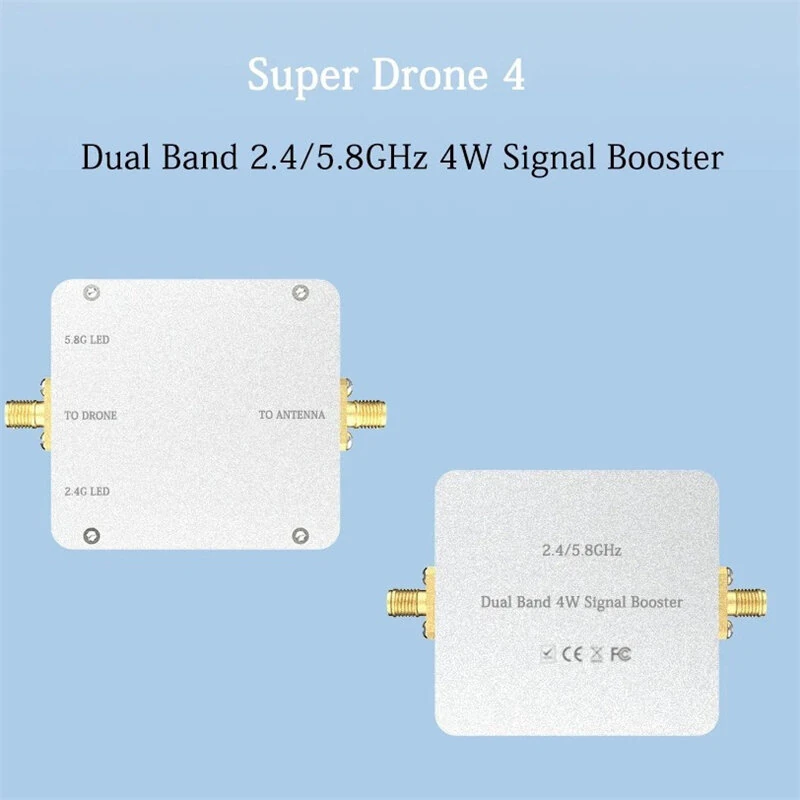

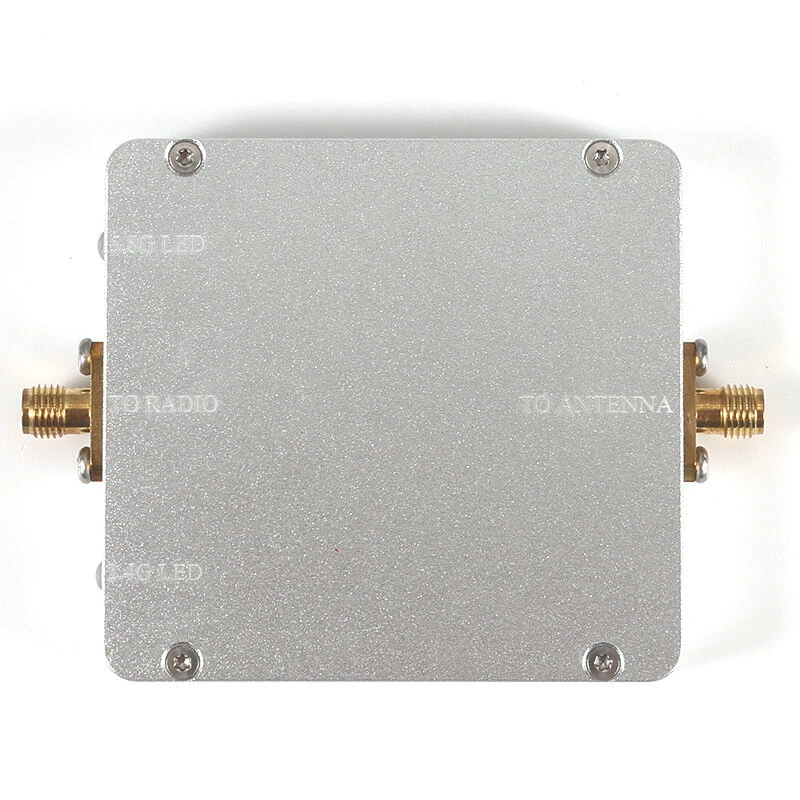

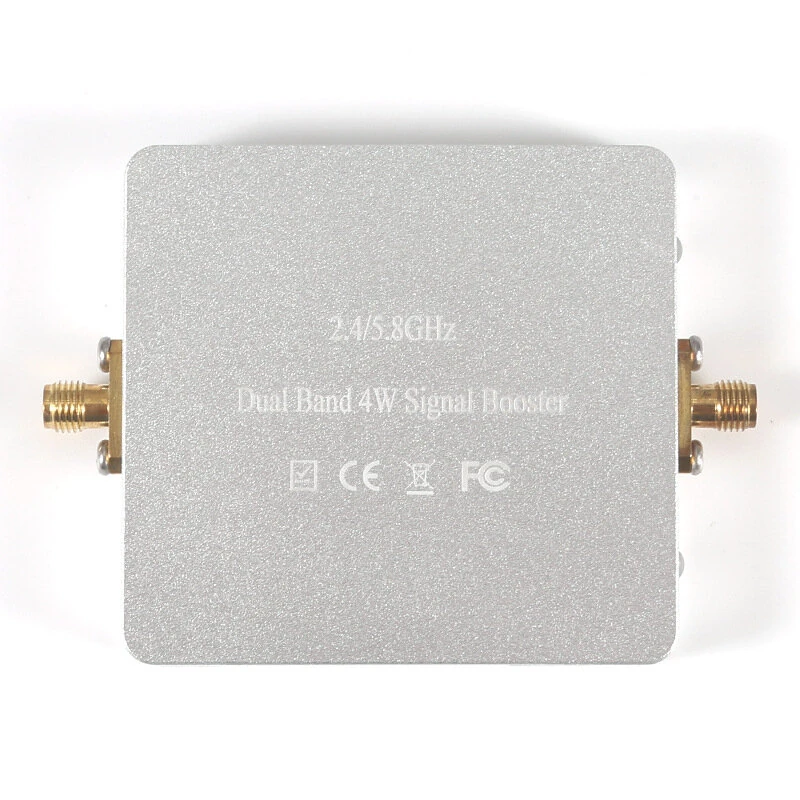

DJI Dual Band 2.4G 5.8G WiFi Booster | Outdoor Drone Signal Extender with WAN LAN Port

Product Description

Specifications:

- Booster Model: EP-AB015

- Operating Range: 2.4~2.5 GHz, 5.0~5.875 GHz

- Operating Mode: Bi-directional, half-duplex, time division duplex senses RF, carrier from transmitter and automatically switches from receiving to transmitting mode.

- Connector Type: SMA Receptacle 50ohm, To radio SMA female (hole inside), To antenna RP-SMA female (pin inside)

- Input Power: 5~23 dBm

- Transmit Gain: 15~18 dB

- Output Power: 4000mW (36 dBm)

- Receiver Gain: 15~17 dB

- Noise Figure: ??3.5 dB typical

- Frequency Response: ??1dB over operating range

- Supported Voltages: 6V~16V

- Operating Temperature: -30??C to + 70??C

- Operating Humidity: Up to 75% relative humidity

- Material: Cast Aluminum

- Booster Weight: 227g

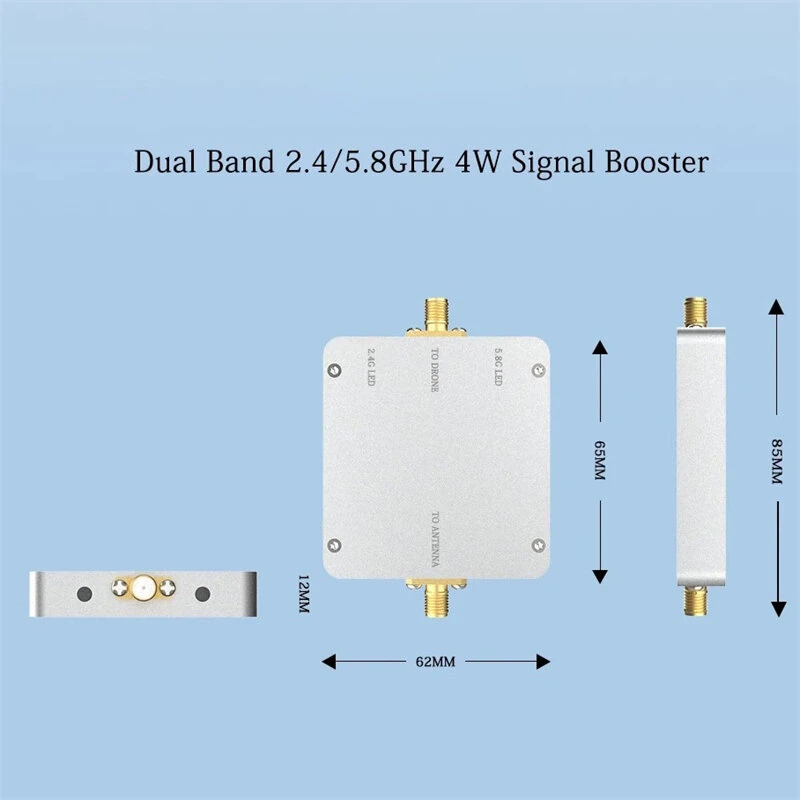

- Booster Size: 84*61*40 MM

Features:

1. Dual Band Compatibility:

This WiFi booster efficiently supports both 2.4G and 5.8G frequencies, automatically switching to the optimal band ensuring a seamless connection.

2. High Output Power:

With a maximum output power of 4000mW (36 dBm), it significantly enhances the wireless signal strength for broader and more reliable coverage.

3. Robust Build:

Manufactured from high-quality aluminum-alloy by CNC, this booster is designed to minimize interference effectively.

4. Wide Voltage Range:

Functions efficiently within a 6V to 16V range, allowing compatibility with various power supplies, making it versatile for different settings.

5. Easy Installation:

Simply plug and play with no additional software required, facilitating an effortless and swift setup process.

Package Included:

1 x WiFi Booster Signal Amplifier
