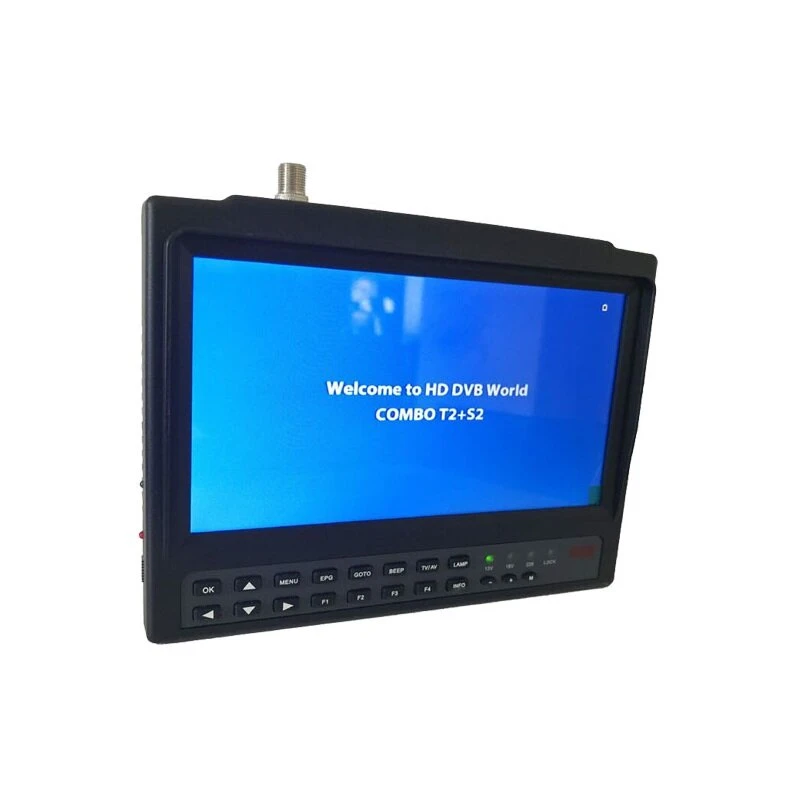

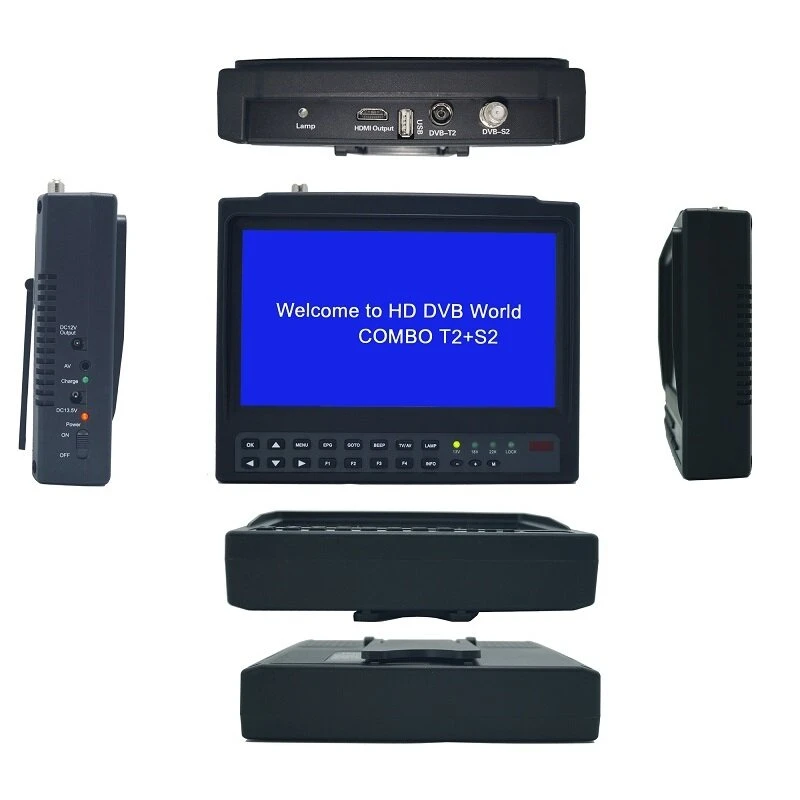

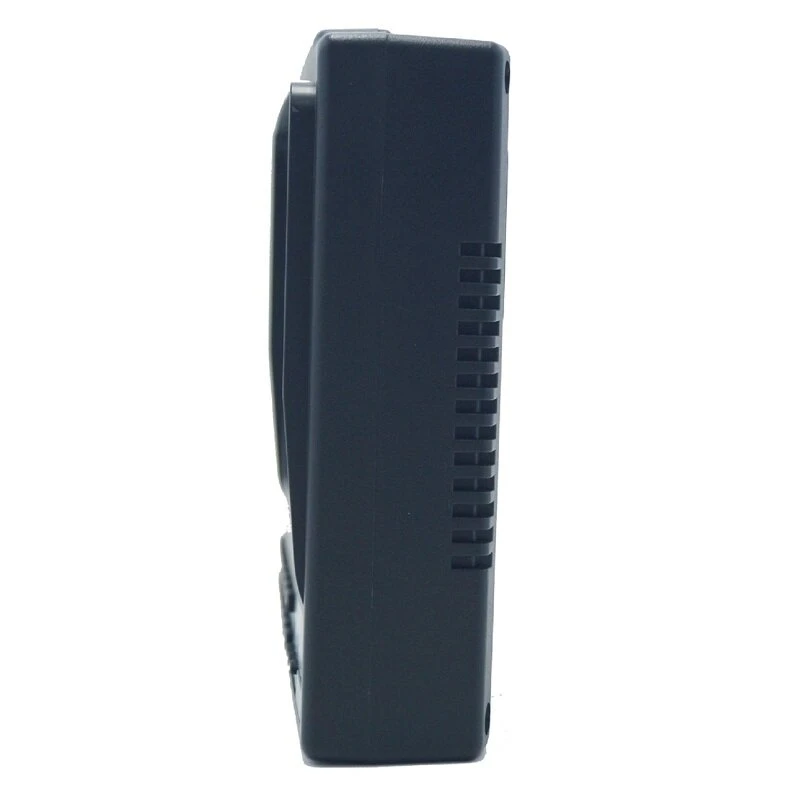

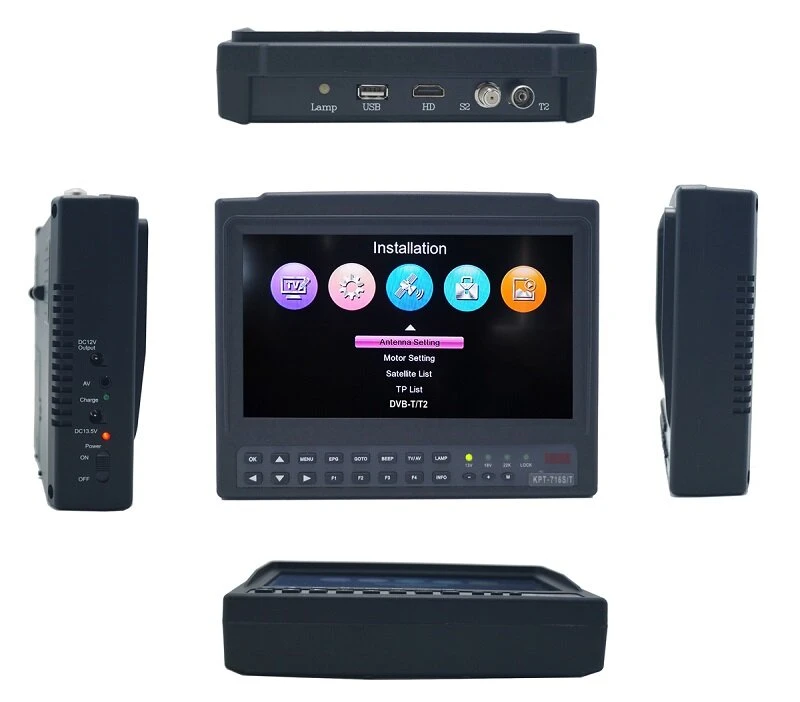

KPT-716TS Satellite Finder Meter - DVB-S2/T2 HD Receiver & MPEG-4 Modulator
Product Description
Features7inch Portable widescreen Satellite finder & DVB-T2 Test & Monitor *7??Inch High definition TFT LCD Screen which Can Play Channels(DVB-S/S2 & DVB-T2). *T2+S2 Combo Receiver;Live FTA Digital Picture and Sound, *AV Output and AV Input function. With HDMI Output *Shows strength and quality readings, *Sound and Light Alarm When Lock Signal(DVB-S/S2). *Fully compliant with DVB-T2/DVB-T standard
Specifications:
| CD Display | 7??TFT LCD | Display size:155*89mm | |
| Dots pixels:800*480(1152000Pixes) | |||
| Menu language | English; Russian; Thai. Vietnamese; Burmese; Persian. Georgian; French; Arabic | ||
| Receiver standard | Satellite Signal | DVB-S/S2 | |
| DVB-T/T2 | AVS/AVS+/MPEG-2 | ||
| Input&Output ports: | connector | DVB-S2 LAN in (75??) | F type male puly: 75? (F) Frequency range:950MHz-2150MHz Demodulation:QPSK, 8PSK,16APSK,32APSK Signal level: -65dBm~-25dBm DiSEqC:DISEqC 1.0/1.1/1.2/1.3 compatible |
| DVB-T2 ANT in (75??) | DVB-T and DVB-T2 standard Frequency range: VHF-H 174-230MHz, UHF 470-860MHz Demodulation:QPSK, 16QAM, 64QAM,256QAM Bandwidth:6,7,8MHz | ||
| HD input | 1.3 interface; 1080p/1080i/720p/480p/480i output supported | ||
| CVBS video, L/R audio | TV model: AV output; AV model: AV input ?3.5 Head RCA channel Video format:PAL/NTSC | ||
| USB 2.0 | Support PVR and software upgrade Supports external HDD via USB, power wanted if necessary | ||
| Power Supply | Lithium Battery | 11.1V/2200mAh | |
| Charger | Input AC100-220V Charge 13.5V / 1A | ||
| Output DC12V / 1.A | |||
| Physical Specification | Size | 180*143*50mm | |
| Net Weight | 580g (including battery pack) | ||
Main specification and features: T2+S2 combo receiver 1-DVB-T/T2, compliant with EN 300 744 DVB-T and EN 302 755 DVB-T2 2-DVB-S/S2, compliant with EN 300 421 DVB-S and EN 302 307 DVB-S2 3-QPSK,8PSK,16APSK and 32 APSK 4-QPSK/8PSK 1-45Msps, 16APSK:1-39Msps and 32APSK 1-32Msps 5-Channel bw 1.7/5/6/7/8MHz 6-T2-Base profile o T2-Lite profile o single and multiple PLPs 7-Low IF (4.57-10MHz) 8-Carrier acquisition range: +/-650kHz at 8MHz BW 9-Video decoder: MPEG-4/H.264 MP and HP MPEG-2MP at ML and MP at HL 10-Audio decoder: MPEG-1/2/4, AAC/HE-AAC/AC3.DD+ (optional)/PCM 12-PAL and NTSC auto switch 13-USB 2.0 for PVR, time shift and media playback 14-Up to 5000 channels 15-Supports subtitle and VBI/OSD Teletext 16-Auto scan/TP scan/NIT scan and blind scan 17-DISEqC 1.0/1.1/1.2/1.3 compatible 18-Supports favorites group 19-Supports logic channel number 20-OTA update
Package Includes:
1 x Satellite Finder
1 x Set of Accessories
Details Pictures:
