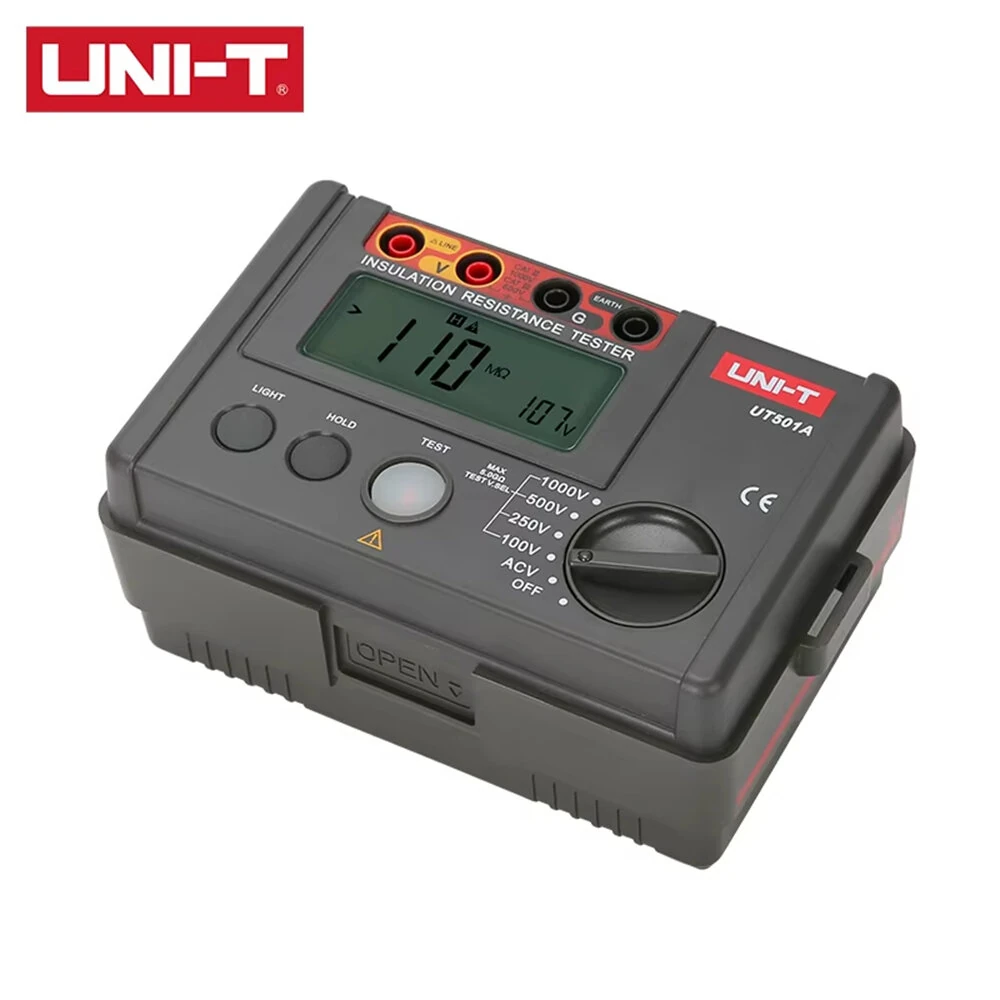

UNI-T UT501A Insulation Resistance Tester - 1000V 5.5GΩ | AC Voltage Measurement

Product Description

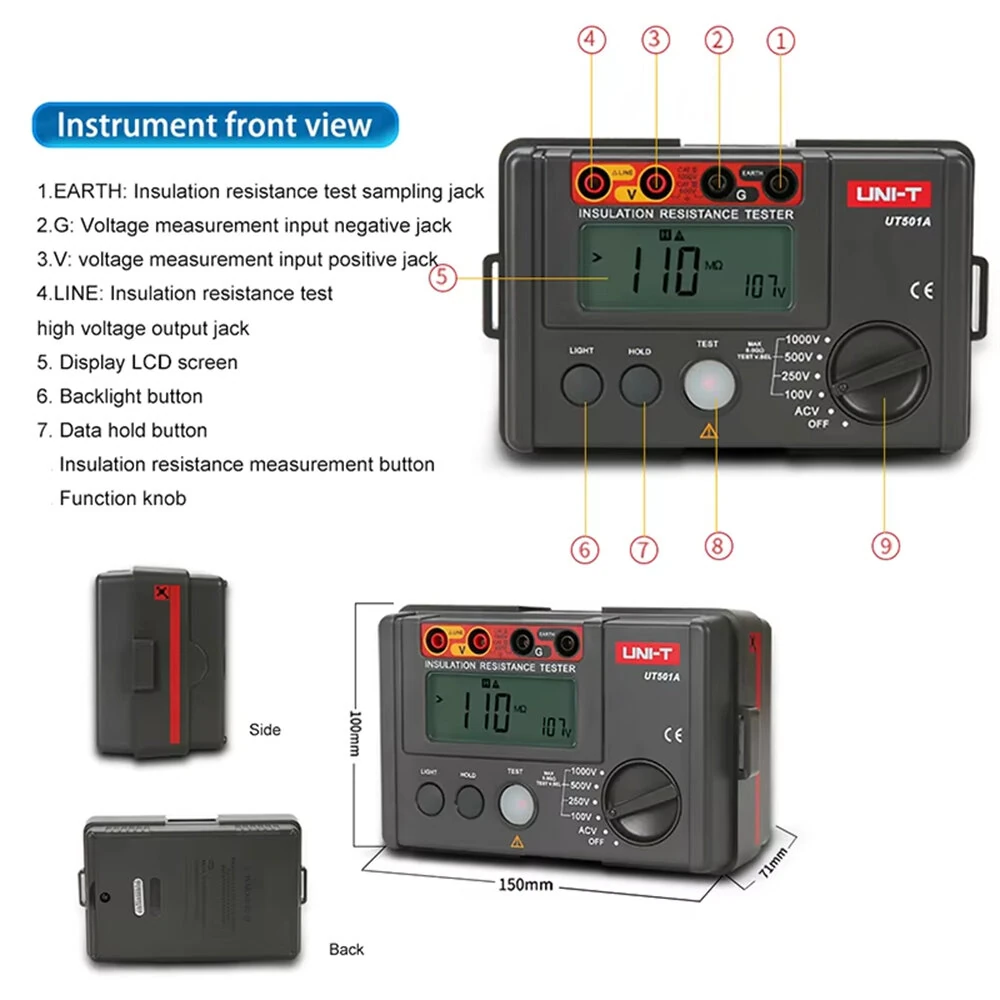

Specifications:Model: UT501AOutput Voltage: 100V, 250V, 500V, 1000VAC Voltage Measurement Range: 30V?C750V (??2%+3)Short Circuit Current: ??2mADisplay: LCD with backlightPower Supply: 6 x 1.5V alkaline batteriesBody Dimensions: 150mm x 100mm x 71mmBody Weight: 500g
Features:1.High-Precision Insulation Testing:Offers ultra-accurate readings for insulation resistance up to 5.5G??, making it highly suitable for complex electrical evaluations in high-voltage environments.2.Multiple Voltage Output Selections:With 100V, 250V, 500V, and 1000V output voltage options, this tester can handle a range of electrical applications, enhancing user flexibility.3.Enhanced Safety Features:Equipped with overload indication, light alert, buzzer alarm, and automatic discharge to ensure maximum safety during operations.4.Comprehensive Data Interface:The LCD display with backlight provides clear readings in low-light conditions, while the secondary voltage display adds extra convenience during tests.5.Built-in Internal Resistance Testing Capability:Includes a dedicated function for testing 10M?? internal resistance, helping users address troubleshooting and performance control efficiently.

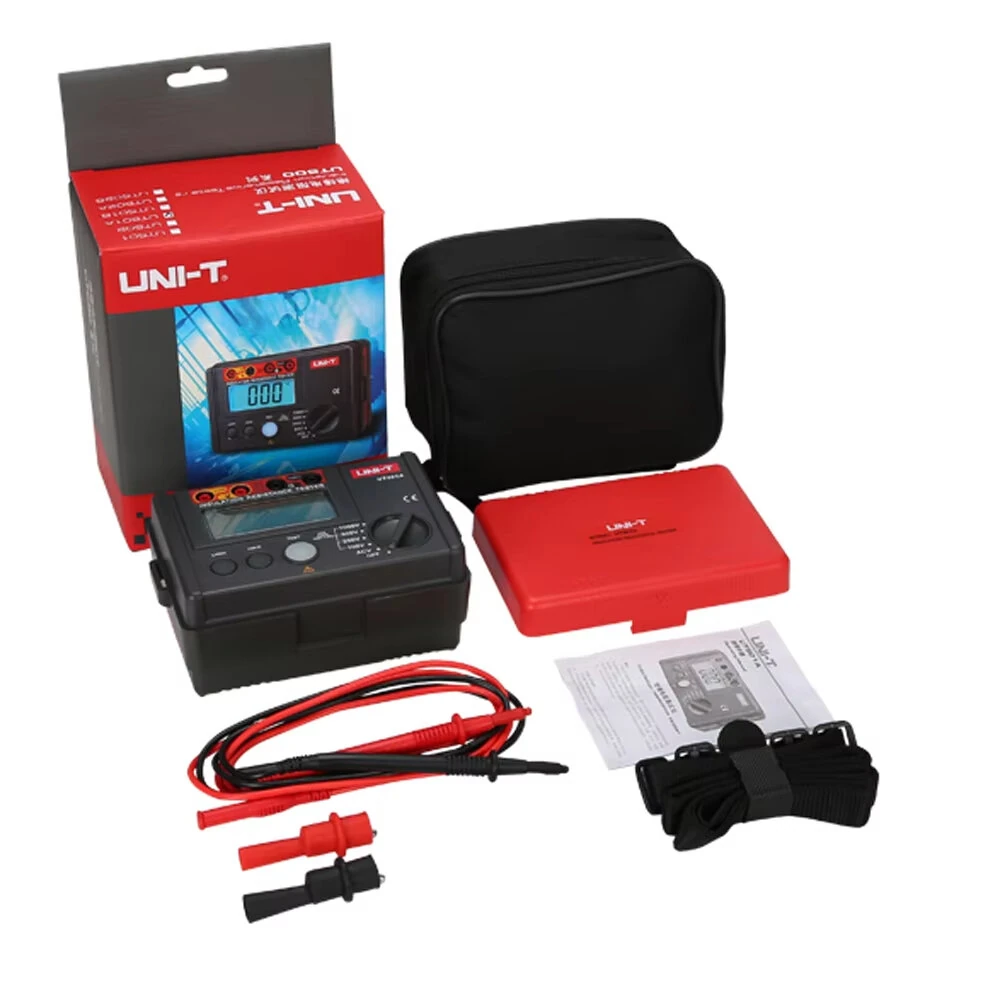

Package Included:1 x Insulation Resistance Tester KitNote: Battery is not included.
