Semiconductor Withstanding Voltage Tester | 0-3500V Transistor Diode MOS LED Tester

Product Description

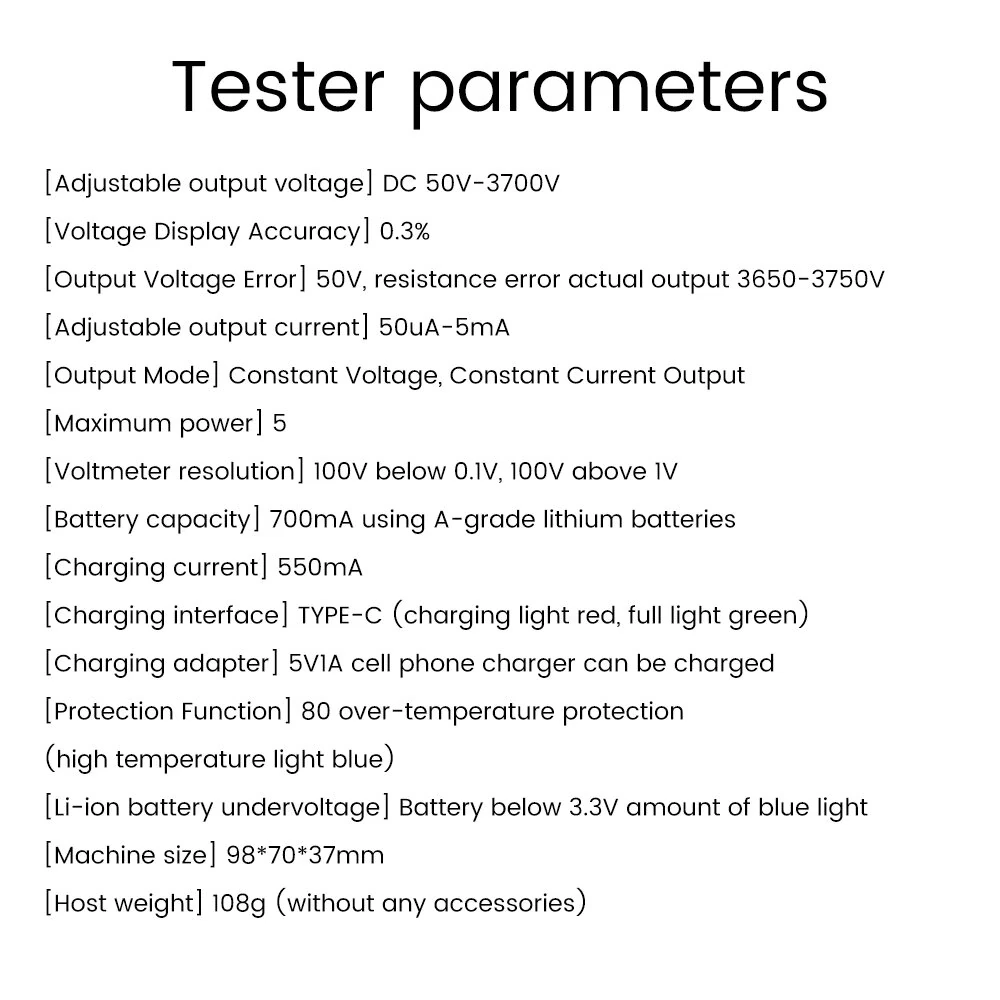

Specifications:

- Adjustable output voltage: DC 50V-3700V

- Voltage display accuracy: 0.3%

- Output voltage error: ??50V

- Adjustable output current: 50uA-5mA

- Output mode: constant voltage, constant current output

- Maximum power of the machine: 5W

- Voltmeter resolution: 0.1V (below 100V), 1V (above 100V)

- Battery capacity: 700mA lithium battery

- Charging current: 550mA

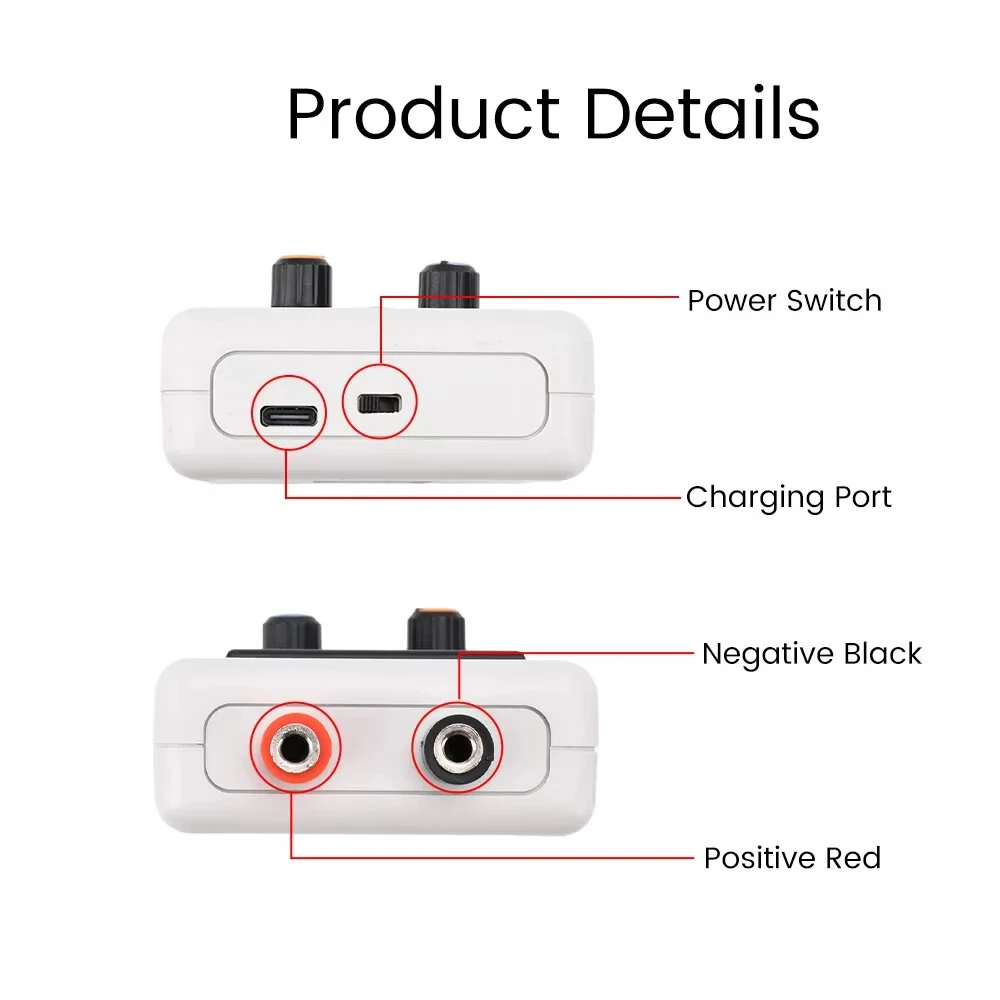

- Charging interface: TYPE-C (red light when charging, green light when full)

- Charging adapter: 5V1A phone charger compatible

- Protection function: over-temperature protection at 80??C (indicator light blue)

- Battery undervoltage: indicator light blue (below 3.3V)

- Machine size: 98*70*37 mm

- Host weight: 108 g (without accessories)

Features:

-1. Efficient Insulation Testing: Simultaneously test insulation voltage for switches, buttons, connectors, and between motor windings, including phase-to-phase and shell core insulation.

-2. Portable and Compact: Designed for easy transportation and organization, ensuring convenience wherever you go.

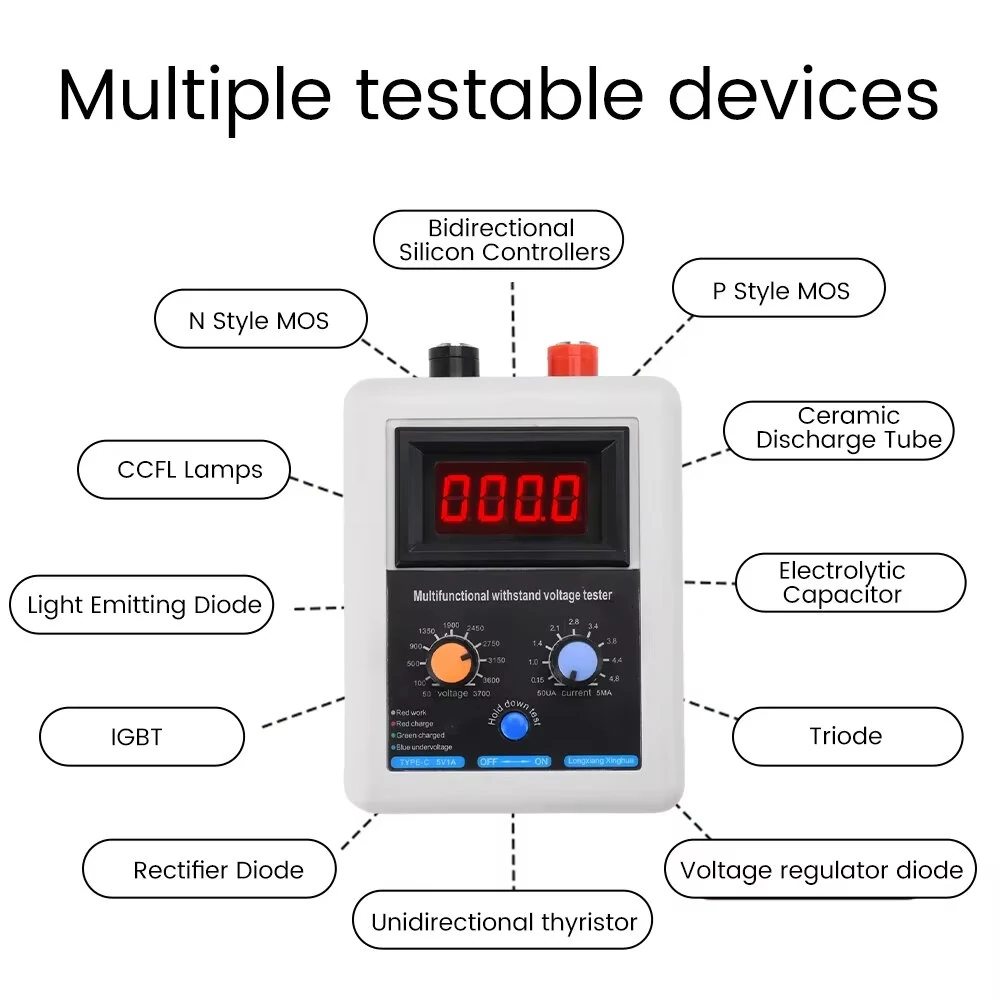

-3. Wide Applicability: Suitable for a variety of components including NIMOS, PMOS, IGBT, transistors, SCRs, voltage regulator diodes, LEDs, rectifier bridges, varistors, and electrolytic capacitors.

-4. Precision Voltage Adjustment: Adjustable output voltage ranging from DC 50V to 3700V with a voltage display accuracy of 0.3% and an error margin of ??50V.

-5. User-Friendly Charging: Equipped with a 700mA lithium battery, rechargeable via TYPE-C interface with a standard 5V1A phone charger, complemented by indicator lights for charging status and over-temperature protection.

Package included:

1 x Tester

1 x Instruction manual

10 x Alligator clips test line accessories
