RUIBEST RC2516A Portable Milliohmmeter - Micro Ohmmeter DC Low Resistance Tester
Product Description
???>>Please Click Here to Download the English User Manual<<
Features:
1. Multi-range selection.
2. Upper and lower limit sorting.
3. Use lock key design to prevent misoperation.
4. The temperature measurement speed can be selected fast/slow
5. A variety of color background images are available.
6. Small size, compact and portable.
7. Touch the button for longer use.
Specifications:
Measurement function | |
Test speed | Fast: 25 times Medium speed: 15 times Slow speed: 8 times |
Test terminal configuration | Four terminals |
Trigger method | Internal/external/manual |
Zero clearing method | Self-stabilizing zero without clearing (can be cleared when needed) |
Resistance test | |
Measuring range | RC2516A: 1?̦?-200K?? |
Test accuracy | RC2516A: ??20m?? 0.1% >20m?? 0.05% |
Measurement method | |
Range | 9 ranges automatic and manual |
Display result | direct reading ??% sorting result four and a half digits display |
Clearing | short-circuit clearing within the full range |
Comparator | 3 gears sorting (1 gear over upper limit, 1 gear over lower limit, 1 gear pass) |
Temperature measurement | -55??- +125?? accuracy ??0.5?? |
Comparative discrimination | |
Signal output | Over upper limit qualified over lower limit |
Message | Closed if qualified or unqualified |
Limit setting method | Absolute upper/lower limit, percentage upper/lower limit + nominal value |
Delay time | 0-999 ms can be set |
Trigger level | Rising edge/falling edge selectable |
Interface and storage | |

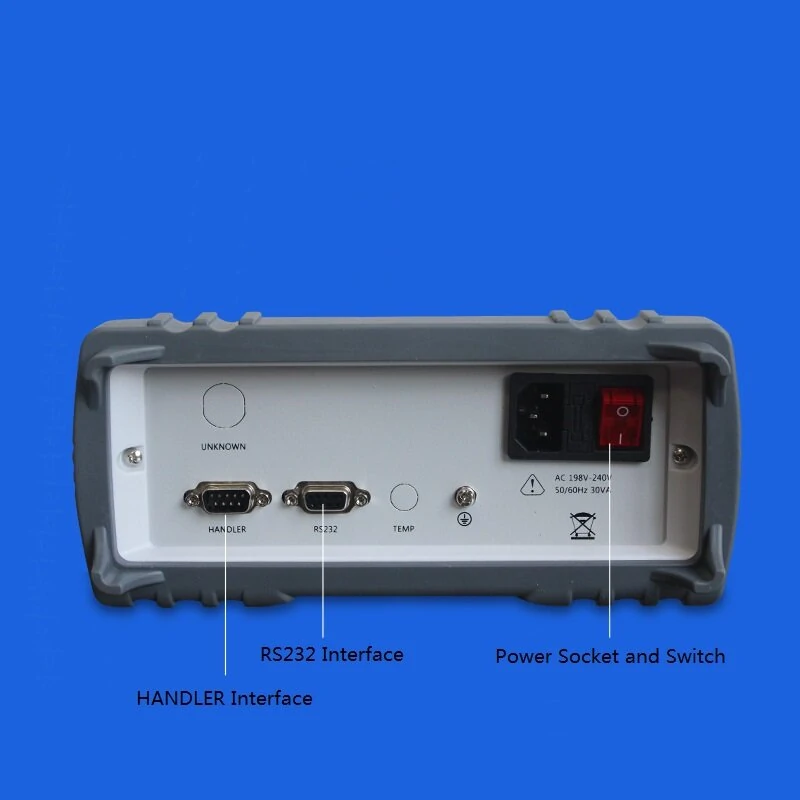

Standard interface | RS232 HANDLER temperature acquisition USBDEWICE RS485 interface (optional) |
Other | |

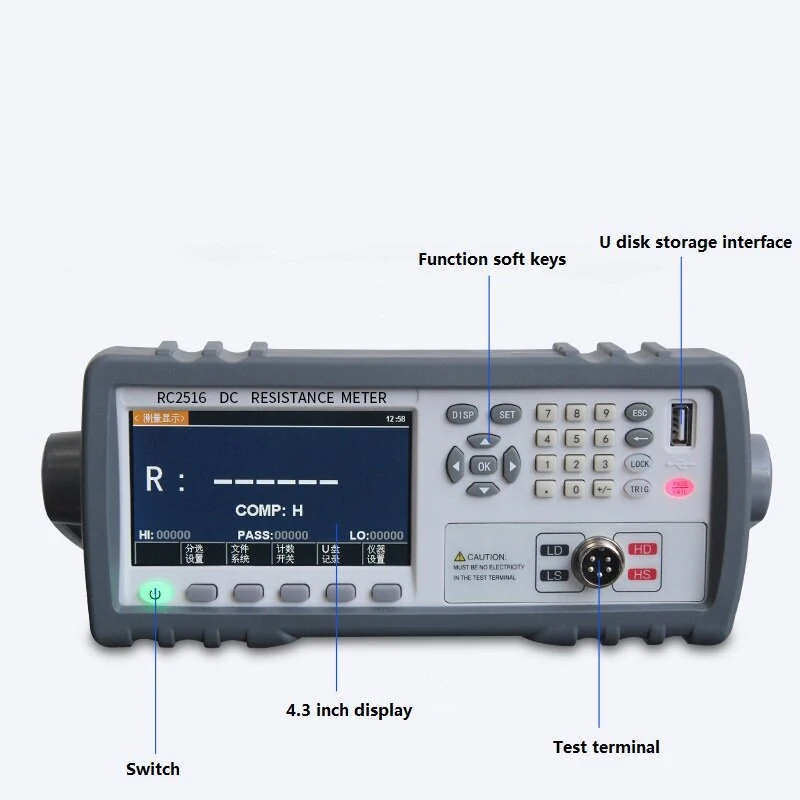

Display small device | 4.3 inch true color LCD display with four and a half digits |
Temperature and humidity | Temperature: 0??~40?? Humidity: W90%RH without condensation |
Power requirements | Voltage: 198VAC-242VAC Frequency: 47HZ-63HZ |

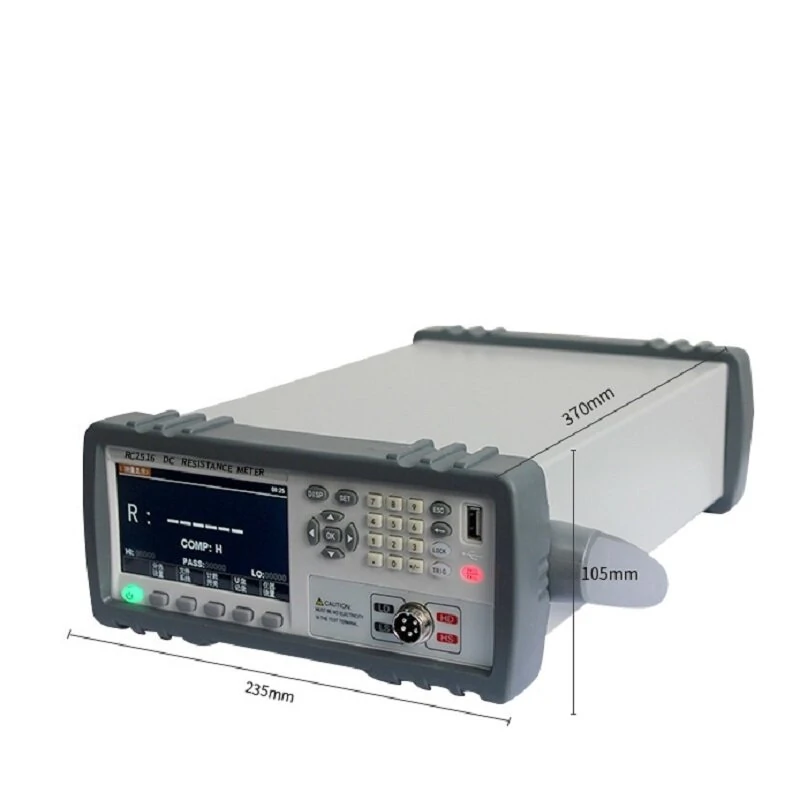

Size and weight | 215mm (width) *86mm (height) *330mm (length) Net weight: about 3.0kg |
Package Included:
1 x RC2516A Resistance tester
1 x Three-core power cord
1 x RC26050 Four-terminal test cable
