Megger FR3025 Insulation Resistance Tester - 2500V 200GΩ Megohmmeter
Product Description
?Description:
- FR3025 digital insulation resistance meter, also known as megohmmeter, high voltage insulation resistance tester, is used for insulation resistance testing. This instrument has the functions of large LCD screen gray-white backlight display, data storage, data access, alarm, automatic shutdown, etc. It also has the functions of measuring DC voltage and AC voltage absorption ratio and polarization index. The whole machine is beautiful and high-grade, wide range, high resolution, convenient operation, easy to carry, accurate, reliable, stable performance, strong anti-interference ability.
- FR3025 also has a shock-proof, dust-proof and moisture-proof structure, adapts to harsh working environments, and is a commonly used and indispensable instrument for electric power, post and telecommunications, communications, electromechanical installation and maintenance, and industrial enterprises that use electricity as industrial power or energy. It is suitable for measuring the resistance value of various insulating materials and the insulation resistance of transformer, motors, cables and electrical equipment.
- FR3025 digital insulation resistance meter is composed of medium and large-scale integrated circuits. This watch has large output power and many output voltage levels (5 voltage levels). The rated insulation test voltage range is 100??2500V, and the insulation resistance measurement range is 0.01M????200G??. The measuring range of DC voltage is 0??1000V, and the measuring range of AC voltage is 0??750V.
Specification:
Function | Insulation resistance test, voltage test |
Base condition | 23??C ?? 5??C, below 75%rh |
Rated voltage (V) | 100: 250: 500: 1000: 2500 Accuracy ?? 3%rdg ?? 5dgt |
| Data storage | 500 groups, flashing "FULL" symbol indicates that the storage is full |
| Data access | Data access function: "MR" symbol display |
| Overflow display | Over-range overflow function: "OL" symbol display |
| Alarm function | When the measured value exceeds the alarm set value, an alarm will be issued |
Standby: 40mA Max (backlight off) Turn on backlight: 43mA Max Measurement: 80mA Max (backlight off) | |
| 1230g (including battery) | |
| Battery voltage | Battery voltage is low, display low battery symbol |
| Automatic shut-down | The meter shuts down after about 15 minutes of inactivity |
| Insulation resistance | ??50M?? (1000V) |
| Withstand voltage | AC3kV/50Hz 1min |
| Working temperature and humidity | -10??C~+50??C <85%RH |
| Storage temperature and humidity | -15??C~+55??C <90%RH |
| Suitable for safety regulations | IEC61010-1, 1EC1010-2-31, IEC61557-1.5, IEC60529 (IP54), pollution, etc. 2, CATIII 300V |

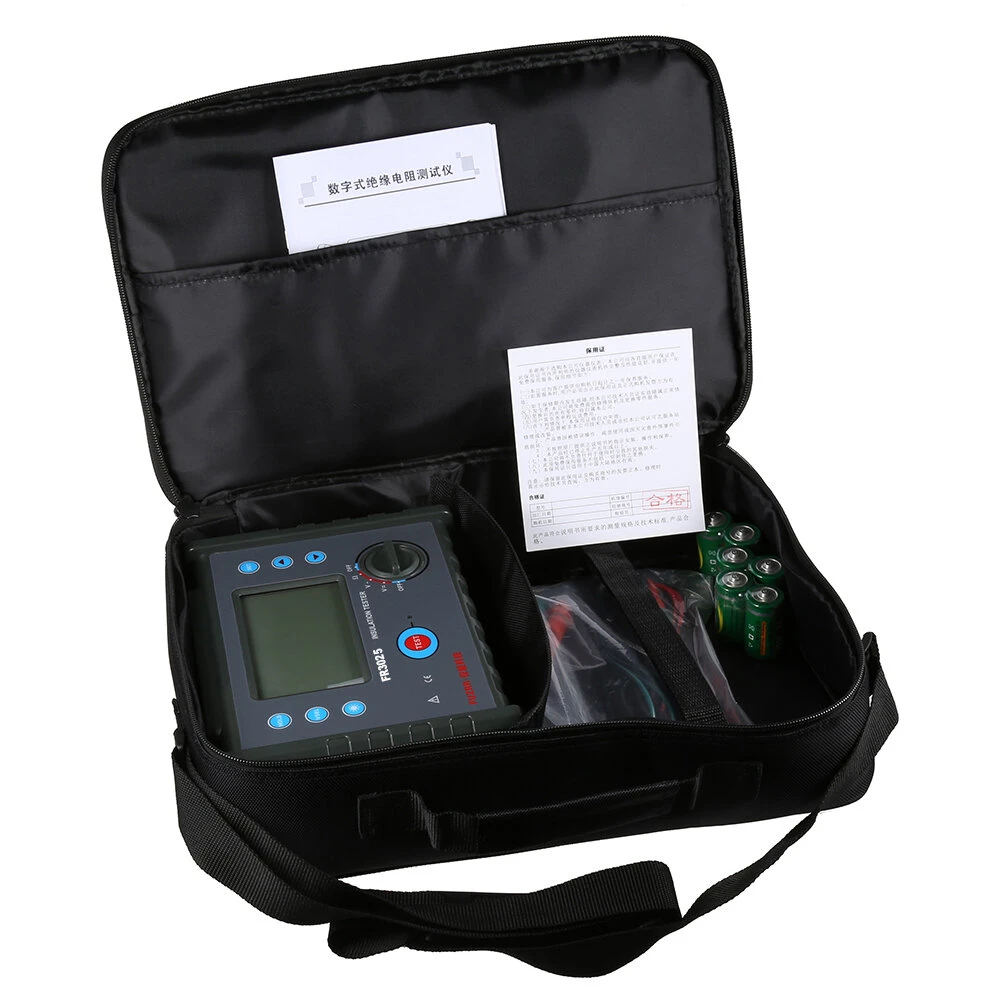

1 x Meter
3 x High voltage test line (One each for red, black and green)
1 x Instrument package
1 x User Manual

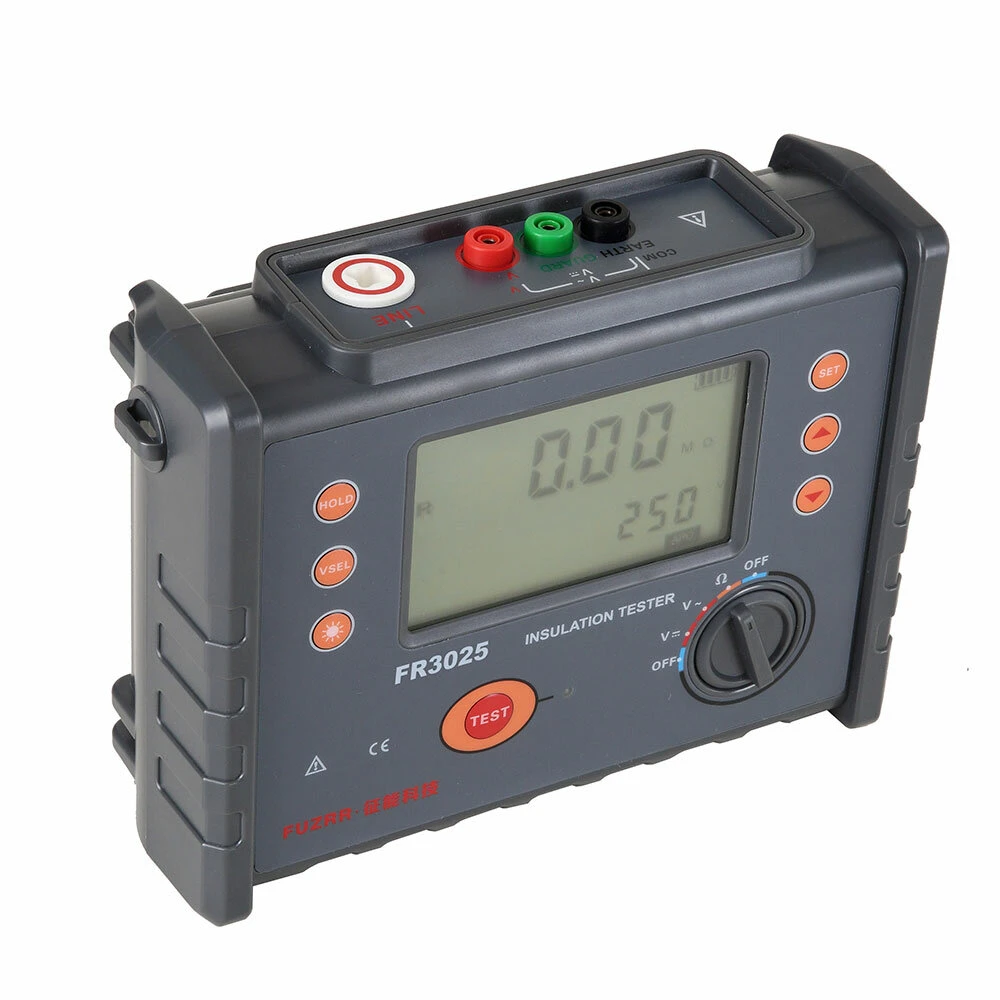

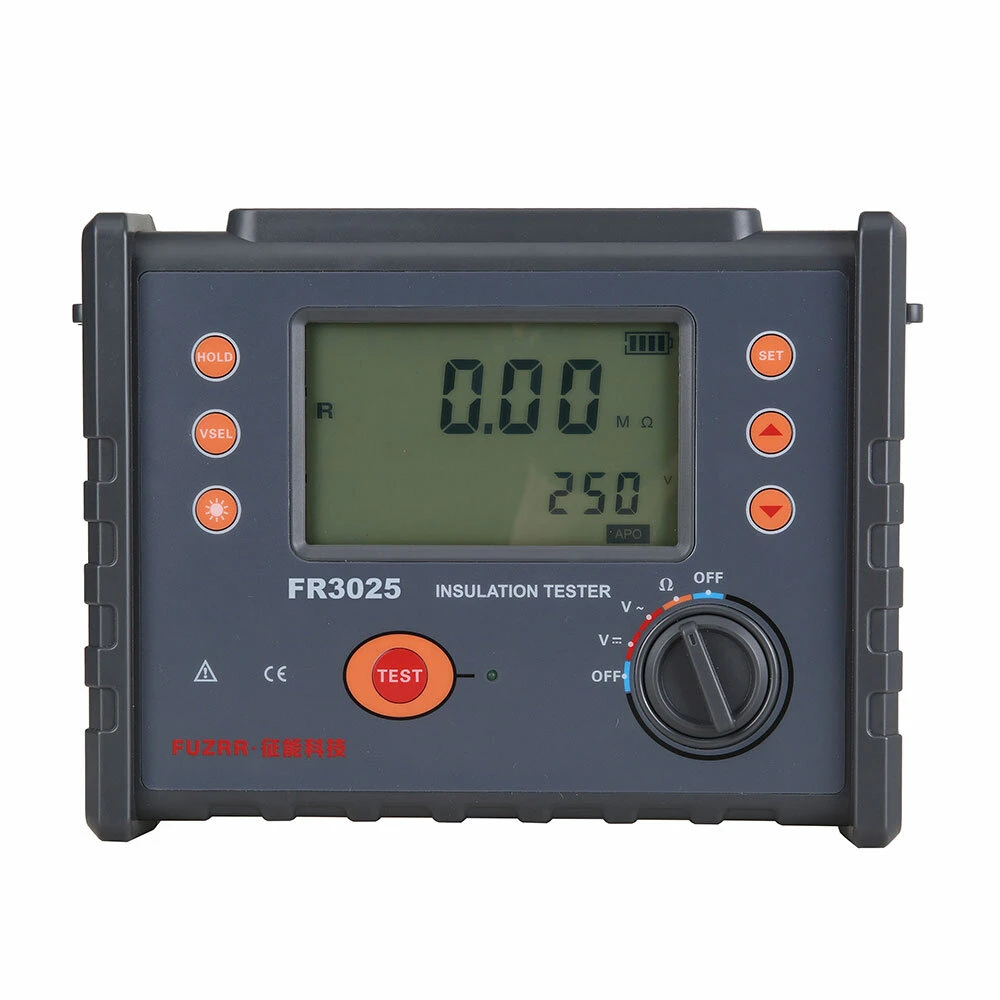

Details picture:
