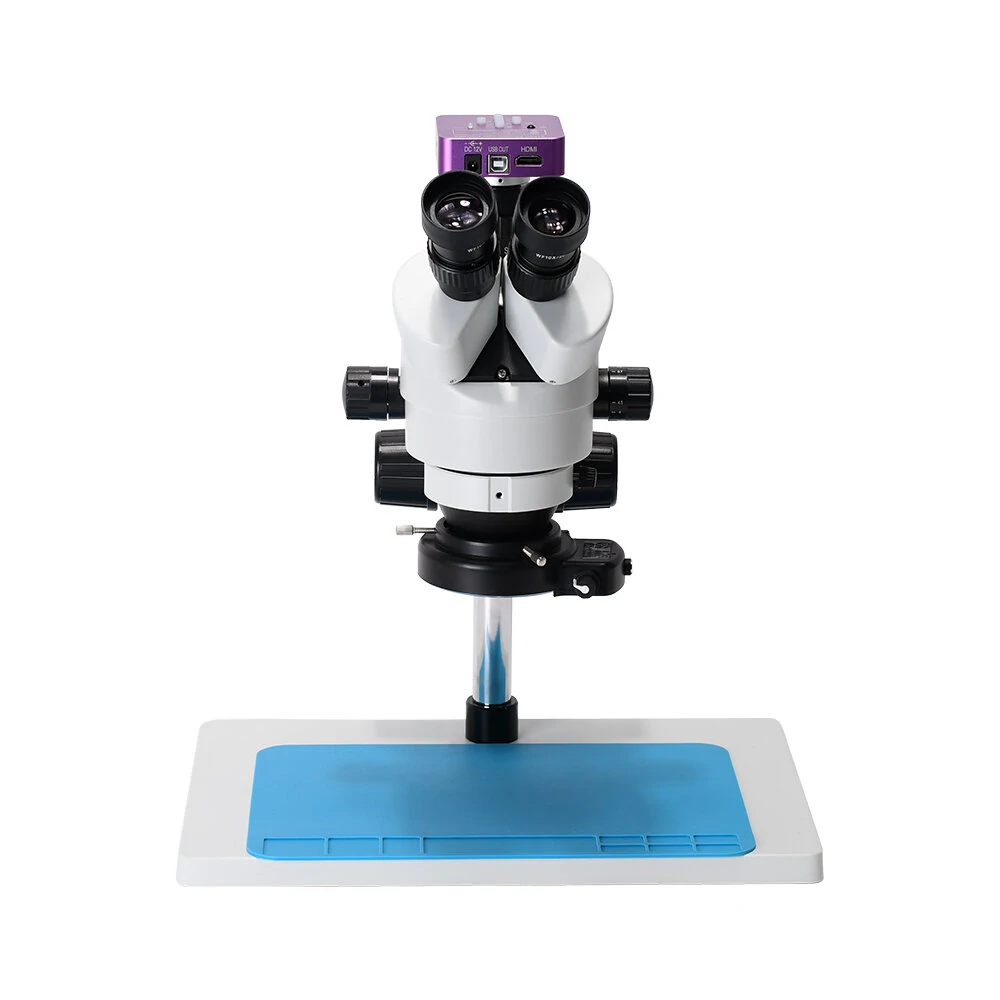

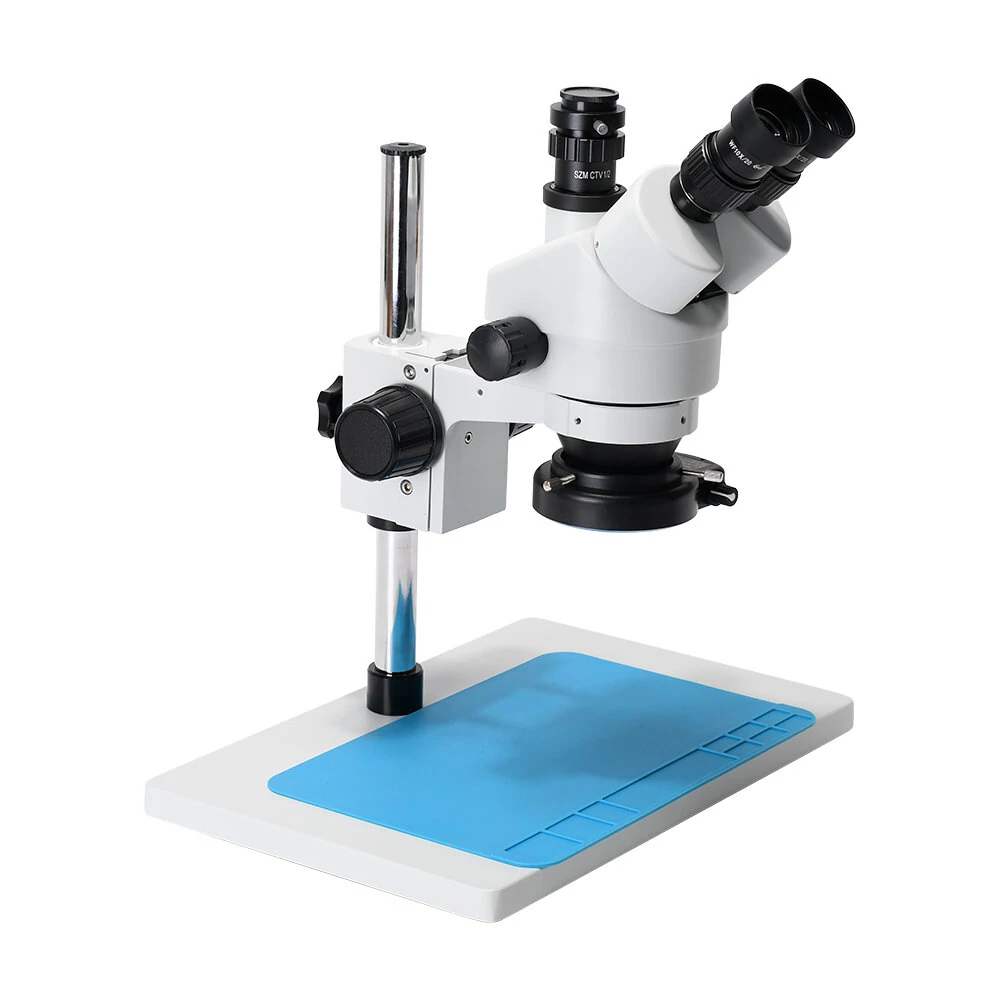

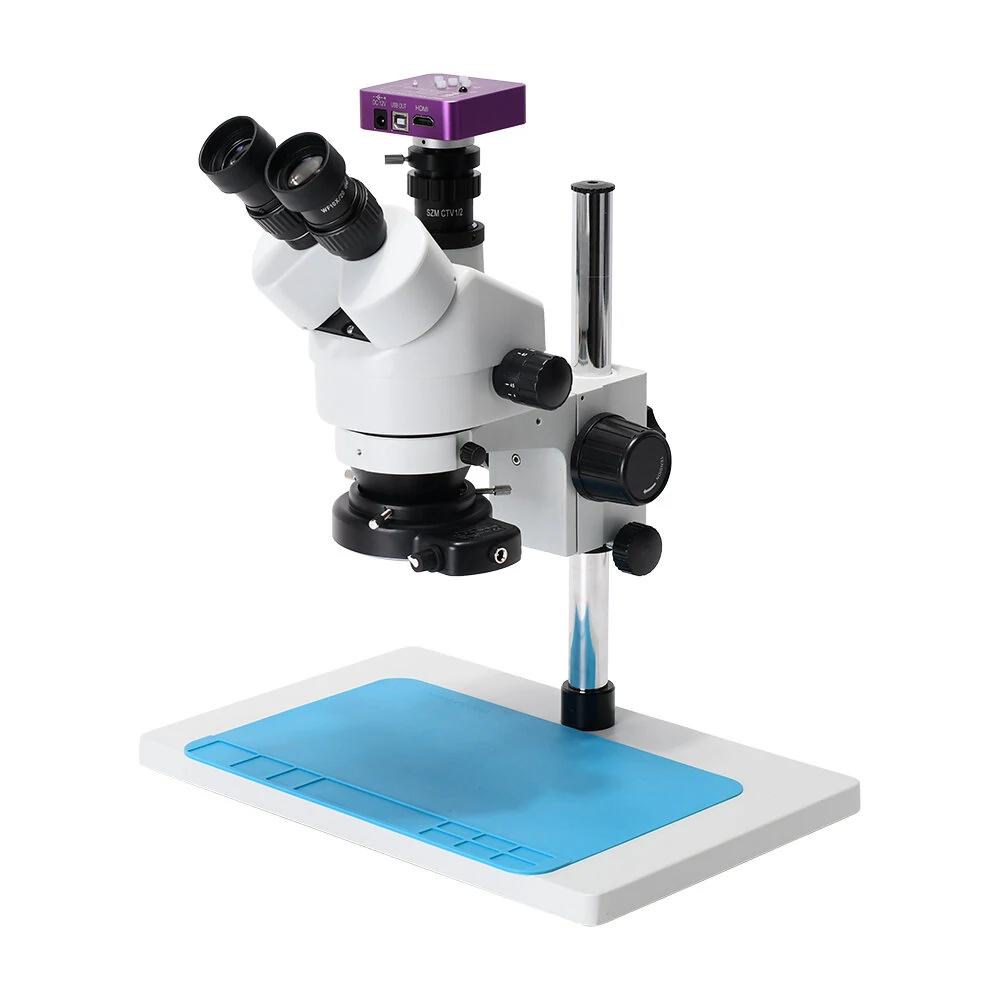

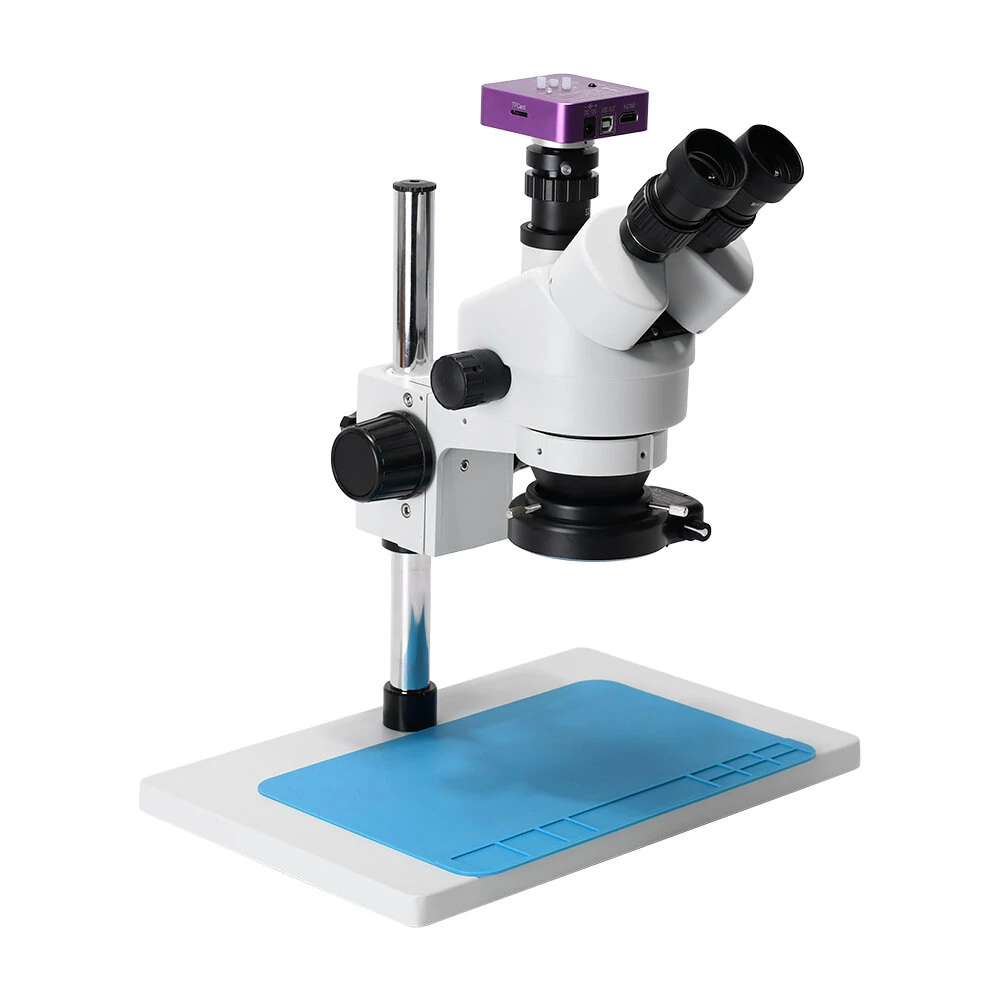

HAYEAR HY-5130 Stereo Microscope | 7X-45X Simul-Focal | 51MP USB HDMI Camera
$520.00
$639.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Feature:1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.2. Especially suitable for observing the surface microstructure of large objects.3. Using high quality materials, strong and durable, has a long service life.4. HD camera with 51 megapixel CMOS sensor 1/2.3 inch, with HDMI USB port.5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.
Trinocular Stereo Specifications: Head: 45-degree inclined 360-degree swiveling trinocular simul-focalEyepiece: 30mm super widefield high-eyepoint WF10X/20Objective: 0.7-4.5XZoom Range: 6.5:1Trinocular Port: 23mm photo portInterpupillary Distance: 2-1/8" to 3"(54-76mm)Field of View: 1-1/4" (33mm)Working Distance: 7X-45X (100mm)Head Mounting Size: 3" (76mm) diameterAccessory Mounting Size: 1-7/8" (48mm female thread) diameter 7X to 45X Continuous Zoom Magnification Power45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint EyepiecesTrinocular port for adding photo or video capability30mm Super Widefield WF10X Eyepieces with 20mm Field of ViewHigh Resolution with Great Flatness and ContrastSharp Stereo Erect Images over a Wide Field ViewCrystal Clear Original True Color ImagesLarge Working DistanceAccurate Alignment Ensuring a Fatigue-Free ViewingFull Optical Glass ElementsPrecise Ground Glass LensAll Metal Mechanical ComponentsAdjustable Interpupillary DistanceManufactured under ISO 9001 Quality Control StandardPackage Size: 40*33*24cmStand Size :38*20*30cm (LxWxH)Package Weight: 6.5Kg
Camera Specification:
Item Type: Microscope CameraModule: 5130Sensor: 51MP CMOSOptical Format: 1/2.3 inchPixel Size: 1.335??m x 1.335??mInterface: HDMI (Type A). USB (Type B). Small memory cardHDMI Image Resolution: 51MPVideo Resolution: 2K at 30FPS 1080p at 60FPSHDMI Resolution: 1920 x 1080p 60FPSHDMI Scale: Support 4: 3, 16: 9, 16: 10 screenUSB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 510 at 30FPSSmall Memory Card: Up to 128GB (not included)AWB: AWB color correction/automatic/manualR.G.B value setting independentExposure: Automatic/manual. AE value can be setCross Line: 8 lines, color, width, position can be setScale Line: 2 lines.Dotted Line: 2 lines, color, width, position can be setSharpness Contrast Color Gain: SupportMono Negative Film: SupportMirror: Horizontal and vertical mirrorLanguage: English/Simplified Chinese/French/Spanish/Japanese/German And other languages.Digital Zoom: SupportInfrared Remote Control: SupportVoltage Input: DC 12VPower Supply Voltage: Input: AC100-240VOutput: DC12VPower Consumption: Maximum 0.15W 12V, 0.12ALens Interface: C/CS portRemote Control Battery: 1 x 2302 button battery (delivered without battery)
144 bright LEDs Specification:
Variable lighting directionVariable power controlStrong and concentrated shadowless lighting100,000 hours of lifePower Input: 100-240V, 50-60HZ, automatic switchingThe Inner Diameter of The ring Light: Approx. 27mm / 1.1inOverall Outer Diameter: Approx. 45mm / 1.8inWorking Distance: Approx.27 ~ 120mm / 1.1 ~ 4.7in
Problem Solution:
LCD no video or flickering1. Check the power supply. Check if the red LED lights up. Press PowerKey to move it up.2. Check the lens cover. Increase lighting.3. Check the camera and lens, find the dust, and then cleanly it with absolute ethanol or detergent
Package includes: 1 x Trinocular Stereo Zoom Head1 x Pair of Super Widefield 10 X 20MM Eyepieces1 x 1/2CTV C-mount Adapter1 x 144-LED Ring Light1 x Table Stand1 x Pair of Eye-Guards1 x Dust Cover1 x Microscope Camera1 x HDMI Cable1 x USB Cable1 x IR Remote control2 x Power Supply Adapter 1 x Protection Glass1 x High Temperature Resistant Working Pad
