HAYEAR 51MP Digital Microscope Camera - 1080P HDMI with 130X Zoom Lens | PCB Repair & Soldering

Product Description

Feature:

1. PC supports for multiple system, supports for Windows XP/7/8/10 system.

2. Comes with a 130X C-mount zoom lens for industrial microscope camera.

3. This 51MP industrial microscope camera is suitable for repairing industry.

4. Adopts high quality metal housing, sturdy, has long life.

5. High resolution and dual output, which makes it more convenient to use.

Specification:

Item Type: Microscope Camera

Module: HY-5130

Optical Format: 1/2.9inch

Pixel Size: 1.335??mx1.335??m

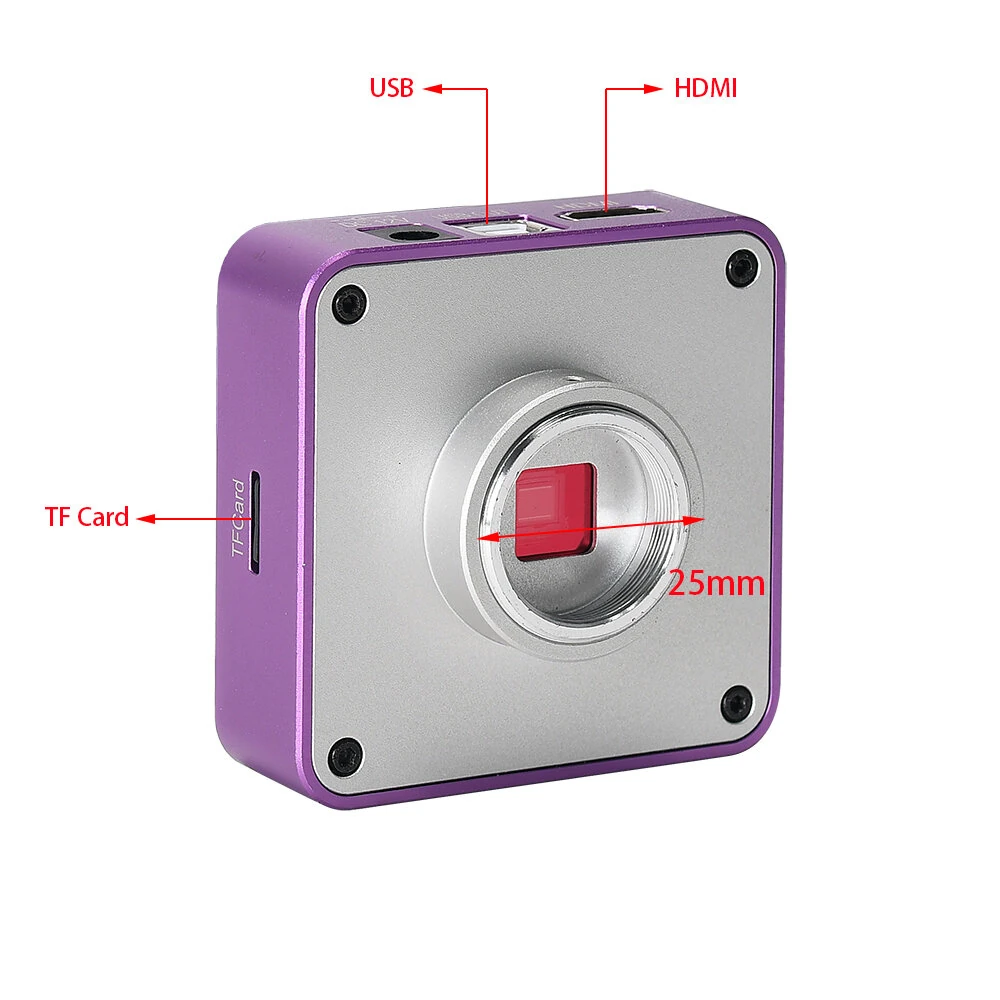

Interface: HDMI (Type A). USB (Type B). Small memory card

Image :51MP

Video Resolution: 2K at 60FPS 1080p at 60FPS

HDMI Resolution: 1920 x 1080p 60FPS

HDMI Scale: Support 4: 3,16: 9,16: 10 screen

USB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 480 at 30FPS

Small Memory Card: Up to 256GB (not included TF Card)

AWB: AWB color correction/automatic/manual

R.G.B value setting independent

Exposure: Automatic/manual. AE value can be set

Cross Line: 8 lines, color, width, position can be set

Scale Line: 2 lines.

Dotted Line: 2 lines, color, width, position can be set

Sharpness Contrast Color Gain: Support

Mono Negative Film: Support

Mirror: Horizontal and vertical mirror

Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages.

Digital Zoom: Support

Infrared Remote Control: Support

Voltage Input: DC 12V

Power Supply Voltage: Input: AC100-240V

Output: DC12V

Power Consumption: Maximum 0.15W 12V, 0.12A

Lens Interface: C/CS port

Remote Control Battery: 1 x CR2025 button battery (delivered without battery)

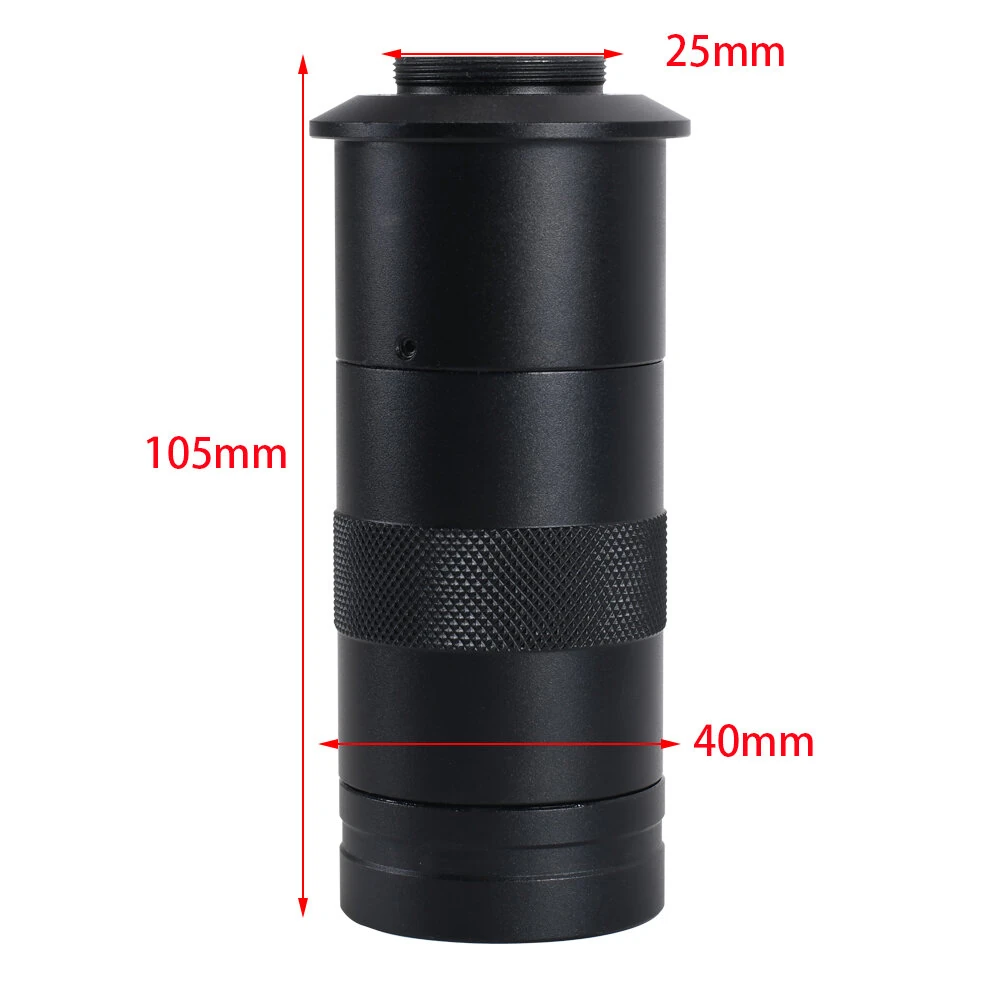

130X C-MOUNT Lens

Magnification Power by 0.12 - 2X (about 8X - 130X on the display)

Work distance: 100mm

Visual field :2.4mm-32mm

Size: 115mm(L) * 40mm(DIA)

Weight: 210g

Working distance:5-25cm

Package included:

1 x 51MP Microscope Camera

1 x Power Supply

1 x USB Cable

1 x Software CD

1 x Remote Control (Battery Not Included)

1 x 130X Lens

Note:

1. PC Support: Support for Windows XP/7/8/10 system.

2. For USB output, Software operating white balance, exposure and color adjustment can't adjusted. (The camera keys are not available Remote control cannot operate)

3. For high-definition multimedia interface output, the function can? adjusted when connected to the monitor. (Camera keys available The remote control can be operated wirelessly)

4. When using USB connection, please make sure that there is no memory card in the camera, memory card storage is just used for high-definition multimedia interface output. The USB output will be stored in the PC.

5. When connecting the camera to the computer, just plug in the USB cable (no need to use power).
