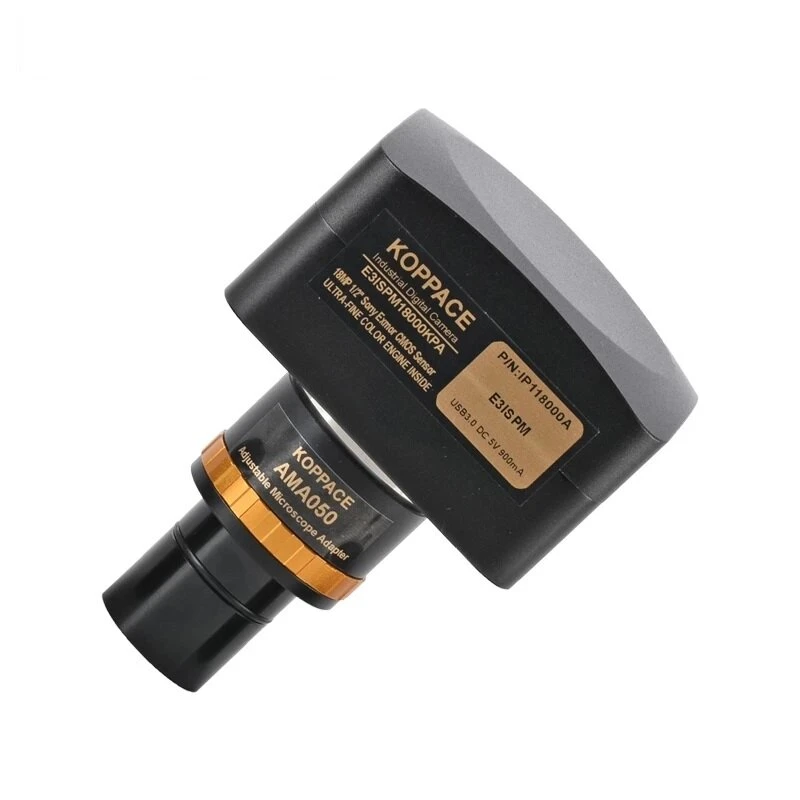

KOPPACE 18MP USB3.0 Microscope Camera | 0.5X Electronic Eyepiece | Adjustable Focus

Model

KP-18000KPA-AMA050

Electronic eyepiece

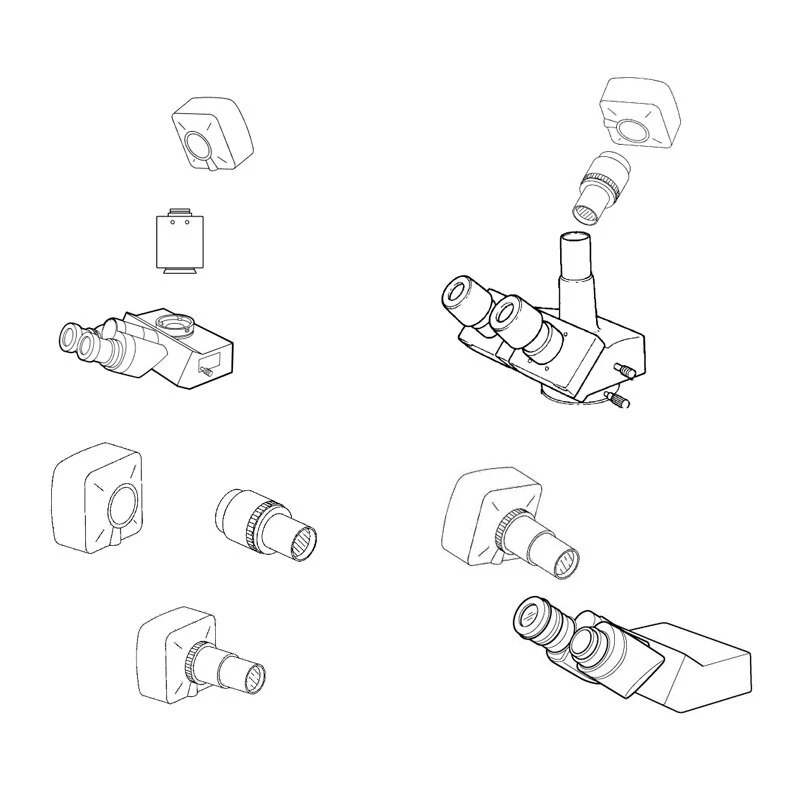

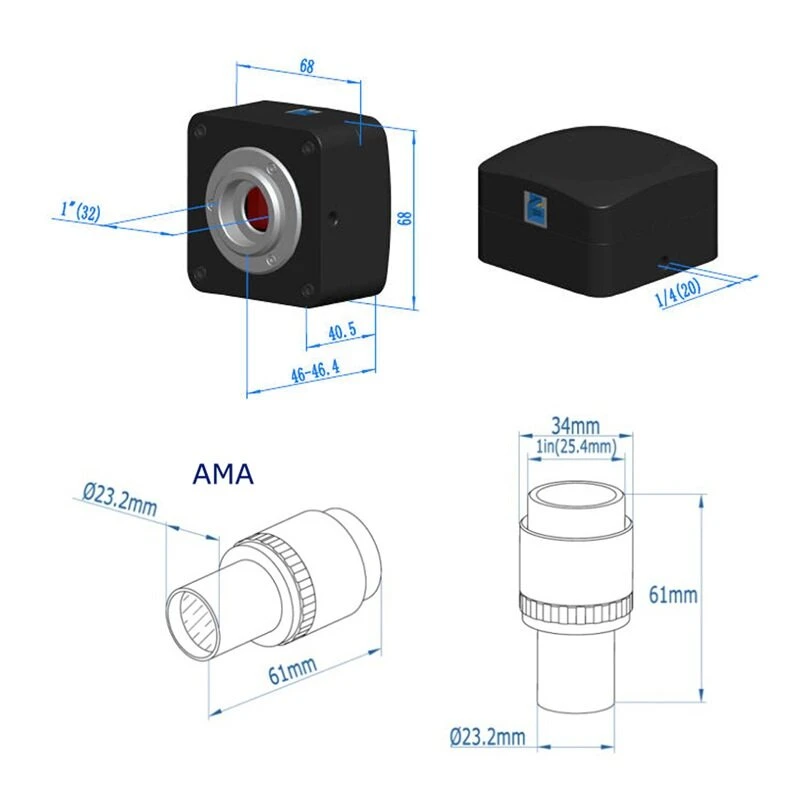

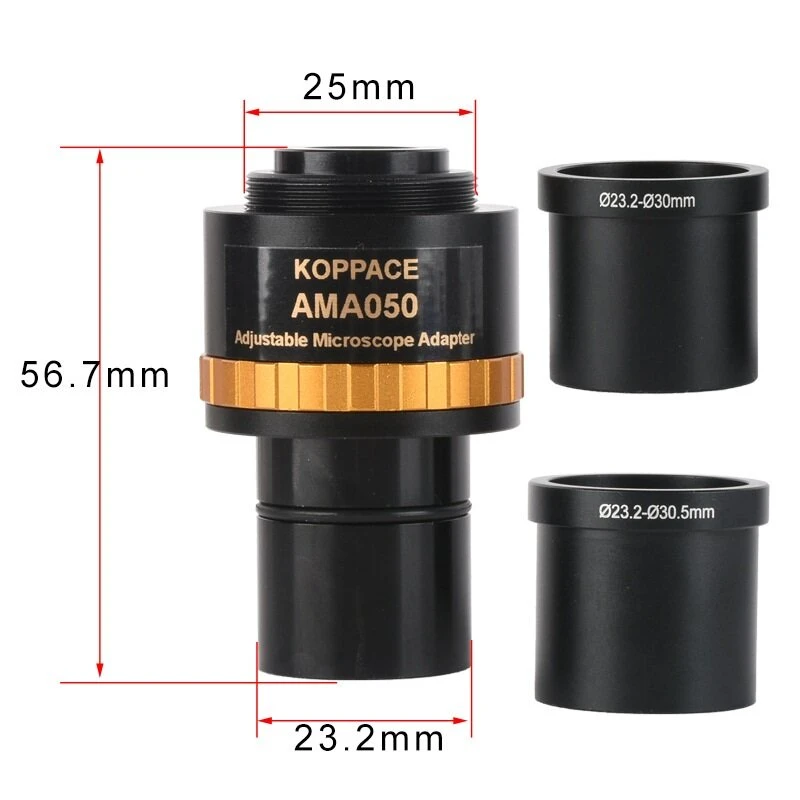

0.5X djustable Microscope Adapter, 23.2 to 30mm and 30.5mm interface, Camera interface 25mm, Suitable for stereo microscope and biological microscope.

Pixel

18 million pixels

output method

USB3.0

sensor

18M/Sony Special

Sensor size

1/2.2"(5.86x4.46)

Resolution frame rate

17@4880x3720??40@2448x1836??50@1728x1296

Pixel size

1.2??mx1.2??m

Exposure time

0.1ms ~ 15s

Spectral response range

380-650nm (with IR cut filter)

White balance

ROI white balance / manual Temp-Tint adjustment

Color reproduction

Ultra-Fine hardware ISP video color processing engine

Capture / Control API

Native C/C ++,C #,Directshow,Twain,Labview

operating system

Microsofts Windows XP/Vista/7/8/10 (32 & 64 bit) OS X (for Mac OS X),Linux

Shooting mode

Images and videos

cooling system

Natural

Operating temperature

-10 ?? C ~ 50 ?? C

Storage temperature

-20 ?? C ~ 60 ?? C

Working humidity

30 ~ 80% RH

Storage humidity

10 ~ 60% RH

Advanced software for Windows:
- offers Stitching, EDF,video recording and measurement functions
- conducts measurements for lengths,angles,arcs, areas and etc.
- gives your computer screens the same field of view as your microscope's eyepiece
- saves still images in BMP,TIFF,JPG,PICT,PTL or other formats
- edit and process microscopy images in a manner similar to PhotoShop
- live video and still image capture can be set in different resolutions simultaneously
More features: add layers,watermarks, mosaics,tiles;adjust color balance,
exposure,saturation,contrast,orientation;change resolution,histogram, granulation,
diffusion;transform images via edge detection,digital image warping;conducts measurements for single,
parallel or perpendicular lines and rectangular,elliptical and irregular areas;adds notes, measurements,
text,arrow,labels,and etc.using customizable text with different sizes and colors;
conducts measurements in microns,millimeters,centimeters,inches,
