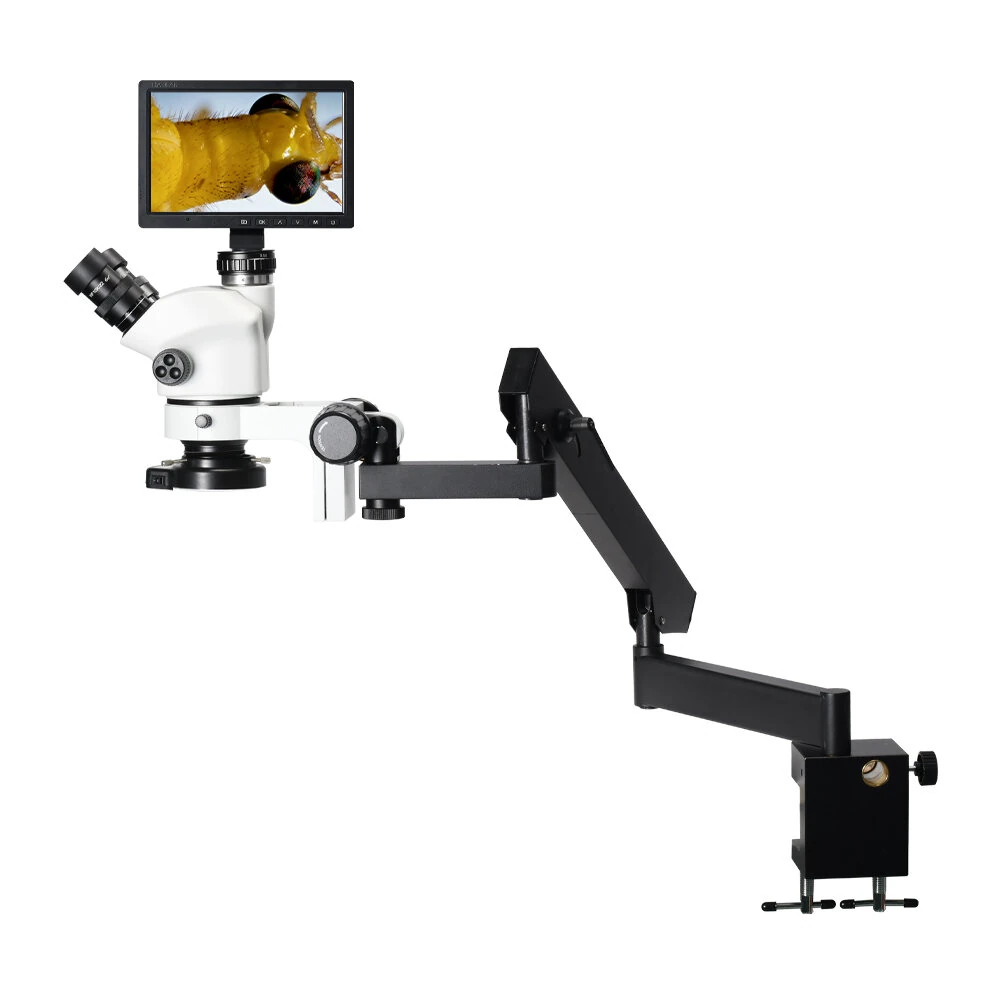

HAYEAR HY-1090 Digital Microscope - 10 IPS Screen 16MP Camera | 3.5X-50X

Product Description

Features:

Extensive Application Range: The HY-1090 Microscope Camera is highly versatile and can be widely used across various fields including microelectronics, mold making, jewelry crafting, printing, and mobile phone repair. Its ability to observe the surface microstructure of large objects also makes it an ideal tool for educational institutions and research labs, providing detailed insights into different materials and components.

Superior Imaging Quality: Equipped with a high-definition camera featuring a 16-megapixel CMOS sensor and a 10-inch IPS screen, the HY-1090 delivers exceptional image quality. It supports photographic image resolutions up to 4608x3456 pixels and video resolutions in 2K at 60FPS or 1080p at 60FPS, ensuring that you can capture every detail with clarity and precision.

Multifunctional Connectivity and Storage: This device offers multiple connectivity options including HDMI compatible and USB ports, and supports small memory cards up to 128GB. The HDMI-compatible output supports resolutions of 1920 x 1080p at 60FPS with different screen aspect ratios, while USB 2.0 offers various resolutions for flexible usage. These connectivity options make it easy to transfer data and streamline your workflow.

Advanced Features for Detailed Analysis: The HY-1090 is packed with advanced features including automatic/manual exposure settings, color correction options, digital zoom, cross line and scale line functions, and a horizontal and vertical mirror function. It also supports multiple languages, making it accessible to a wider user base. These features collectively enhance the user experience and allow for detailed and accurate analysis.

Comprehensive Lighting Solution: The package includes a 144-LED ring light that provides variable lighting direction and power control. This lighting solution offers strong and concentrated shadow-less illumination with a lifespan of up to 100,000 hours. The adjustable lighting ensures that your samples are well-lit, making observation and inspection easier and more effective.

Specifications:

Product Name: Microscope Camera

Model: HY-1090

Screen Size: 10 inch IPS

Sensor: 16MP CMOS

Optical Format: 1/2.8 inch

Pixel Size: 2.0??m x 2.0??m

Interface: HDMI (Type A), USB (Type B), Small Memory Card

Photographic Image Resolution: 16MP (4608x3456)

Video Resolution: 2K at 60FPS, 1080p at 60FPS

HDMI compatible Resolution: 1920 x 1080p 60FPS

HDMI compatible Scale: Support for 4:3, 16:9, 16:10 screens

USB 2.0: 1920 x 1080 at 30FPS, 1280 x 720 at 30FPS, 640 x 480 at 30FPS

Memory Card Support: Up to 128GB (not included)

AWB: Color correction/automatic/manual

Exposure: Automatic/manual with adjustable AE value

Cross Line: 8 lines, adjustable color, width, and position

Scale Line: 2 lines

Image Settings: Sharpness, contrast, color gain support

Special Effects: Mono negative film, horizontal and vertical mirror

Languages: English, Simplified Chinese, French, Spanish, Japanese, German, and more

Digital Zoom: Yes

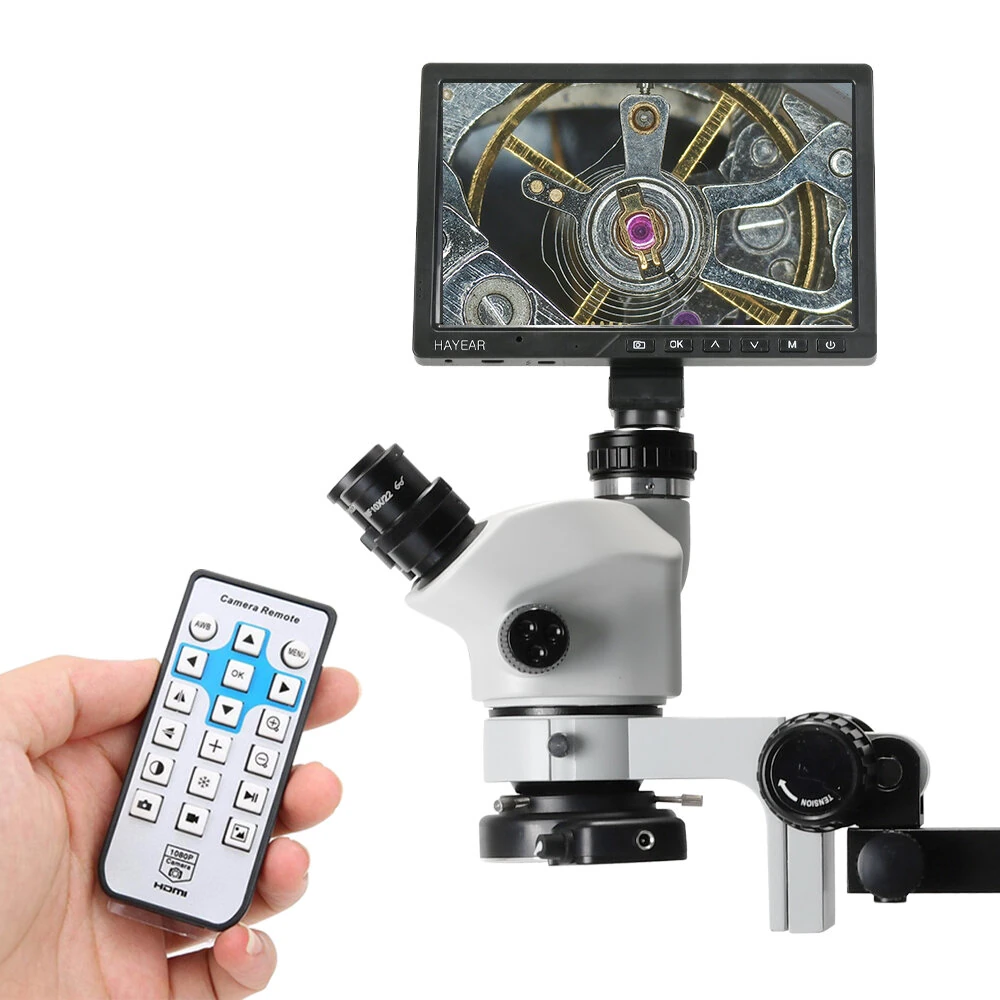

Remote Control: Supported (battery not included)

Voltage Input: DC 12V 1.5A, AC 100-240V

Lens Interface: C/CS port

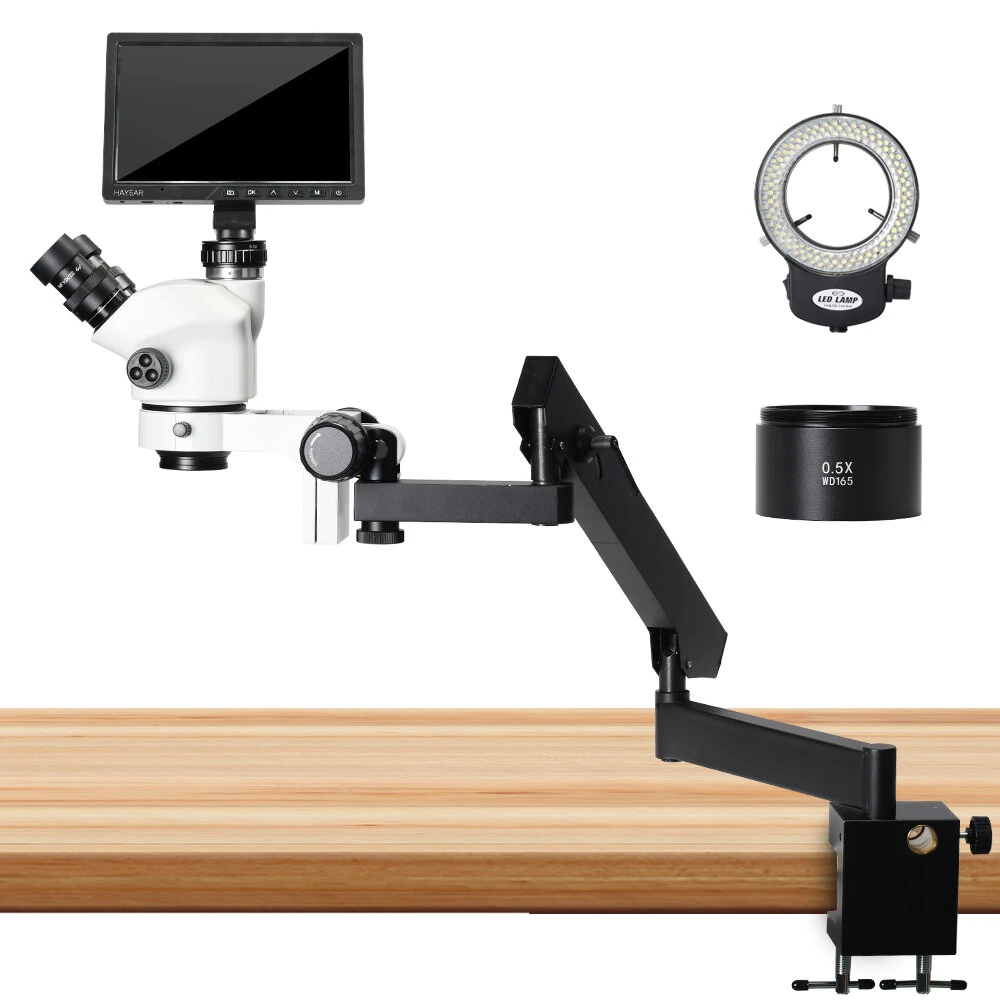

Package Included:

1 x Trinocular Stereo Zoom Head

1 x Pair of Super Widefield 10X22MM Eyepieces

1 x Pair of Eye-Guards

1 x Dust Cover

1 x 0.5X Simul Focal Adapter

1 x 144-LED Ring Light with Adapter

1 x Articulating Arm Set

1 x Desktop Clip

1 x 76mm Focusing

1 x 0.5X Microscope Auxiliary Objective Lens (Working Distance 160 mm)

1 x 10 inch Microscope Camera

1 x Power Adapter

1 x HDM Cable

1 x USB Cable
