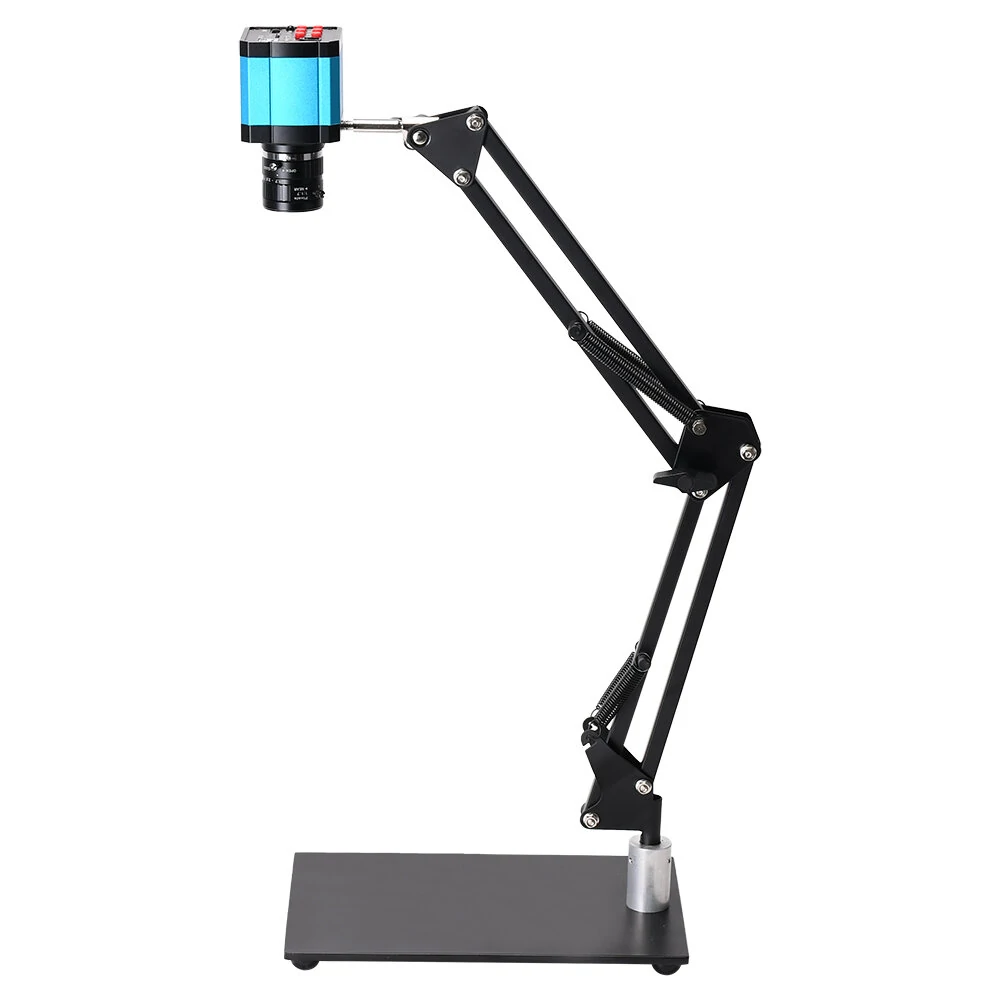

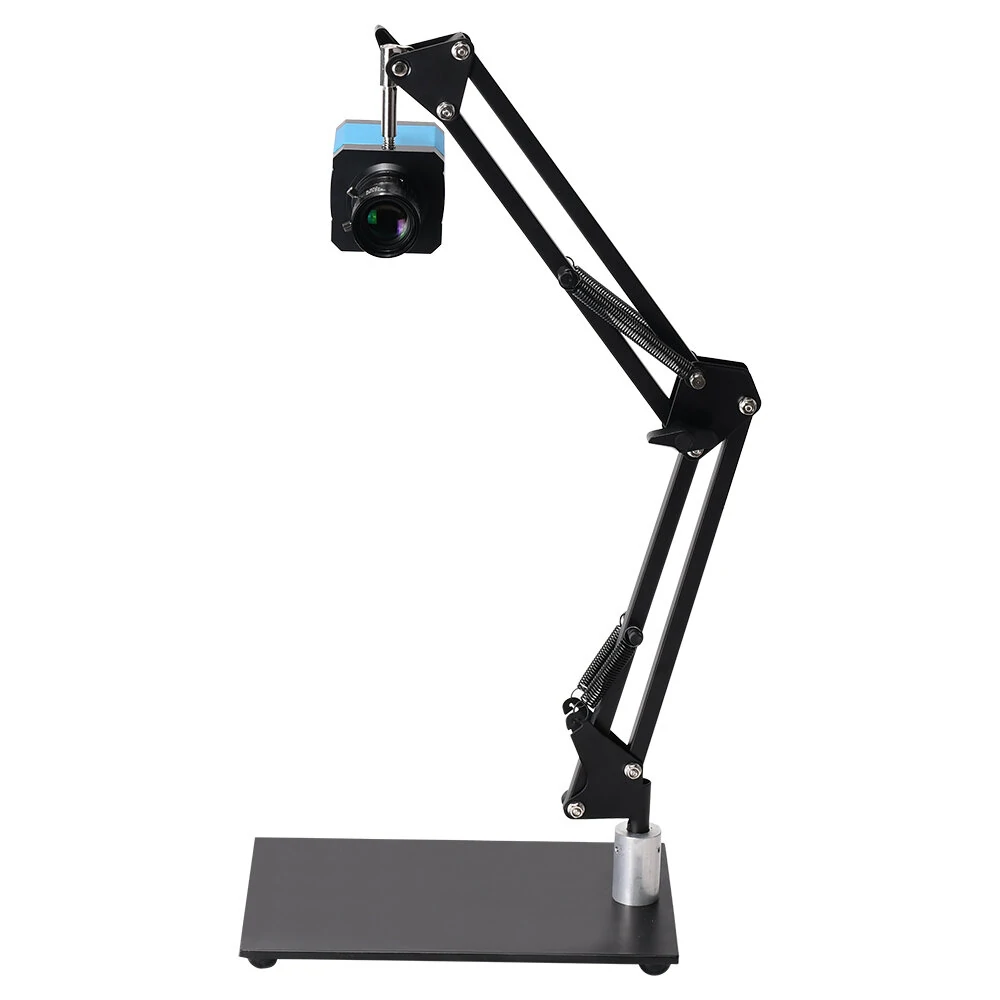

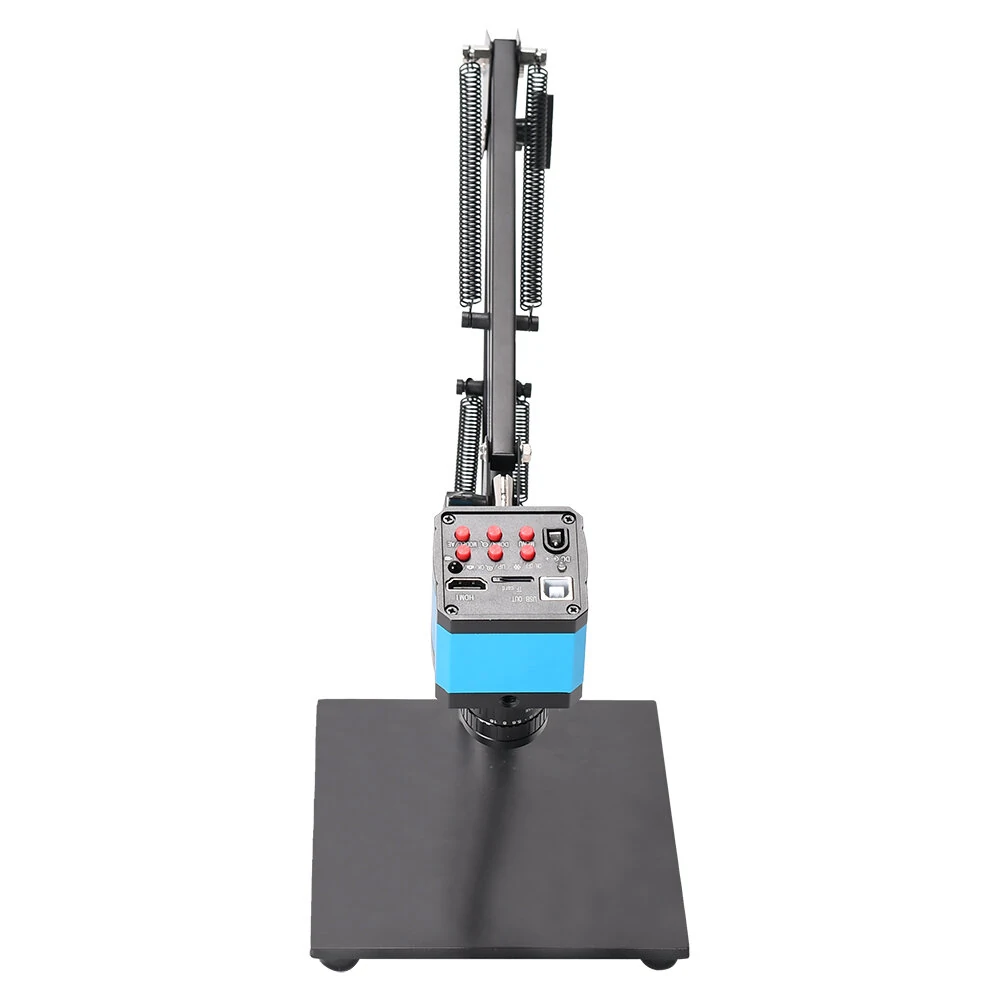

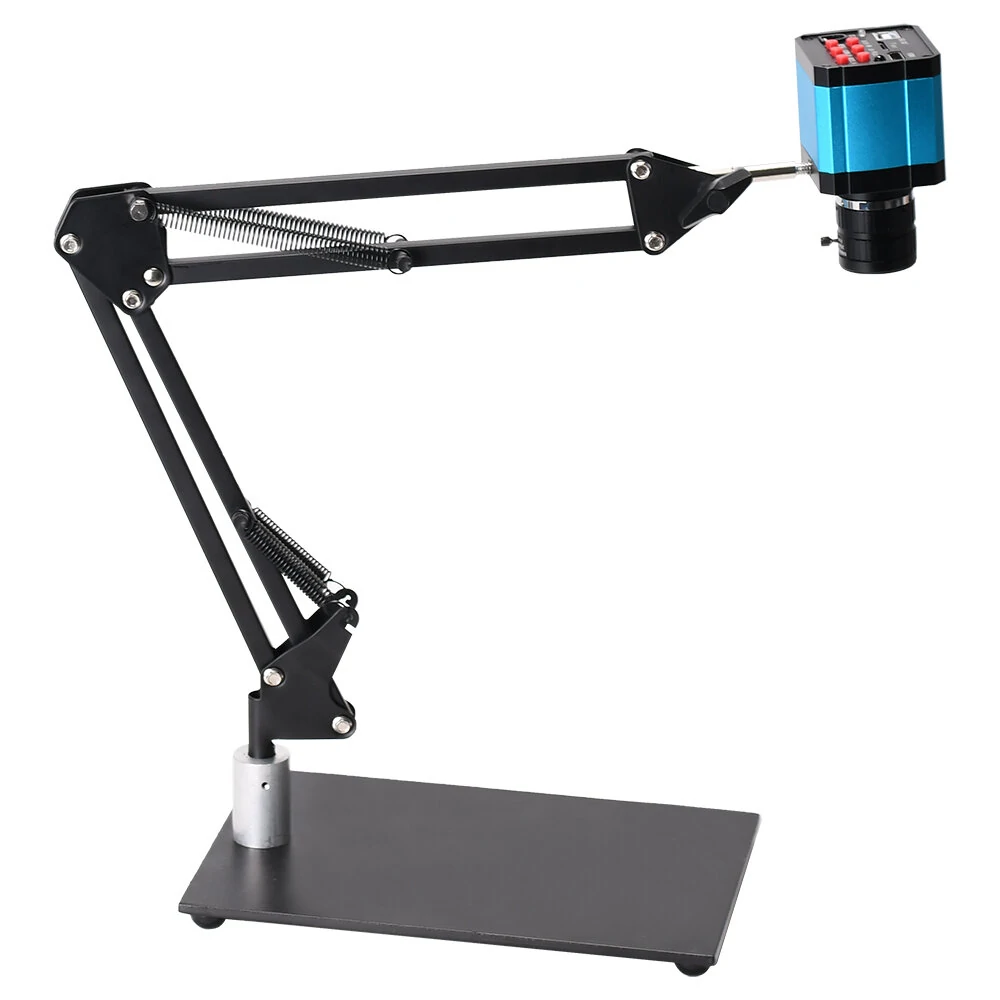

HAYEAR Digital HDMI USB Microscope - 35mm F1.7 CS Mount Lens for Live Broadcast & PCB Inspection
$286.00
$351.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Description:1. The head can be adjusted 220 ?? up and down, and 360 ?? swivel. 33cm+33cm retractable long arms,180??/135?? can be adjusted.2. HDMI USB Camera 35mm F1.7 Lens Industry Live Digital Camera3. Full 1080p HDMI USB Digital Cameras, Industry Live Digital Camera, Equipped with 35mm 1/3" CS Mount CCTV Lens IR F1.7 Manual Zoom Manual Iris Camera Lens.
HDMI USB Camera Features:High Quality, High Resolution, Clear Images1080P 1920*1080 Video CameraHDMI USB Video ModelIndustry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
Specification:
Item Type: Microscope Camera Module: 2307Sensor: 14MP CMOSOptical Format: 1/2.3 inchPixel Size: 1.335??mx1.335??mInterface: HDMI (Type A). USB (Type B). Small memory cardHDMI Image Resolution: 14MPVideo Resolution: 2K at 30FPS 1080p at 60FPSHDMI Resolution: 1920 x 1080p 60FPSHDMI Scale: Support 4: 3,16: 9,16: 10 screenUSB2.0 (Drive Free): 1920 x 1080 at 30FPS 1280 x 720 at 30FPS 640 x 510 at 30FPSSmall Memory Card: Up to 128GB (not included)AWB: AWB color correction/automatic/manualR.G.B value setting independentExposure: Automatic/manual. AE value can be setCross Line: 8 lines, color, width, position can be setScale Line: 2 lines.Dotted Line: 2 lines, color, width, position can be setSharpness Contrast Color Gain: SupportMono Negative Film: SupportMirror: Horizontal and vertical mirrorLanguage: English/Simplified Chinese/French/Spanish/Japanese/German And other languages.Digital Zoom: SupportInfrared Remote Control: SupportVoltage Input: DC 12VPower Supply Voltage: Input: AC100-240VOutput: DC12VPower Consumption: Maximum 0.15W 12V, 0.12ALens Interface: C/CS portRemote Control Battery: 1 x 2302 button battery
35mm F1.7 Lens Specification:Focal-Length: 35mmRelative Aperture D/f': F1.7Mount: CImage Format: 1/1.8inField of View: W14.8??xT10.8??Dimension: Approx. 35 x 22mmResolution: 5MPFlange BFL: 17.53High resolution : 5 megapixel covering 5MP & 1080PLarge format: 1/1.8" size covering 1/1.8", 1/2" cameraBig aperture : F1.7 big aperture makes imaging far betterLow distortion :<0.1% low distortion use machine vision FA automaticApplication :Biochemical, surveillance, FA, face recognition etc.
Lens Features:1.35mm F1.7 Len2. Varifocal length cctv lens, optical lens, CCTV camera lens, CS Mount Lens3. focal length Function Manual Iris Lens, security lens4. Low distortion Lens for box camera, Security Camera Lens, Surveillance Lens5. This high resolution CCTV lens can capture the all resolution of mega pixel camera, IP camera & High resolution camera.6. Suitable for live stream cameras, surveillance camera, etc.
Package Includes:
1 x 1080P HDMI Camera1 x 35mm F1.7 Lens1 x Remote control1 x USB cable1 x HDMI cable1 x Stents
