HAYEAR 4K USB 3.0 Microscope Camera | Electronic Eyepiece for Biological & Stereo

Product Description

4K Industrial Microscope Camera Electronic Eyepiece USB 3.0 for biological microscope stereo microscope

0.5x adapter Specification:

This is a 0.5x Reducing lens, which expands the camera's field of view. It can be used with C-Mount or CS-Mount camera in any pixel and placed in a binocular or trinocular microscope to expand its field of view. Can be installed directly in the biological or stereo eyepiece camera.

Specification

Magnification: 0.5X or 1X ??Option 1X Can't expands camera's field of view??

Mounting Size: 23.2mm, 30mm ,30.5mm

Suit Microscope: biological microscope and stereo microscope

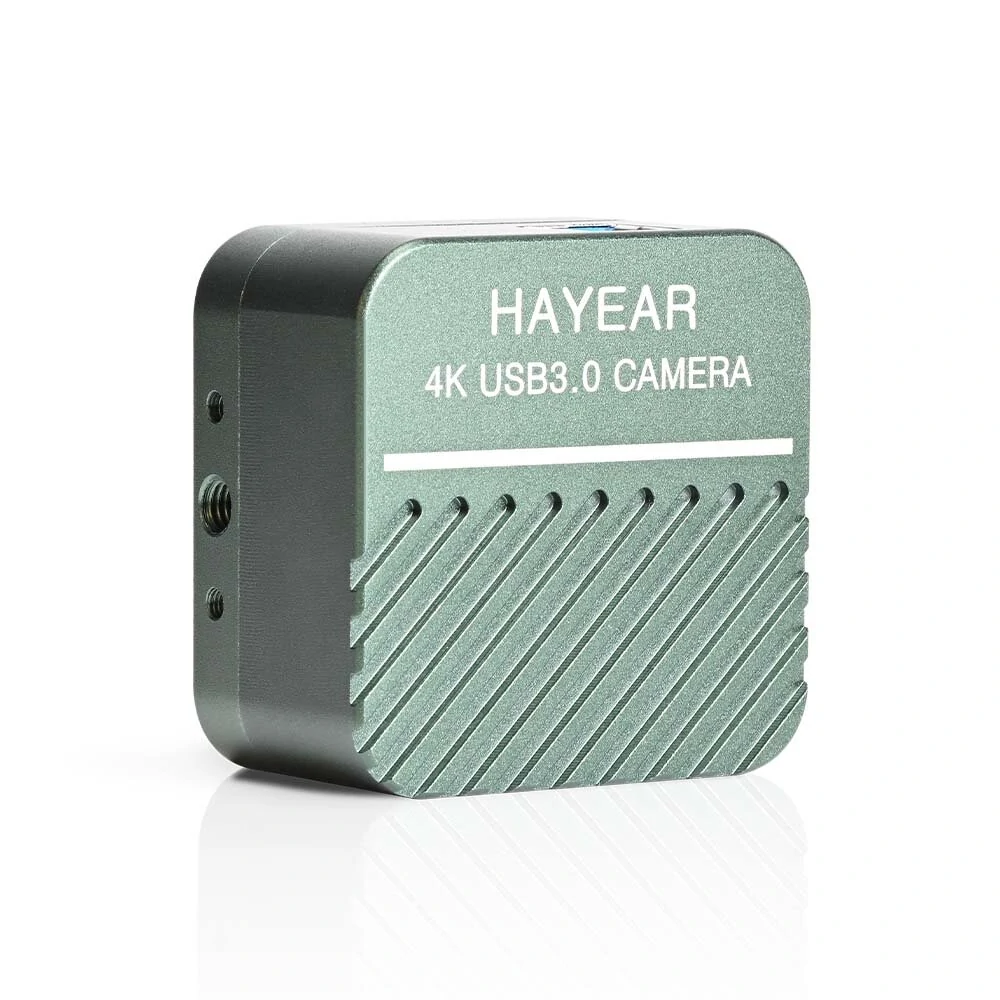

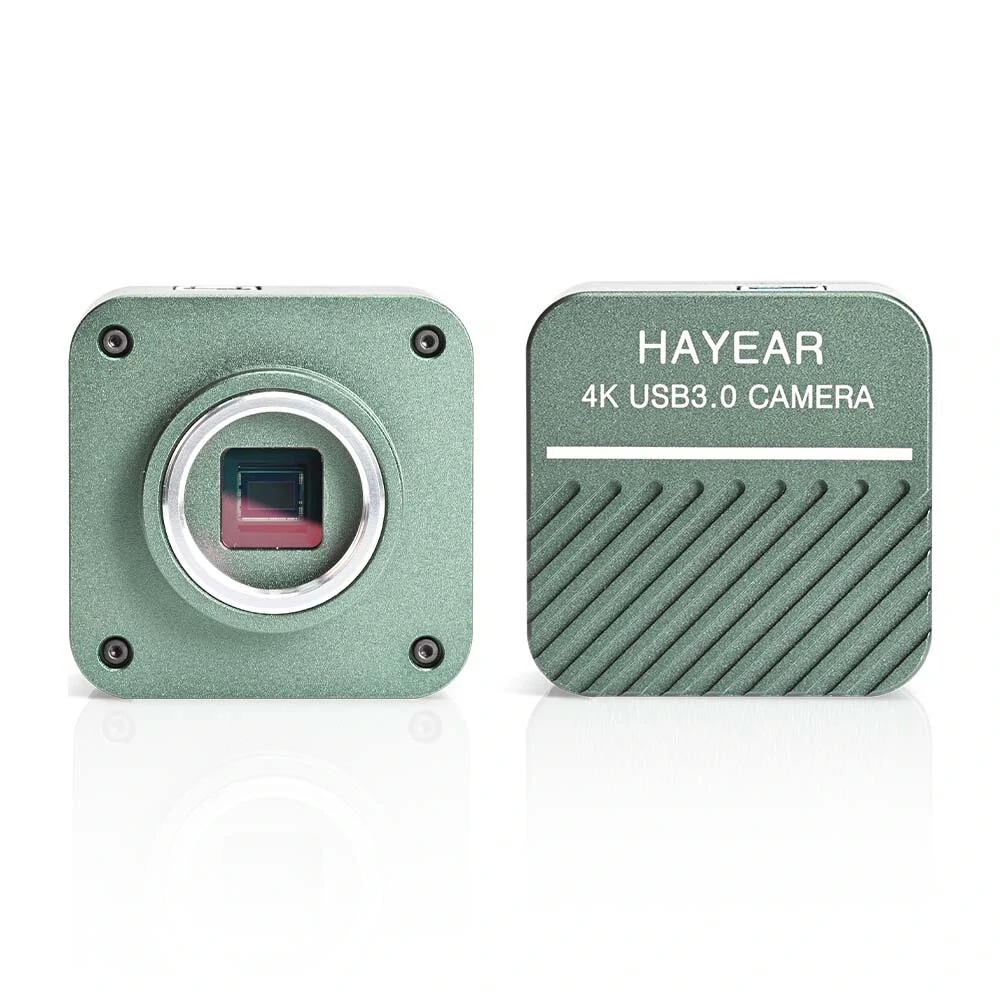

4K 3.0 USB Camera Specification:

-Image sensor: 1 / 2.5" color 317 CMOS image sensor

-Pixels size: 1.62??m ?? 1.62??m

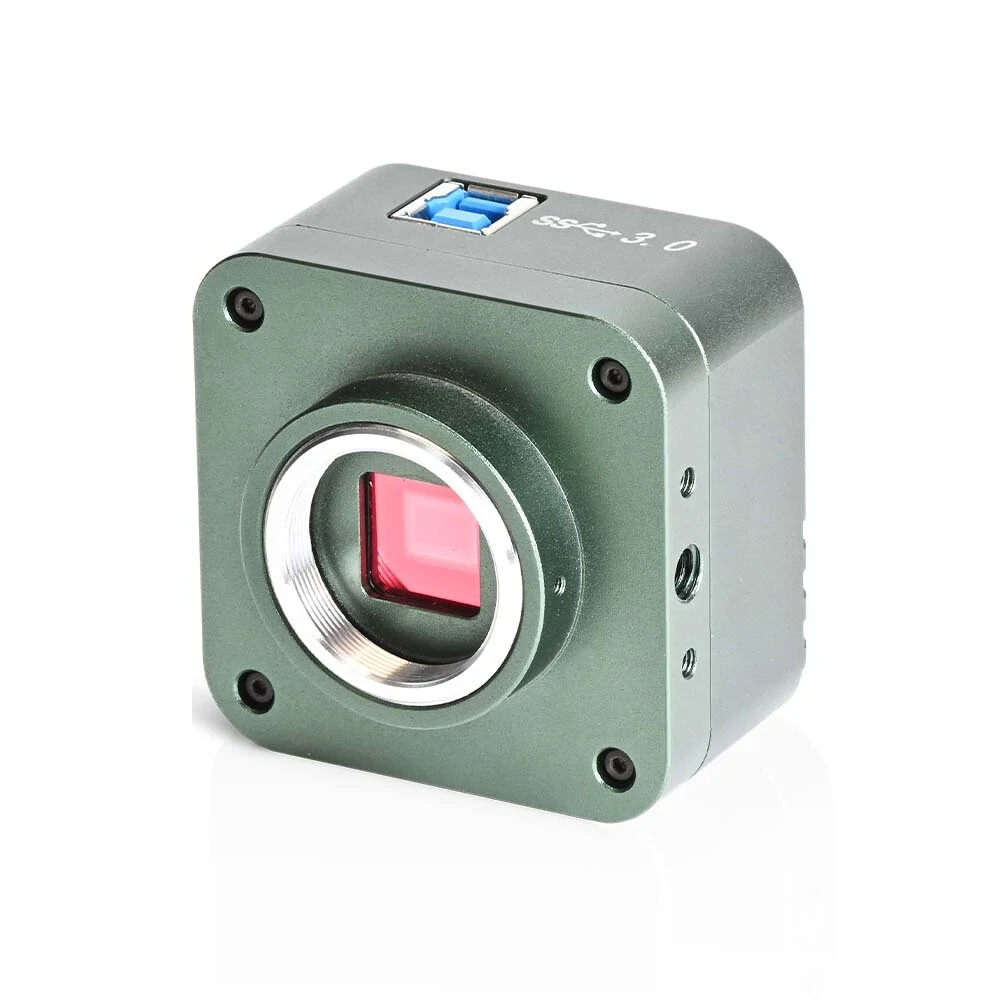

Camera interface size??25mm ??C-mount??

-The spectral response: 400~700nm

-Scan mode: progressive scan

-Pure hardware 8 megapixel image sensor, no compression, no interpolation

-Resolution:

3840x2160@30fps 2592x1944@30fps,2048x1536@30fps,1920x1080@60fps 1600x1200@60fps,

1280x1024@60fps,640X480@60fps

-White Balance: Auto / Manual

Support UVC??USB Video Class??UVC??

-R.G.B value setting independent

-Auto Exposure Control: Auto / Manual

-Image output: USB 3.0, 5Gbit / s

-Operating temperature: -30?? C ~ 75 ??

Working current: ??200mA

Support systems Win XP/Win7/Win10/win11

Linux / Android (Devices that comply with the UVC protocol)

Preservable parameters Brightness, Contrast, Color saturation,Hue, Sharpness, Gamma, Gain, White Balance, Backlight Contrast, Exposure

Scope of application:

Industrial vision, visual inspection, microscope, astronomical telescope, intelligent terminal equipment, face recognition, advertising machine, dish recognition, smart vending camera, electronic weighing object recognition

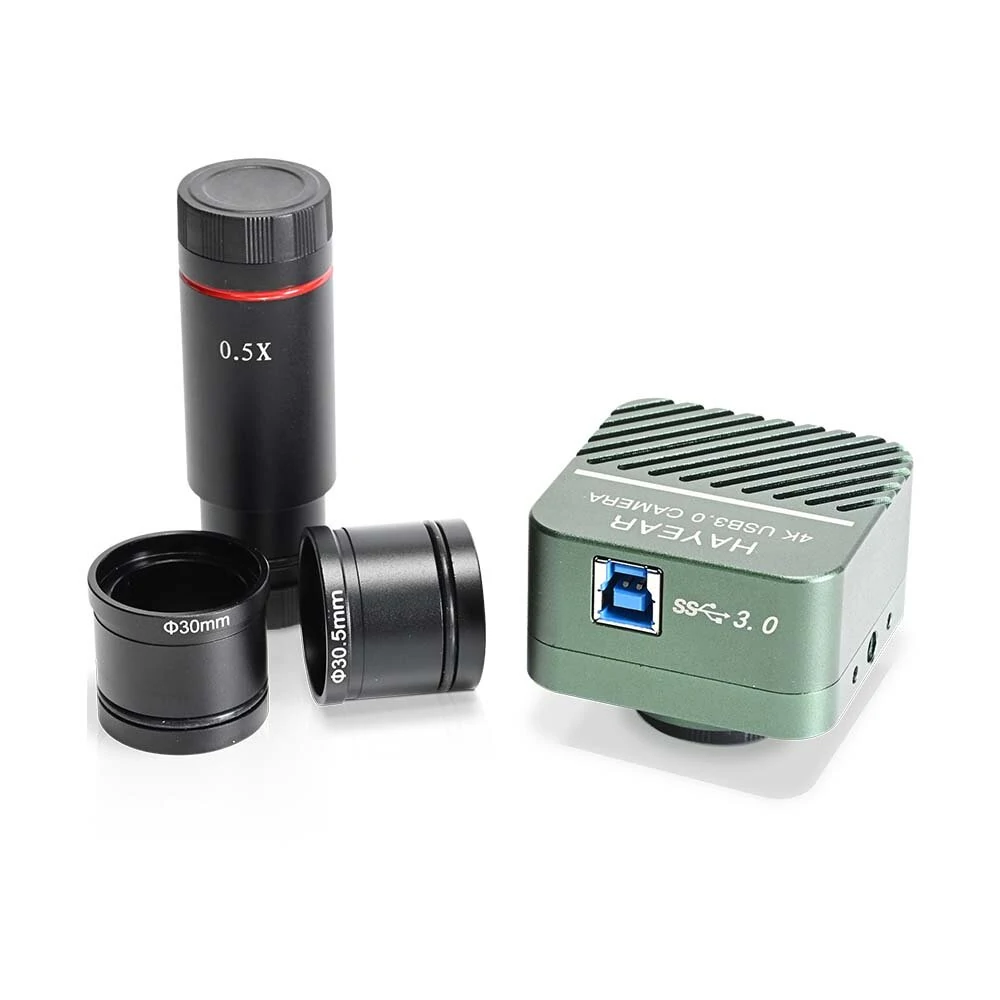

Package included:

1 x 4K Microscope Camera (USB 3.0)

1 x USB Cable

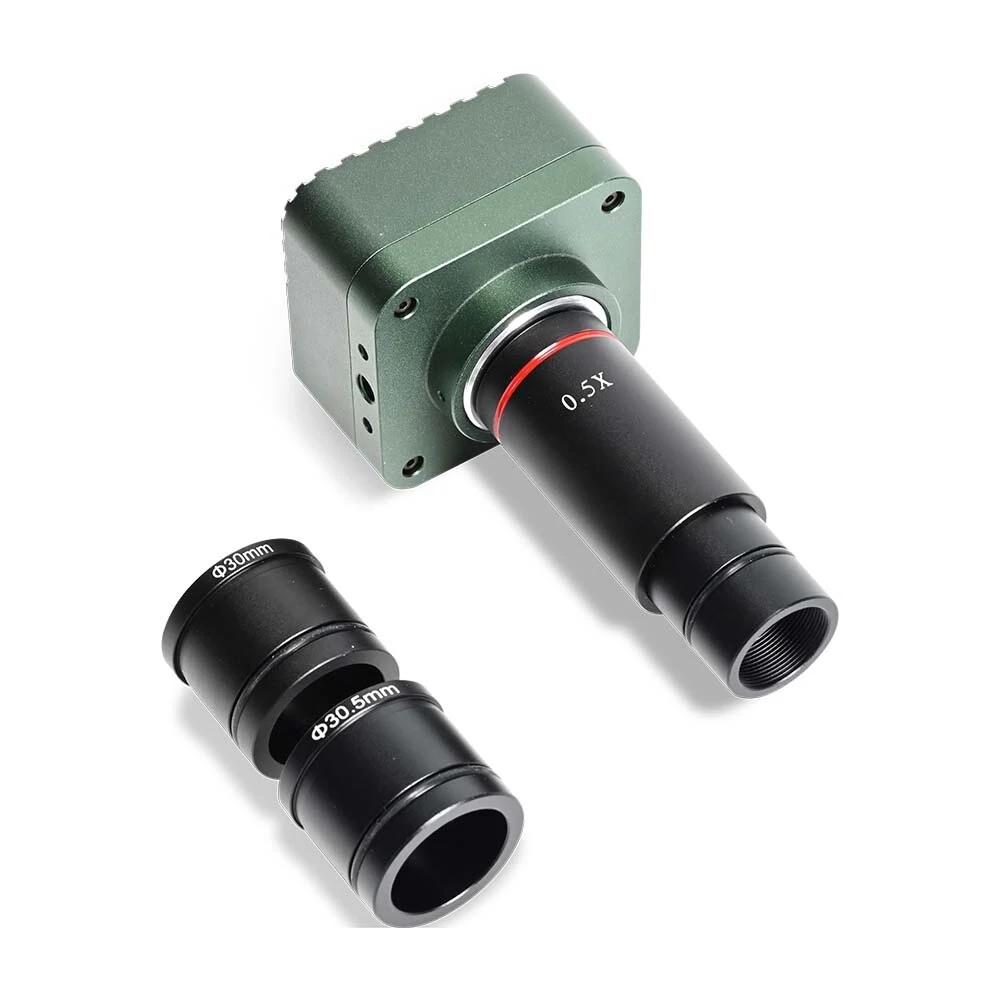

1 x 0.5X C-MOUNT adapter

1 x 23.2mm to 30mm adapter ring

1 x 23.2mm to 30.5mm adapter ring

1 x Measurement Software (Online download)
