NOYAFA NF-901 Optical Fiber Light Source | 1310/1550nm 2 Wavelengths for CATV
$83.00
$102.38
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:1. Work with NF-900 optical power meter.2. A fast, stable and cost effective test solution.3. Provide 2 wavelengths output: 1310, 1550nm .4. CW/ 270Hz, 1KHz, 2KHz modulation output.5. FC/SC/ST general-purpose interface.
Product description:Provides steady light source and work with optical power meter.Wavelength (nm) 1310, 1550 Emitter type FP-LD Output power -7dBm Modulation frequencies CW/270Hz, 1Hz, 2Hz Fiber Type SM/MM Optical connector FC included (SC/FC/LC is optional) Automatic shutdown time 15mins Power supply 1.5V*3pcs Overall dimension 160 x 75 x 32 mm Working temperature -10~+50, 0 to 95 percent RH (no condensing) Storage temperature -20~+70, 0 to 95 percent RH (no condensing)
Specification:
| Model | NF-901 |
| Wavelenth (nm) | 1310, 1550 |
| Emitter type | FP-LD |
| Output power | -7dBm |
| Modulation frequencies | CW/270Hz,1Hz,2Hz |
| Fiber Type | SM/MM |
| Optical connector | FC/SC/FC |
| Automatic shutdown time | 15mins |

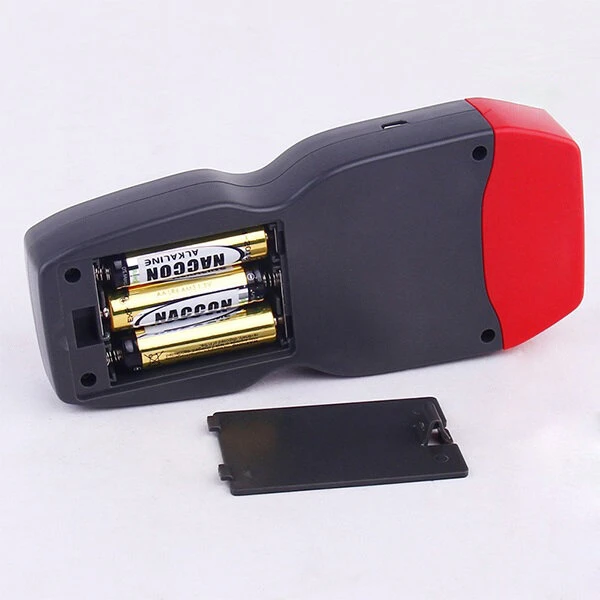

| Power supply | 1.5V*3pcs |
| Overall dimension | 160x75x32mm |

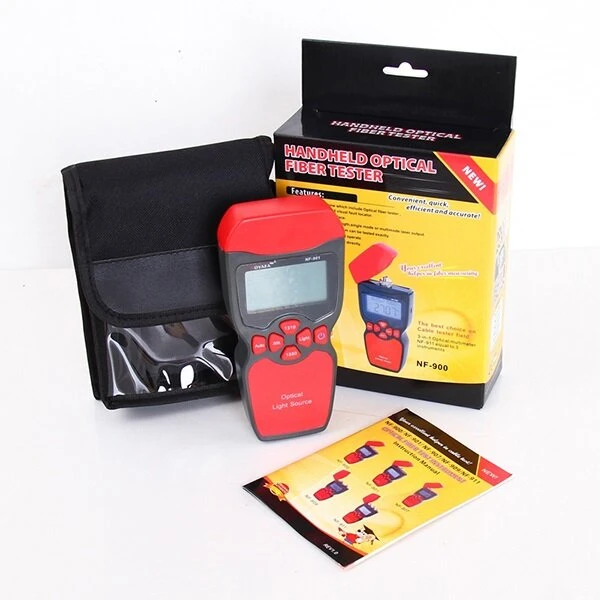

Package includes:
Optical fiber meter x1 (Battery not included)
User manual x1
Clean cotton swabs x1bag
Carrry bag x1
Color box x1

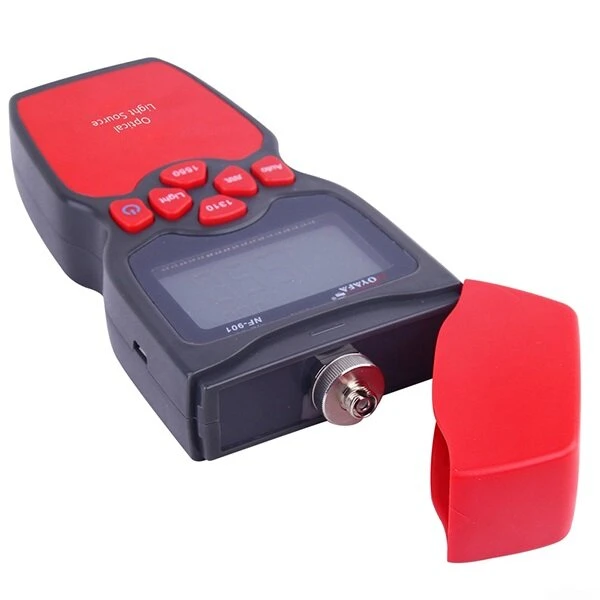

Details picture:
