NOYAFA NF-168V Wire Tracer & Cable Tester for RJ11 RJ45 Cat 5 Cat 6 - PoE Switch Finder
$78.00
$95.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:
1. Quickly tracing & find Lan/telephone cable which is connected with switch or router.
2. Two scan modes selectable: AC filter & Non AC filter
3. Check wiremap of Lan cable with receiver directly.
4. Tone tracing breakge points of Lan cables and metal lines.
5. Check fiber breakage, winding, etc.
6. Main Function : Test and Track Cables and VFL
7. Tracking Type : UTP/STP RJ45 (8P4C 8P8C), RJ11
8. 5mW Visual Fault Locator
Specifications:
| Technical indexes | |
| NF-168V Transmitter specifications | |
| Tone frequency | 200Hz |
| Max. distance of transmission | More than 3 kilometers |
| Max. working current | Less than 10mA |
| Tone mode | 2 Tones, adjustable |
| Compatible connectors | RJ11, RJ45??VFL |
| Max. signal voltage | 8Vp-p |
| Function and faults light display | Light display(Wiremap, tone,tracing) |
| Voltage protection | DC 48V |
| Dimension ( L x W x D ) | 13 x 4 x 2 cm |
| NF-168V Receiver specifications | |
| Frequency | 200kHz |
| The Max. working current | Less than 30mA |
| Earjack | 1 |
| Dimension( L x W x D ) | 10 x 5 x 2.3 cm |
Package includes:
Transmitter * 1 (Battery not included)
Receiver * 1 (Battery not included)
Testing line * 1
Earphone * 1
User manual * 1
Carry case * 1
Gift box * 1

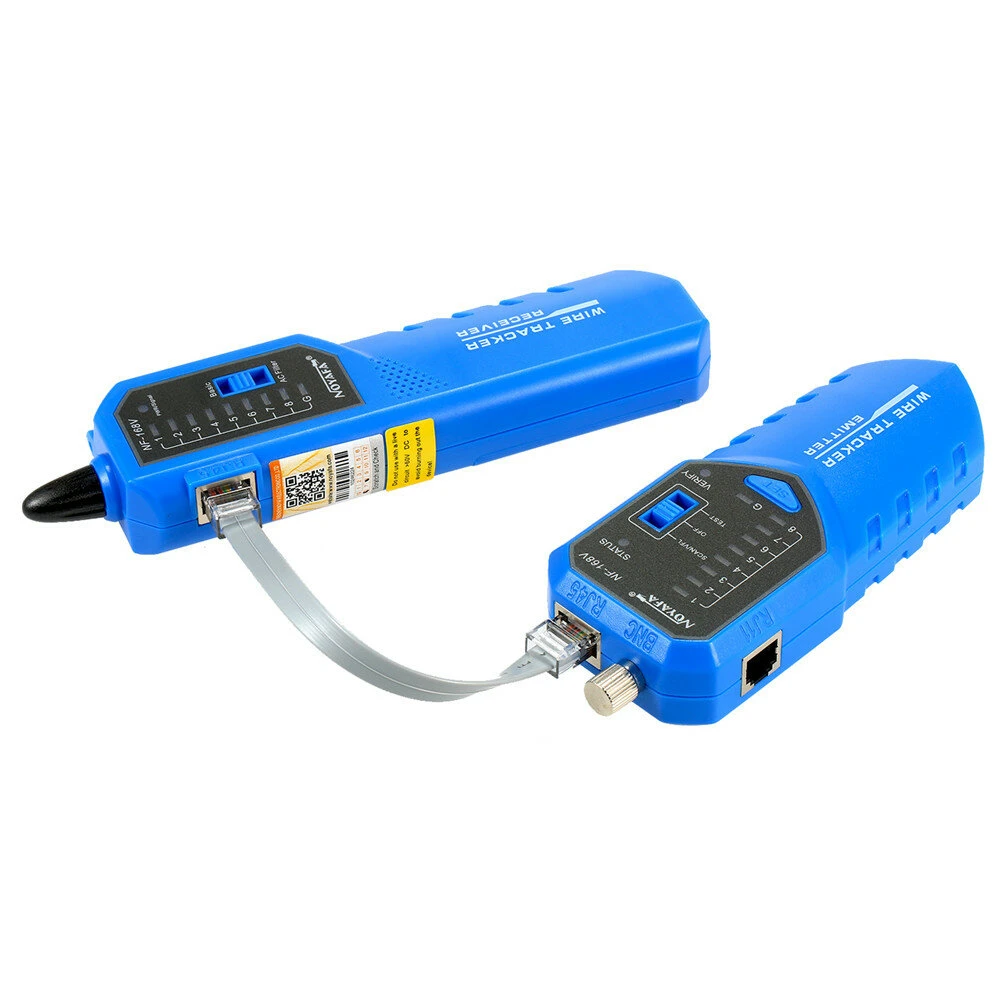

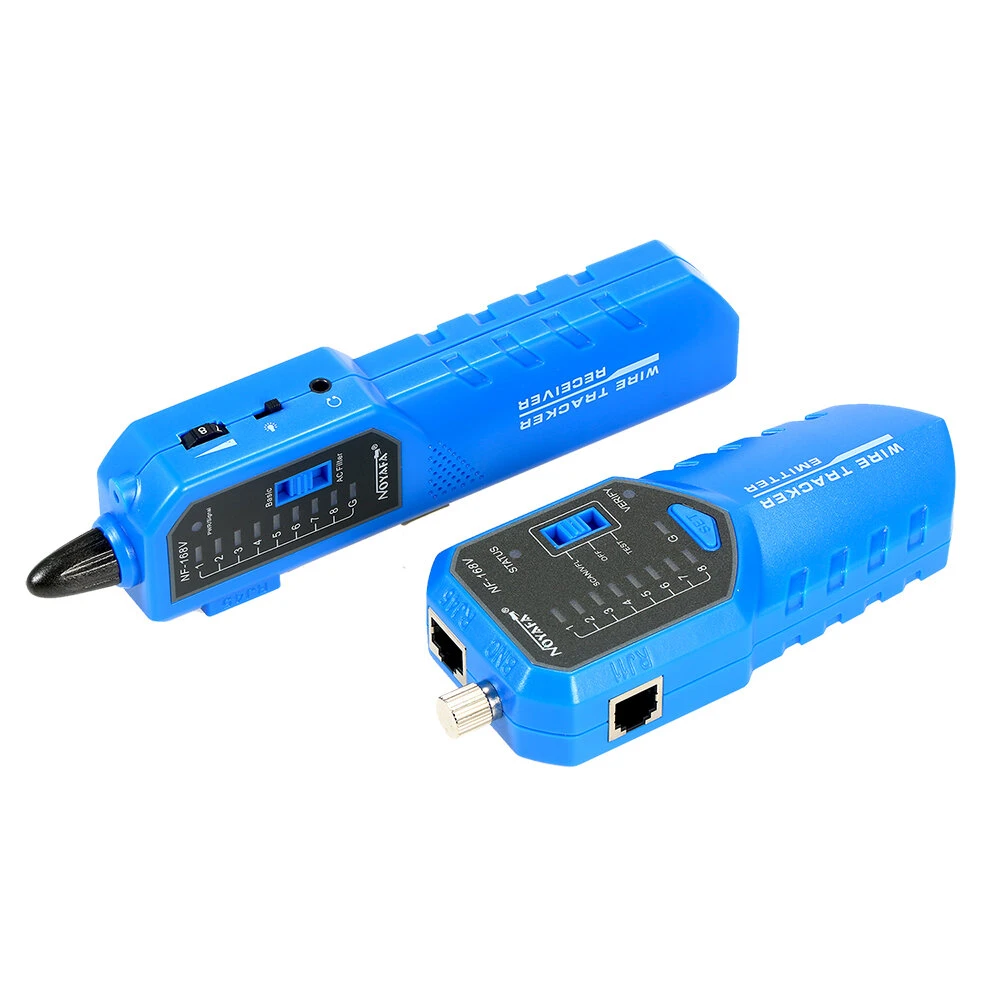

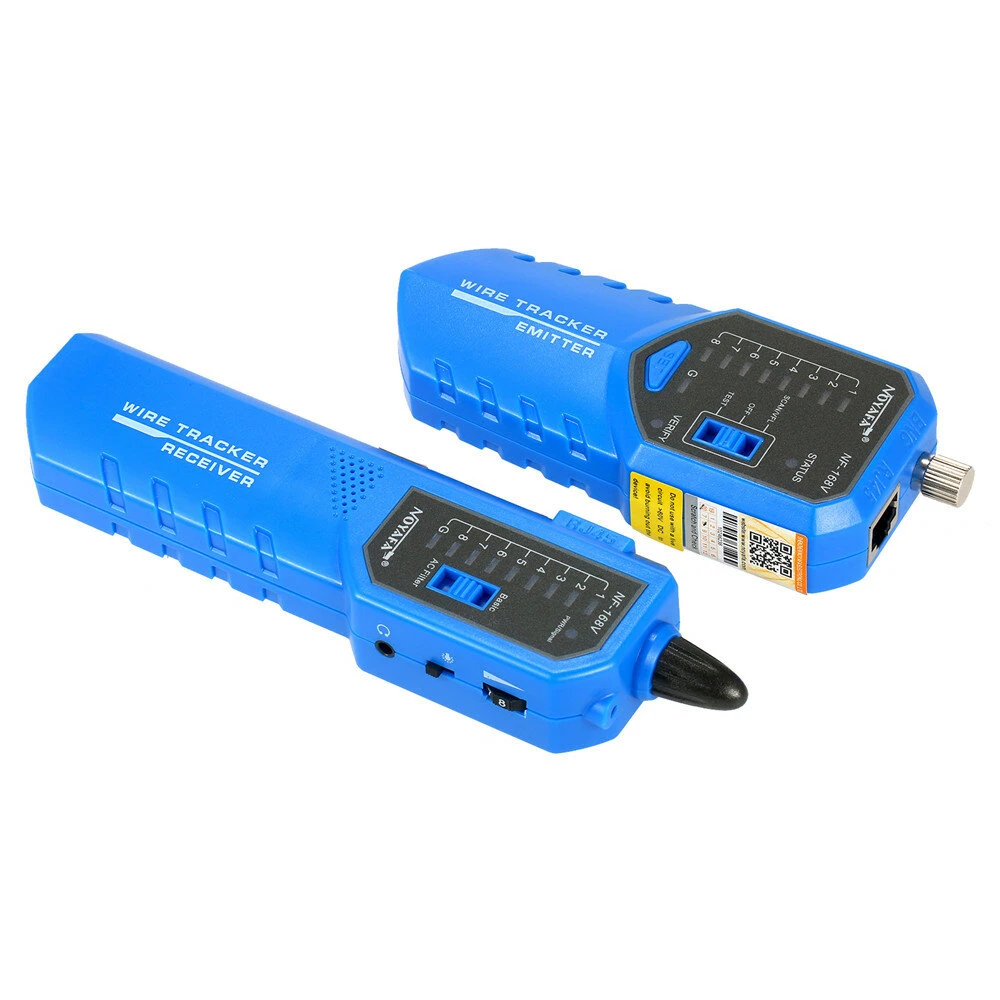

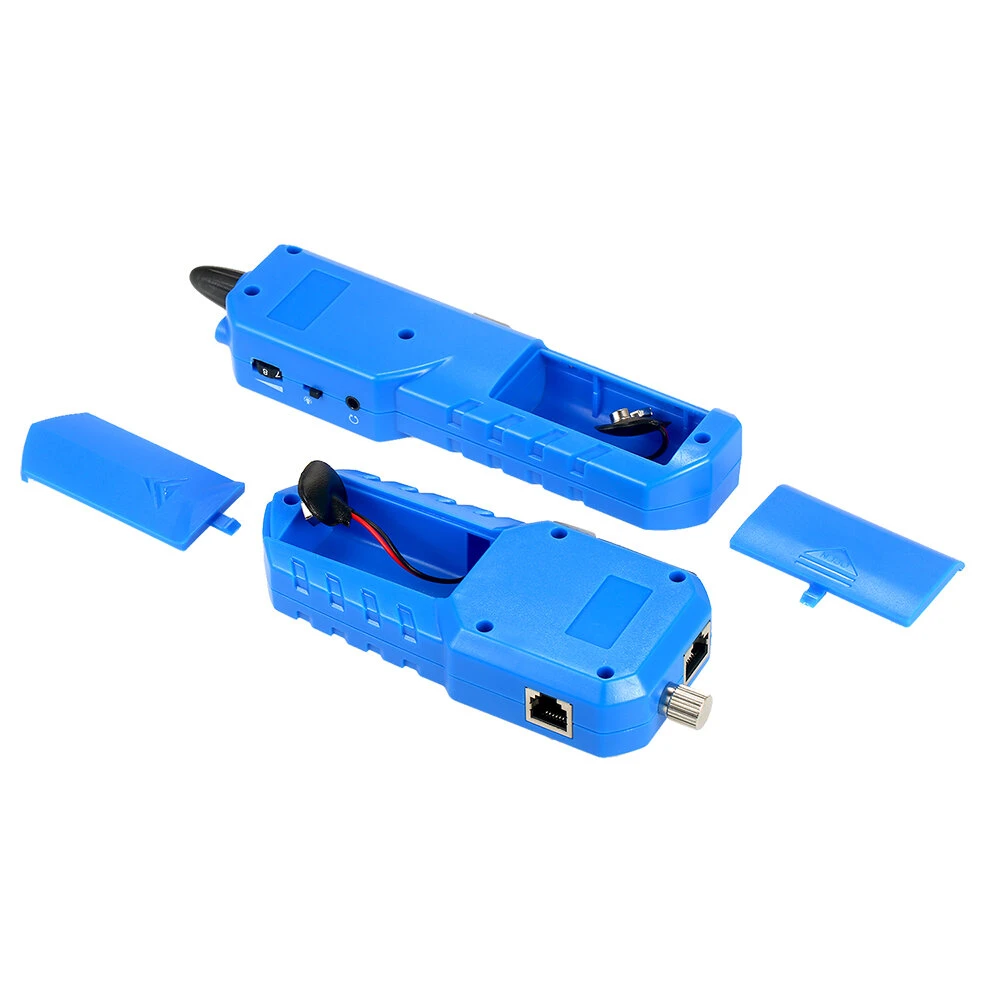

Details picture:
