IPC5100 Plus Coaxial HD CCTV Tester - 5 Monitor 8MP AHD TVI CVI - POE & DC12V Output
$282.00
$347.18
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
IPC-5100 Plus support 8MP AHD TVI CVI with battery +HDMI in, VGA inFeatures:
?? 5 inch IPS touch screen, 1920x1080 resolution?? 8MP CVI/ TVI/ AHD camera test?? H.265/H.264, 4K video display via mainstream?? HDMI input, support 4K 30FPS
?? DC12V 3A, 48V PoE power output?? Auto HD, auto recognize HD coax camera type and resolution?? RJ45 TDR cable test, cable quality test?? UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug
Specification:
Comparison Table:
Features/ Model | IPC-5000 Plus | IPC-5100 Plus | IPC-5200 Plus |
8MP AHD | ?? | ?? | ?? |
8MP TVI | ?? | ?? | ?? |
8MP CVI | ?? | ?? | ?? |
HD-SDI/3G-SDI/EX-SDI* | X | X | ?? |
HDMI IN* | X | ?? | ?? |
VGA IN* | X | ?? | ?? |
Battery | 2600mAh | 3350mAh | 3350mAh |
Digital Cable tracer* | No | No | No |
Camera test: ?? 5 inch IPS touch screen, 1920*1080 resolution ?? H.265 & H .264 IP, 4K video display via mainstream ?? Analog camera test, PTZ controller ?? 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu ?? 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu ?? 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu?? VGA input, up to 2048 x 1152 60FPS, support photograph, video record & playback?? HDMI Input, up to 4K 30FPS, support photograph, video record & playback?? Rapid ONVIF, Auto log in, display image, create testing report ?? IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate HIKVISION and Dahua cameras. Jump to ONVIF interface and test tools. ?? AXIS, Hikvision camera test, enter ONVIF app, input username and password to test ?? HIKVISION test tool, support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, can quickly change H.264 and H.265 video, open wide dynamic mode. Factory restore, etc. ?? Dahua test tool, support batch activate DAHUA cameras and modify IP address, user name and password. Self-defined modify channel name ?? IP and analog display image at the same time ?? IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera) ?? DC12V/3A power output, camera can be powered from DC 12 Voltage ?? Rapid video, just by one key to detect all network cameras and auto display ?? Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
Cable test: ?? Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug ?? RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report ?? Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time * it is optional , if you need this one , pelase contact me .
Other Functions:?? Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route?? Tester Play: Tester, android version mobile phone and PC display at the same time?? Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters?? Customers self-update software, you can install apps with android version?? Media player, 4K video files and MKV/MP4 media files play?? Display its genuine resolution of the IP camera images?? Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools?? 7.4 V /3350mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 6 hours (For IPC-5100 Plus and IPC-5200 Plus)?? 7.4 V /2600mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 5 hours (For IPC-5000 Plus)
Application:?? CCTV system installation and maintenance?? Network cabling project installation and maintenance ?? Dome camera, 4K H.265 IP camera testing?? Video transmission channel testing?? PTZ controller
Package includes:
1 x Coaxial HD CCTV Tester Monitor1 x RS485 control line1 x BNC video cable1 x Test box1 x power supply1 x Audio Line1 x Power supply line1 x Hand rope1 x Toolkit

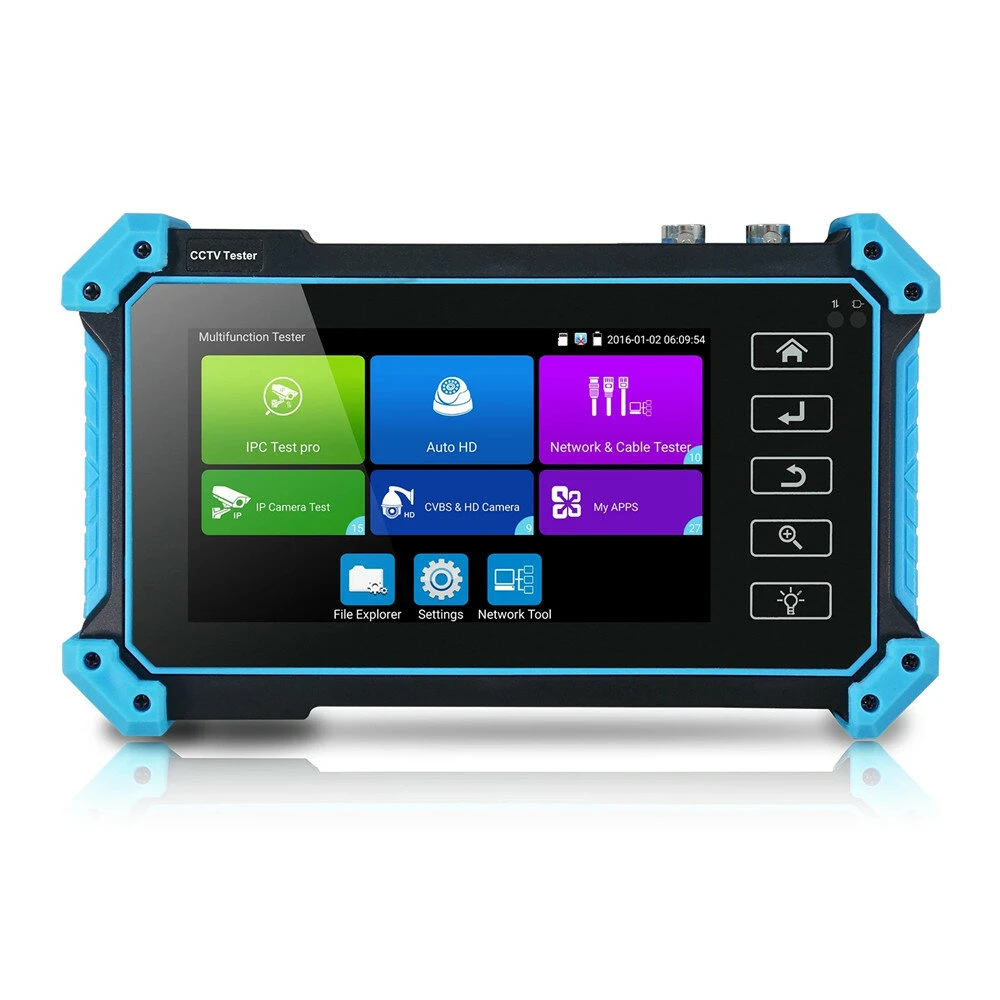

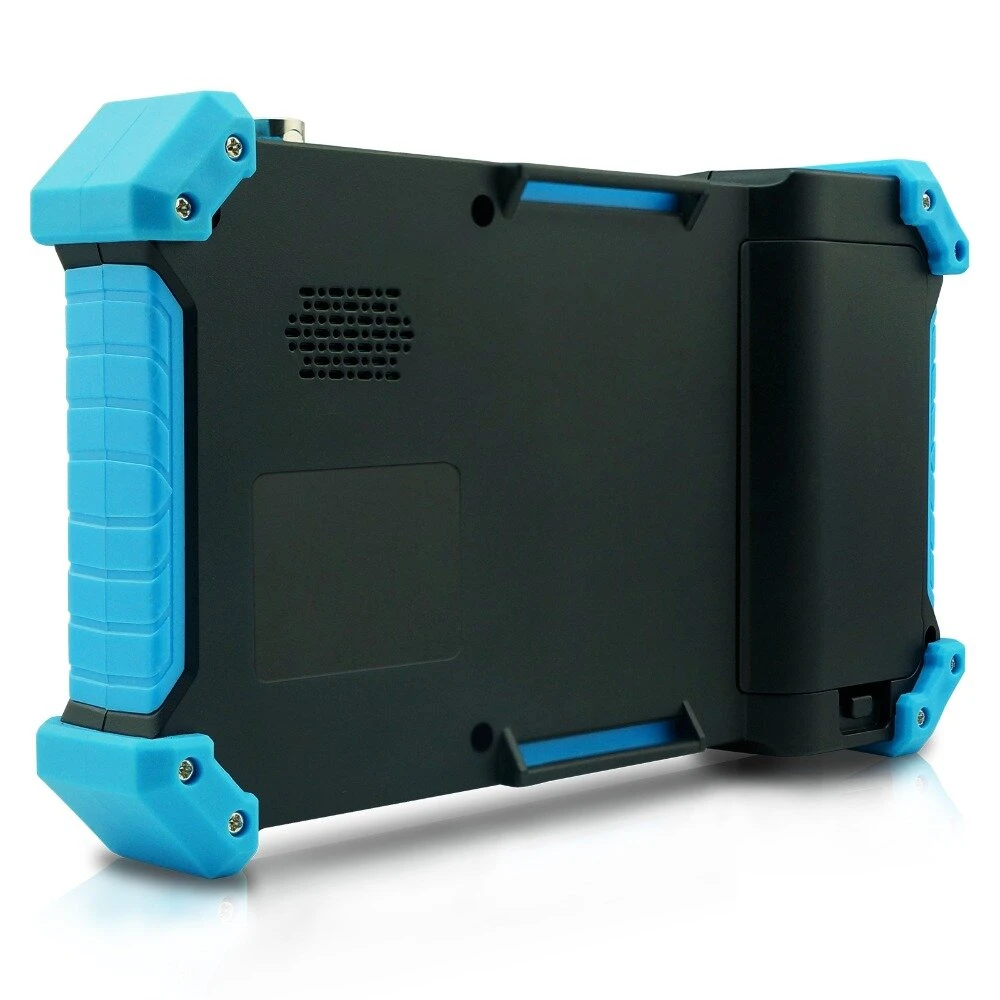

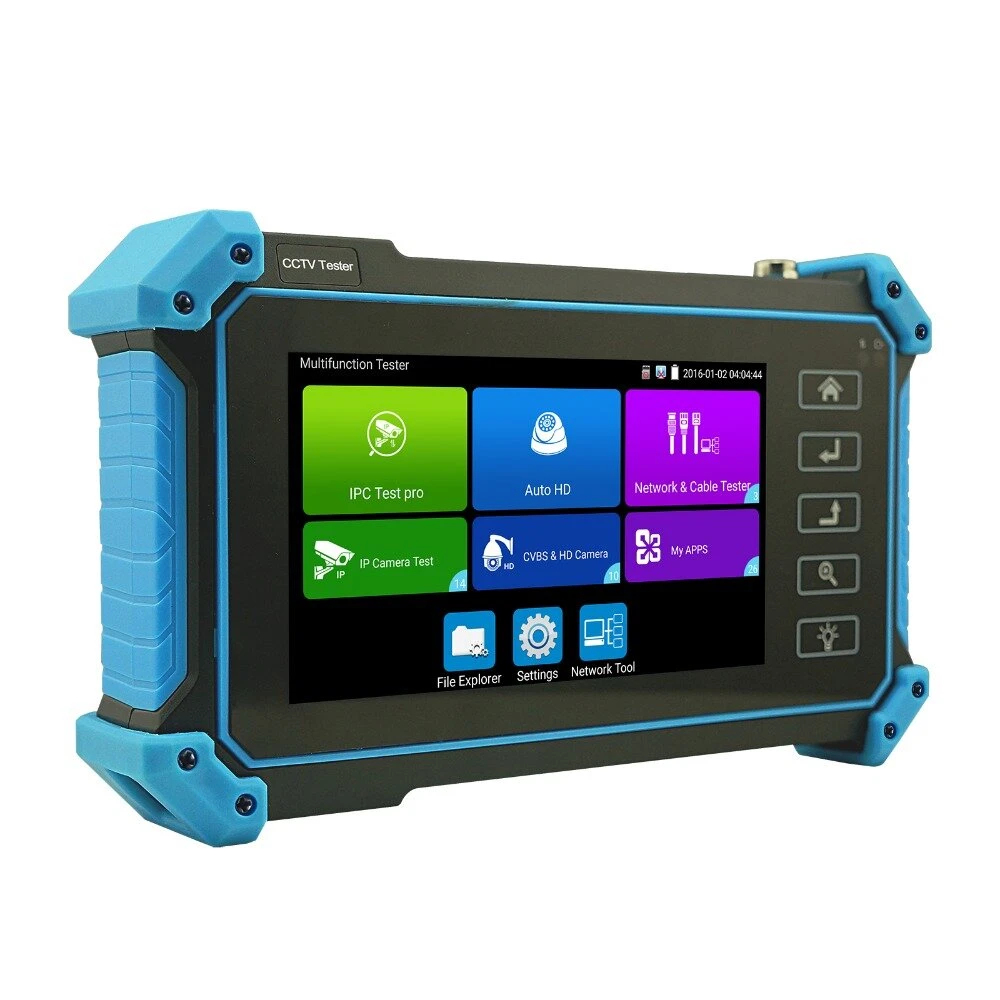

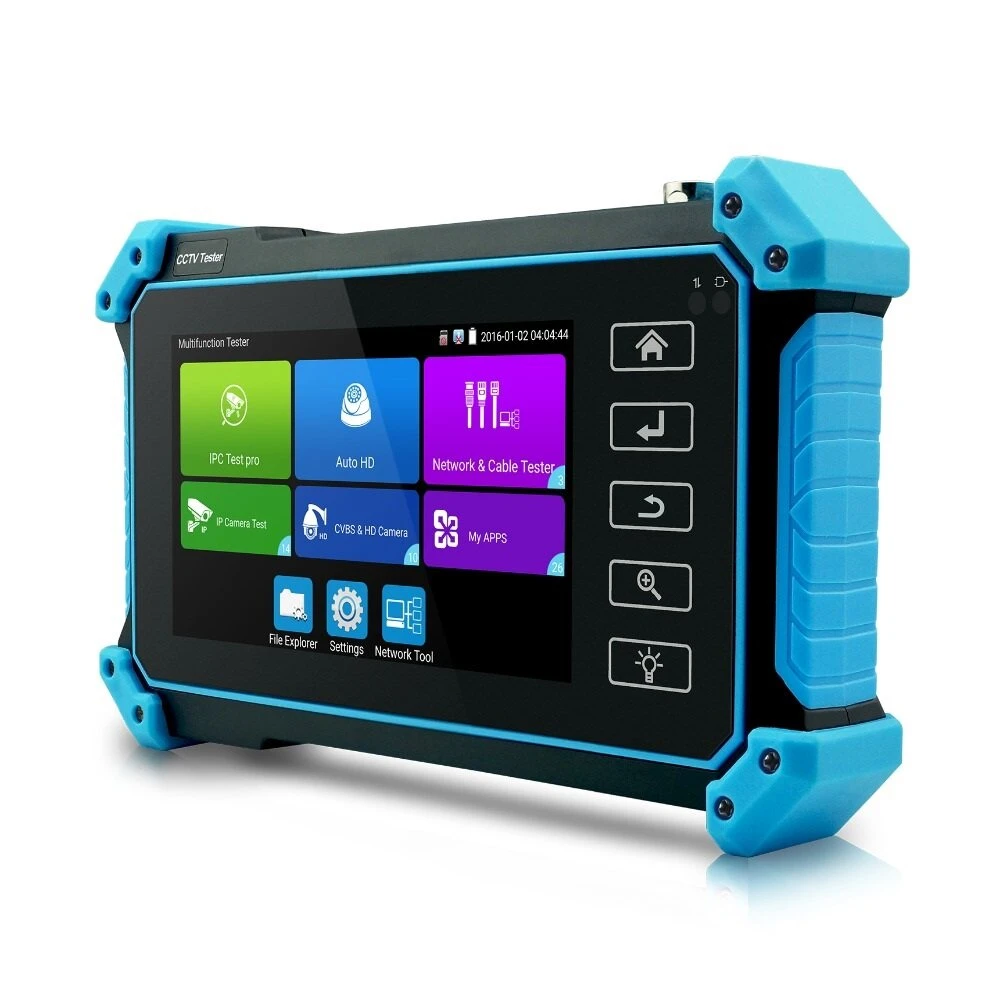

Details picture:
