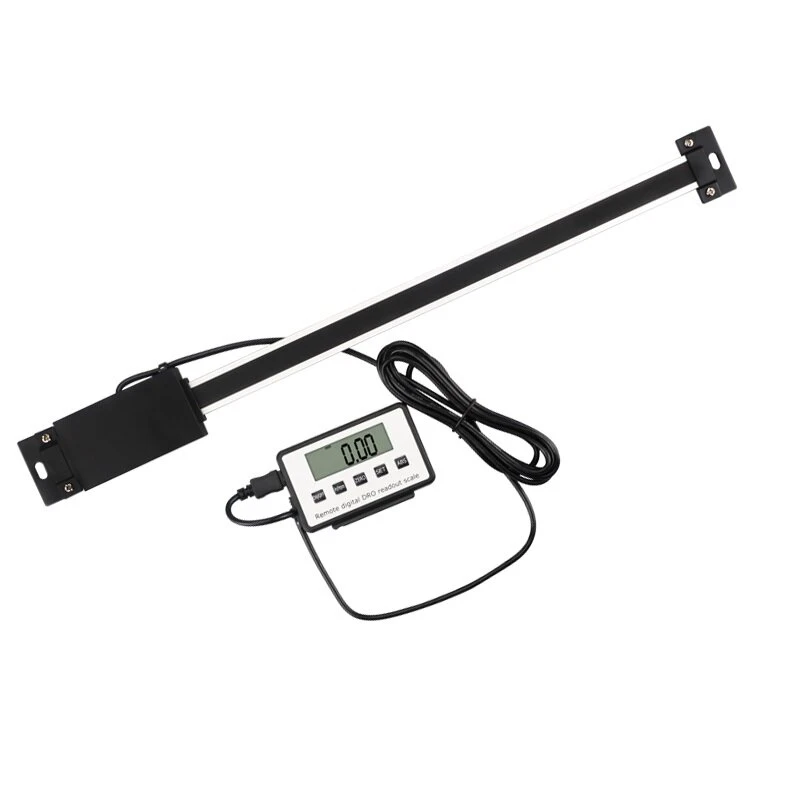

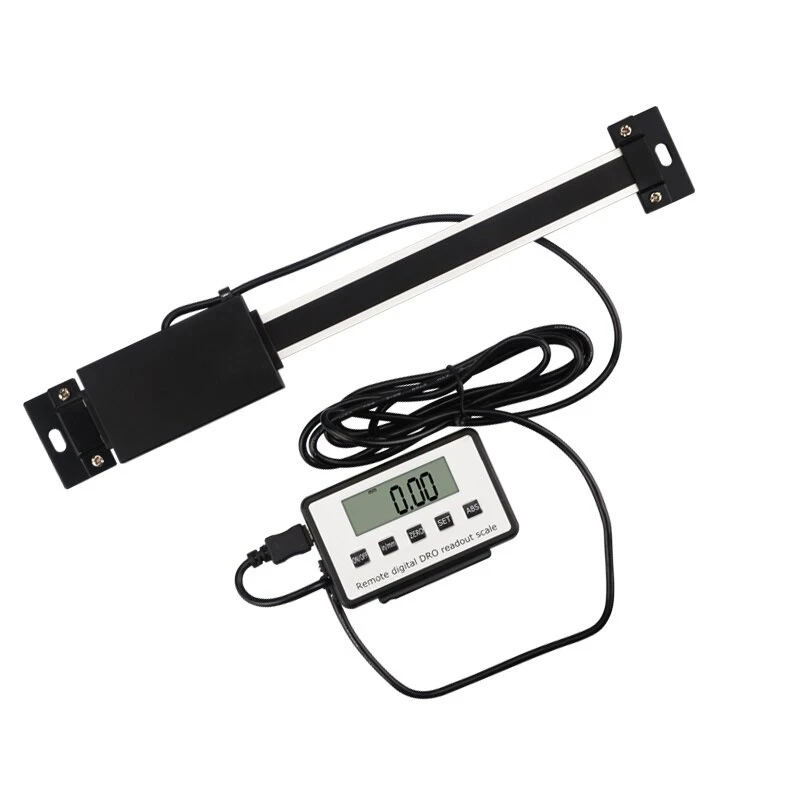

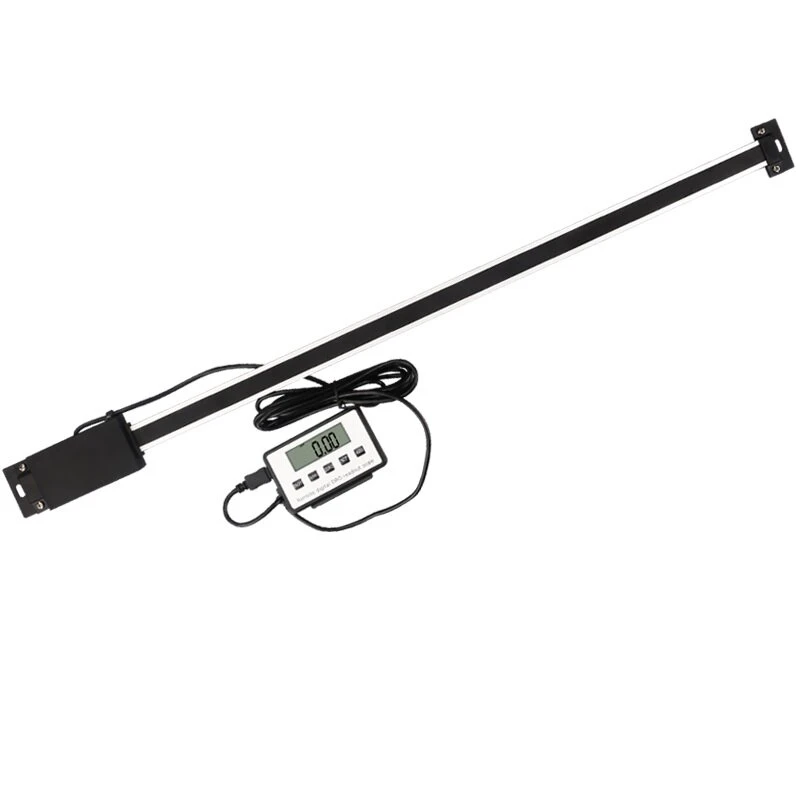

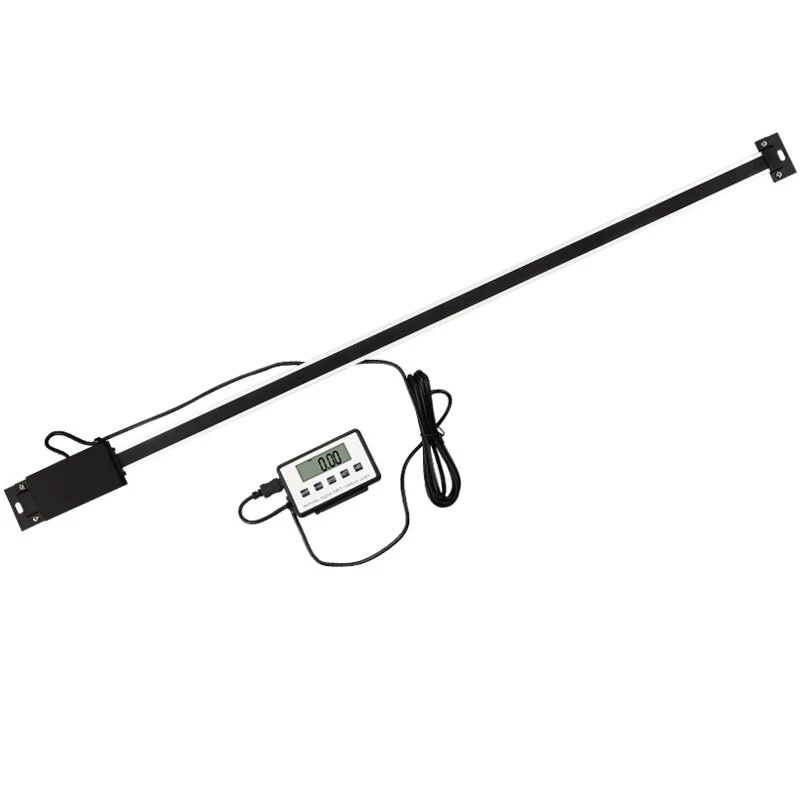

Digital Display Ruler 0-1000mm | External Horizontal & Vertical Dual-Purpose | Machine Positioning Displacement Ruler
$133.00
$163.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:
- Horizontal and vertical digital display ruler
- The large-screen digital display is externally multifunctional. The liquid crystal display, the digital display is intuitive, and the display is clear, bringing you a different operating experience.
- There are dual magnets on the back, which are tightly attached, and there are dual magnets on the back of the display, which are tightly attached to iron objects.
- The mounting holes on the back are suitable for a variety of equipment and machine tools. During machining or machine tool assembly, the assembly assembly fixed on the fixture is measured and positioned.
Specification:
Measuring Range | 0-150mm | 0-200mm | 0-300mm | 0-500mm | 0-600mm | 0-1000mm |
Display Error | +0.06mm | +0.08mm | +0.10mm | +0.15mm | +0.15mm | +0.20mm |
| Accuracy | ??0.05mm | ??0.07mm | ??0.10mm | ??0.15mm | ??0.15mm | ??0.20mm |
Resolution: 0.01mm/0.0005"Battery: 3V CR2032(not included)Use environment: temperature 0-40??C, humidity ??80%
Button Function:
- ON/OFF: power switch
- In/mm: metric conversion at any position (forward and reverse direction switching)
- ZERO: Clear data at any position
- ABS: relative measurement and absolute measurement conversion
- SET: In the inch measurement state, each time you press this key, the resolution of the fractional part will be switched between 1/32, 1/64, and 1/128.
Package includes:
1 x External Digital Display Ruler
4 x Mounting Brackets
2 x Mounting Screws
1 x User Manual
Details pictures:
