ZL-166 Handheld GPS Land Area Meter - TFT 2.4in Display | US Plug 100-240V
Product Description
Feature:
1. High definition LED backlight display, with laser module, can easily measure and read even in dark environment.2. Two color mold is one-piece molding, sturdy and durable, double injection molding shell, made of high-quality ABS material, corrosion-resistant and wear-resistant.
3. With insulating rubber, cushioning and anti-skid, double-layer protection, the design conforms to ergonomics, comfortable grip, and more convenient measurement.
4. Good waterproof and dustproof performance, IP class waterproof, easy to use even in harsh working environment, no need to worry about water and dust problems.
5. Equipped for -blox chip, with GPS positioning system, accurate measurement, small error, high accuracy.
6. Support data export function, with voice broadcast, without looking at the screen to know the measurement results.
Specification:
Condition: 100% Brand New
Item Type: Land Area Meter
Material: ABS
Model: ZL-166
Panel: TFT 2.4in, Resolution 240x320
Positioning Accuracy: ??1.5m
Area Measurement Range: 0-99999 Hectares
Length Measurement Range: 0-99999999m
Relative Accuracy of Area: <= 2% (1-3 Hectares), <= 1% (More Than 3 Hectares)
Track Tolerance: ??2m
Number of Records: 100
Battery: 3.7V 2500mAH Lithium Battery
Ambient Temperature: 20-60??C, Humidity 5-95%
Weight: Approx. 375g / 13.2oz
Product Size: 15x6x3cm / 5.9x2.4x1.2in
Measurement Method:
Automatic track measurement: starting from point a and walking around the area to be measured, the measurement area can be displayed, which is convenient and fast
Length and width measurement: press the "start" key from point a to point B, then press the "start" key to point C, and then press the "OK" key.
Airborne mode: set the vehicle width of agricultural machinery in it, and then press "start" to put it on the agricultural machinery to measure along the operation path, and press "confirm" to arrive at the destination.
Curve measurement: enter the curve measurement interface after the equipment is positioned, click "confirm" to start measuring from point a to point B, and then click "end" to get the distance data of straight line between two points.
Straight line measurement: enter the curve measurement interface after the equipment is positioned, and the operation steps are the same as the straight line measurement.

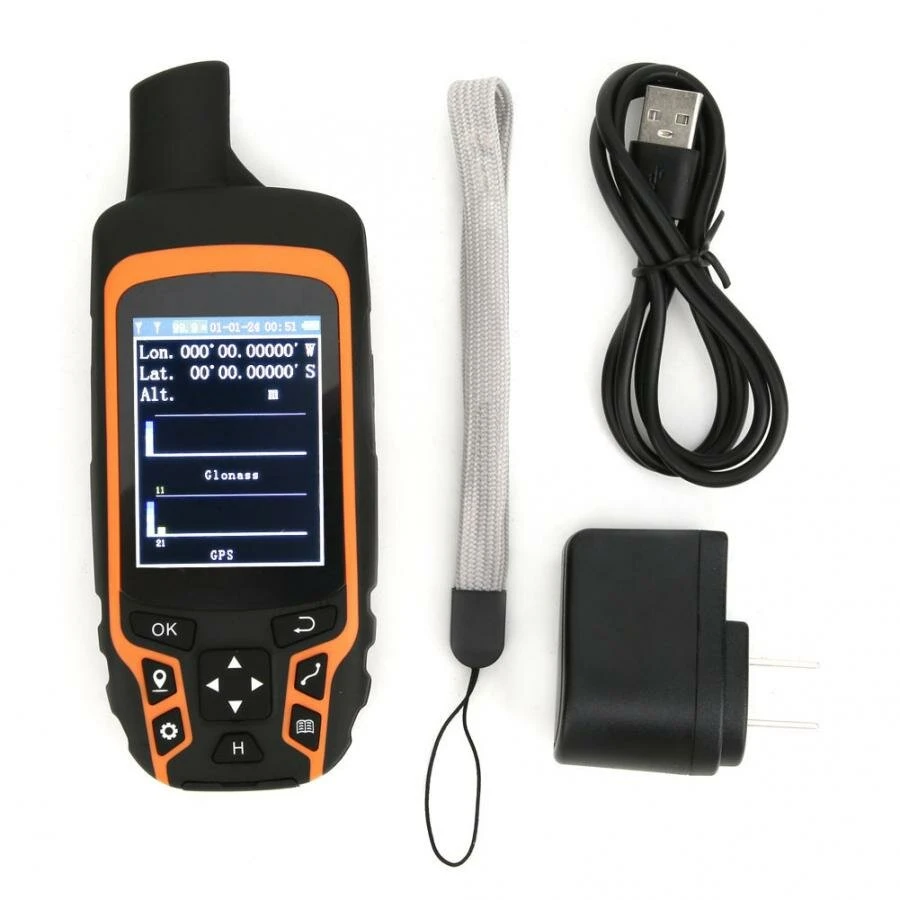

Package Includes:
1 x Instruction Manual
Note:
We will send you a plug adapter according to your country.
Details Pictures:
