Product Description

>>Please Click Here to Download the English User Manual<<
>>Please click here to download the software<<

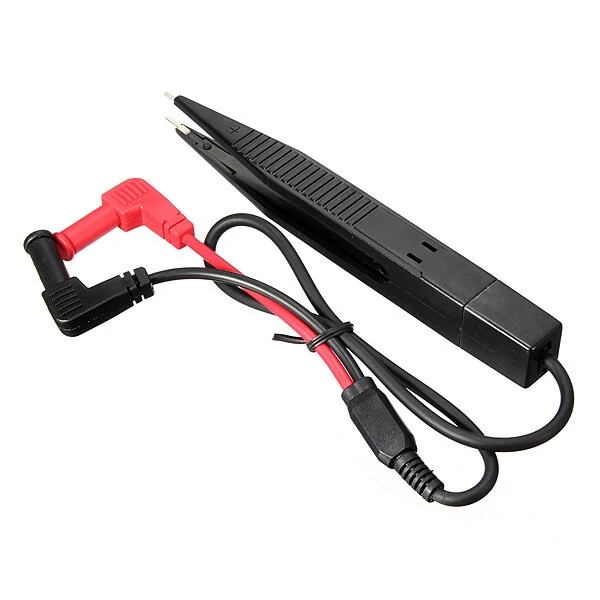

>>Please click here to buy SMD Clip Probe<<

Descriptions: ET44 series desktop bridge incorporates 3.5-inch TFT display, user-friendly interface, and a variety of measurement parameters into one body. It is convenient for users to carry out remote control with USB and RS232 and also perform the sorting of components using handle. In function, it can not only adjust the output frequency and test level, but also record the value of components in the process of measurement. In the performance parameters, its basic accuracy reaches 0.2%.
Features:

?? Measurement frequency up to 100kHz ?? Test level 100 ~ 2000mV ??Support the measurement of DC resistance and electrolytic capacitor ??Internal bias voltage output (1mV-1500mV) ??Automatic identification of component measurement ??3.5-inch TFT display, 5 and a half bits display ??USB, RS232 communication interface, Handle sorting ?? Data recording function (maximum and minimum values, average value)

?? Support SCPI communication protocol ?? Provide system settings, which can configure language, buzzer, screen brightness, etc according to the needs of users. ?? Basic accuracy 0.2% ?? Manual and automatic range ?? Be equipped with open circuit and short circuit correction ?? Comparator has sorting and alarm function ?? Provide a variety of test ports

Specifications:

Model	ET4401	ET4402	ET4410
Digits	Main parameter: 5 digits; secondary parameter: 5 digits
Measurement Parameter	Main parameter: L/C/R/Z; secondary parameter: X/D/Q/??/ESR
Measurement Range(L)	0.01??H - 9999H
Measurement Range(C)	0.01pF - 9999??F
Measurement Range(R)	0.0001?? - 99.99M??
Basic Accuracy	0.2%
Test Frequency (Hz)	100~10kHz 10 point	100~20kHz 12point	100~100kHz 16 point
Measurement Display Speed	2 times/second (slow), 4 times/second (medium speed), 8 times/sec (fast)
Internal Bias	0-1500mV adjustable, 1mV stepping
Test Level	100mV, 300mV, 600mV, 1000mV, 1500mV, 2000mV
Correction Function	Open circuit correction, short circuit correction
Screening function	The screening limit can be set from -50% to + 50% with fixed points of 1%, 5%, 10% and 20%
Selection of comparator	Five gear sorting, third gear qualified, one gear failed, one ancillary gear

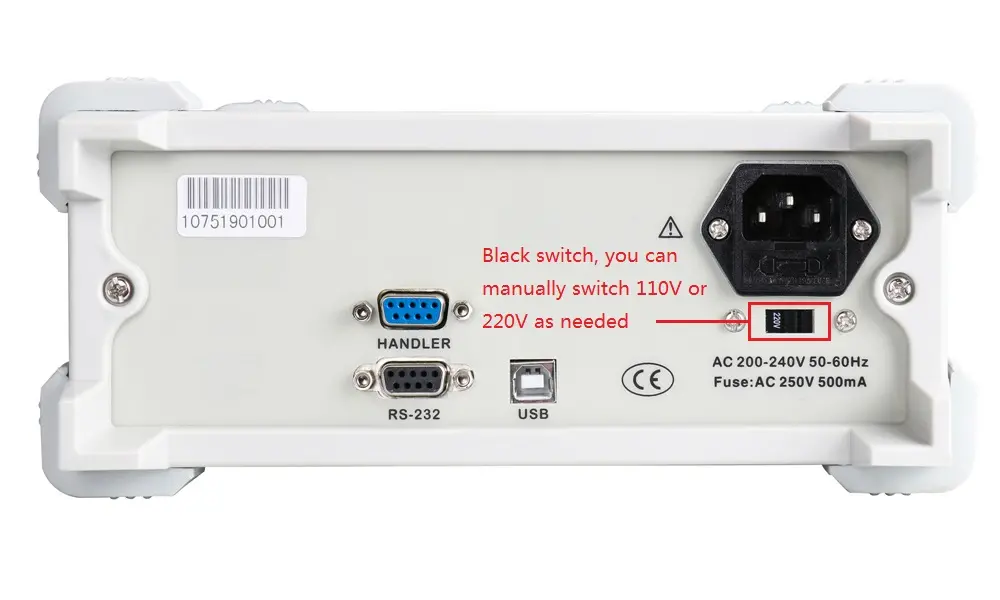

Communication Interface	Standard configuration: USB, RS232 (or 485), Handle interface; Optional: GPIB, USB Host
Others	Support DCR, electrolytic capacitor measurement mode, adjustable backlight brightness, optional in English and Chinese

??Power supply voltage: 220V AC ?? 10%, or 110V AC ?? 10%, 45-65Hz??Working environment: 0 ~ 40 ??, relative humidity <80%.??Storage environment: -10 ~ 50 ??, relative humidity <80%.??Dimensions: 265mm * 105mm * 305mm (width * height* depth).??Mass: 2.3kg.??Power consumption: <10W

Package Includes:
1 x ET4401 LCR Tester

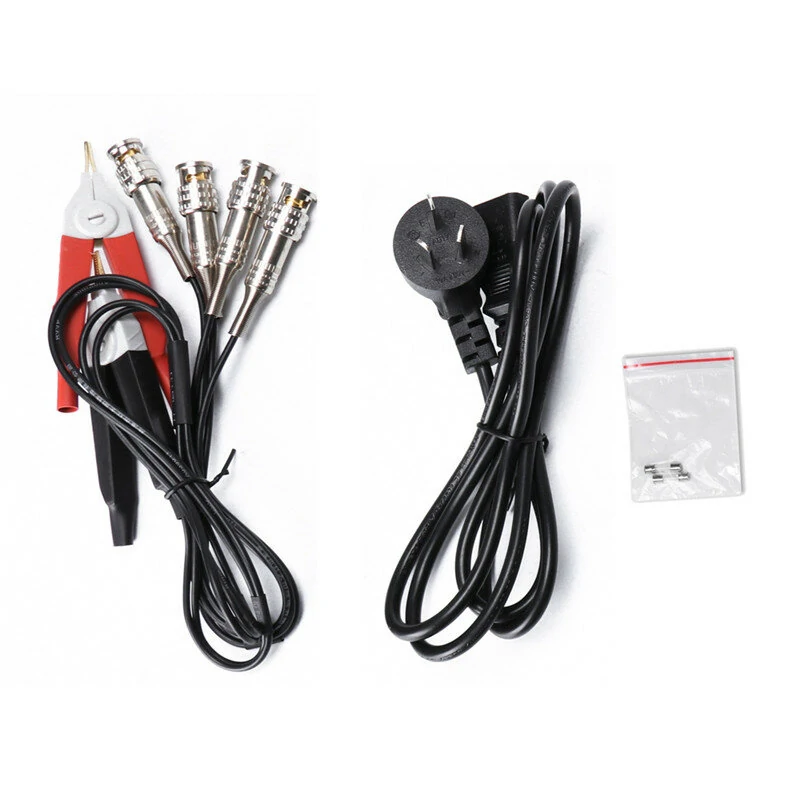

1 x Set of accessories

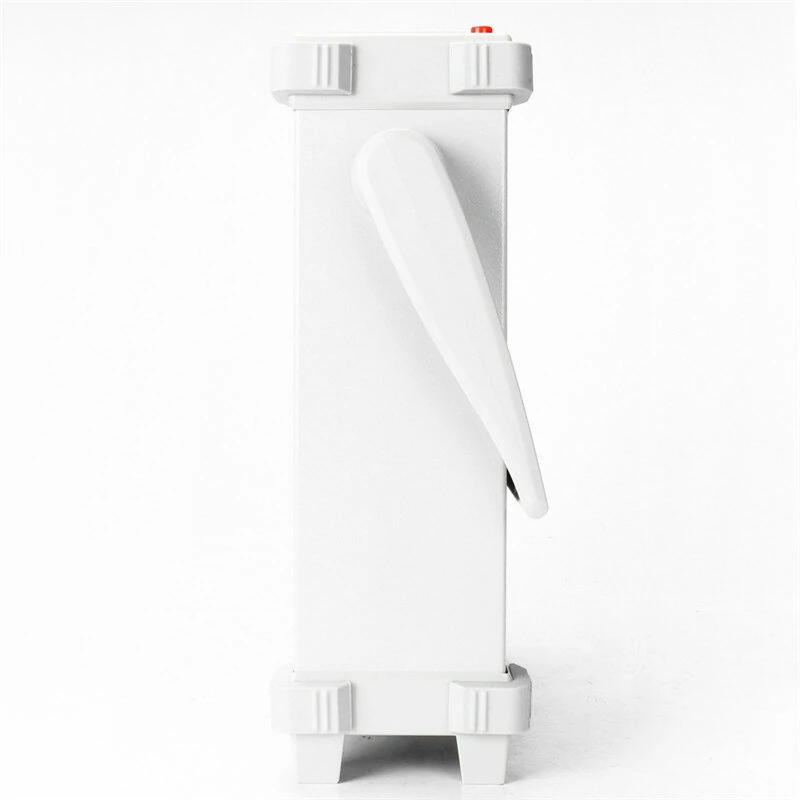

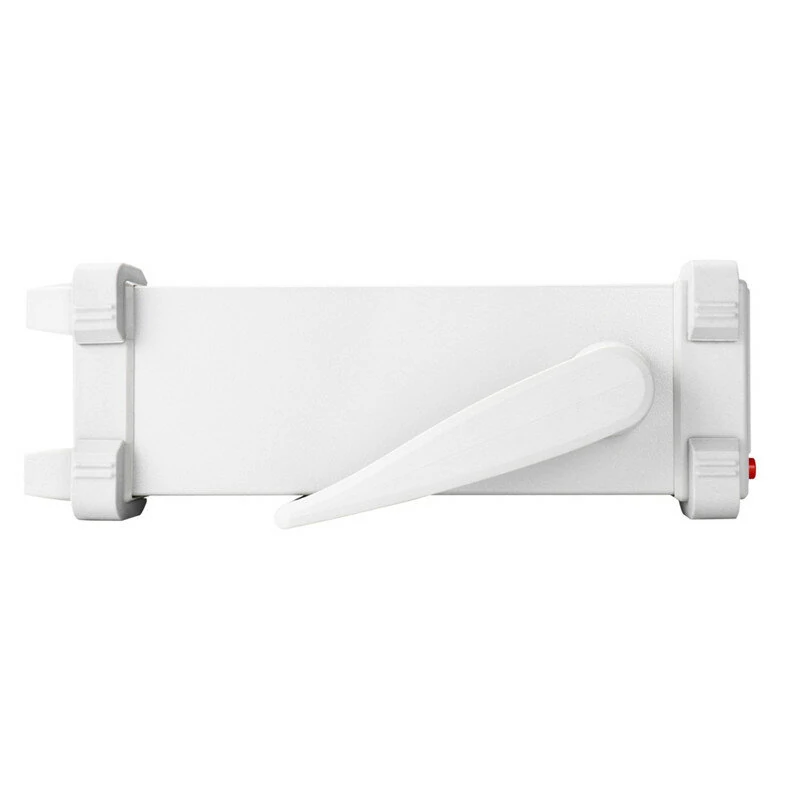

Detail Pictures:
