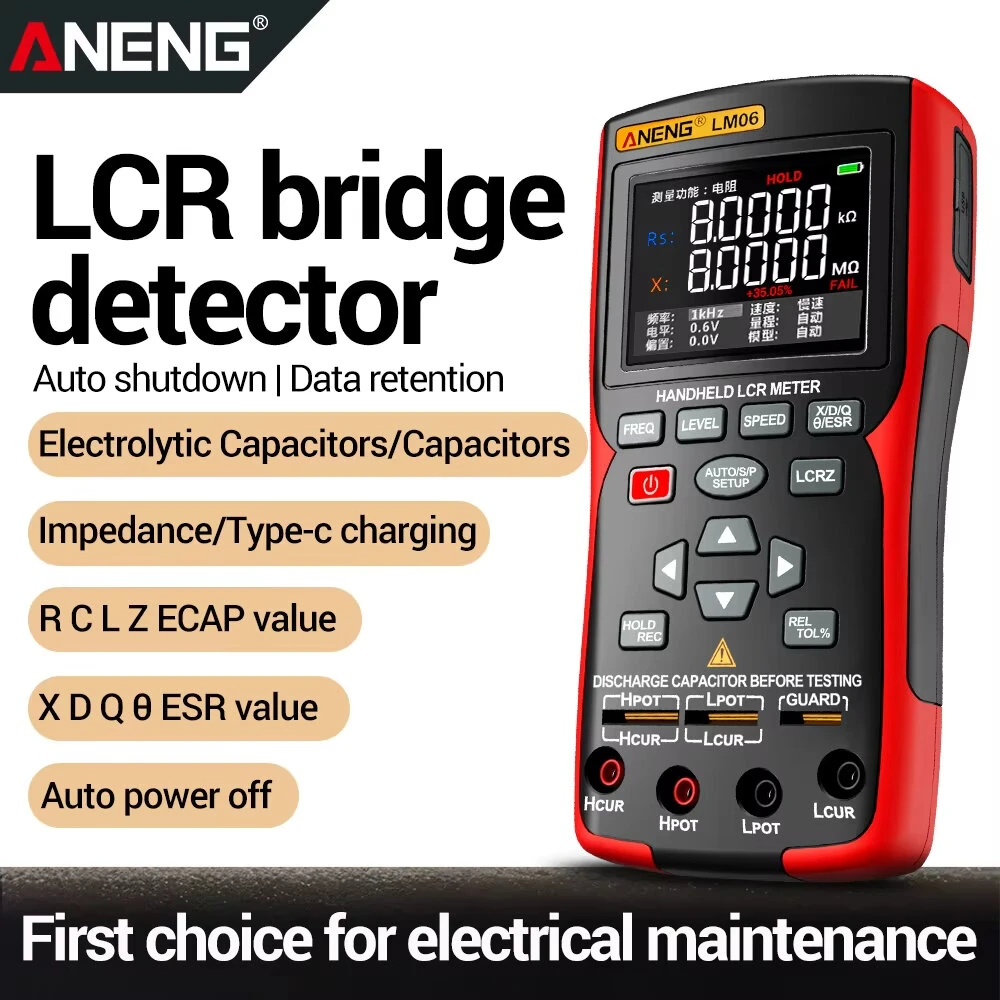

ANENG LM06 LCR Meter - 100KHz Tester for Capacitance Inductance Resistance

Product Description

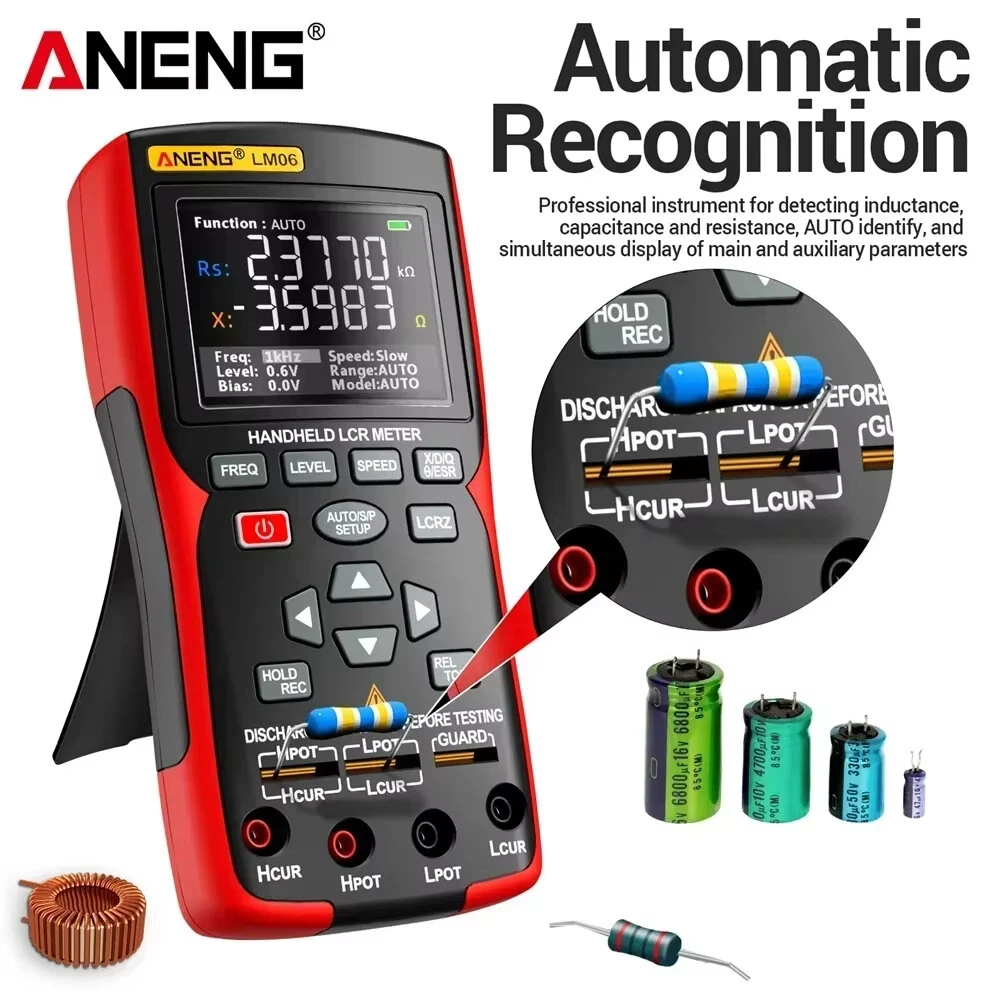

Specifications:Measurement Functions: Automatic measurement of resistance, capacitance, inductance, impedance, and electrolytic capacitorsMain Parameters: L, C, R, ZSecondary Parameters: X, D, Q, ??, ERSEquivalent Measurement Type: Automatic, series, parallelInductance Range: 0~100HCapacitance Range: 0~100000uFResistance Range: 0~20M??Test Levels: 0.1V, 0.3V, 0.6VAccuracy: 0.3%Measurement Speeds: 1 second/time, 2 seconds/time, 4 seconds/timeOutput Impedance: 100??Material: ABS + TPEDisplay Screen: 2.8-inch TFT screen (320x240 resolution)Test Frequencies: 100Hz / 120Hz / 1kHz / 10kHz / 100kHzBattery Type: 18650, 2000mAh lithium batteryBattery Life: Approximately 13 hoursWeight: 336gAutomatic Shutdown Options: 15 minutes / 30 minutes / 45 minutes / 60 minutes / Disabled

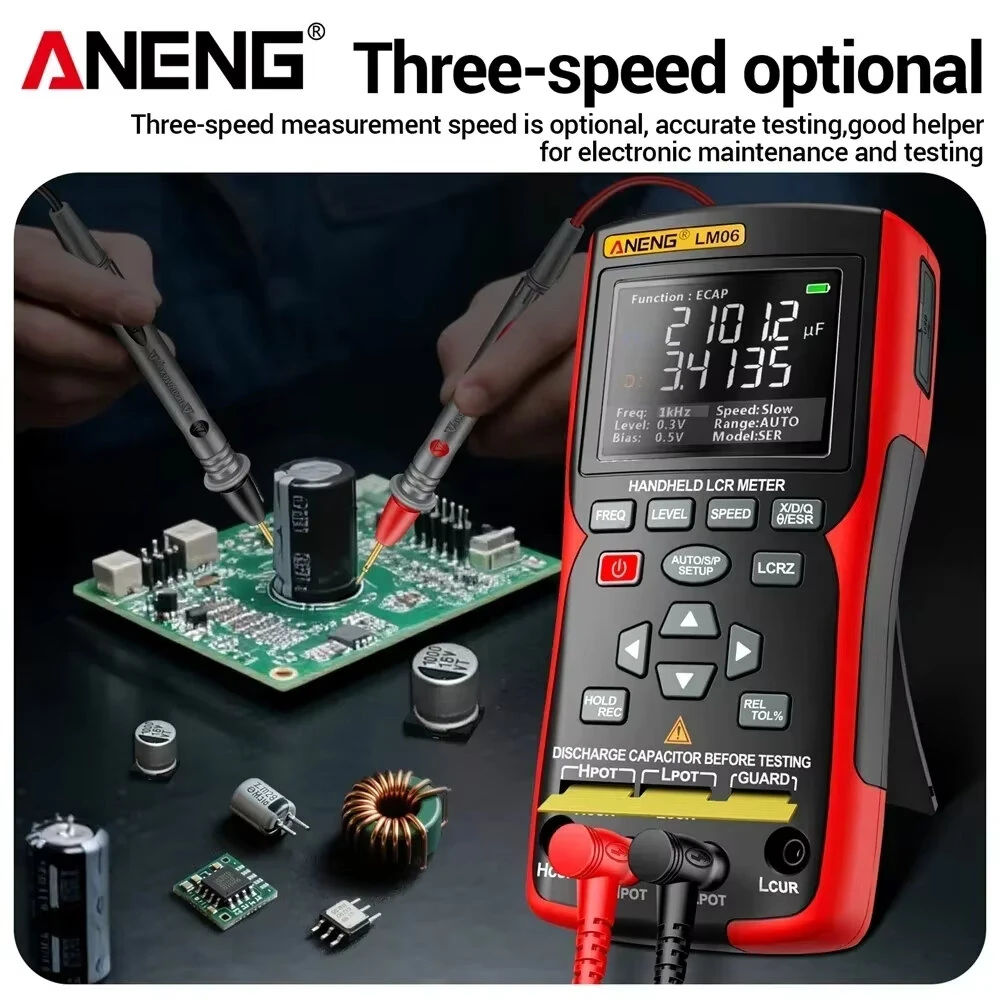

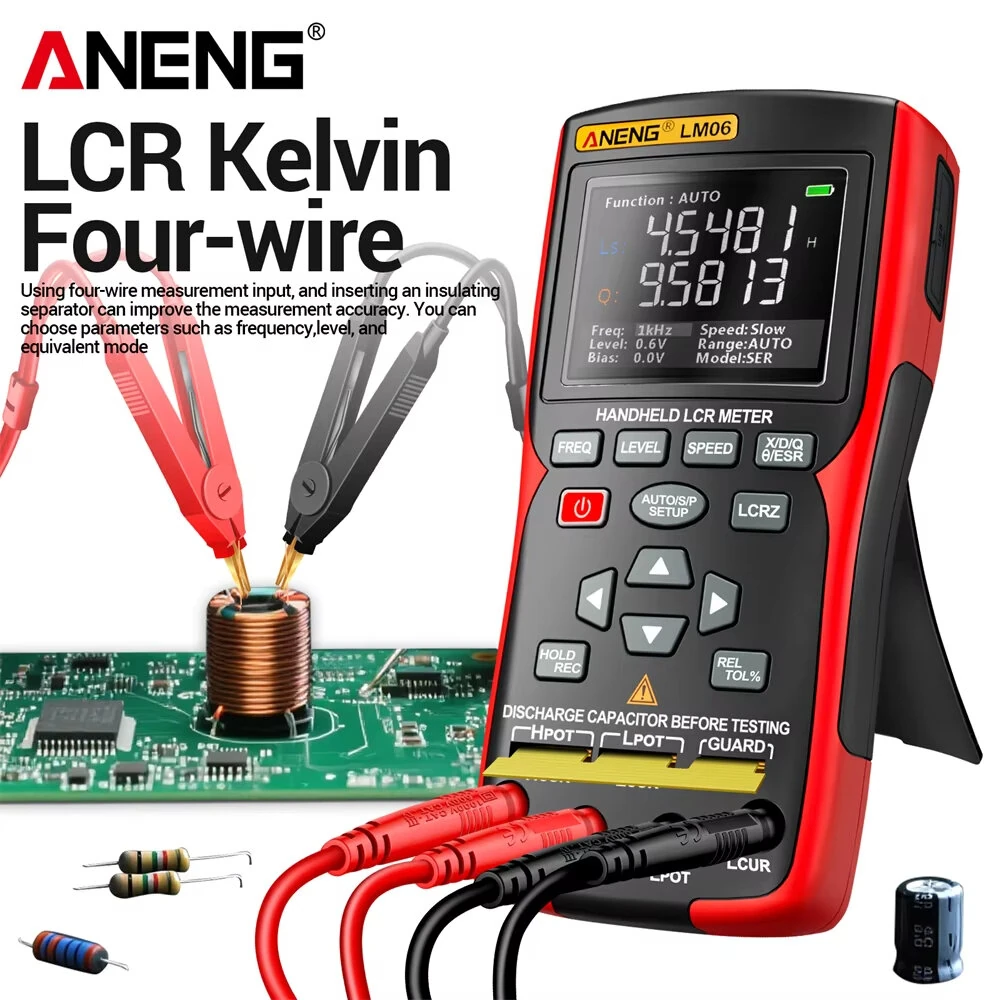

Features:1.High Precision Measurement: Offers a wide range of inductance, capacitance, and resistance measurements with up to 0.3% accuracy, suitable for professional and laboratory-grade requirements.2.Advanced Display: Equipped with a 2.8-inch TFT screen (320x240 resolution), ensuring clear visibility of measurements and detailed parameter analysis in various lighting conditions.3.Versatile Input and Calibration: Features 4-wire measurement input and bridge calibration, enabling increased measurement reliability and adaptability to diverse test scenarios such as open circuits and short circuits.4.Flexible Test Frequencies and Speeds: Provides selectable test frequencies from 100Hz to 100kHz and adjustable measurement speeds (1s, 2s, 4s per test), making testing faster and customizable.5.Portable Design with Long Battery Life: Compact size and lightweight build (336g) combined with a 13-hour battery life using a rechargeable 18650 lithium battery provide convenience for extended testing sessions.
Package Included:1 x LCR Meter Kit
