UNI-T UTG9002C-II Arbitrary Waveform Generator | 0.2Hz-2MHz Signal Source
$294.00
$361.58
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Features:??Output waveform: sine wave, square wave, ramp wave, pulse wave, noise, DC, arbitrary waveform??Output frequency range: sine wave: 2MHz; square wave: 2MHz??Frequency resolution: 1??Hz??Built-in 20 kinds of arbitrary waveforms, frequency range: 1??Hz~1MHz??Built-in 6-digit high-precision, wide-band frequency counter, frequency range: 100mHz~ 100MHz??Output amplitude (high resistance): continuously adjustable between 2mVpp~20Vpp??Vertical resolution: 14bit, sampling rate: 125MS/s??Analog and digital modulation types: AM, FM, PM, FSK??Built-in 4W power output??USB Device interface for remote control??EBTN super black LCD screen??Power supply: 100~240VACrms, 50Hz/60Hz
Specification:
| Model | UTG9002C-II |
| Channel | 1 |
| Bandwidth | 2MHz |
| Sampling rate | 125MS/s |
| Vertical resolution | 14 bits |
| Waveforms | Sine, square, pulse, ramp, noise, DC, arbitrary (20 sets inside ) |
| Sweep modes | Logarithmic, linear |
| Frequency Characteristics | |
| Sine | 1??Hz~2MHz |
| Square | 1??Hz~2MHz |
| Ramp | 1??Hz~200kHz |
| Pulse | 1??Hz~2MHz |
| Arbitrary | 1??Hz~1MHz |
| Resolution | 1??Hz |
| Accuracy | Within 90 days ?? 50ppm |
| Within 1 year ?? 100ppm | |
| 18??~28?? | |
| Output Characteristics | |
| Impedance | 50??/High Z |
| Amplitude range | 1mVpp~10Vpp (50??); 2mVpp~20Vpp (high Z) |
| DC offset range | -5Vpp~5Vpp (50??) (AC+DC); -10Vpp~10Vpp (high Z) (AC+DC) |
| Amplitude resolution | 1mV |
| General Characteristics | |
| Power | 100~240VAC, 50Hz/60Hz |
| Display | EBTN LCD |
| Product color | White and grey |
| Product net weight | 2.8kg |
| Product size | 265mm x 110mm x 320mm |
| Standard accessories | USB interface cable, power cord, BNC cable with alligator clips , PC software CD |
| Standard individual packing | Carton box |
| Standard quantity per carton | 2pcs |
| Standard carton measurement | 380mm x 330mm x 320mm |
| Standard carton gross weight | 7kg |
Package Includes:
1 x Signal generator1 x USB cable1 x Power cord1 x BNC cable with alligator clips 1 x PC software CD

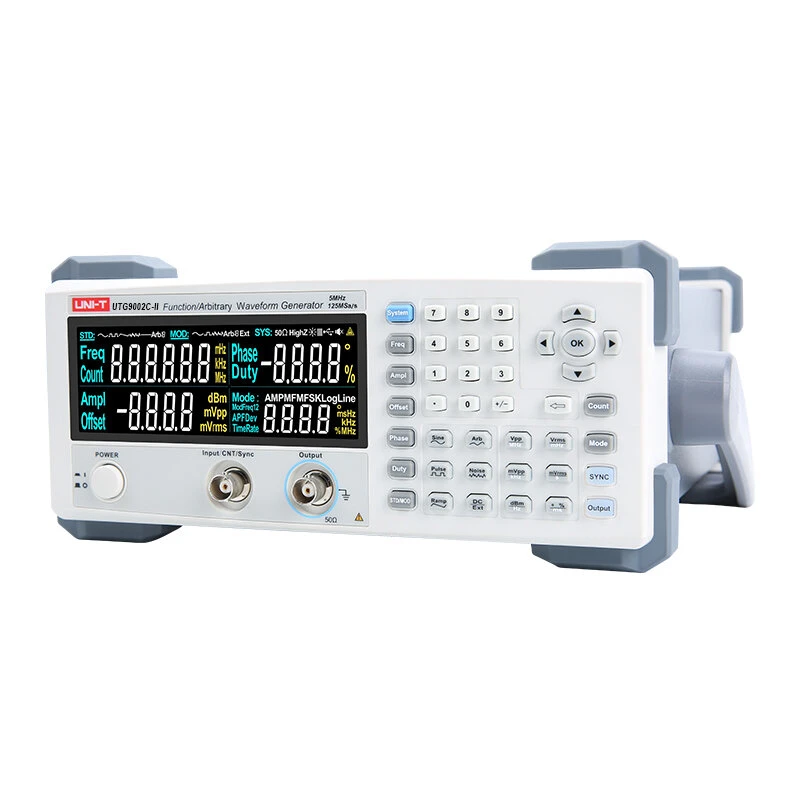

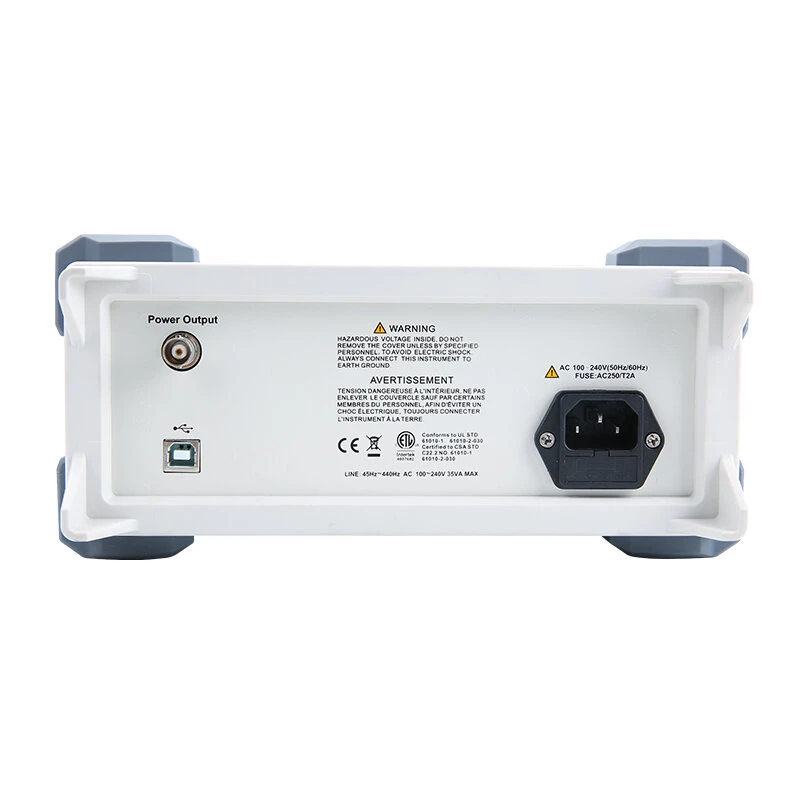

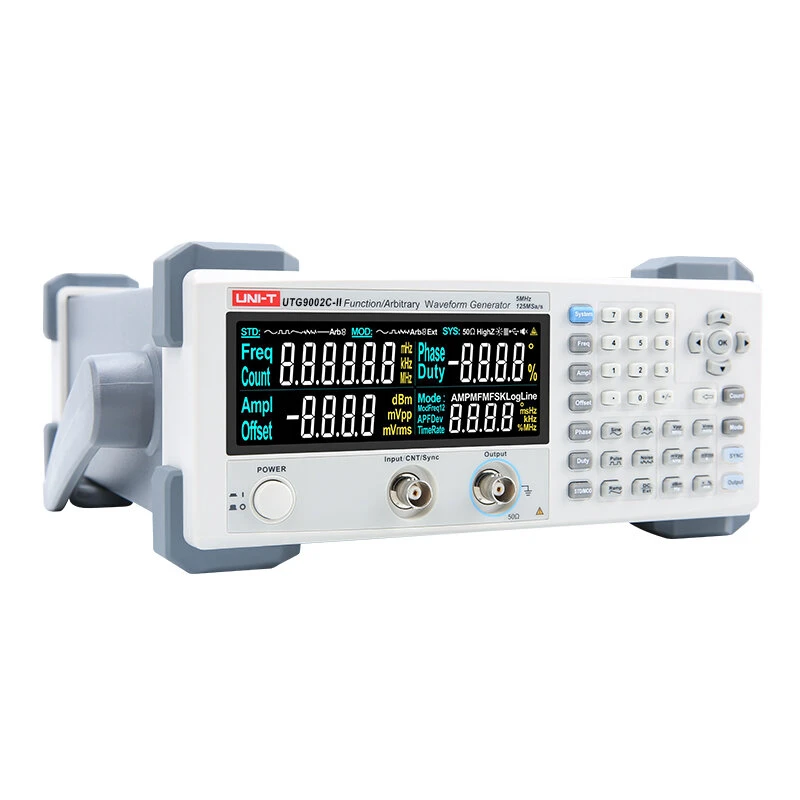

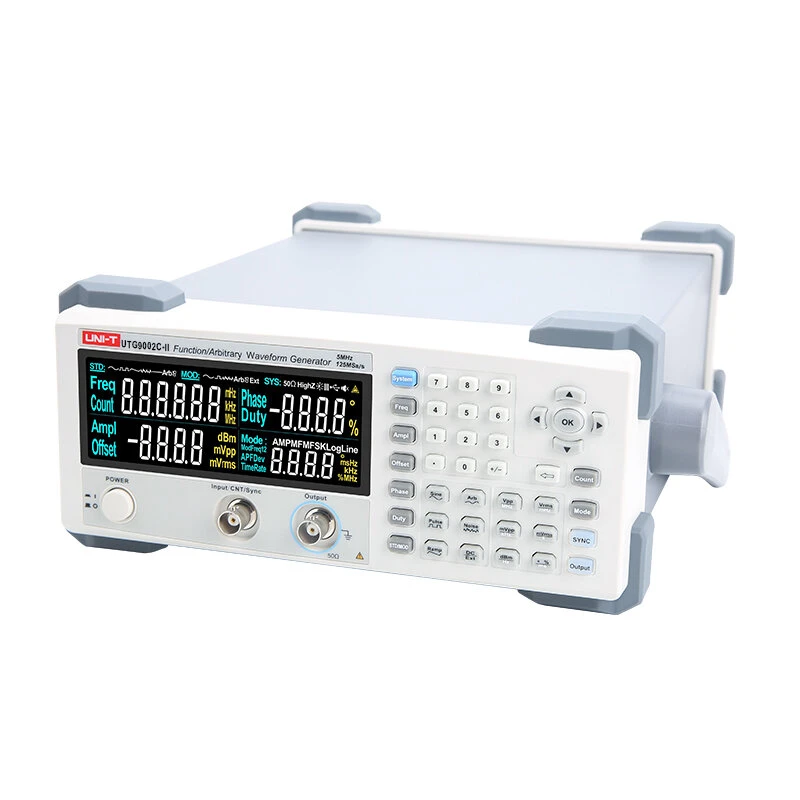

Details Picture:
