Name: QLS2800 Signal Generator | Frequency Meter & Counter | Pulse Generator
Brand: VQTool
SKU: SG-924AFE
Price: 103.00 USD
Availability: InStock

SKU: SG-924AFE

In Stock (999 available)

$103.00 $126.38 -18% OFF

Quantity:

Add to Cart Wishlist

Global Shipping

Easy Returns

Secure Payment

Product Description

Type1: Frequency 2M

Type2: Frequency 5M

Features:

1.Using direct digital synthesis (dds) technology, fpga design, ultra-low power consumption; 2.A single dc5v power adapter power supply, easy to carry; 3.Using 2.4 inch tft true color LCD screen, with variable function buttons and rotary encoder, greatly enhanced the ease of use of the machine; 4.Basic function waveforms such as sine wave, triangle wave, square wave, sawtooth wave, and pulse wave with adjustable duty cycle; 5.The output signal frequency can be as small as 0.01 Hz; 6.There are 10 sets of parameter storage bits of m0~m9, and the data of m0 is automatically called up when booting; 7.The waveform frequency resolution is at least 0.01Hz, and the amplitude resolution is at least 10mV; 8.With manual trigger, external trigger two trigger mode, can make the machine output 1~999999 arbitrary pulse Rushing 9.The pulse wave duty cycle adjustment is accurate to 0.5%; 10.Frequency scanning with an end point; 11.With frequency measurement, counting function; 12.All parameters can be calibrated by internal procedures; 13.Powerful communication functions, completely open communication protocol, making secondary development very simple; 14.After connecting with the PC, can use the pc to control the instrument Specification:

project		parameter
Main characteristics	Frequency Range	Sine wave	0Hz~2MHz or 0Hz~5MHz
		Square wave	0Hz~2MHz
		Triangle wave	0Hz~2MHz
		Sawtooth wave	0Hz~2MHz
	Output modulation	Frequency scanning, bursting
	Waveform type	Sine wave, square wave, triangle wave, sawtooth wave
	Frequency error	??8??10-6
	Frequency stability	??5??10-6
	Amplitude range (peak-to-peak)	10mVp-p~10Vp-p;
	Output impedance	50????10%
	Amplitude resolution	10mVp-p
	Amplitude stability	??0.5% (every 5 hours)
	Amplitude error	?? 1% + 10mV (frequency 1KHz, 8 Vp-p)
	Offset range	-100%~+100%
Sine wave	Harmonic resistance system	40dBc(<1MHz) ,35dBc(1MHz~5MHz)
	Distortion	<0.8%(20Hz~20KHz)
Square wave	Lifting time	??28ns
	Overshoot	??10%

	Duty cycle adjustment range	0.1%~99.9%
TTL/CMOS	Lifting time	??28ns
	Low level	<0.3V
	High level	1V~5V
Sawtooth wave	Duty cycle >50.1%	Rising sawtooth
Sawtooth wave	Duty cycle <49.9%	Sawtooth wave
scanning	Scan mode	Sweep
	Scan time	0.1S~999.9S
	Scanning range	0-Max.Freq
External measurement function	Frequency measurement range	0.01Hz~60MHz
	Minimum input voltage	0.5Vp-p
	Maximum allowable input voltage	10Vp-p
	Counting range	0~4294967295
	Counting method	Manual
	Source selection	Ext.IN input (analog signal)
storage	Quantity	10
storage	position	M0 to m9
interface	Interface mode	Use usb to serial interface
	Communication rate	57600 bps
	Protocol	Using the command line, the agreement is open
power supply	DC	5V

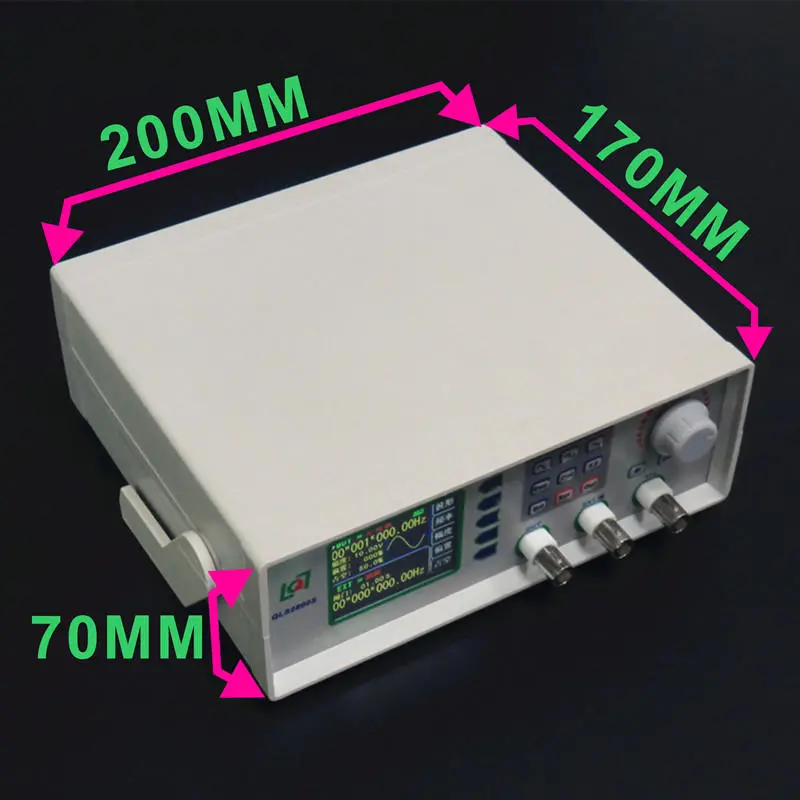

size	Length ?? width ?? height	170??200??70mm
weight	Stand-alone	518g

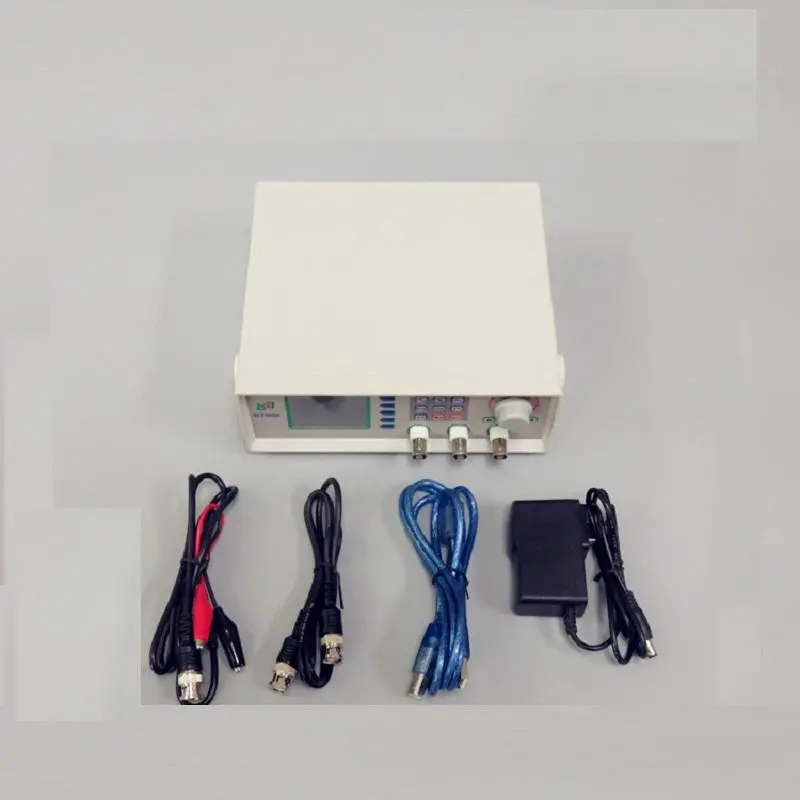

Package Includes:
1x Host 1x Q9A clip line 1x BNC-BNC 1x Performance strict to the script USB 1x DC5V One power adapter Note: the plug is US type(AC 100V-240V 50/60Hz),we will send a plug adapter according to your country.
>>Please Click Here to Download the English User Manual<<>>PC Software<< Details Pictures:
