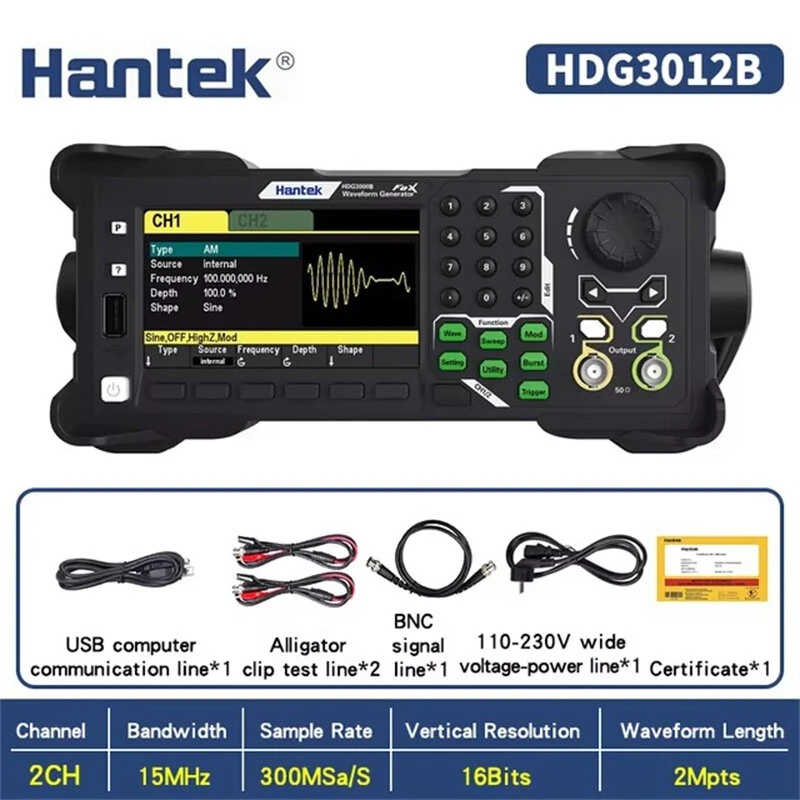

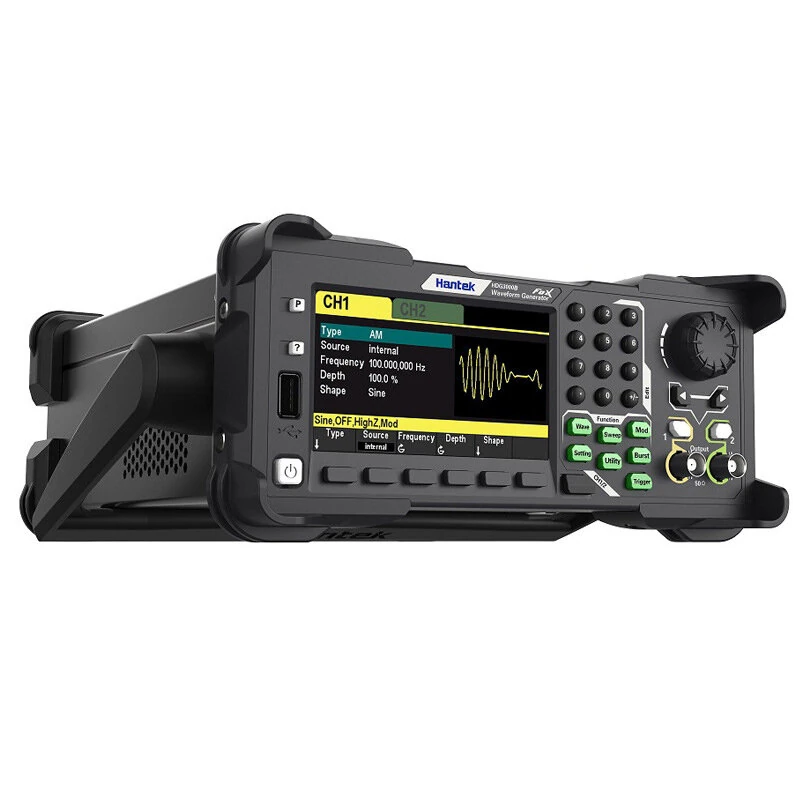

Hantek HDG3012B 5-in-1 Arbitrary Waveform Generator | 300MSa/s 16-Bit Signal Generator

Product Description

Specifications:

Model: Hantek 5 in 1 Arbitrary Waveform Generator

Functions: Arbitrary Waveform Generator, Pulse Generator, Function Generator, Harmonic Generator, Frequency Meter

Sampling Rate: Up to 300MSa/s

Vertical Resolution: 16 bits

Storage Depth: Up to 2M

Frequency Resolution: 1 ??Hz

Amplitude Range:

High Impedance: 2mV?C20Vpp

50 ?? Impedance: 1mV?C10Vpp

Modulation Functions: AM, FM, PM, PWM, ASK, FSK, PSK, and more

Display: 4.3-inch Color TFT LCD

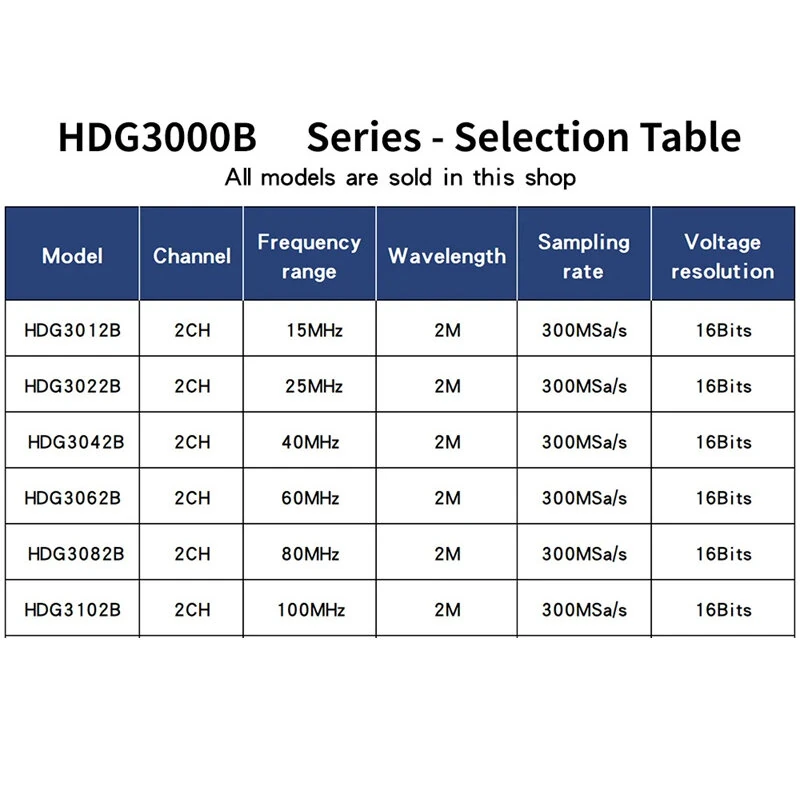

Optional Model: HDG3012B/HDG3022B/HDG3042B/HDG3062B/HDG3082B/HDG3102B

Built-In Frequency Meter: 15MHz/25MHz/40MHz/60MHz/80MHz/100MHz

Features:

Multi-Functional Design: Integrates five major functions including waveform generation and frequency measurement, making it a versatile tool for various applications in a compact device.

High-Resolution Output: Utilizes DDS technology for stable and low-distortion signal generation, ensuring accurate amplitude and frequency for precise measurements and experiments.

Extensive Modulation Capabilities: Supports a wide range of modulation techniques such as AM, FM, and PWM, catering to diverse testing needs and ensuring adaptability in various scenarios.

Rich Arbitrary Waveforms: More than 160 types of arbitrary waveforms available, including ECG and Gaussian signals, providing flexibility for testing and research applications.

User-Friendly Interface: Features a clear 4.3-inch color TFT LCD display with intuitive navigation, enhancing user experience and making operation straightforward for all skill levels.

Package Included:

Type A: HDG3012B

1 x Hantek 5 in 1 Arbitrary Waveform Generator

1 x Power Adapter

1 x User Manual

1 x USB Cable

1 x BNC Cable

Type B: HDG3022B

1 x Hantek 5 in 1 Arbitrary Waveform Generator

1 x Power Adapter

1 x User Manual

1 x USB Cable

1 x BNC Cable

Type C: HDG3042B

1 x Hantek 5 in 1 Arbitrary Waveform Generator

1 x Power Adapter

1 x User Manual

1 x USB Cable

1 x BNC Cable

Type D: HDG3062B

1 x Hantek 5 in 1 Arbitrary Waveform Generator

1 x Power Adapter

1 x User Manual

1 x USB Cable

1 x BNC Cable

Type E: HDG3082B

1 x Hantek 5 in 1 Arbitrary Waveform Generator

1 x Power Adapter

1 x User Manual

1 x USB Cable

1 x BNC Cable

Type F: HDG3102B

1 x Hantek 5 in 1 Arbitrary Waveform Generator

1 x Power Adapter

1 x User Manual

1 x USB Cable

1 x BNC Cable
