DDS Function Signal Generator | 1Hz-65534Hz Sine Square Triangle Waves | LCD Display

Product Description

Features:

• Portable --- Small size, powered by DC 9V, easy and portable for use.
• DDS frequency range --- 1Hz-65534Hz, high-speed frequency (HS) output up to 8MHz.
• Adjustable --- DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers.
• Wide DDS signals --- sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
• Easy Use --- LCD display for clear reading, intuitive touch buttons. The power automatically restore the last used configuration.

  Function:

• UP output waveform select

• DOWN output waveform select
• LEFT output frequency -
• RIGHT output frequency +
• STOP / START the output stop / start

  "UP" key waveform order:

• ECG = electrocardiogram wave (in the OFF state, the "left" and "right" keys to set the output frequency. Middle button start, all of the following waveform set)
• Rev Sawtooth = reverse sawtooth
• SawTooth = sawtooth
• Triangle = triangle wave
• Square = square wave

  Specifications:

• Material: ABS

• Display: 1602 LCD
• Operating Voltage: DC 9V
• DDS Frequency Range: 1Hz-65534Hz
• Frequency(HS) Output: up to 8MHz
• Section into the Value: 1, 10 , 100, 1000, 10000 Hz
• Offset: 0.5pp-5Vpp
• Amplitude Amount: 0.5Vpp-14Vpp
• Power Cable Length: Approx. 70cm / 27.56in
• Item Size: 135*80*32mm / 5.3*3.15*1.26in
• Item Weight: 198g / 6.98oz
• Package Weight: 203g / 7.16oz
• Package Size: 135*80*32mm / 5.3*3.15*1.26in

  Package includes:

• 1 x DDS Function Signal Generator
• 1 x Power Cable

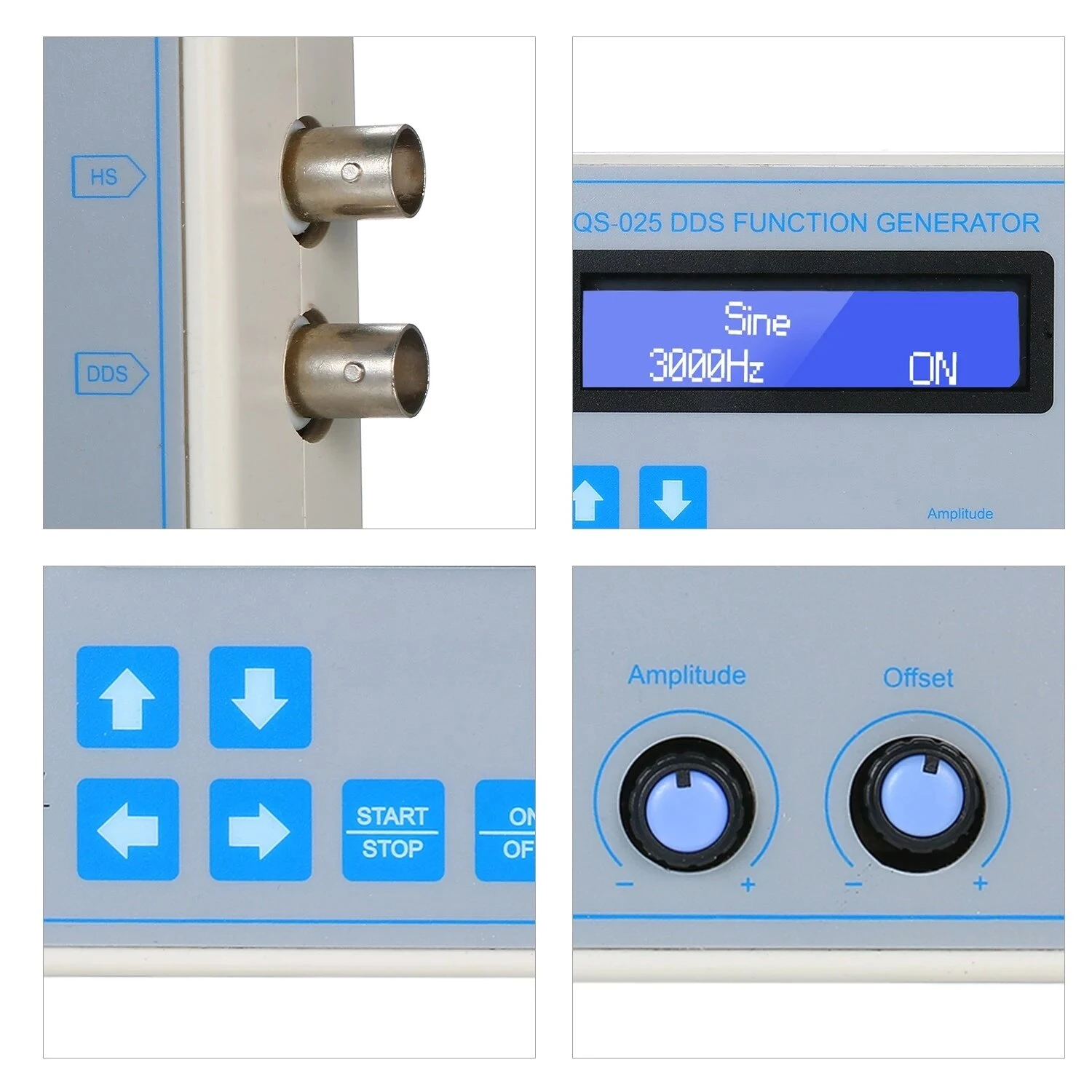

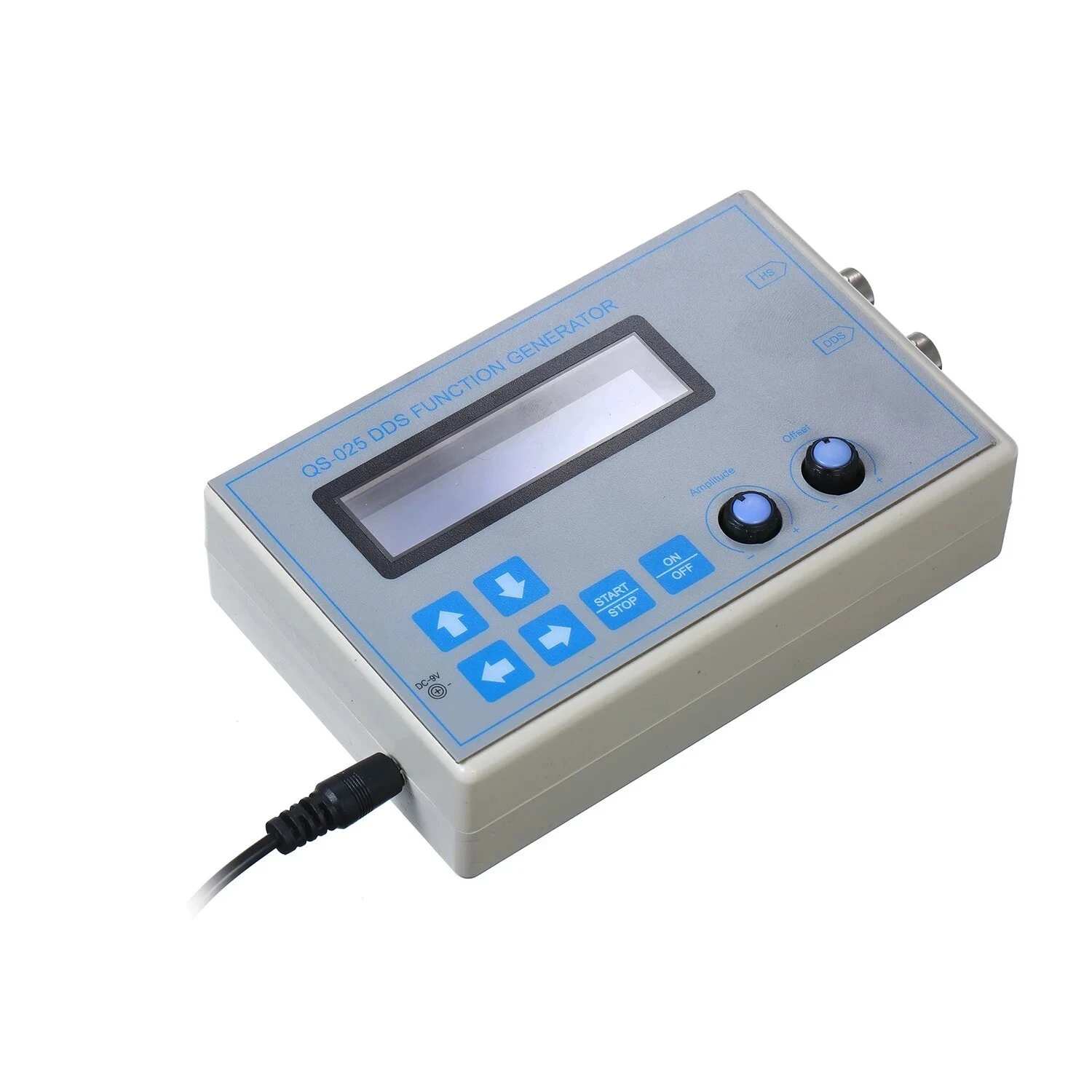

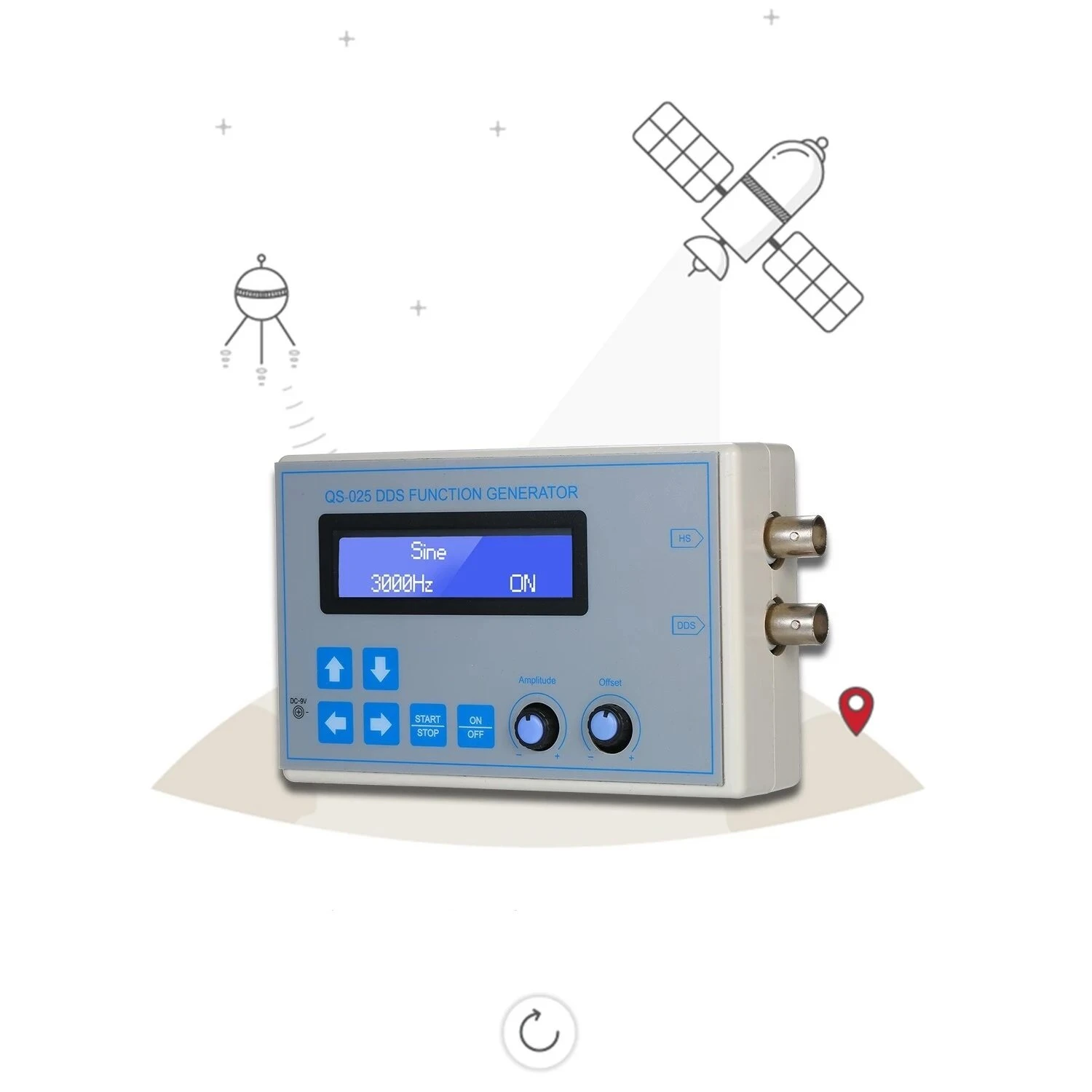

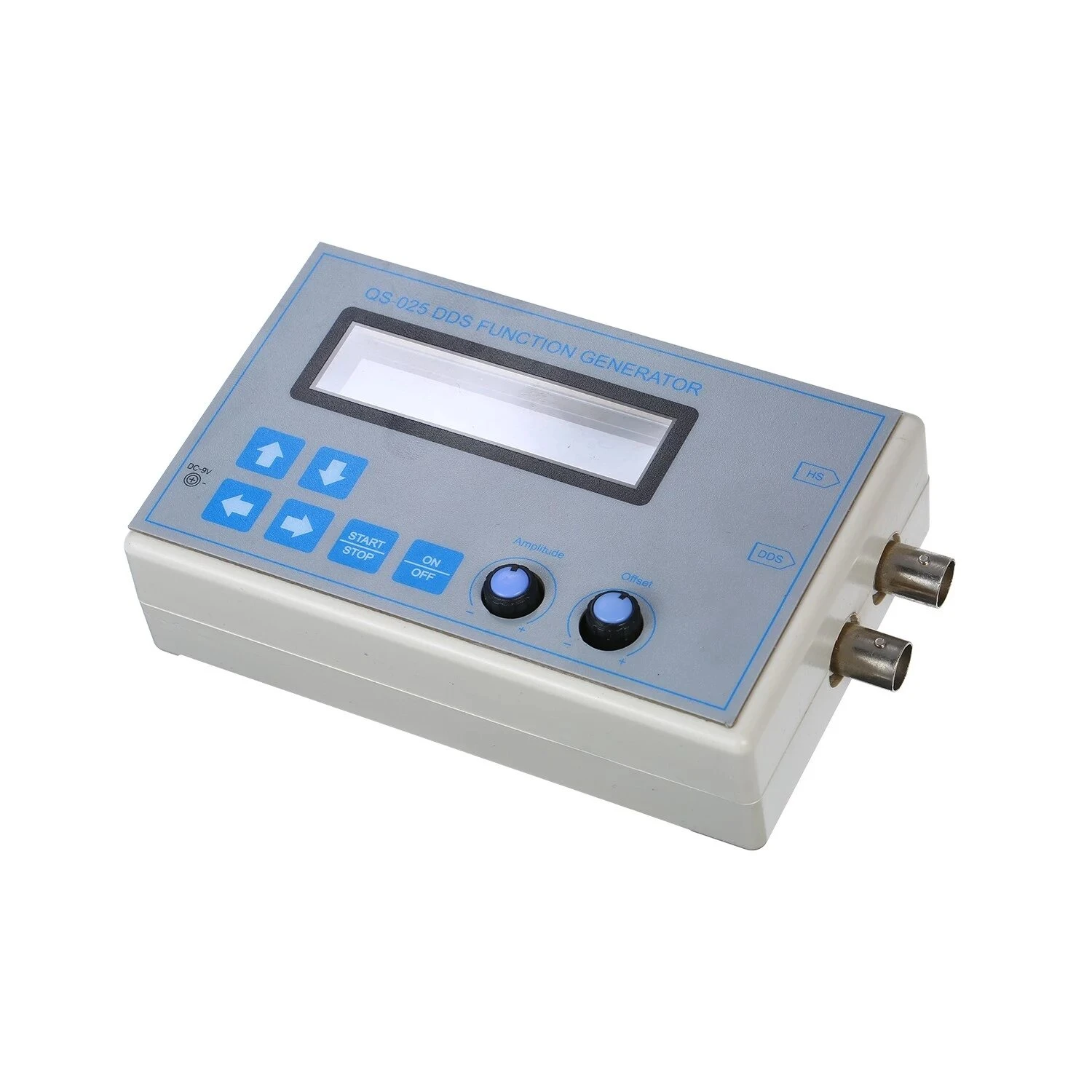

Details pictures:
