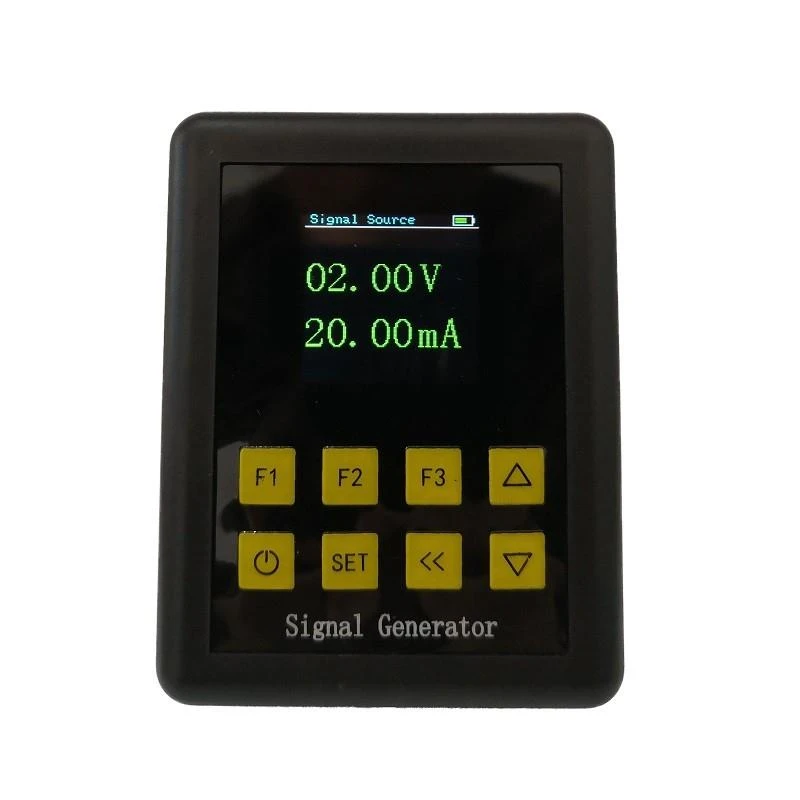

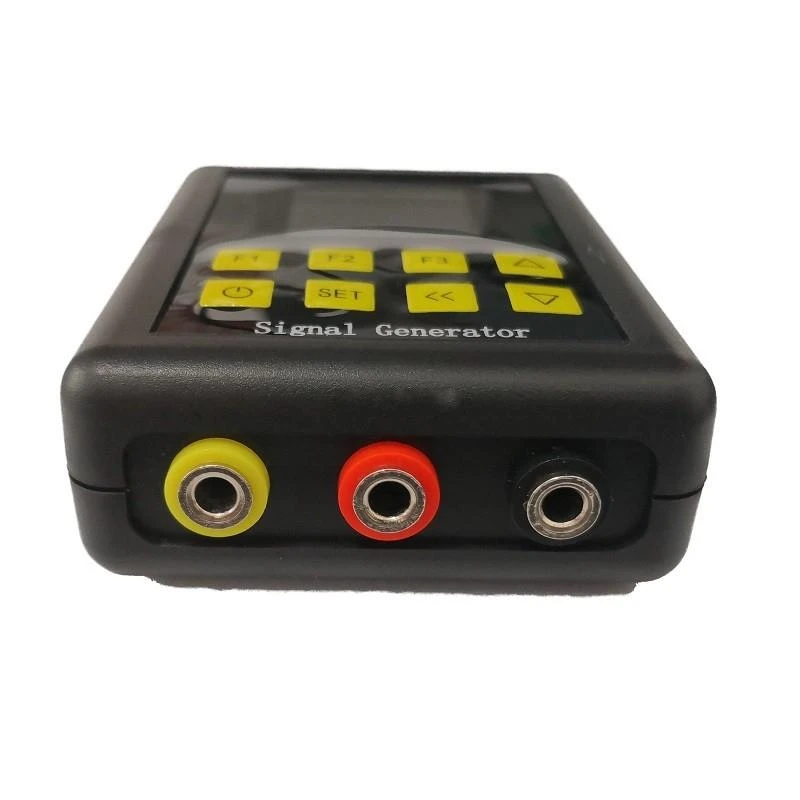

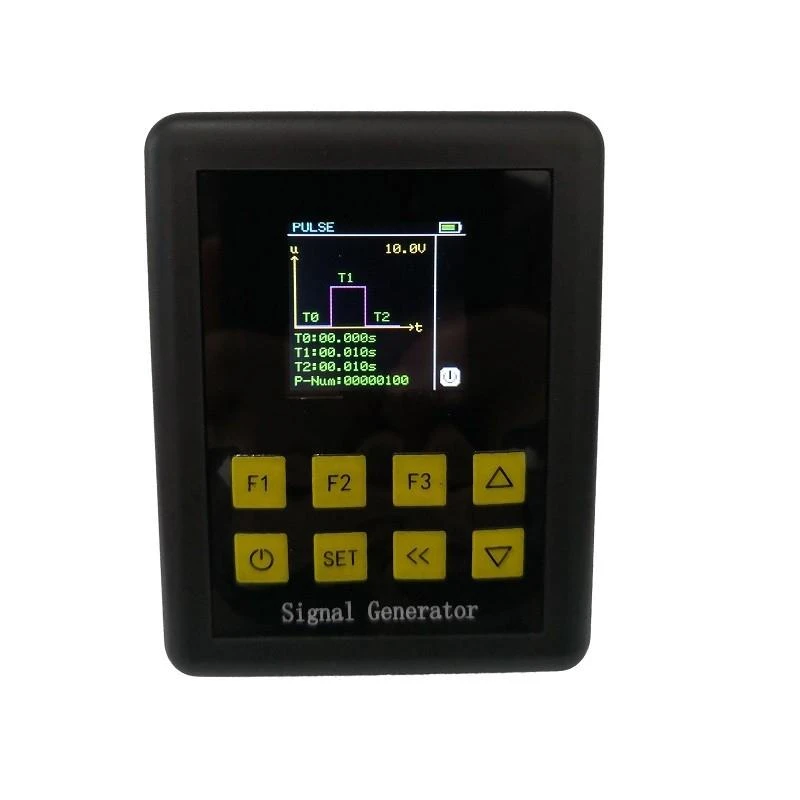

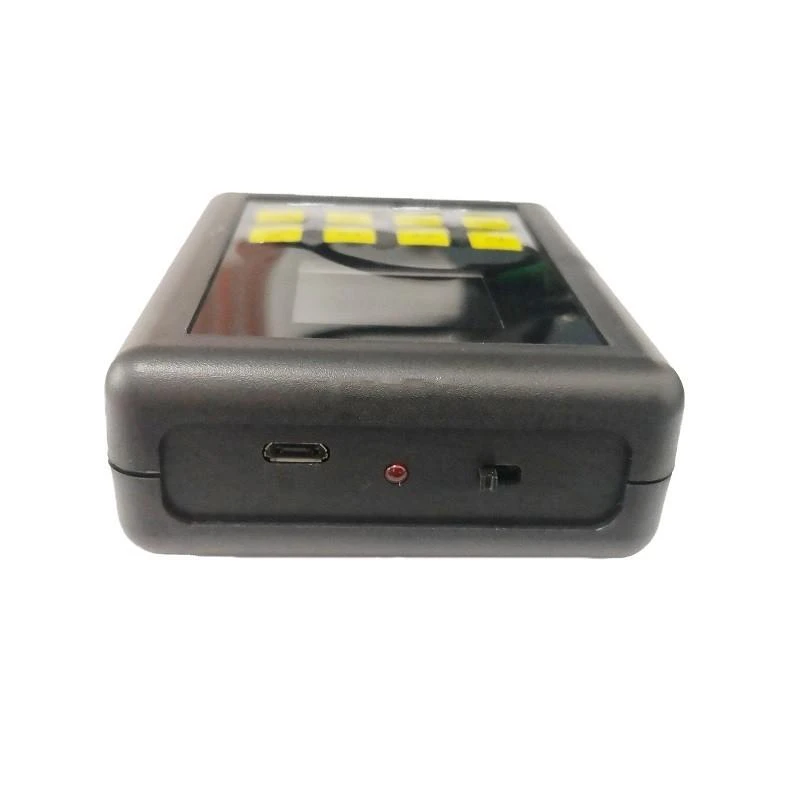

Adjustable PWM Signal Generator - 2-10V 4-20mA Analog Simulator with Built-in Battery
$49.00
$60.78
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Descriptions: Power supply voltage: USB 5V (can work continuously for 8 hours when the built-in battery is fully charged) Product function: PWM mode, pulse mode, signal source mode, sine wave mode PWM mode: voltage, frequency, duty cycle are adjustable, frequency accuracy is up to 0.1%; voltage range: 1-24V, frequency range: 1-150KHZ, duty cycle range: 0-100% Pulse mode: start delay time T0: 0-60S, high time T1: 0-60S, low time T2: 0-60S, pulse number P-N: 1-99999999, resolution: 0.001S Signal source mode: adjustable voltage source 2-10V, adjustable current source 4-20mA Sine wave mode: 1-999999HZ adjustable (triangular wave adjustable range is the same) Signal load capacity: The maximum output current is 20mA (Note: This product is a signal source and cannot directly drive high power loads) Ambient temperature: -10- + 70 ?? Size: 92mm long, 70mm wide, 28mm high Weight: 105g Package Include: 1x Handheld Signal Generator 1 x USB Charging Cable 1 x banana head connected to crocodile clip 2P red and black cable Details Pictures:Customer Reviews
