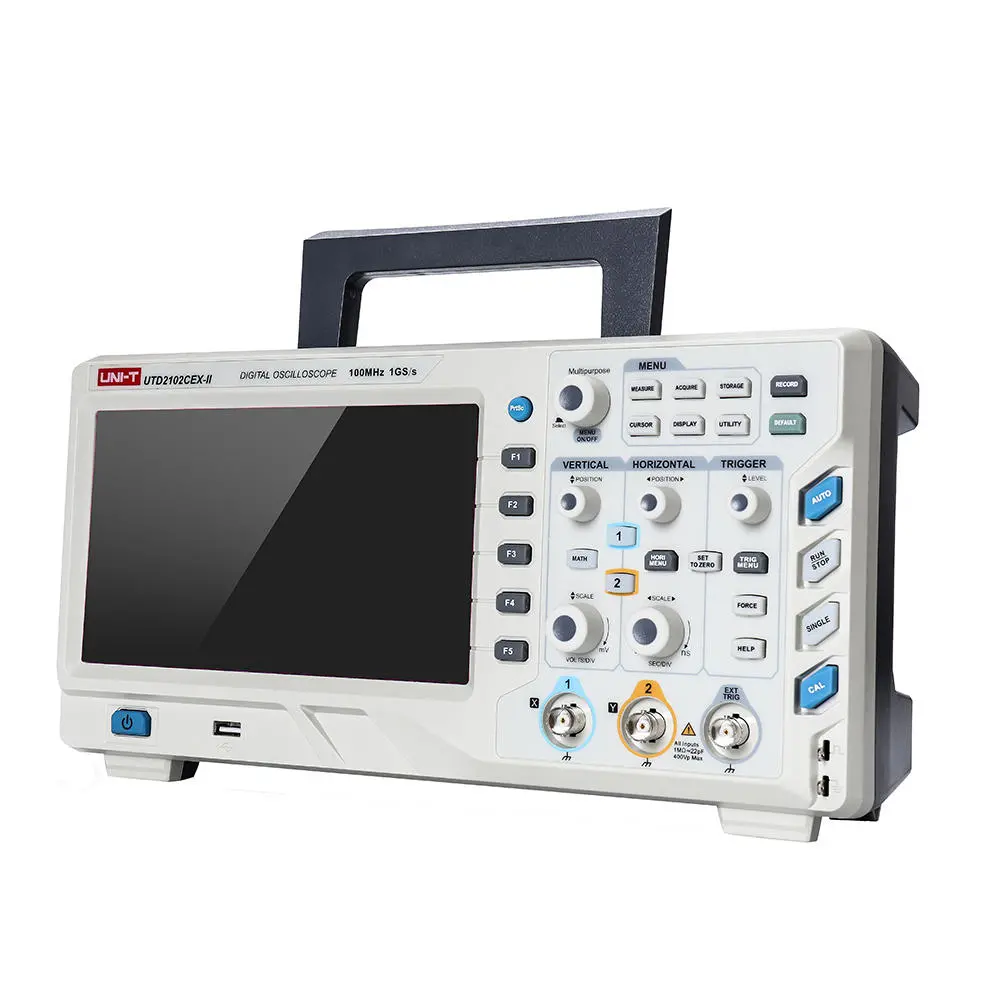

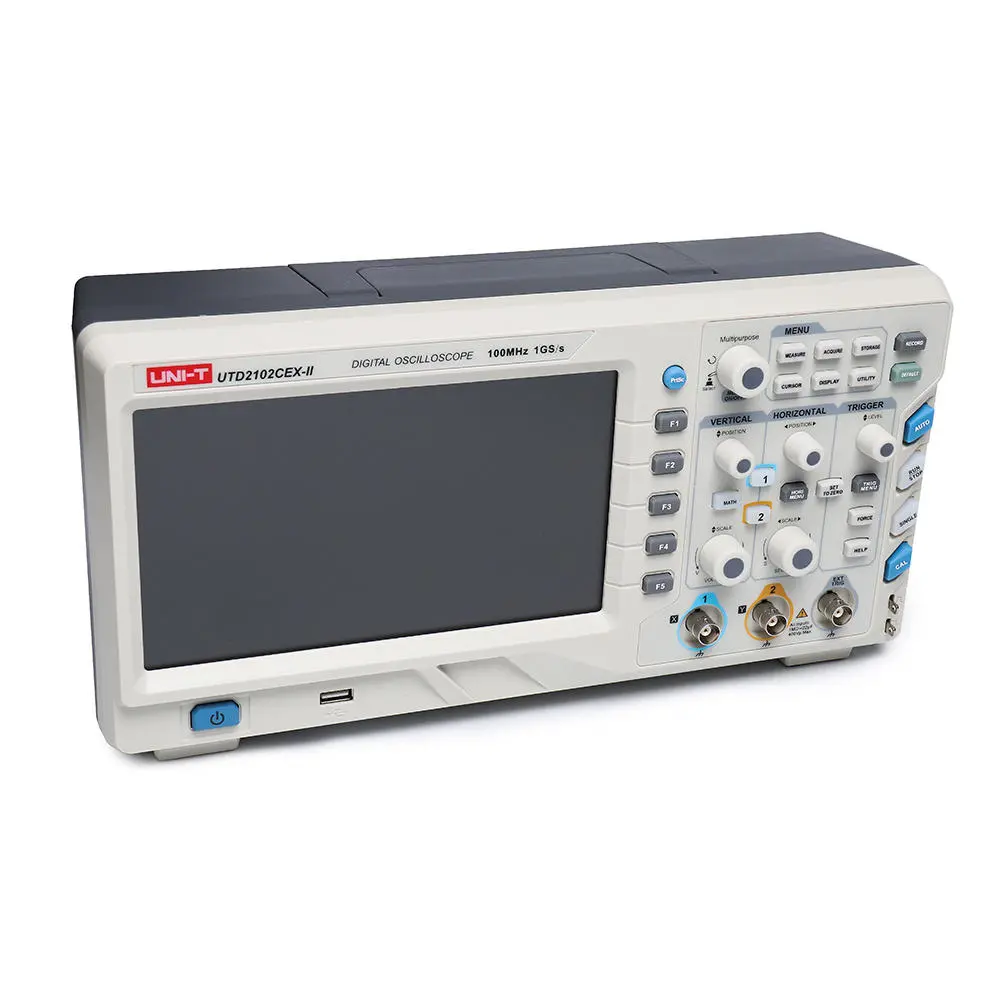

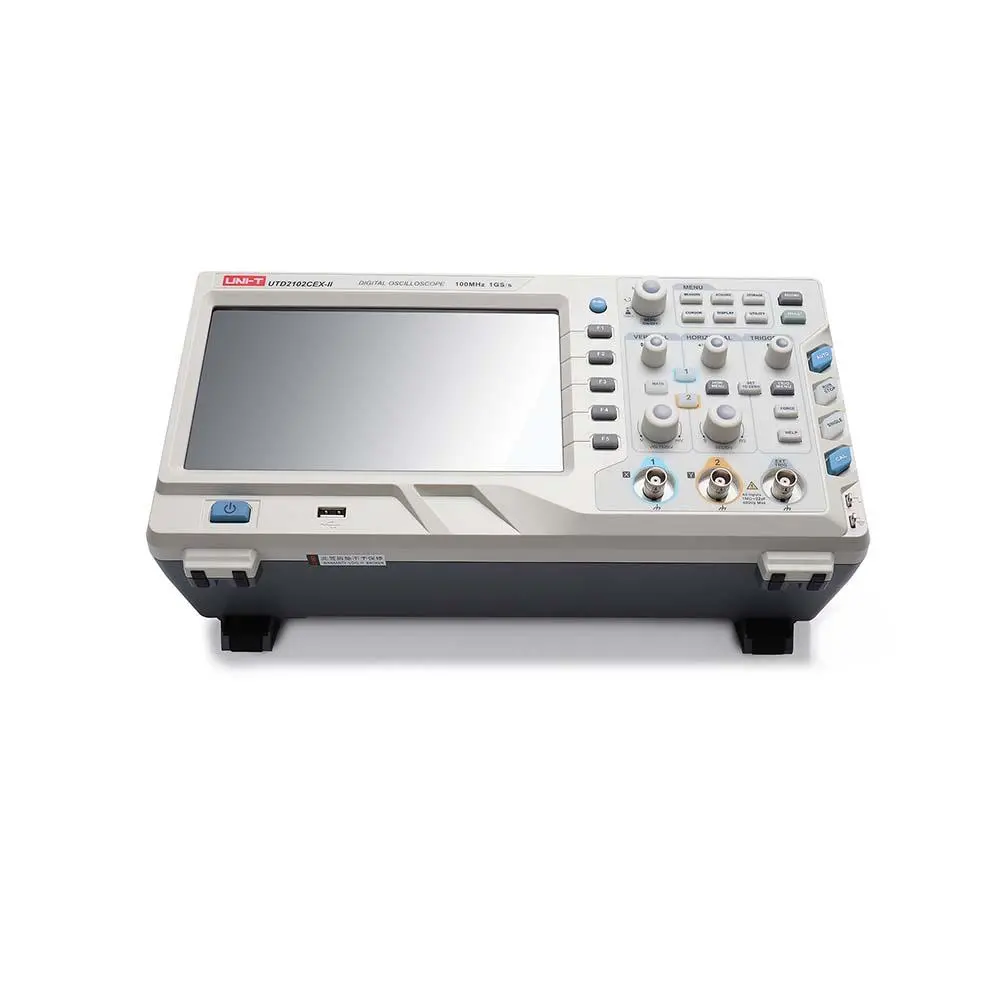

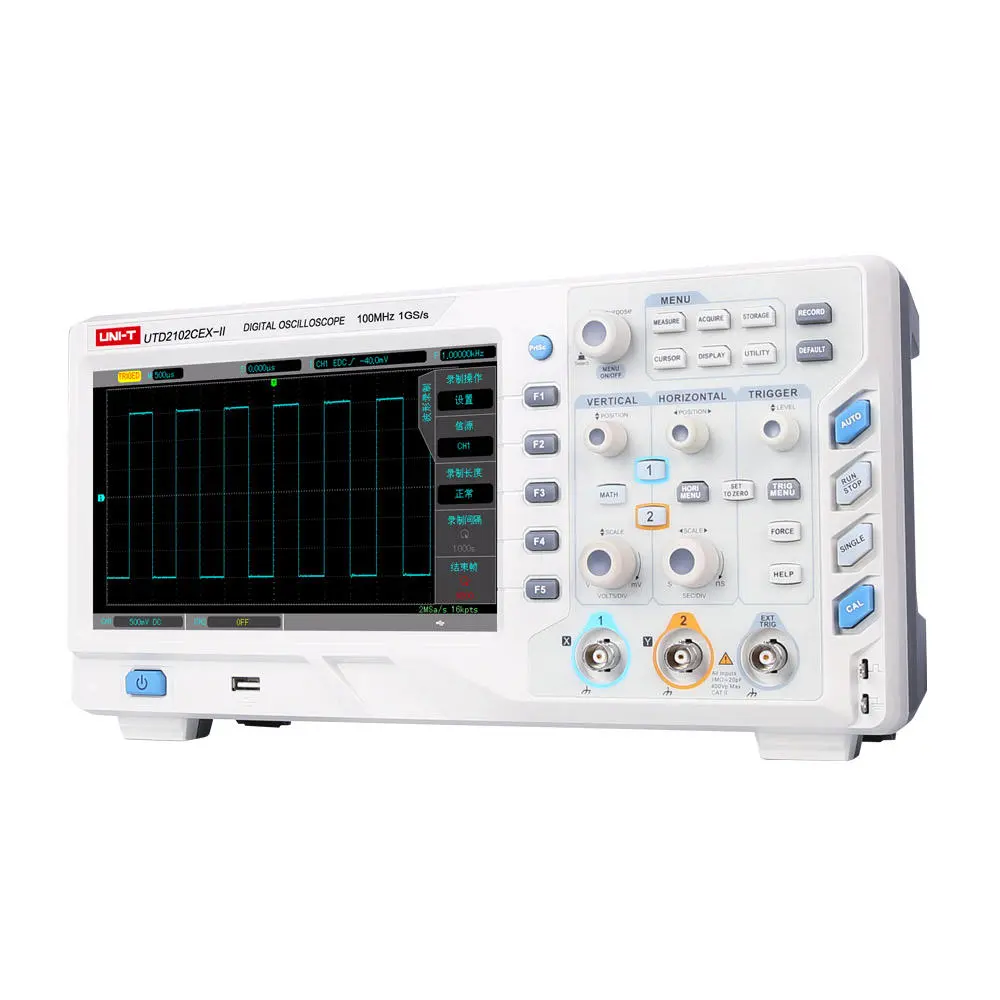

UNI-T UTD2102CEX-II Digital Oscilloscope | 2CH 100MHz 1GS/s | 8-Inch TFT Display

Product Description

UNI-T UTD2102CEX-II Upgraded Digital Storage Oscilloscope 100MHz Bandwidth 1GS / s Sampling / 2 Channels

Features:

1. 100MHz bandwidth, 1GSa/s real-time sampling rate
2. 2 channels
3. 25kpts memory depth
4. 20,000wfms/s waveform acquisition rate
5. 2ns/div~50s/div time-base
6. Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope and Video
7. Calibration Signal Output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz
8. Input calibration signal only by pressing a button
9. 10Mpts waveform recording
10. 8-inch TFT LCD, WVGA (800??480)
11. USB OTG and Pass/Fail interfaces
?Click here to download the English manual

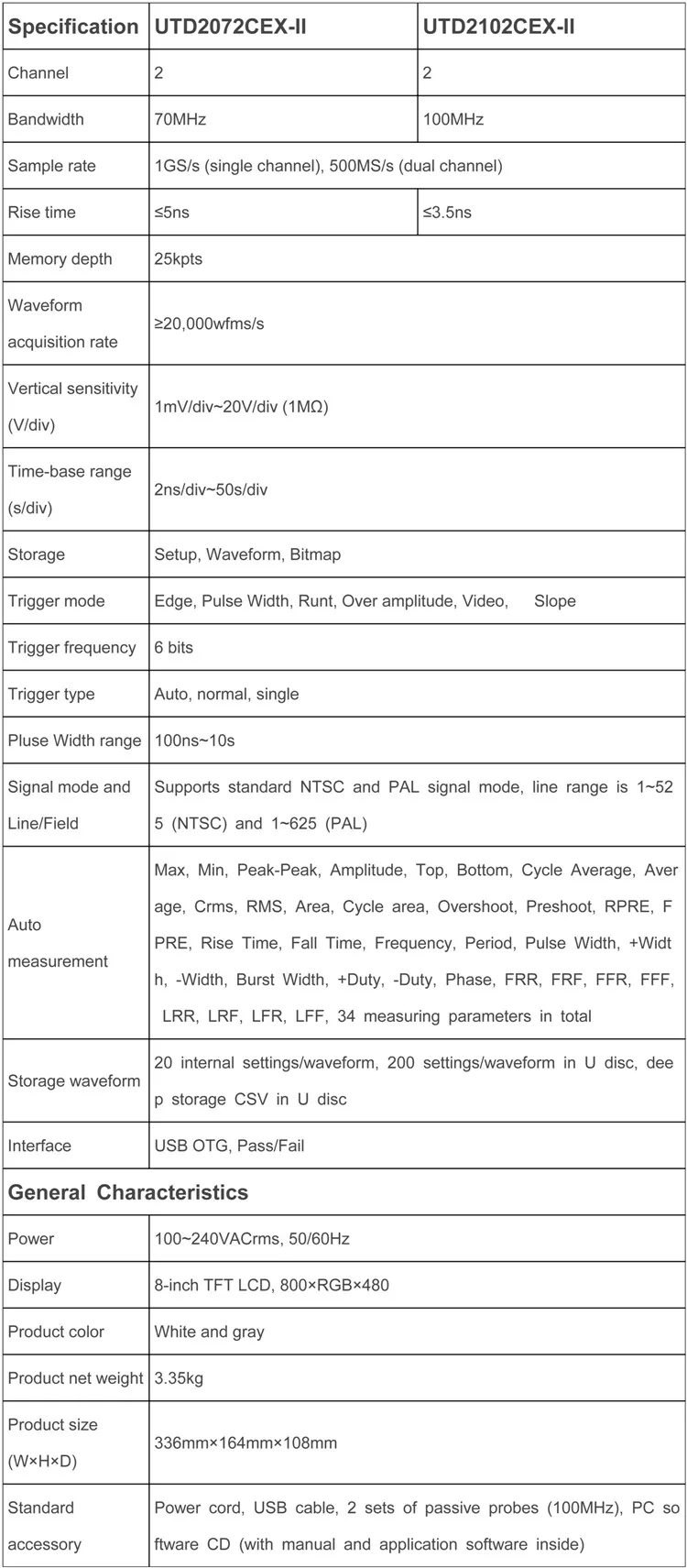

Specifications:

For environmental protection, we do not provide paper brochures, we can provide electronic version of the English manual

Package Included:
1 x UNI-T Digital Storage Oscilloscope With Original BOX
1 x Mini NKTECH TL-1 Screwdriver
1 x Power Cord Cable
1 x PC Software CD
1 x USB Cable
1 x Test Lead
Detail Pictures:
