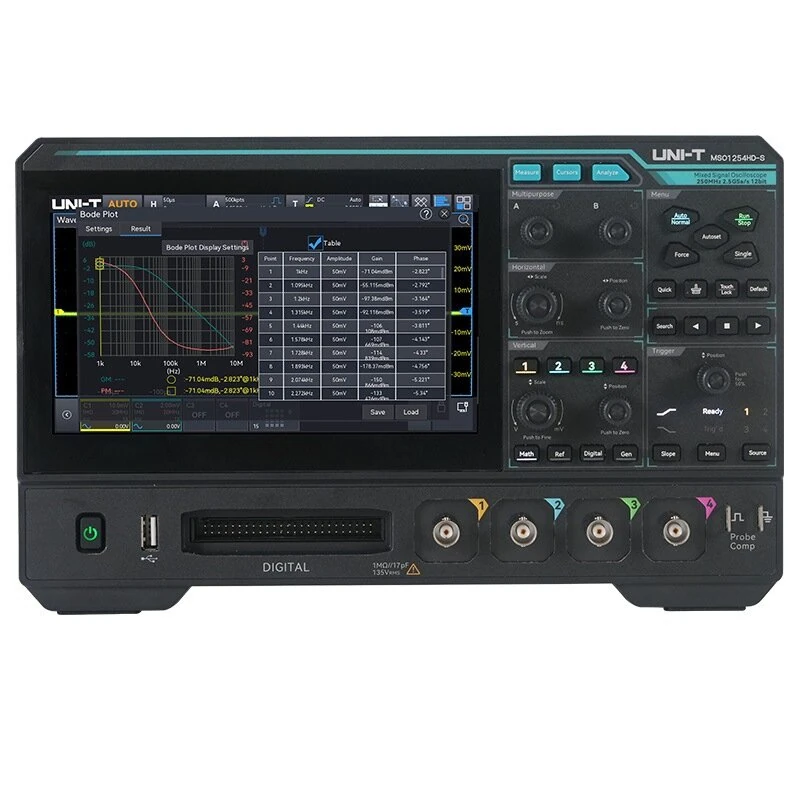

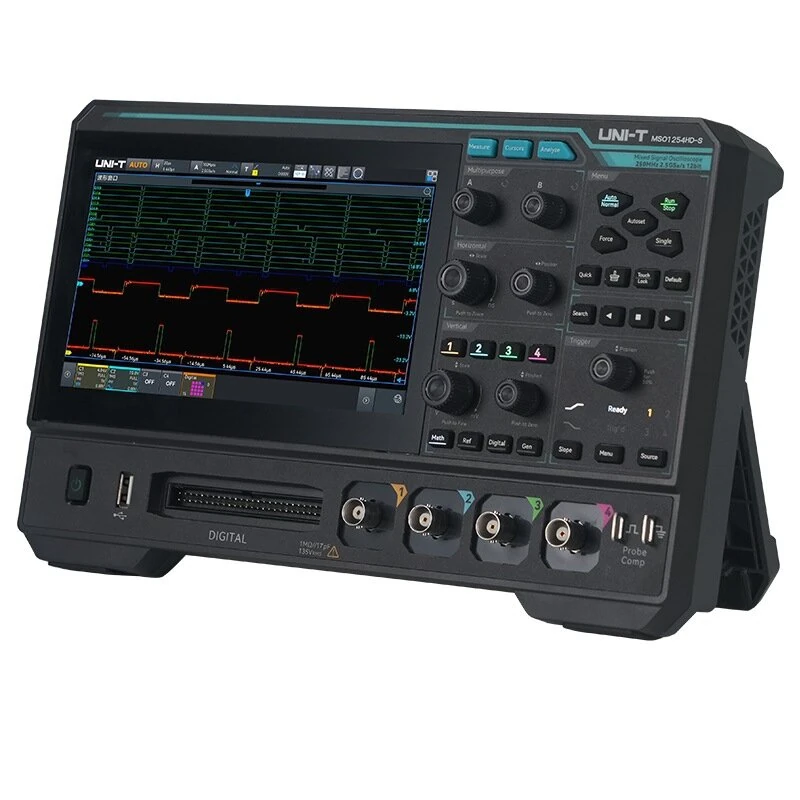

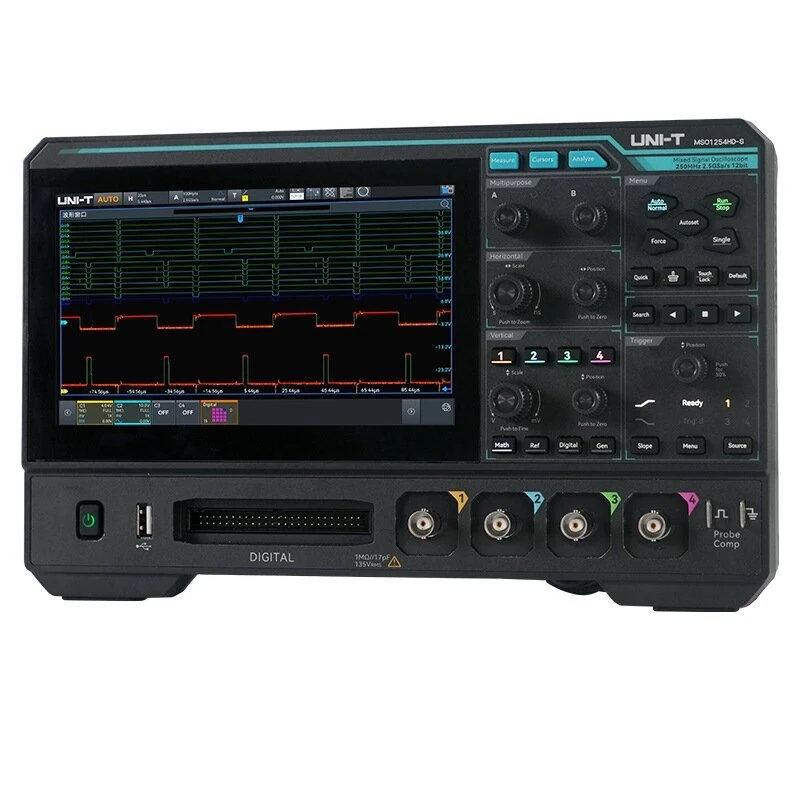

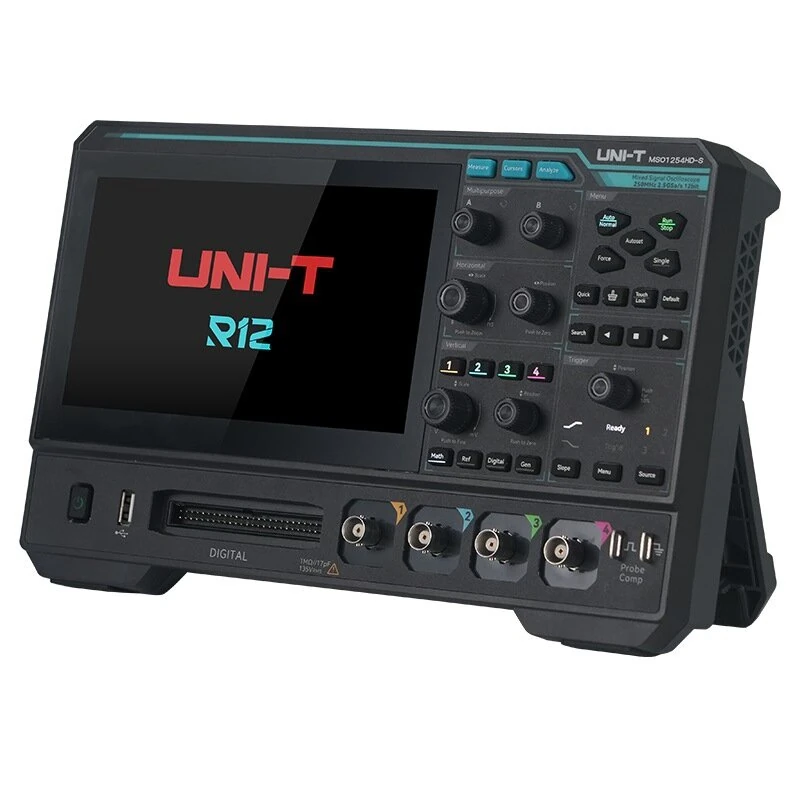

UNI-T MSO1154HD 150MHz Oscilloscope | 4 Channel 12 Bit 7 Touchscreen

Product Description

Specifications:Models: MSO1154HD, MSO1154HD-S, MSO1254HD, MSO1254HD-SAnalog channels: 4Bandwidth: 150 MHz (MSO1154HD / MSO1154HD-S); 250 MHz (MSO1254HD / MSO1254HD-S)Max sample rate: 2.5 GSa/sMemory depth: 100 MptsWaveform capture rate: up to 1,000,000 wfms/sVertical resolution: 12-bit ADCDisplay: 7-inch high-definition capacitive touchscreenBuilt-in signal source: none (MSO1154HD / MSO1254HD); 25 MHz, 1 channel (-S versions)
Features:1.High-resolution measurements: 12-bit ADC with up to 2.5 GSa/s provides fine amplitude detail and sharp timing across analog channels for precise circuit validation.2.Fast into events: up to 1,000,000 wfms/s helps reveal rare transients and glitches quickly, speeding fault isolation and shortening debug cycles.3.Deep memory for long captures: 100 Mpts enables long-duration recording at high sample rates, preserving context so you can zoom from overview to micro-details.4.Touch-first workflow: the 7-inch HD capacitive touchscreen and dedicated controls deliver a smooth, intuitive user experience for setup, navigation, and measurement readout.5.Built-in source on -S models: the 25 MHz, 1-channel generator lets you inject test signals directly, reducing extra instruments and enabling swift stimulus-response checks.
Package included:For MSO1154HD:1 x Digital Oscilloscope4 x 200 MHz Passive Probe1 x Power Cord1 x AC Adapter1 x USB Data Cable1 x Ground Lead Set
For MSO1154HD-S:1 x Digital Oscilloscope4 x 200 MHz Passive Probe1 x Power Cord1 x AC Adapter1 x USB Data Cable1 x BNC Test Cable1 x Ground Lead Set
For MSO1254HD:1 x Digital Oscilloscope4 x 300 MHz Passive Probe1 x Power Cord1 x AC Adapter1 x USB Data Cable1 x Ground Lead Set
For MSO1254HD-S:1 x Digital Oscilloscope4 x 300 MHz Passive Probe1 x Power Cord1 x AC Adapter1 x USB Data Cable1 x BNC Test Cable1 x Ground Lead Set
