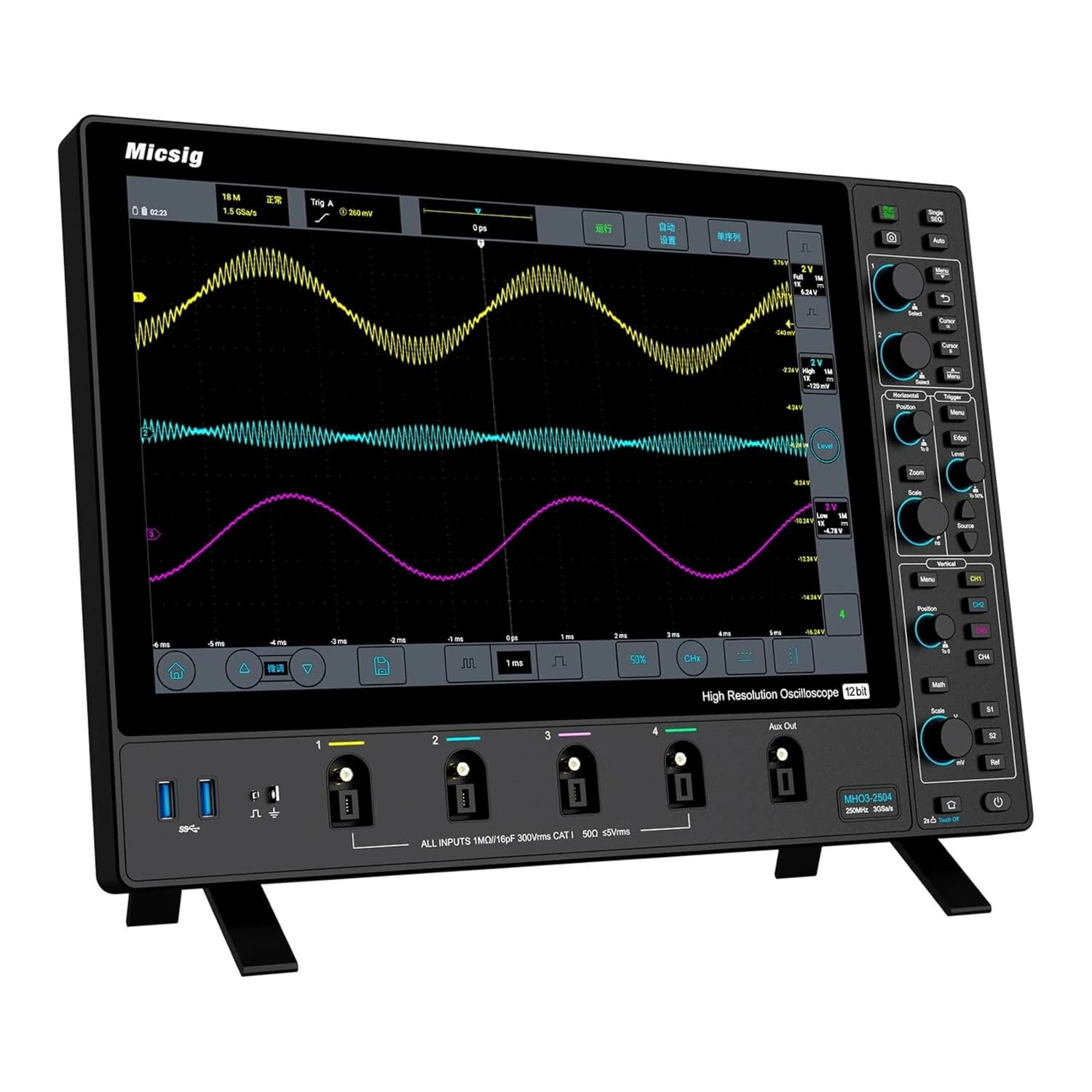

SainSmart Micsig MHO3-2504 Oscilloscope | 250MHz 4-Channel 12-bit | 14 Touch Screen 3GSa/s

Product Description

Specifications:

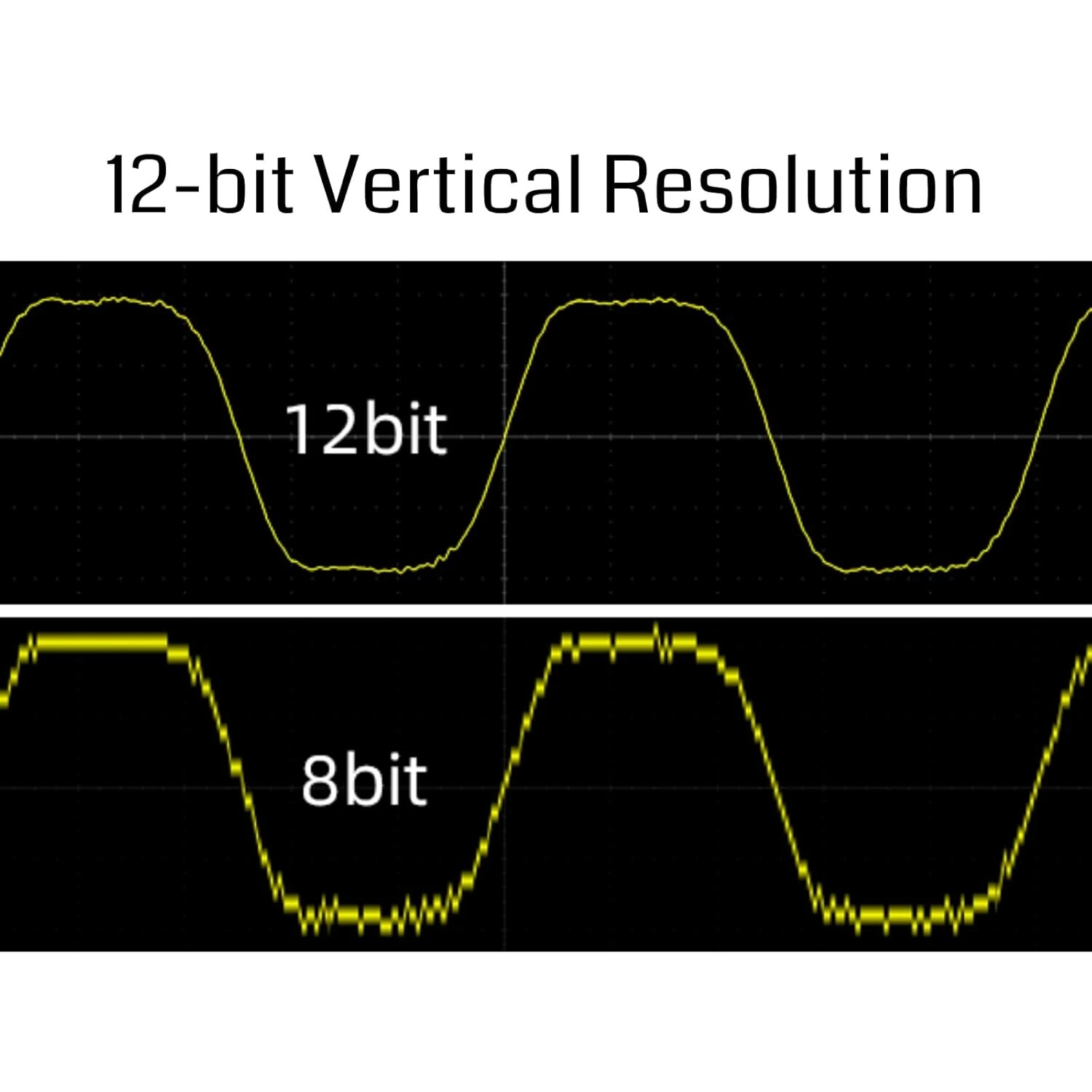

ADC Resolution: 12-bit (4096 quantization levels, 16x higher resolution than traditional 8-bit ADC).

Bandwidth: 250 MHz.

Sampling Rate: Up to 3GSa/s.

Channels: 4 analog channels.

Noise Level: ??80??Vrms.

Memory Depth: 360Mpts for in-depth waveform analysis.

Display: 14-inch integrated touchscreen with 1920 x 1200 resolution.

Dimensions: thin 3.58cm design suitable for desktop or wall mounting.

User Interface: SigTestUI operating system to simplify controls for quick learning.

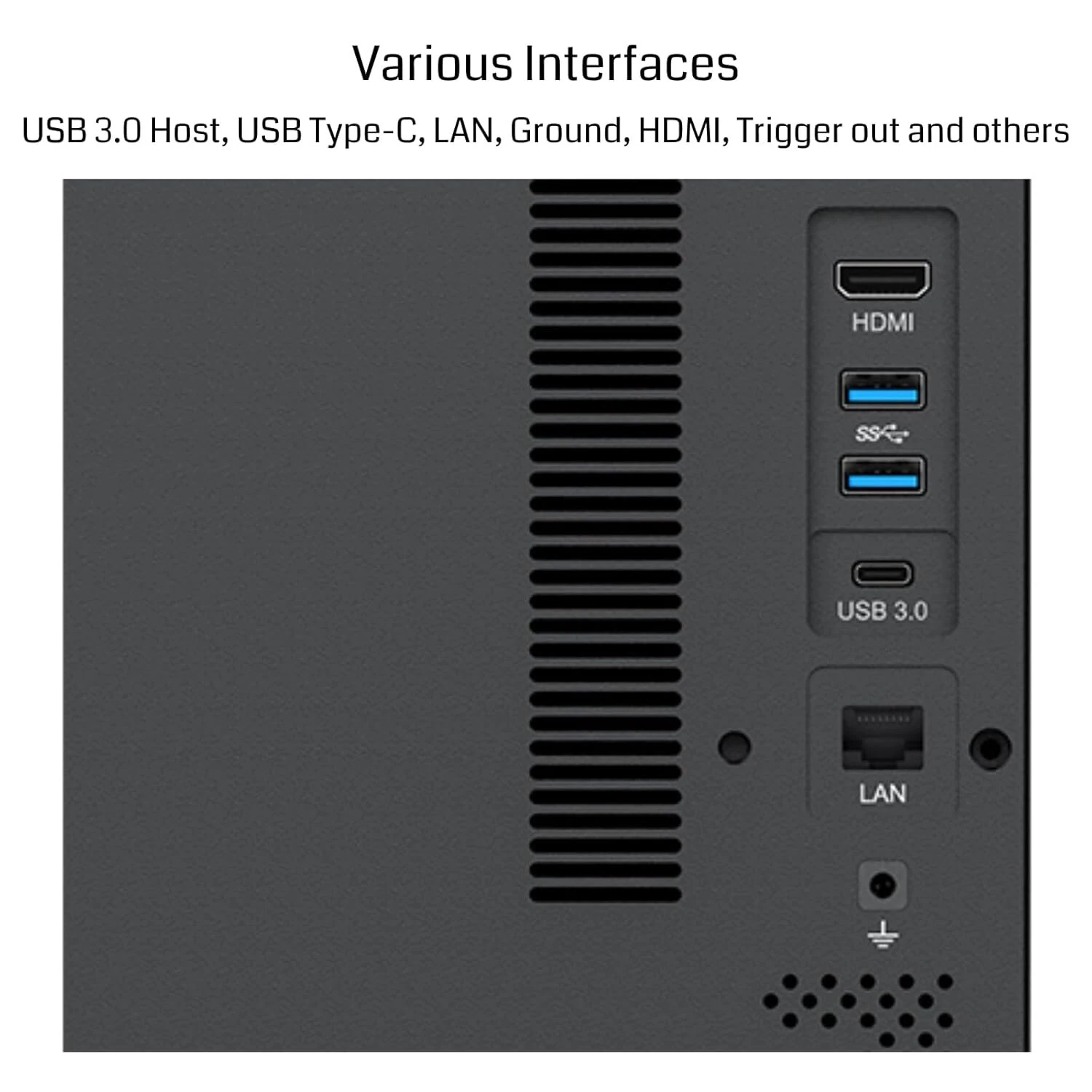

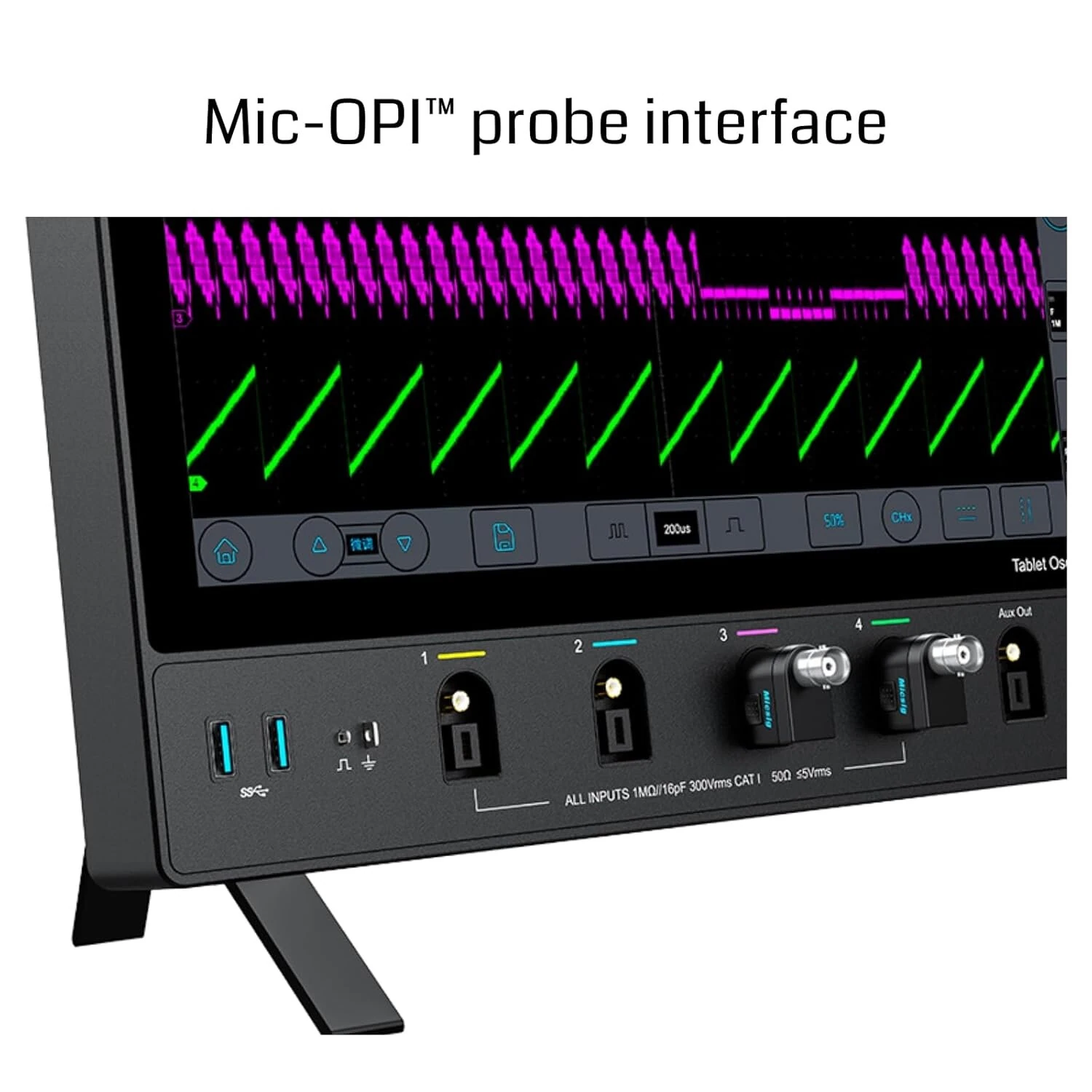

Connectivity: Mic-OPI probe interface, USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger Out, and BNC adapter.

Features:

1. Exceptional Accuracy: With a cutting-edge 12-bit ADC and 250 MHz bandwidth, the oscilloscope delivers precise waveform measurements and enhances signal clarity for professional applications.

2. Advanced Memory and Sampling: A high 3GSa/s sampling rate and 360Mpts memory depth for capturing fine signal details and complex waveform analysis.

3. Space-Saving Design: Its thin 3.58cm body and wall-mount interface reduce clutter, allowing for flexible setups such as desktop or arm mounting.

4. Interactive Display: The 14-inch high-definition touchscreen features 1920 x 1200 resolution, enabling effortless navigation and superior waveform visualization.

5. Smart Connectivity: Features automatic passive probe recognition, one-click calibration, and versatile input options (USB, LAN, HDMI), ensuring adaptability for diverse lab needs.

Package Included:

4 x Passive Probe

4 x MSP-BNC Adapter

1 x Power Adapter

1 x Power Cord(EU Plug)

1 x Quick Guide
