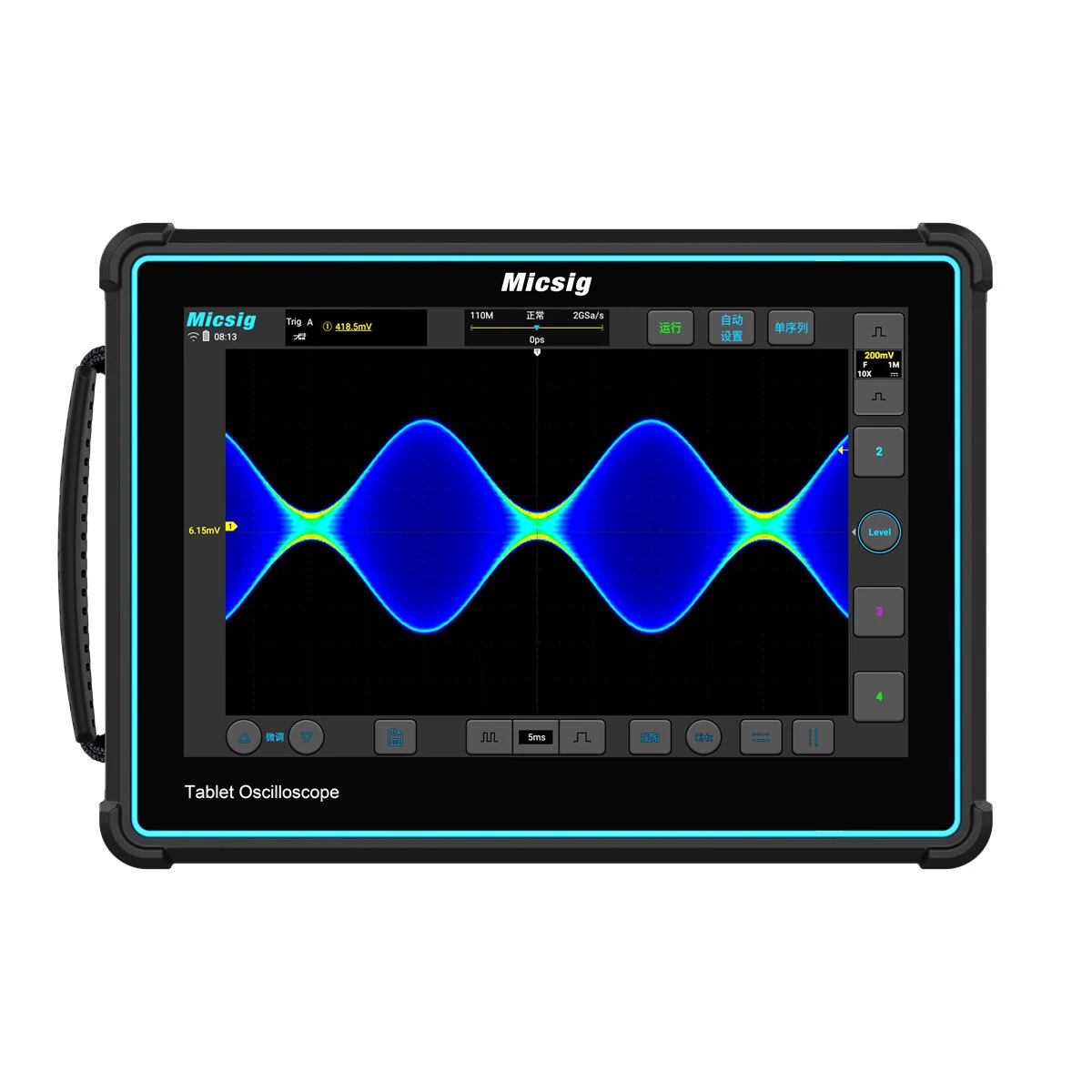

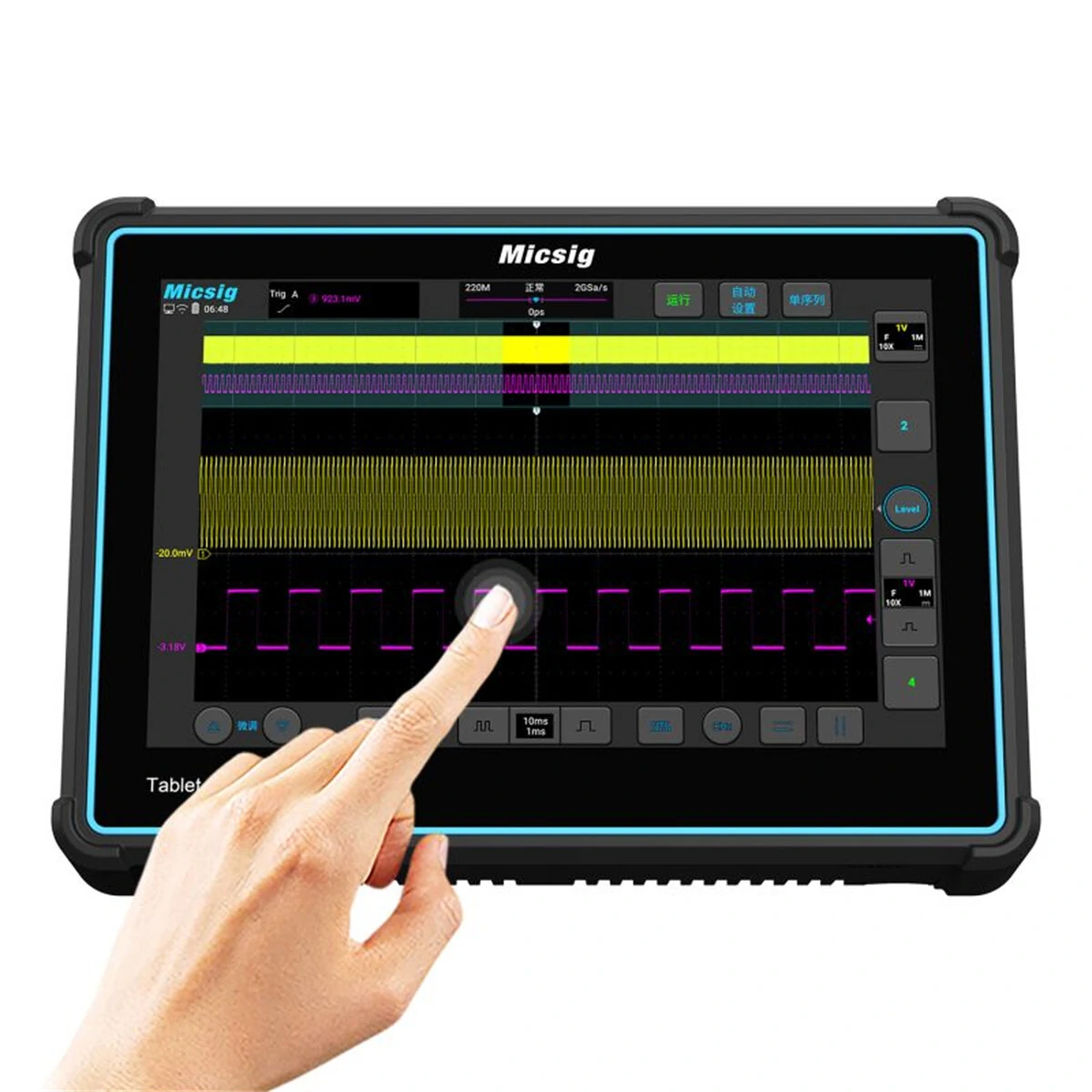

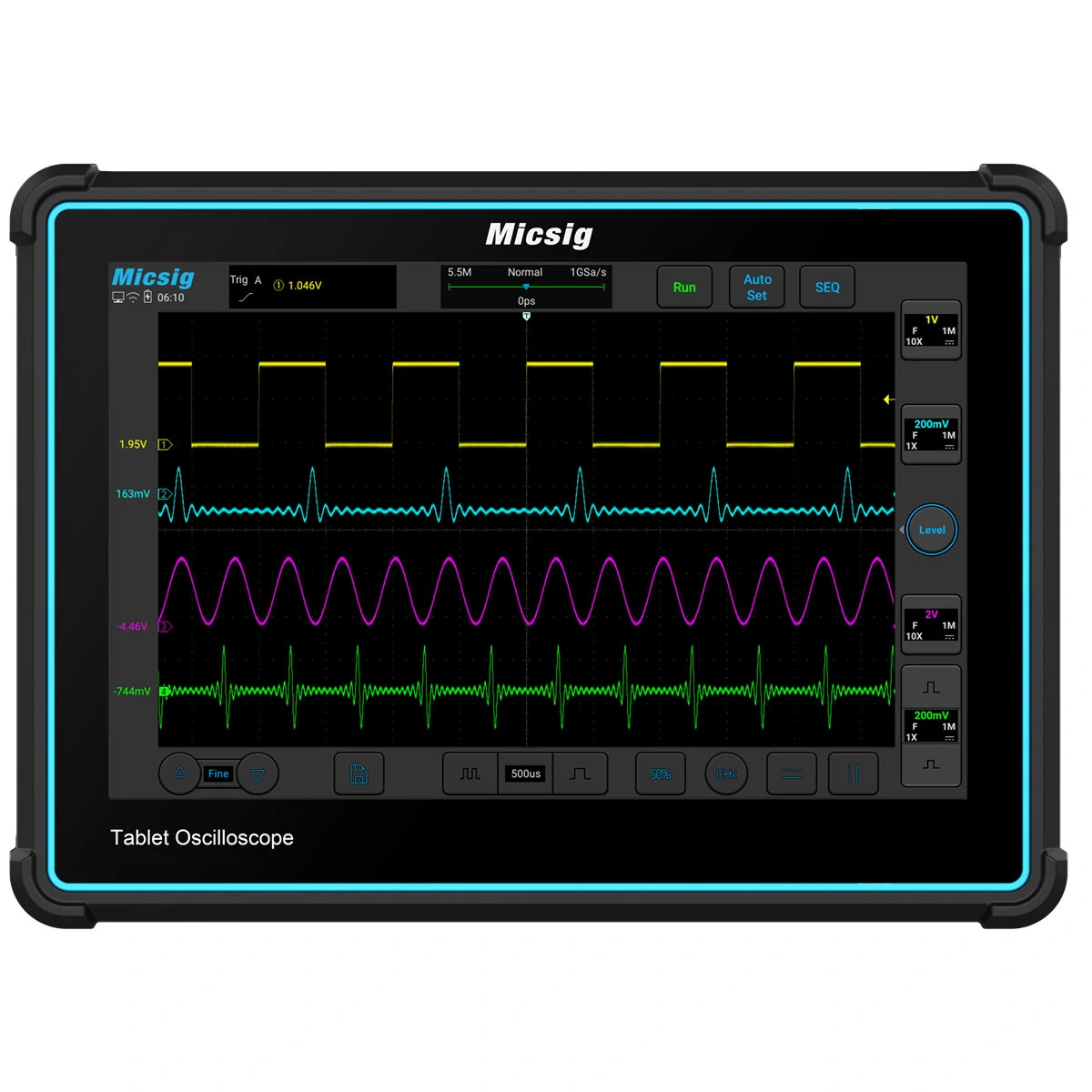

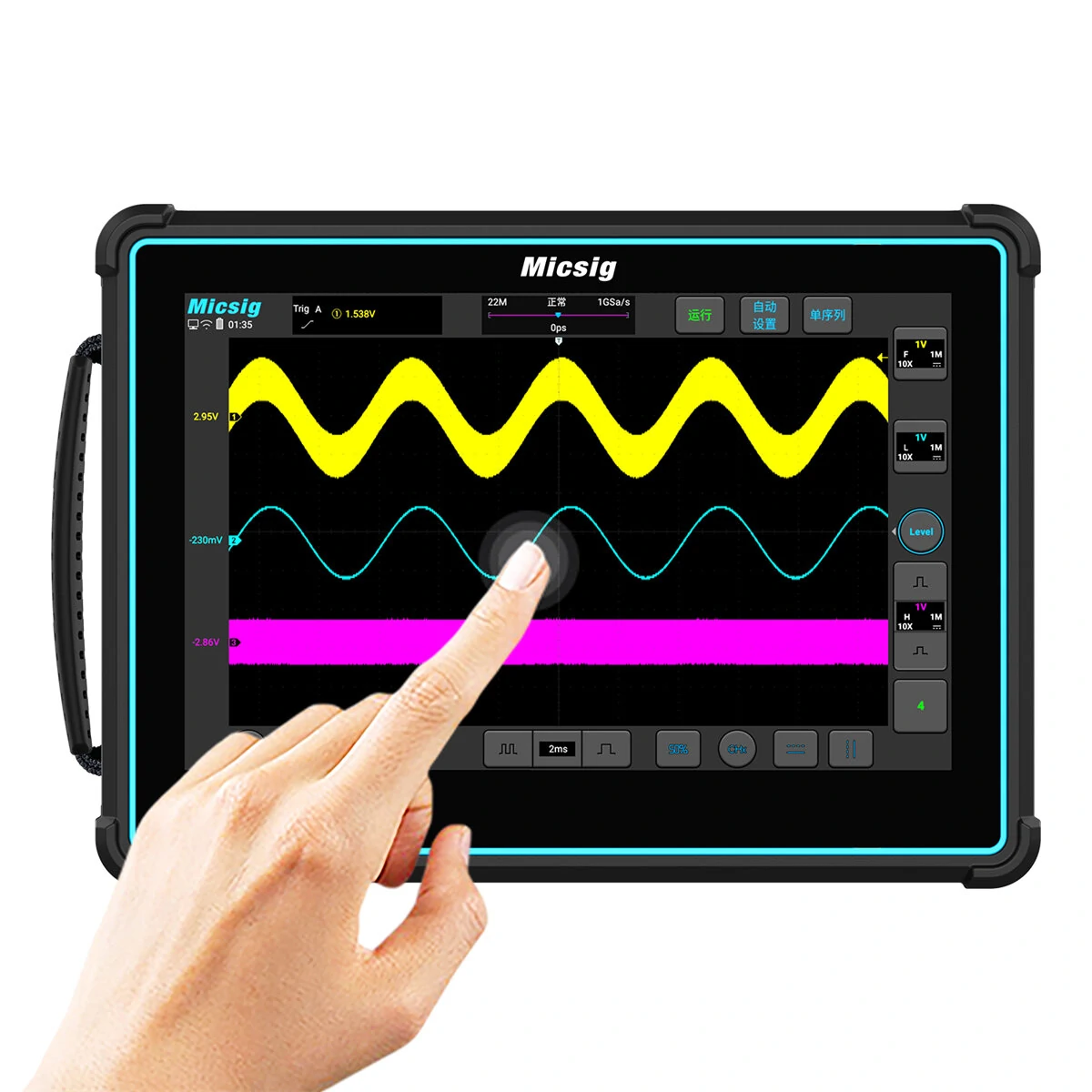

Micsig TO2002 Tablet Oscilloscope - 200MHz 1GSa/s - 10.1 Touchscreen

Product Description

Features:

Revolutionized User Experience: The TO series Tablet Oscilloscope embraces a 10.1-inch integrated full touch screen with 1280 ?? 800 high resolution. Drawing from Micsig's extensive experience, spanning over a decade in touch control algorithms, the TO series redefines the oscilloscope touch experience, setting a new industry benchmark.



Optimized Performance Metrics: Dive deep into your measurements with up to 200MHz bandwidth, an impressive 1GSa/s sampling rate, and a maximum memory depth of 110Mpts. Combined with the SigtestUITM multitasking system, experience long-time stability and uninterrupted performance.



Enhanced Measurement Capabilities: This device isn't just an oscilloscope. It integrates comprehensive measurement functions, mathematical analysis, and even supports serial bus triggering and decoding. Additionally, the built-in hardware digital filtering modules ensure your readings are accurate and uncluttered.



Versatile Connectivity Options: With diverse interface choices, including Wi-Fi, USB 3.0/2.0, USB Type-C, and more, connecting with other devices or networks has never been simpler. Whether it's data transfer or external control, the TO series has you covered.



Portability and Prolonged Usage: Its compact design means it's the ideal oscilloscope for on-the-go electronic debugging and testing. What??s more, with a robust 7.4V, 7500mAh Li-ion battery, you can work continuously, irrespective of your location.



Specifications:

Model: TO2002

Bandwidth: 200MHz

Analog Channels: 2

Rise Time: S1.75ns

Max. Sampling Rate: 1GSa/s

Memory Depth: 110Mpts

Waveform Capture Rate: 78,000 wfms/s

Bus Decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, 12C

Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C,Trigger out

Display: 10.1 Inch LCD capacitive touch, 1280*800 resolution

Size & Weight: 26519250mm / 1.9kg (with battery)

Battery: 7.4V, 7500mAh Li-ion



Package Includes:

1 x Micsig TO2002 Tablet Oscilloscope

1 x User Manual

1 x Charging Cable

1 x Battery
