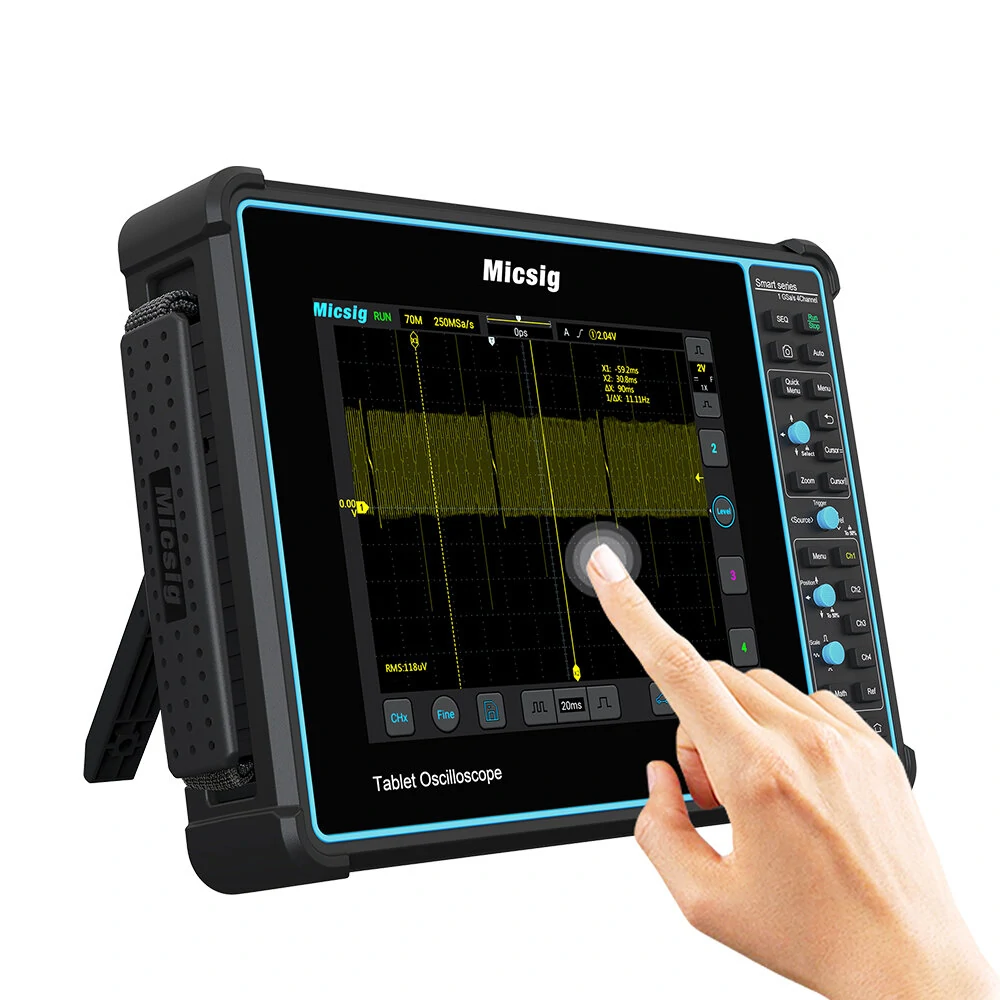

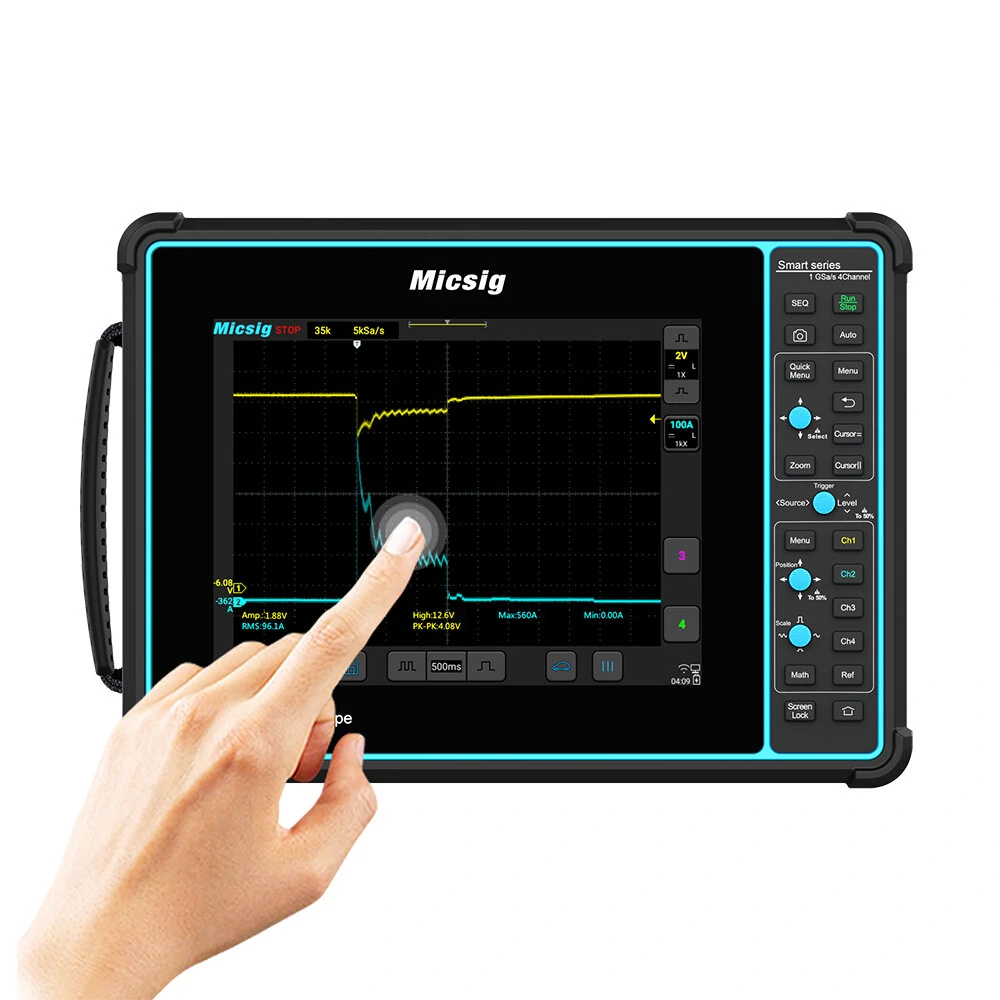

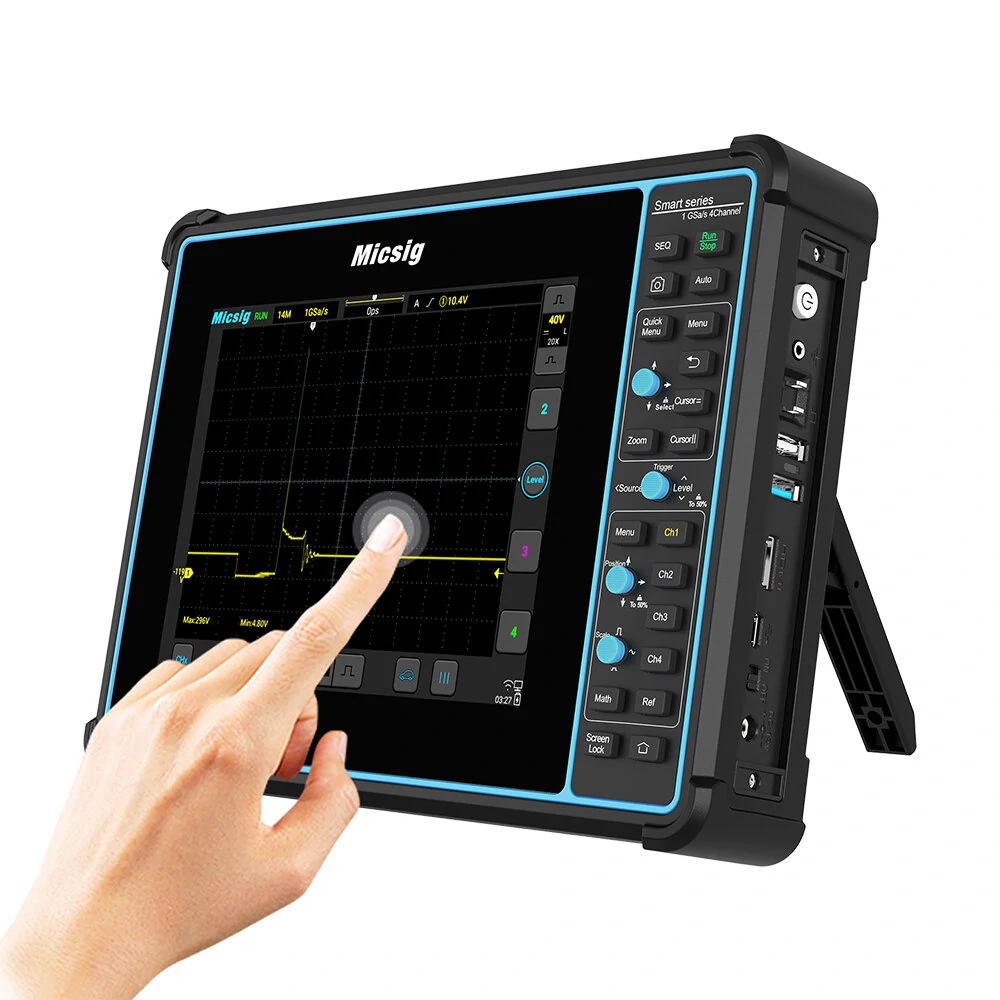

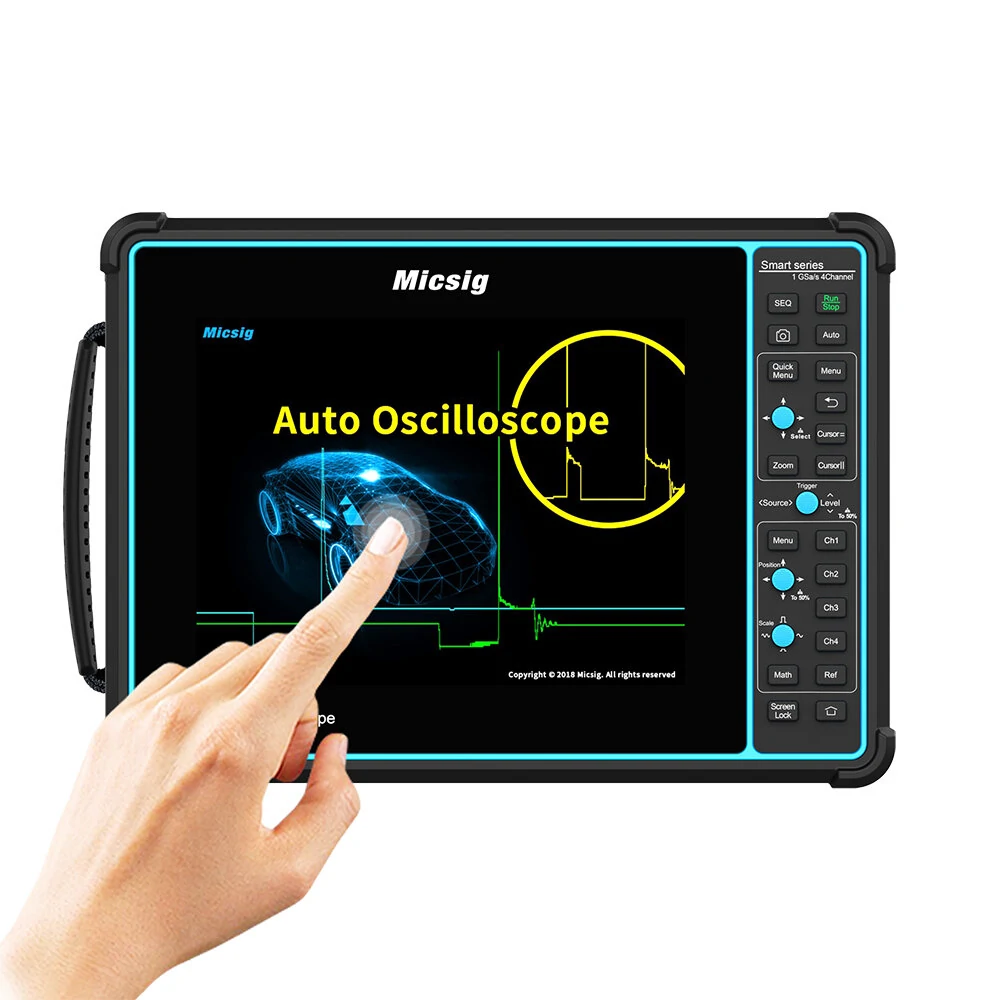

Micsig SATO2002 Automotive Oscilloscope | 200MHz 1GSa/s | 2-Ch Tablet with Wi-Fi & Touch

Product Description

Features:

High Bandwidth with Broad Compatibility: A commanding 200MHz bandwidth is capable of testing a wide array of buses like Flexyray, CAN FD, and LIN which are unattainable with low-bandwidth scopes.

Clear and Realistic Waveform Display: With a high sampling rate of 1GSa/s, the waveform representation is not just authentic but also distinctly clear, enabling you to interpret with accuracy.

Expansive Memory Depth: Its impressive 70Mpts storage depth offers a dual ?C while it provides a macro view, it can also zoom in to shed light on intricate details, ensuring a holistic diagnostic approach.

Versatile Communication Testing & Decoding: From automotive-specific channels like CAN, LIN, Flexray to serial bus decoding functionalities such as RS-232, IPC, SPI ?C this device is adept at comprehensive testing, allowing customization based on specific requirements.

Connectivity and Control on the Go: Enhance your diagnostic experience by connecting the oscilloscope to your phone over a network. This facilitates real-time waveform viewing and full control of the oscilloscope right from your mobile device.

Equipped with these features, the Micsig oscilloscope transcends beyond being a diagnostic tool ?C it's a strategic partner for comprehensive automotive evaluations.

Specifications:

Model: SATO2002

Bandwidth: 200MHz

Analog Channels: 2

Real-time Sampling Rate: 1GSa/s

Memory Depth: 70Mpts

Max Waveform Capture Rate: 130,000/sec

Supported Tests: Charging Circuit, Start Circuit, Sensors, Actuators, Ignition Test, Communication Test (including CAN, LIN, Flexray, K-line, etc.)

Bandwidth Limitation: Full Bandwidth, Low Pass

Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out

Display: Industrial-grade 8" TFT-LCD (800x600 resolution)

Dimensions/Weight: 26519250mm / 1.9kg (including battery)

Package Includes:

1 x Micsig SATO2002 Touch-Control Automotive Oscilloscope

1 x User Manual

1 x Power Adapter
