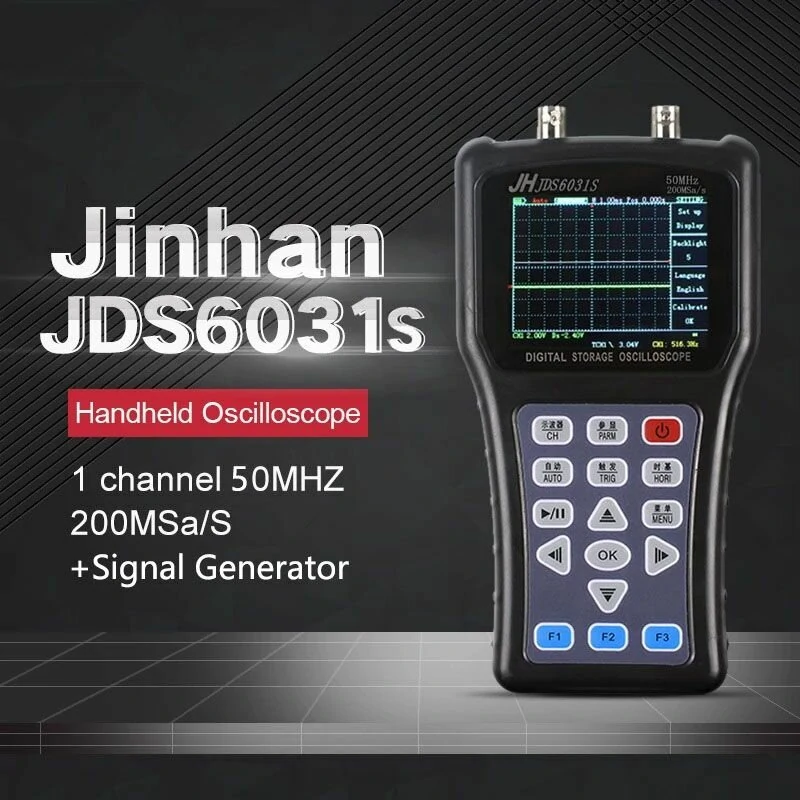

JDS6031S Handheld Oscilloscope - 50MHz 200MSa/s with Signal Generator
$125.00
$153.58
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
Specifications:Oscilloscope:
Channel ------- 1Bandwidth -------- 50MHzReal-time sampling --------- 200MSa/sSingle channel memory depth ------- 4KptsInput coupling ------- AC, DCInput Impedance------- 1M?? 25pFMaximum input voltage ------- Probe: 40V (probe X1); 400V (probe X10); In addition, a high-voltage probe is required to measure 2kv.Probe attenuation ------- 1X, 10XSet the probe attenuation factor ------- 1X, 10X, 100XSampling mode ------- real-time sampling (10ns-50ms)/scanning sampling (100ms-5s)Vertical sensitivity -------- 10mV-5V (Probe 1X) 100mV-50V (probe 10X) (1,2.5,5 steps)Vertical Accuracy ------- +/-3%Vertical Resolution------- 8bitHorizontal scanning range------- 10nS/div-5S/div(1,2.5,5 steps)Trigger Mode------- Auto, Normal and SingleTrigger Type------- Rising Edge, Falling EdgeAuto detect------- support (50Hz-30MHz)Cursor measurement --------- Support time and voltage cursor measurement
Signal generator:
Waveform ------------- Square iwave, sine wave, DC.Frequency---------- 1Hz - 40KHzAmplitude------------ 5V(Max -+2.5V),Offseit----------Max -+2.5VSquare iwave duty cycle------- 0% - 100% (minimum resolution 1%)Display --------- 3.2 inch, 16-bit color, TFT, 320 * 240Size -------- 195*99*39(mm)Battery option--------- It is recommended to buy 18650 lithium battery
