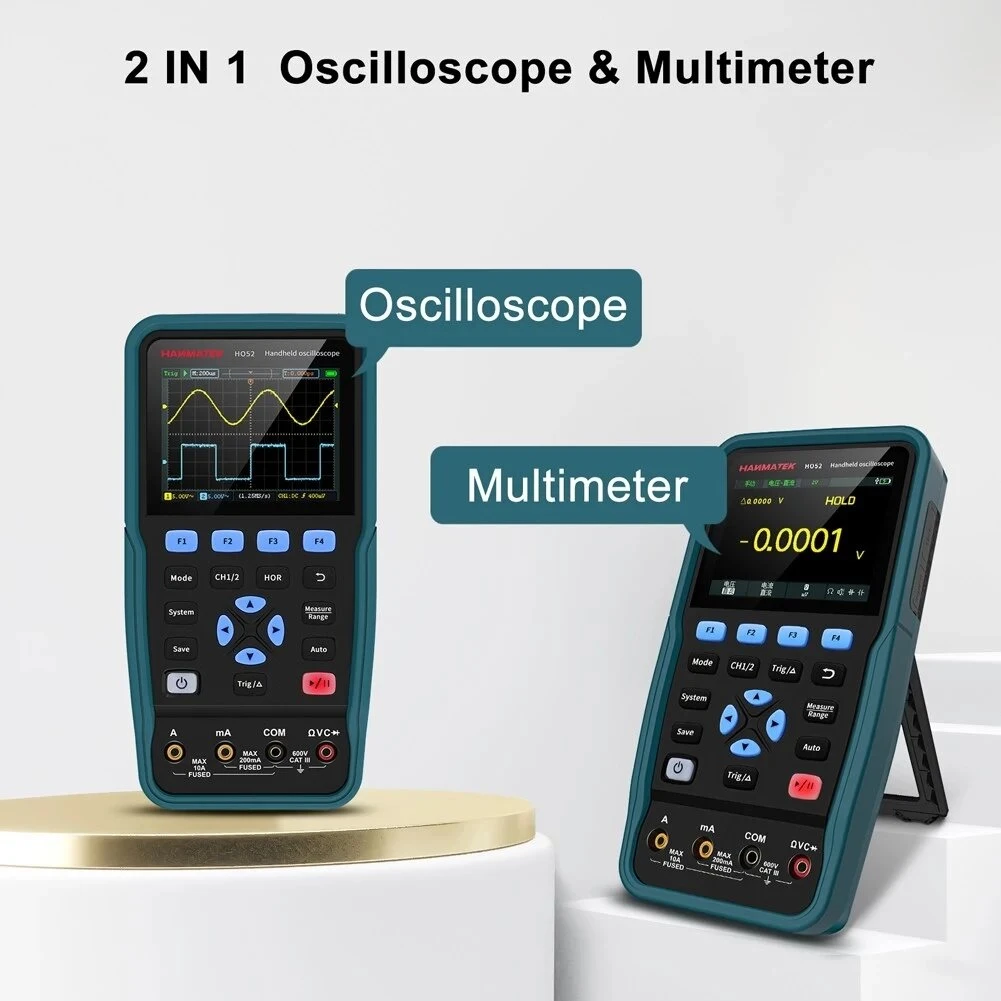

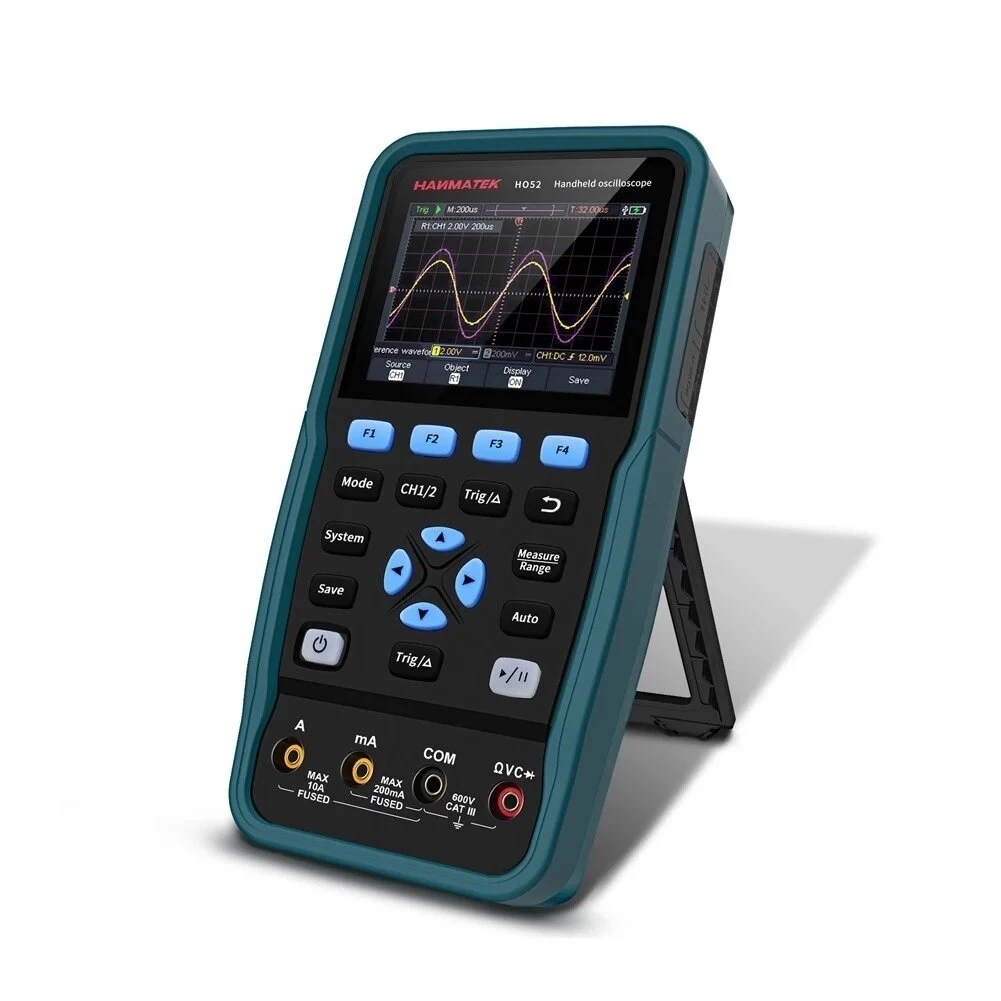

HANMATEK HO52 2-in-1 Digital Oscilloscope & Multimeter | 50MHz | 3.5 LCD
$273.00
$335.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description
>>Please Click Here to Download the English User Manual<<Features:

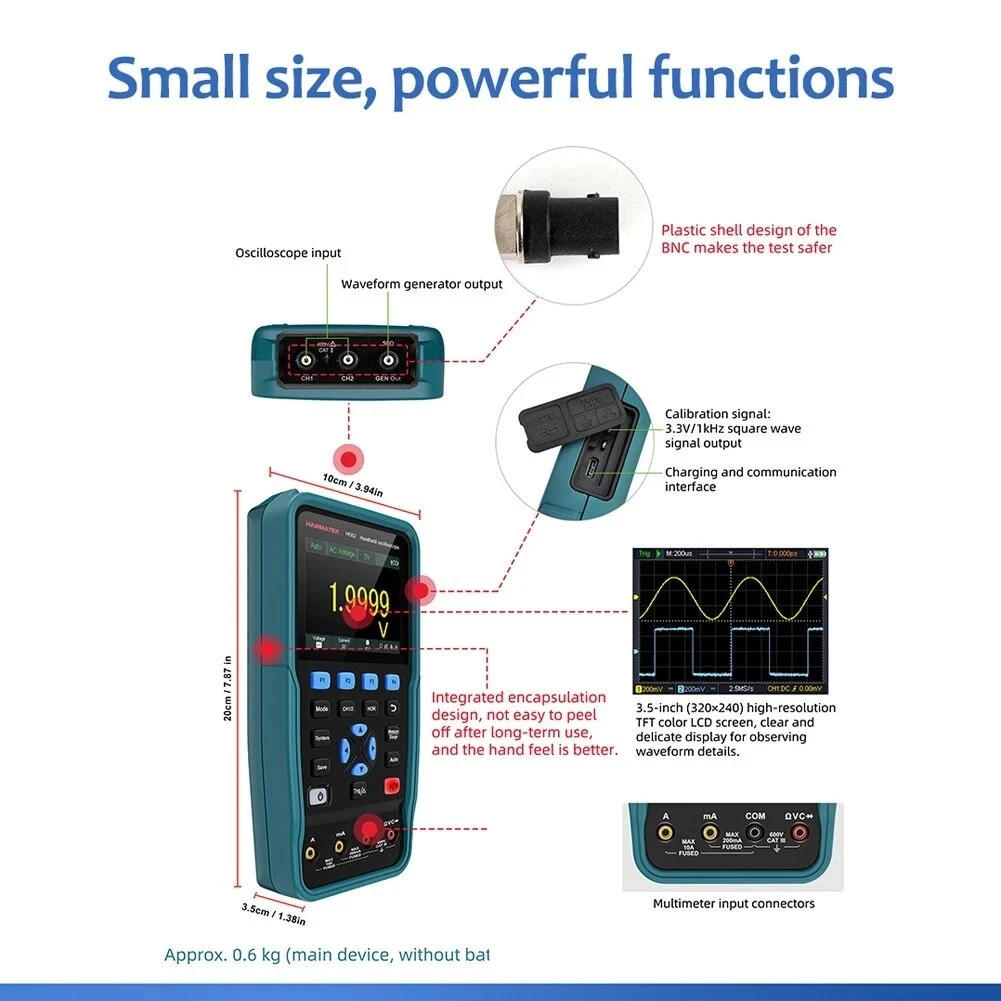

With 3.5 inch (320x240) high resolution TFT color LCD screen, which display clear and delicate for you to observae of waveform details easily .Wide applications: Suitable for outdoor maintenance, rapid on-site measurement, automobile maintenance, power detection, etc.Small in size and easy to carry, you can take it with you to anywhere you want to use it.Dual sampling mode: Peak sampling can be used to detect interference burrs and reduce the possibility of confusion. High refresh, deep storage features, waveform refresh rate up to 10,000wfms/s, 8K storage depth, easy capture of abnormal events, low probability events.Support 7 kinds of automatic measurement: frequency, period, amplitude, maximum, minimum, average, peak-peak. Up to 6 automatic measurements can be displayed on the screen simultaneously.After the USB Type-C interface is used to connect the com-puter, the com-puter can read the saved pictures or CSV waveform, which is convenient to view and analyze the waveform or share waveform data in the later stage.As the multimeter, it support measuring voltage, current, resistance, capacitance, diode, and on-off test.
Specifications:

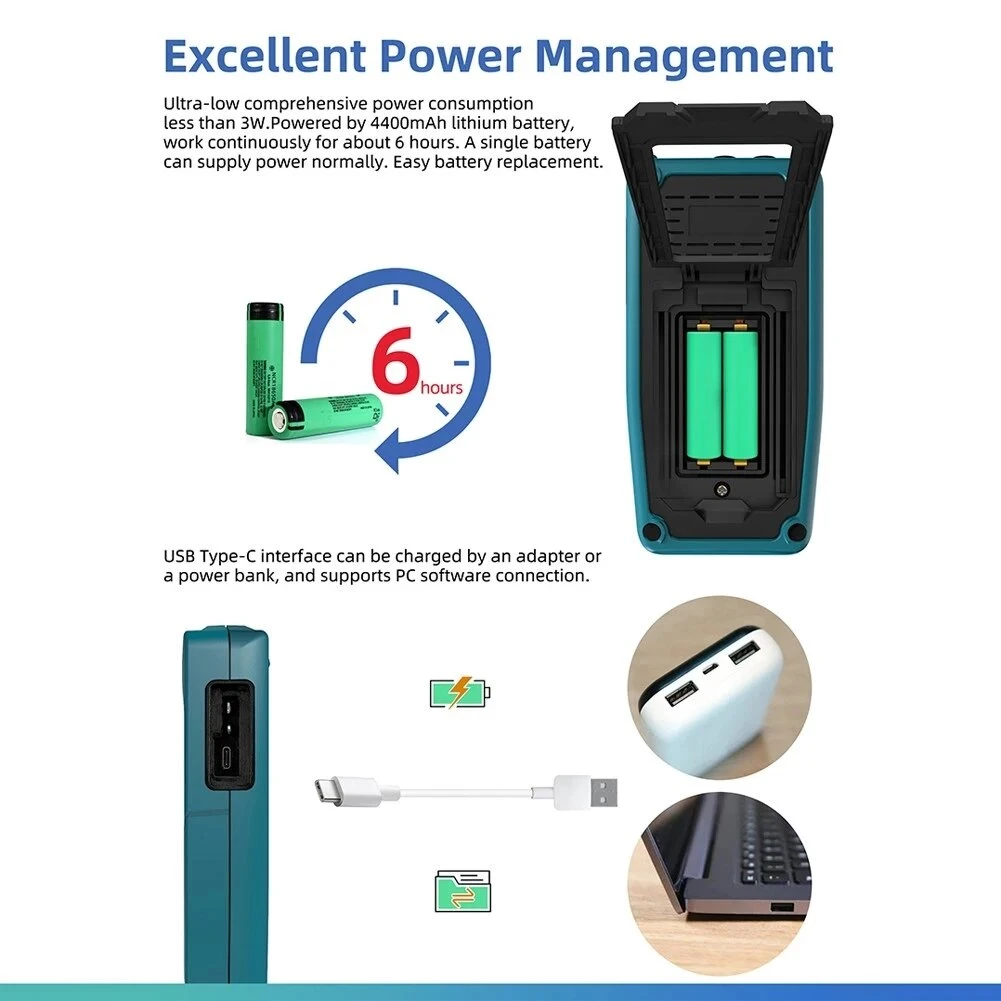

Material: ABSChannel: 2Sample rate: 250MSa/sWaveform refresh rate: 10000 wfms/sRecord length: Max. 8KInput coupling: Direct current, AC, GroundInput impedance: 1M??+2%, in parallel with 16 pF??10 pFProbe attenuation: 1X,10X, 100X, 1000XMax. input voltage: 400V (Direct current+AC, PK: PK)Bandwidth limit(typical): 20MHzTime base ranges: 5ns/div 1000s/div, step by 1-2-5Sensitivity resolution: 10 mVi/div~10 V/divTrigger type: e-dge triggerTrigger mode: automatic, normal, singleInput impedance: 10M??Max. input voltage: AC750V, Direct Current 1000VMax. input current: 10ADiode: 0~2VBattery: 1 * lithium battery, 4400mAh (included)Package size: 230 * 135 * 75mm / 9.1 * 5.3 * 3.0inPackage weight: 1100g / 2.4lb
MultimeterMax. Resolution: 20,000 countsTesting Mode: Voltage, Current, Resistance, Capacitance, Diode ,and Continuity testInput Impedance: 10M??Max Input Voltage: AC 750V, DC 1000VMax Input Current: DC 10A, AC 10ADiode: 0- 2V
Package Included:
1 * Digital Oscilloscope1 * Carry Bag1 * Oscilloscope Probe Pen1 * Calibration Pen1 * USB Cable1 * Charger
1 * Multimeter Pen1 * User Manual1 * Compact Disc
Details Picture:
