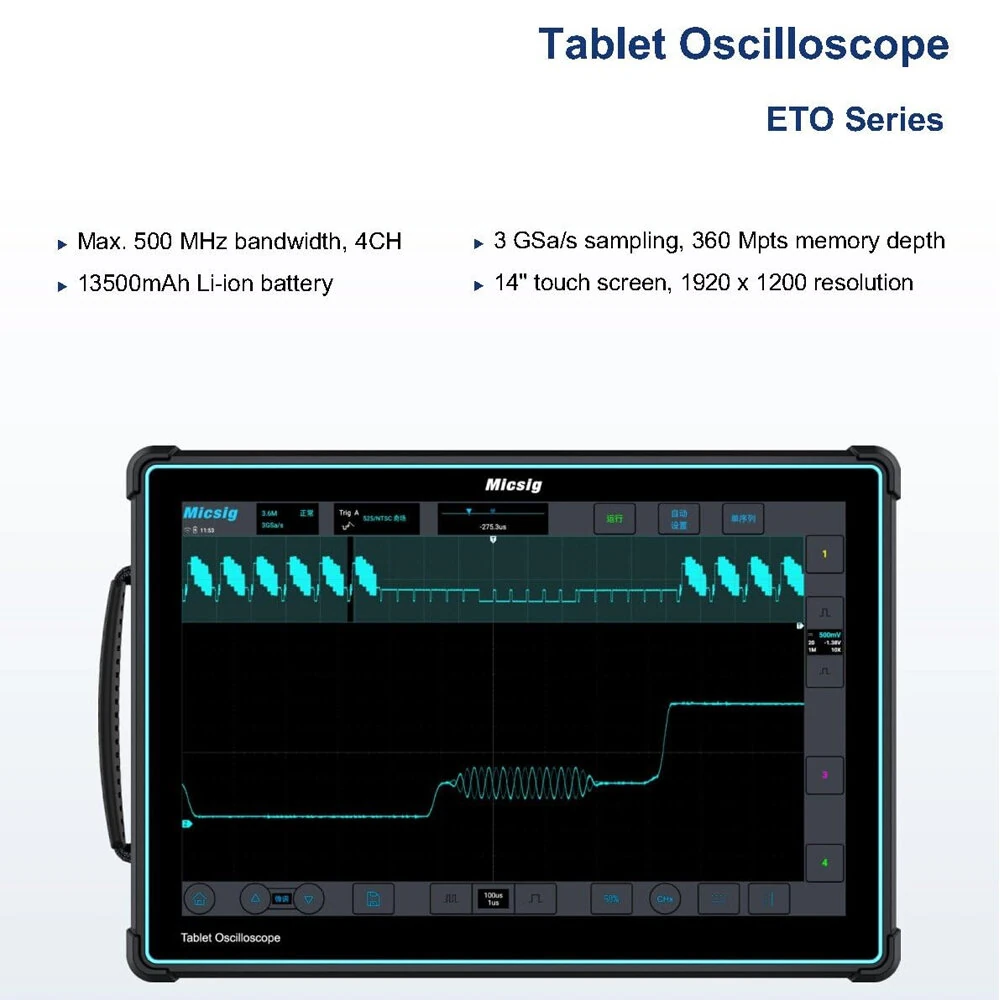

ETO3504 Digital Oscilloscope 500MHz | 4 Channels 3GSa/s | USB Type-C & HDM

Product Description

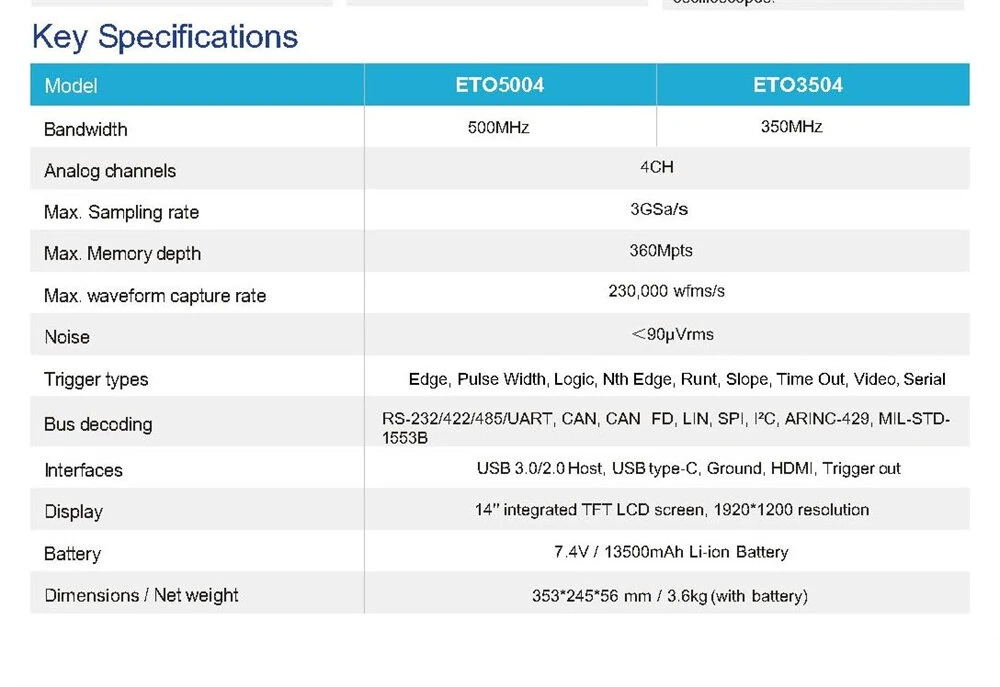

?Specifications:

ETO5004:

Bandwidth: 500MHz

Rise Time: ?? 0.7ns

Analog Channels: 4

Sampling Rate: 3GSa/s

Memory Depth: 360Mpts

Waveform Capture Rate: 230,000 wfms/s

Vertical Resolution: 8 bits

Noise: < 90??Vrms

Bus Decoding (Standard): RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC429, MIL-STD1553B

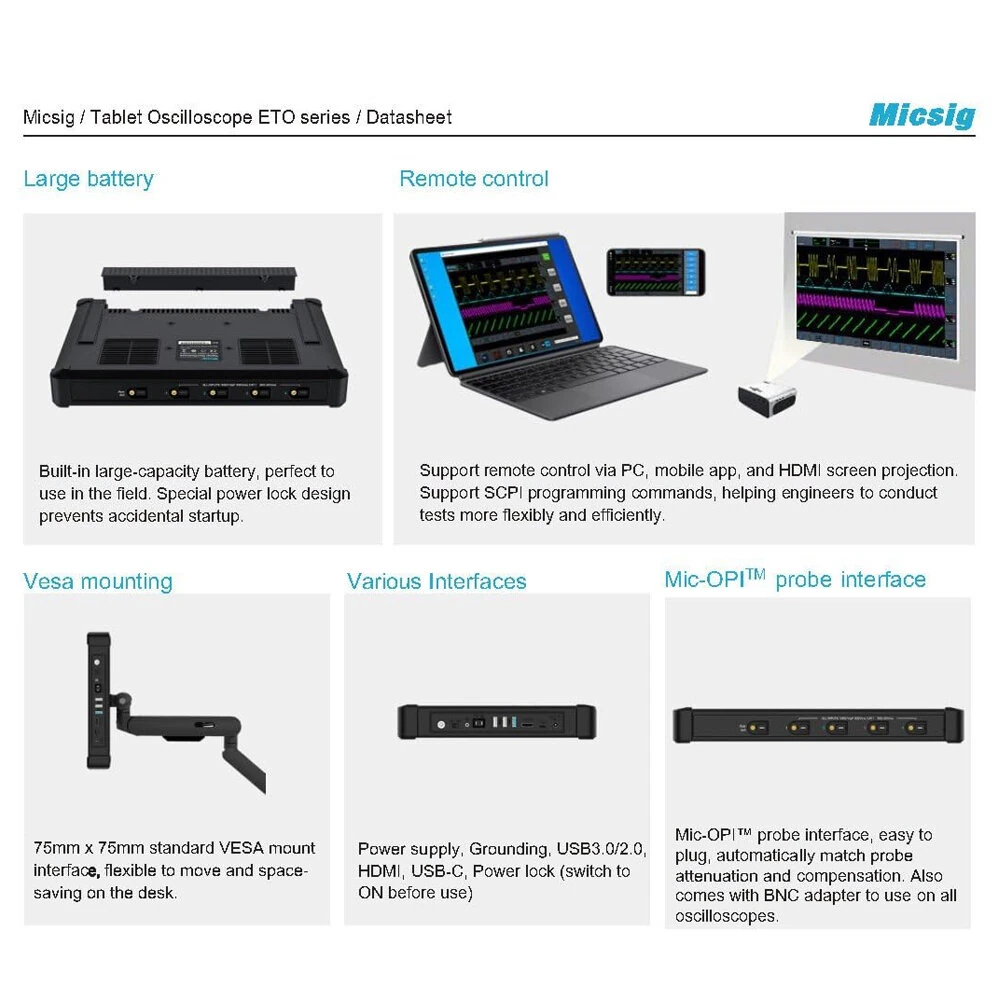

Interfaces: USB 3.0/2.0 Host, USB Type-C, Ground, HDI, Trigger Out

ETO3504:

Bandwidth: 350MHz

Rise Time: ?? 1ns

Analog Channels: 4

Sampling Rate: 3GSa/s

Memory Depth: 360Mpts

Waveform Capture Rate: 230,000 wfms/s

Vertical Resolution: 8 bits

Noise: < 90??Vrms

Bus Decoding (Standard): RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I2C, ARINC429, MIL-STD1553B

Interfaces: USB 3.0/2.0 Host, USB Type-C, Ground, HDM, Trigger Out

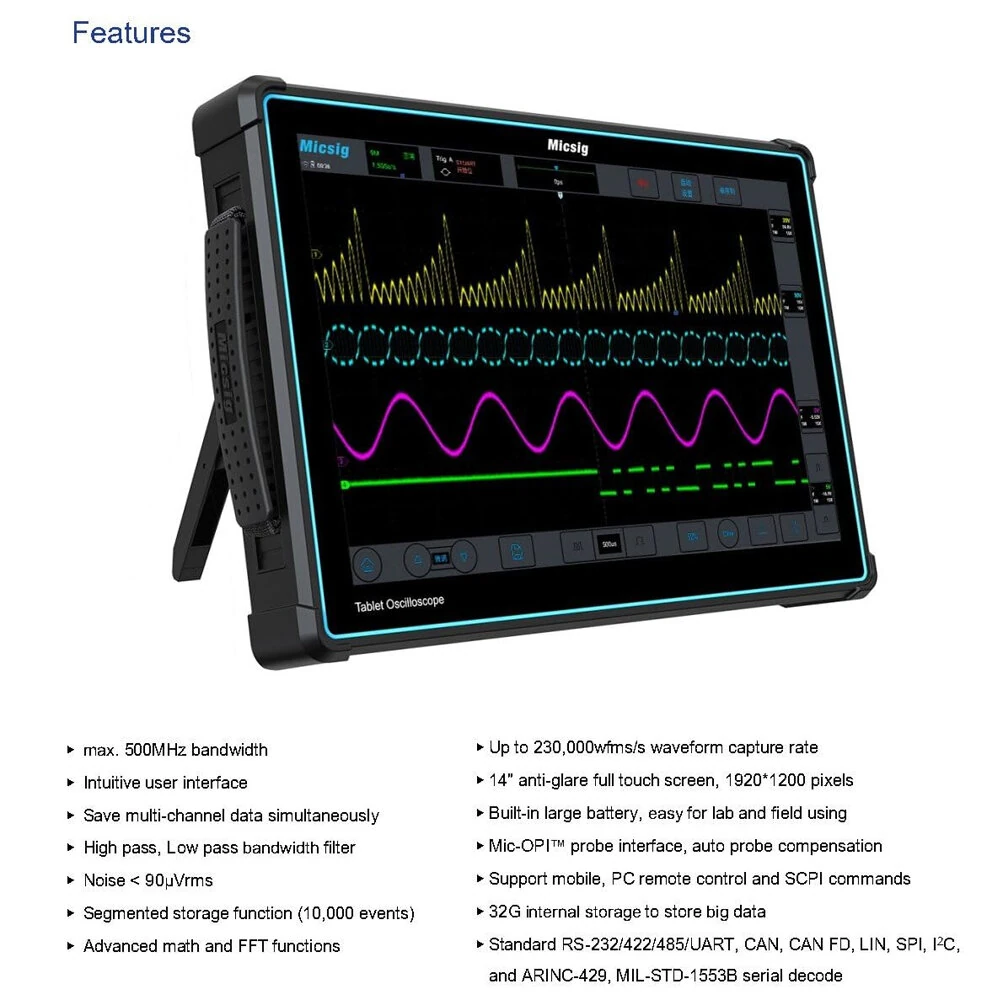

Features:

1. High Bandwidth for Wide Applications

With bandwidths of up to 500MHz (ETO5004 model) and 350MHz (ETO3504 model), these oscilloscopes are ideal for rapid signal analysis in industries like telecommunications, automotive, and aerospace.

2. Advanced Decoding Capabilities

Supports multiple standard bus decoding protocols such as RS-232, SPI, I2C, and CAN, enabling precise and extensive debugging in complex electronic systems.

3. Large Memory Depth

Featuring a 360Mpts memory depth, these oscilloscopes allow extended data acquisition, ensuring accurate insights during
