DS212 Digital Oscilloscope - Portable Nano Handheld 1MHz Bandwidth 10MSa/s
$169.00
$207.98
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

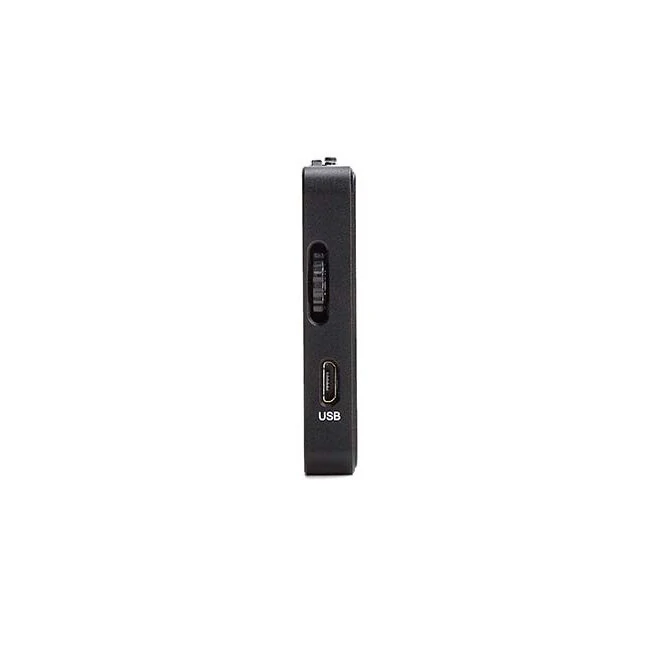

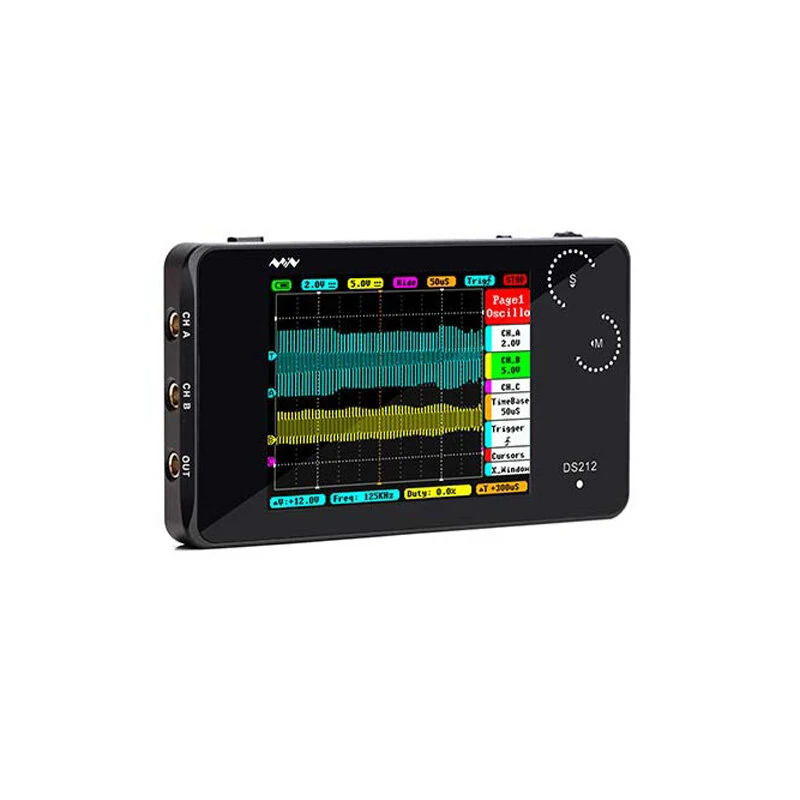

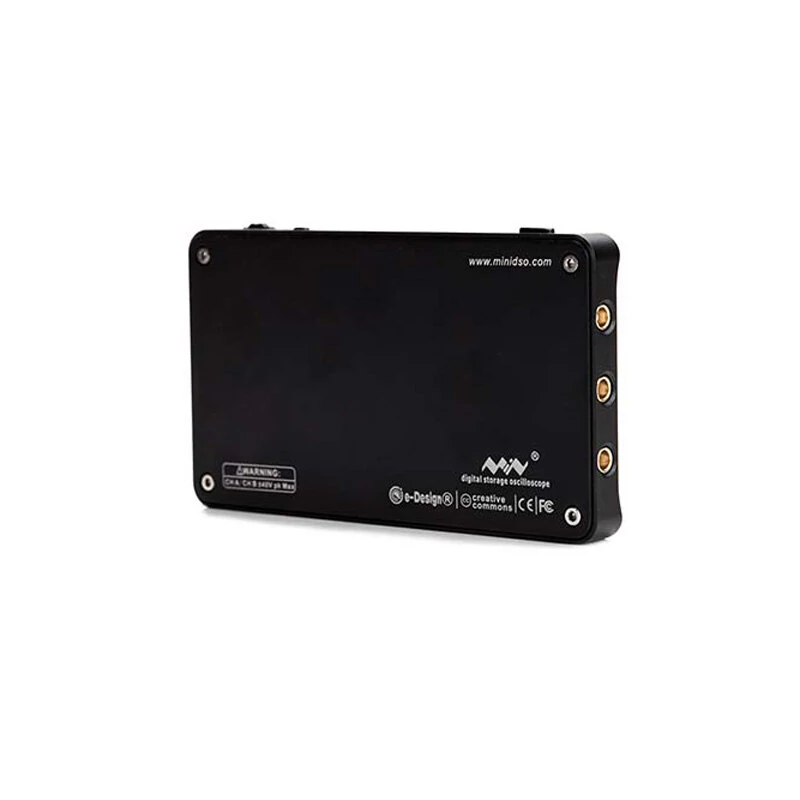

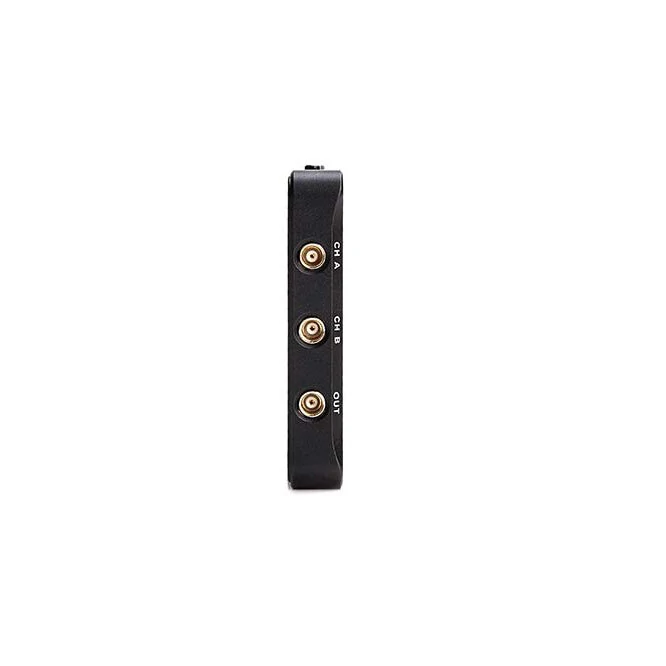

Features: With thrumbwheel adjust key Pocket-sized digital storage oscilloscope meets basic electronic engineering requirements. Dual trace three lines, new kind of system interface, capacitive convenient operation. You can easily operate it with the gestures of one-click, double-click, press and slide. The aluminum shell is very fashionable equipped with 320*240 color display, 8M Memory card (USB flash disk), and chargeable Lithium batteries.The thickness is about 11 mm/ 0.43 inch only! The volume is small enough to take it anywhere. It can meet the demands in many fields, such as, school experiments, electronic repairing, and electric engineering. Specifications: Model: DS212MCU: STM32F303VCADC: MCU internal ADCChannels: 2 analog channels, 1 operation channelAnalog Bandwidth: 1 MHzMax Sample Rate: 10 MSa/sMax Sample Memory Depth: 8KHorizontal Sensitivity: 1uS/div to 2S/div (1-2-5 step)Vertical Sensitivity: 20mV/div to 10V/div (1-2-5 step)Analog Input Impedance: 1 M??Coupling: DC/ACTrigger Mode: ascend/descend edge trigger modeMath Waveforms: -A, -B, A+B, A-B, RecA, RecB, RecCInbuilt Signal Generator: sine/square/triangle/sawtooth waveSynchronous Mode: auto, normal, single, none, scan value/averageStorage: 8 MB flash disk memoryAPP Installed: 2Operation: Button, Wheel buttonUSB Port: Micro USBBattery: 500 mAhScreen Type: TFT LCDScreen Size: 2.8"Screen Resolution: 320 x 240Dimension: 100 x 56.5 x 10.7 mmWeight (with battery): 90 g Open Source: application layer open-source Package Includes: 1x DS212 Mini Oscilloscope1x Battery(built in)2x Probes(with X1X10)1x MicroUSB1x Hex Key1x Safety InstructionCustomer Reviews
