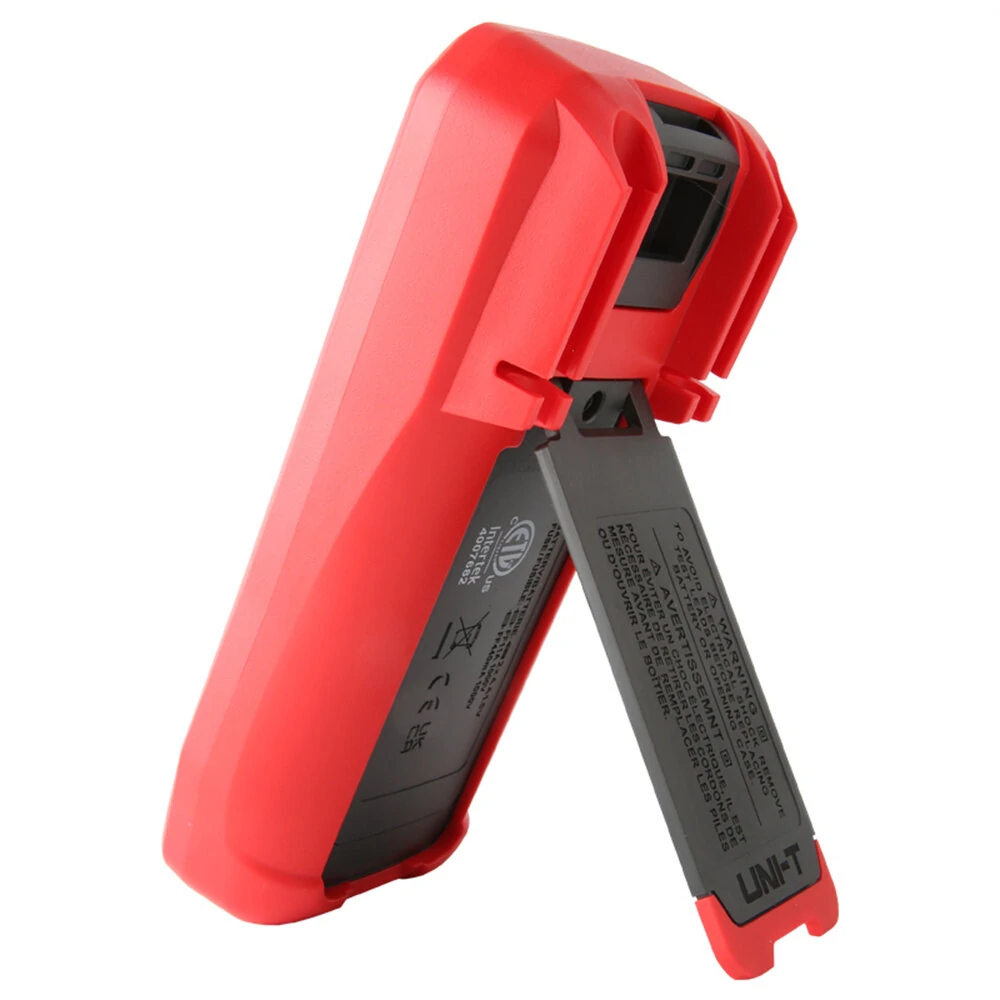

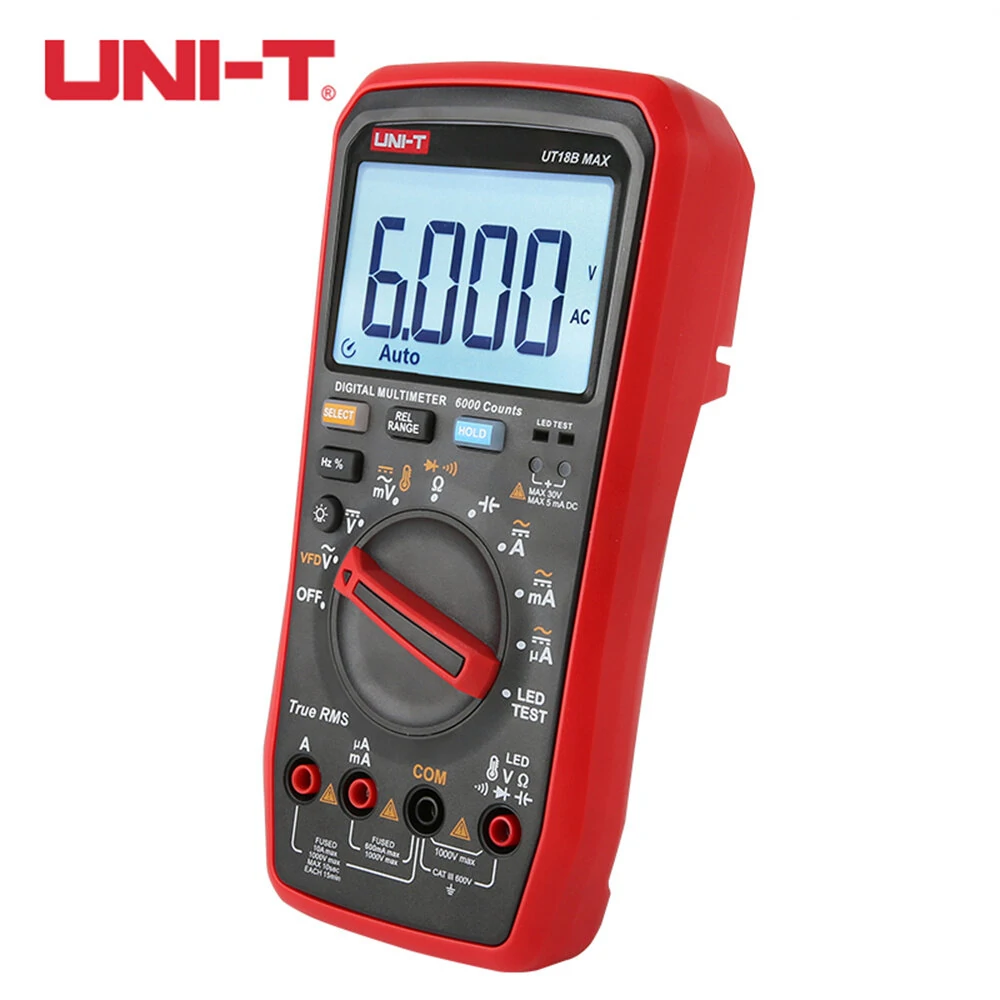

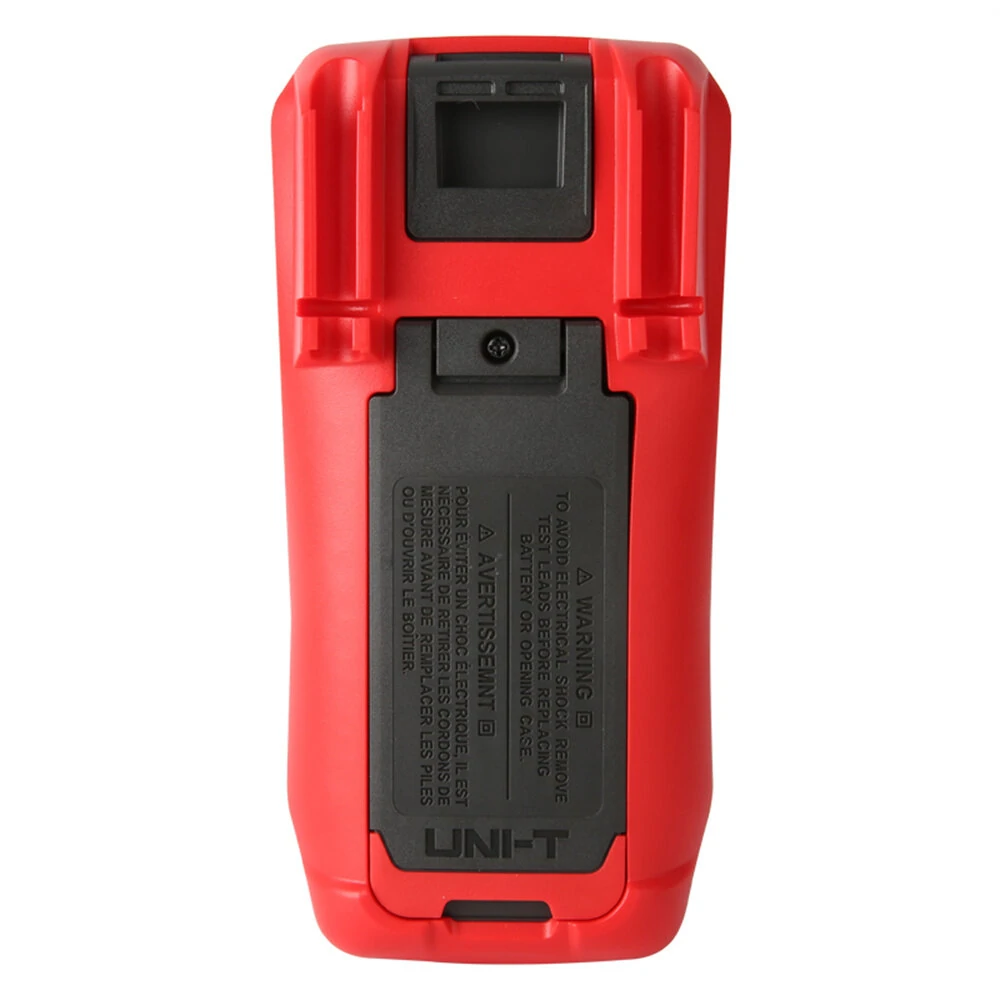

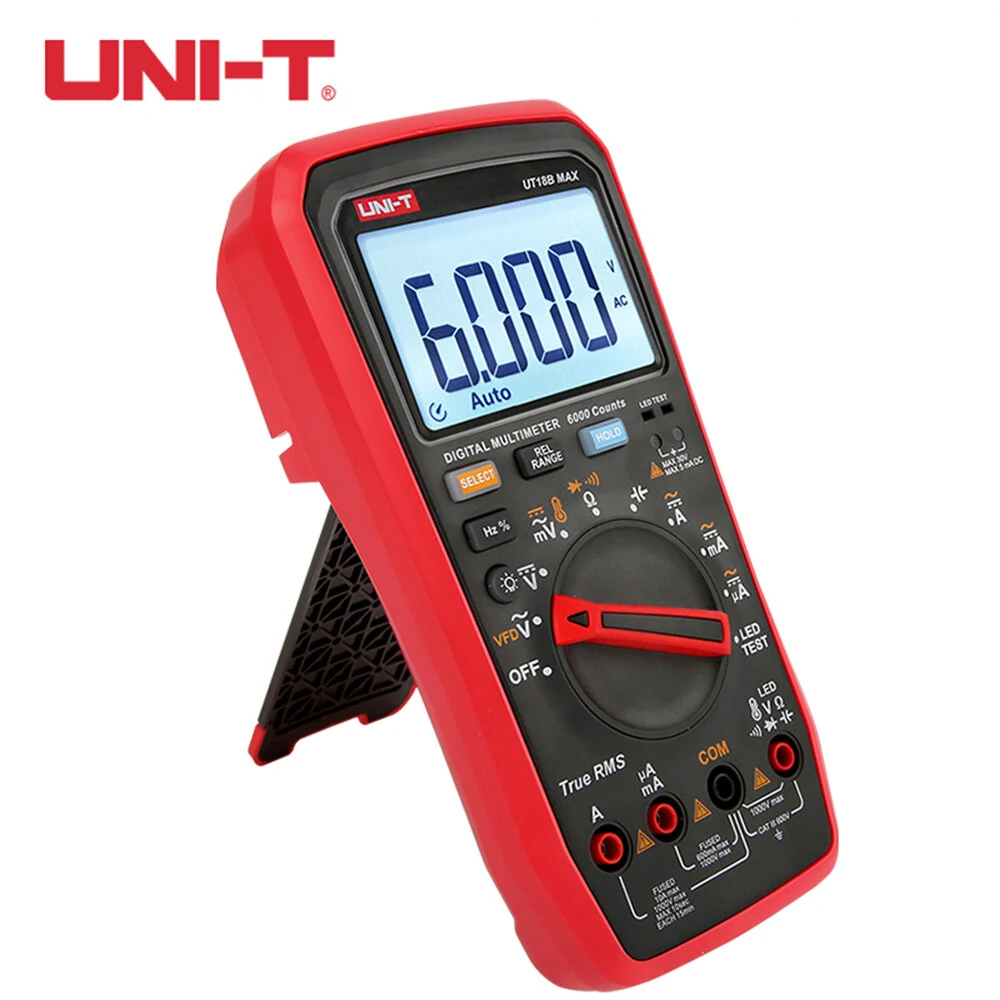

UNI-T UT18B MAX True RMS Digital Multimeter | Auto-Range Voltmeter Ammeter

Product Description

Features:

Impressive Voltage Measurements:

The UT18B MAX outperforms in voltage measurement. With DC voltage ranging from 600.0mV to 1000V and AC voltage from 600.0mV to 1000V, it guarantees accurate readings. It also measures VFD voltage at 600.0V, covering all essential voltage measurements for your electrical tasks.

Precise Current Detection:

Excellence in current detection is another key highlight of this multimeter. It accurately measures AC and DC currents from as low as 600.0??A up to 10.00A, providing complete current detection for safe and precise diagnostics.

Detailed Resistance & Capacitance Metrics:

From resistance measurements spanning 600.0?? to 60.00M??, to capacitance readings between 6.000nF to 6000??F, the UT18B MAX provides detailed metrics, essential for working with intricate electronics and ensuring optimal device operation.

Inclusive Frequency and Duty Cycle Measurements:

Be it a basic or advanced electrical task, understanding frequency is important. The UT18B MAX measures a broad spectrum of frequencies from 10Hz to 10MHz and duty cycle from 1% to 99.9%, making it a truly versatile tool.

Wide-Ranging Temperature Readings:

For tasks requiring temperature diagnostics, the UT18B MAX excels with a wide temperature range of -55?? to 500??. This multimeter leaves no stone unturned when it comes to comprehensive electrical diagnostics.

Specifications:

Voltage (DC): Ranges from 600.0mV to 1000V

Voltage (AC): Ranges from 600.0mV to 1000V

VFD (Voltage): 600.0V

Current (AC & DC): Ranges from 600.0??A to 10.00A

Resistance: From 600.0?? to 60.00M??

Capacitance: From 6.000nF to 6000??F

Frequency(Hz): From 10Hz to 10MHz

Duty cycle: Ranges from 1% to 99.9%

Temperature: From -55?? to 500??

Power Supply: 2*1.5V AA

Product Weight: 455g

Dimensions: 182mm91mm45mm

Package Included:

1 x UNI-T UT18B MAX Digital Multimeter

1 x User Manual

4 x Test Leads (normal gold plated probe & Fine-tipped probe)

1 x K-type thermocouple (Specific to UT17B/UT18B MAX)
