KAIWEETS KC604 Digital Clamp Meter - True-RMS AC/DC Voltage Tester | NCV, Auto Shut-Off, Backlight

Product Description

Specifications:

Model: KC604

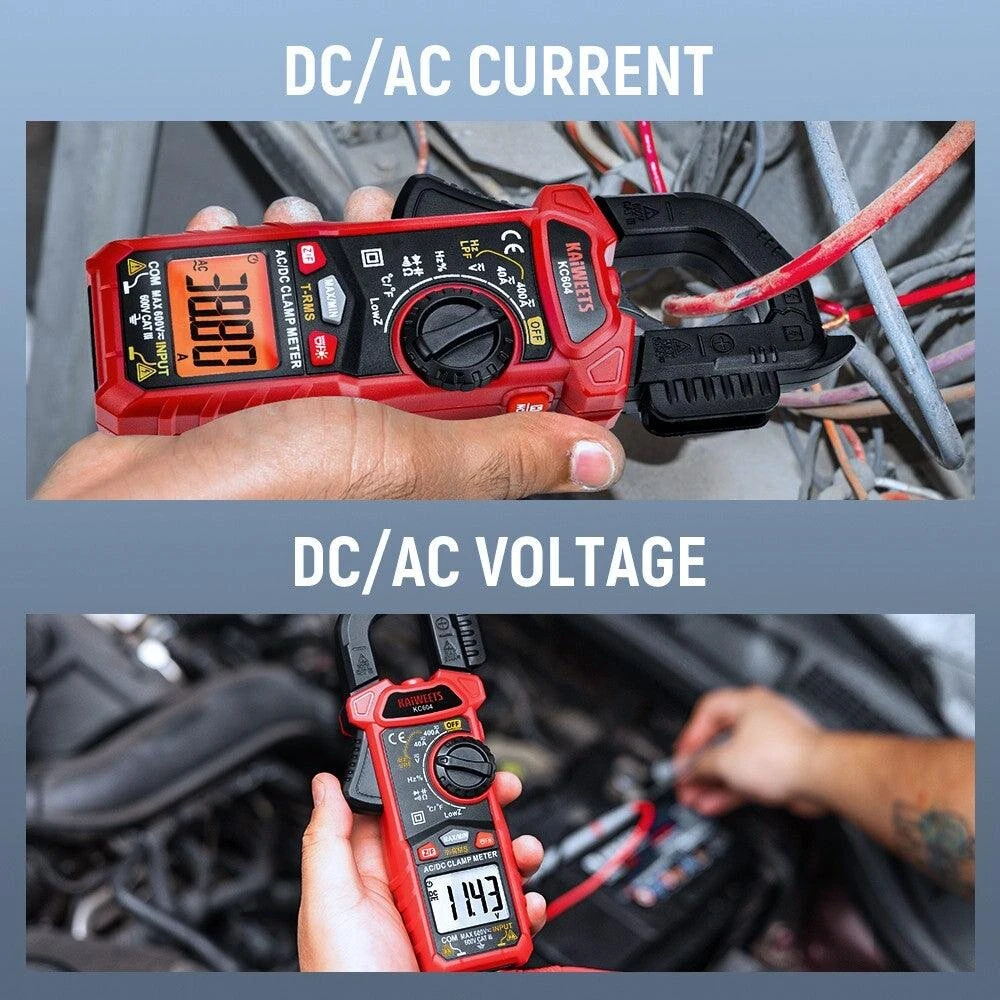

DC Voltage: 400mV/4V/40V/400V/600V ??(0.5%+5) | 4V/40V/400V/600V ??(1.0%+5)

DC Current: 40A/400A ??(2.5%+5)

AC Current: 40A/400A ??(2.5%+5)

Resistance: 400??/4k??/40K??/400K??/4M??/40M?? ??(1.0%+5)

Capacitance: 4nF/40nF/400nF/4??F/40??F/400??F/4mF ??(4.0%+5)

Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz ??(1.0%+3)

Duty: 1%~99% ??(3.0%+3)

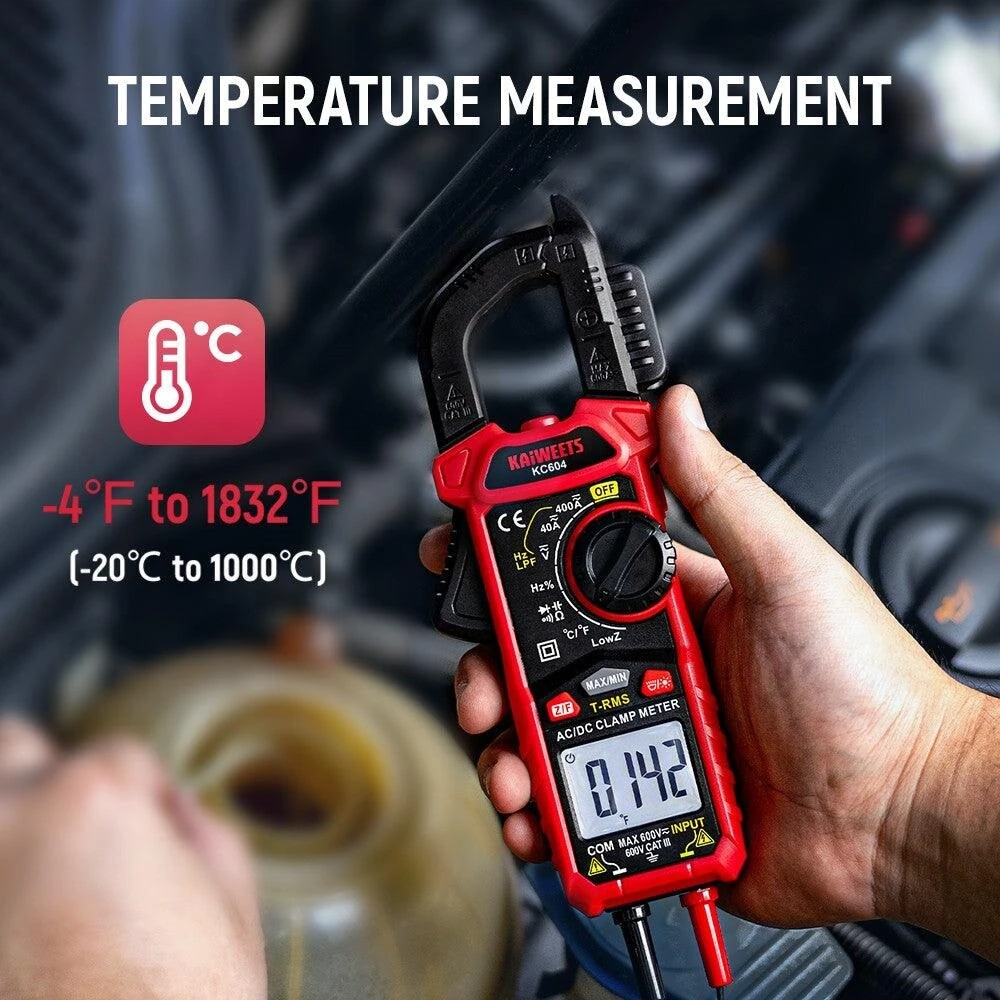

Temperature: -20??C-1000??C ??(1.0%+2) | -40??F~1832??F ??(1.0%+2)

Counts: 4000

Features:

True-RMS AC/DC Clamp Meter: Measures AC/DC current, AC/DC voltage, temperature, NCV, capacitance, frequency, resistance, continuity, and diode. Ideal for troubleshooting household, automotive, and industrial electrical issues.

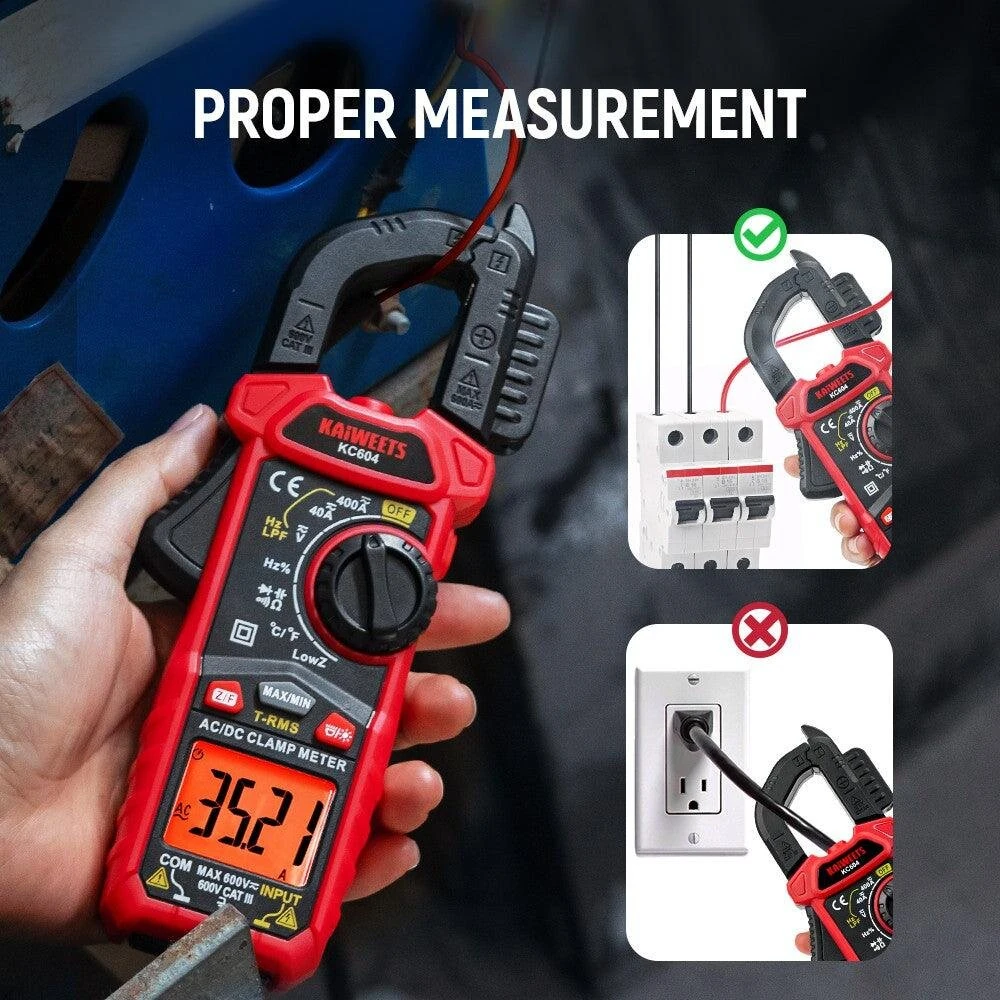

D-Shaped Jaw: Unique D-shaped design with an amp clamp opening up to 1.1 inches. Provides a convenient and secure way to clamp on various cables.

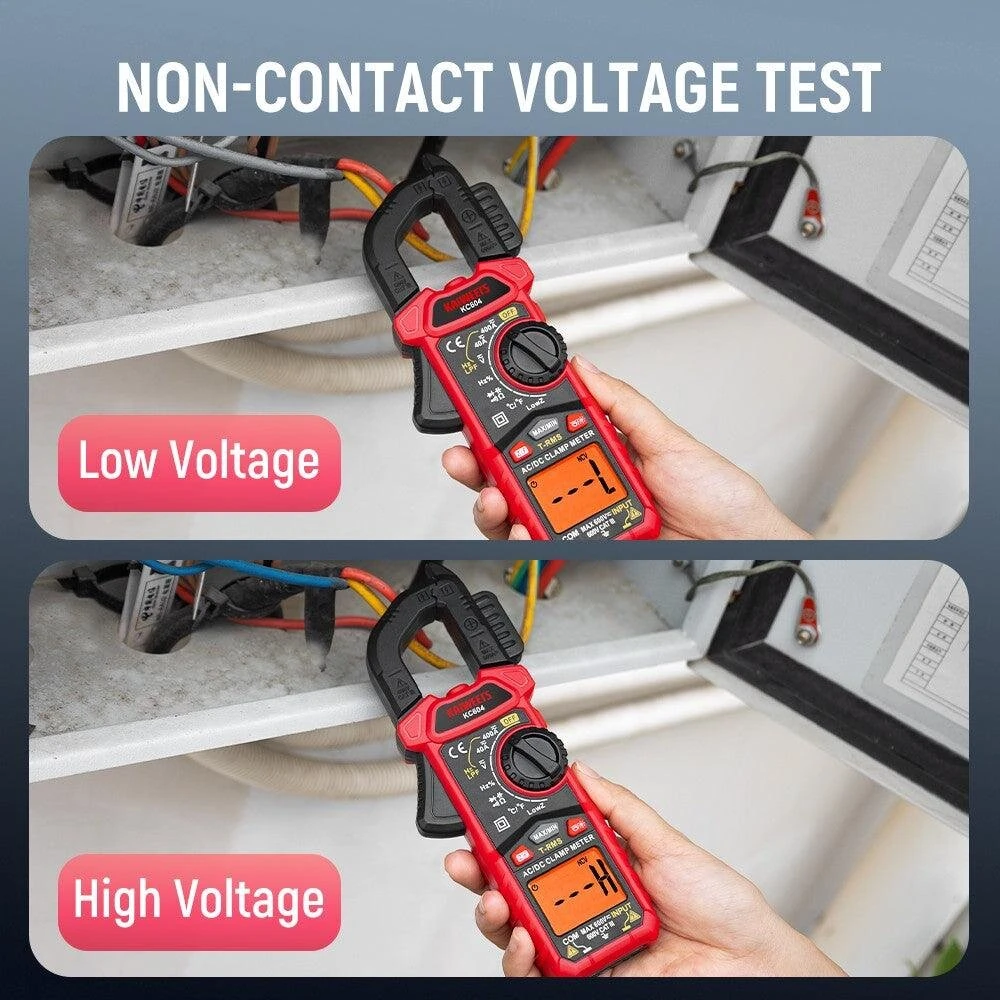

NCV Detection: Non-contact voltage testing helps detect AC voltage without direct contact. Features audible and visual alarms, with the buzzer indicating the strength of the voltage signal.

User Friendly: Includes test lead storage, LCD backlight screen, and flashlight for clear readings in dim areas. Low battery indicator and automatic shut-off after 15 minutes of inactivity.

Safety Compliance: Certified to IEC61010-1 and CAT III 600V standards. Screen turns orange to warn users when voltage exceeds 80V or current exceeds 1A.

Package Included:

1 x KC604 Clamp Meter

2 x Test Leads

1 x Thermocouple

3 x AAA Batteries

1 x User Manual

1 x EVA Bag
