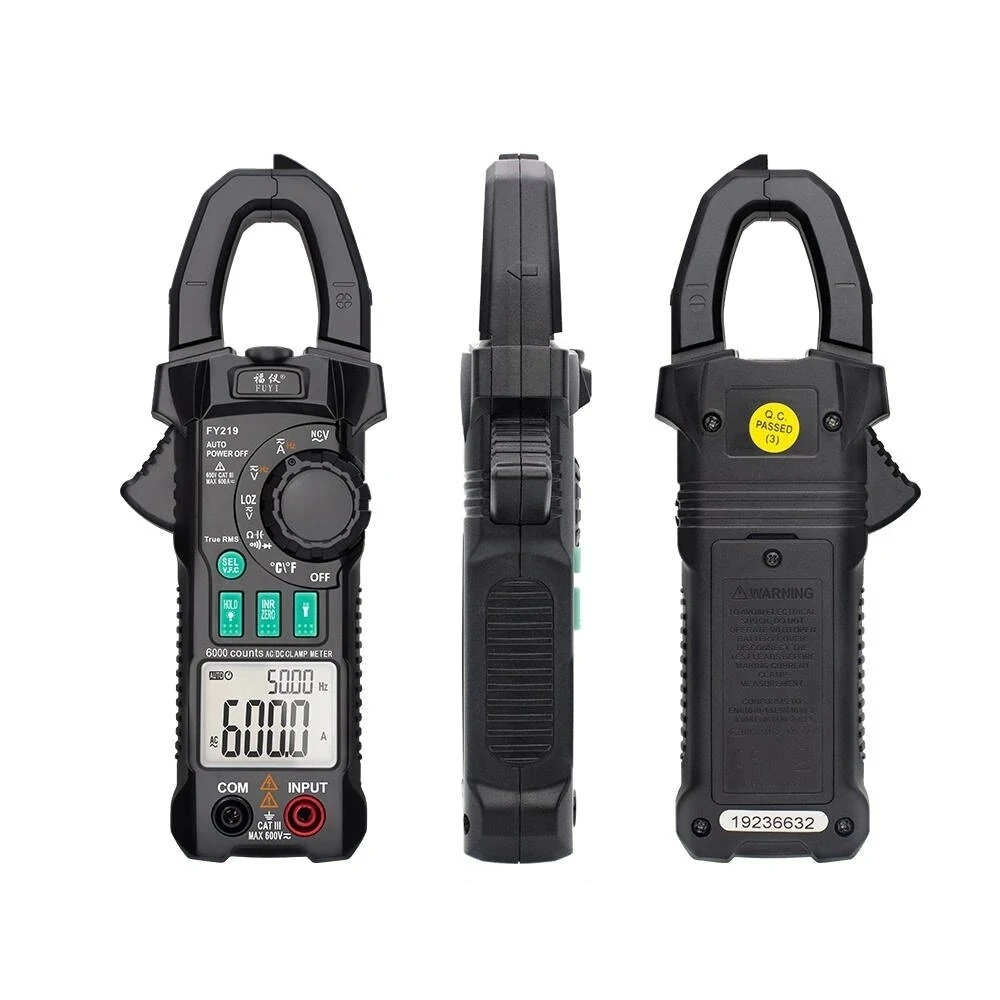

FUYI FY219 Digital Clamp Meter - True RMS AC/DC Voltage Current Tester
$57.00
$70.38
-19% OFF
Global Shipping
Easy Returns
Secure Payment
Product Description

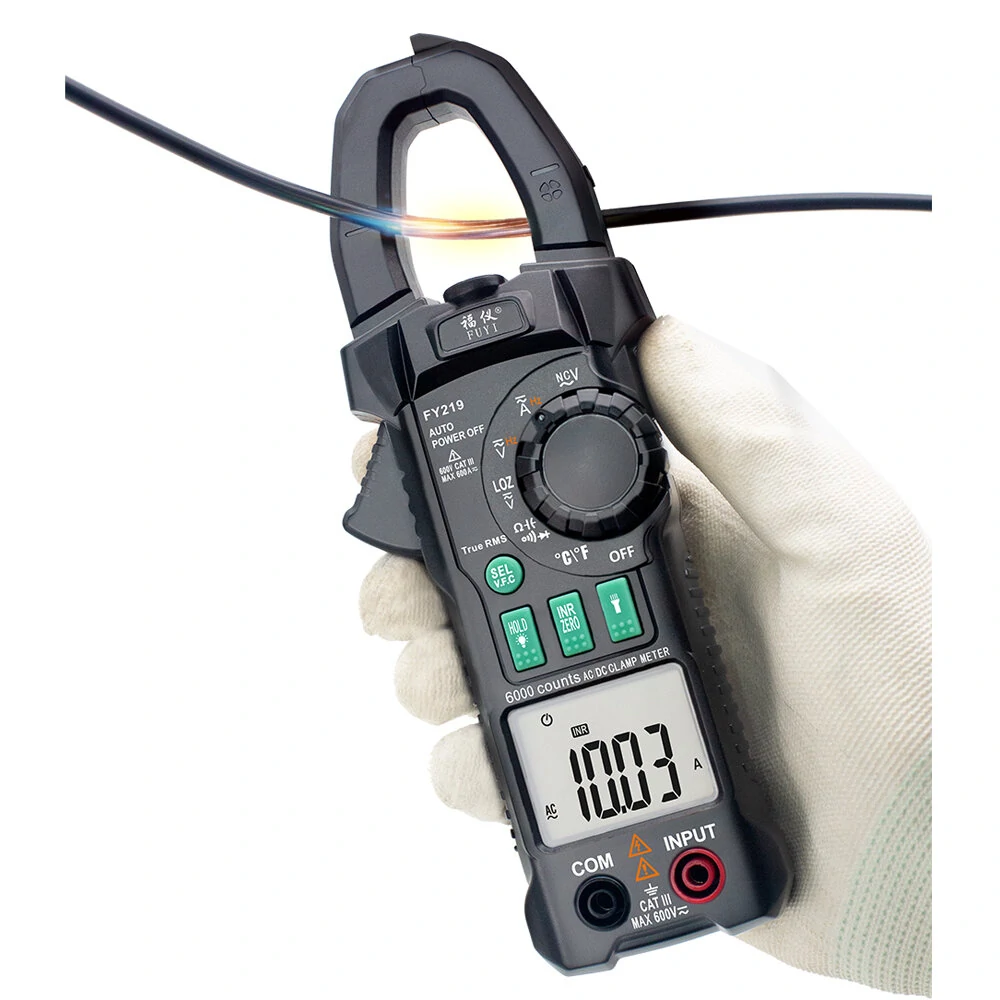

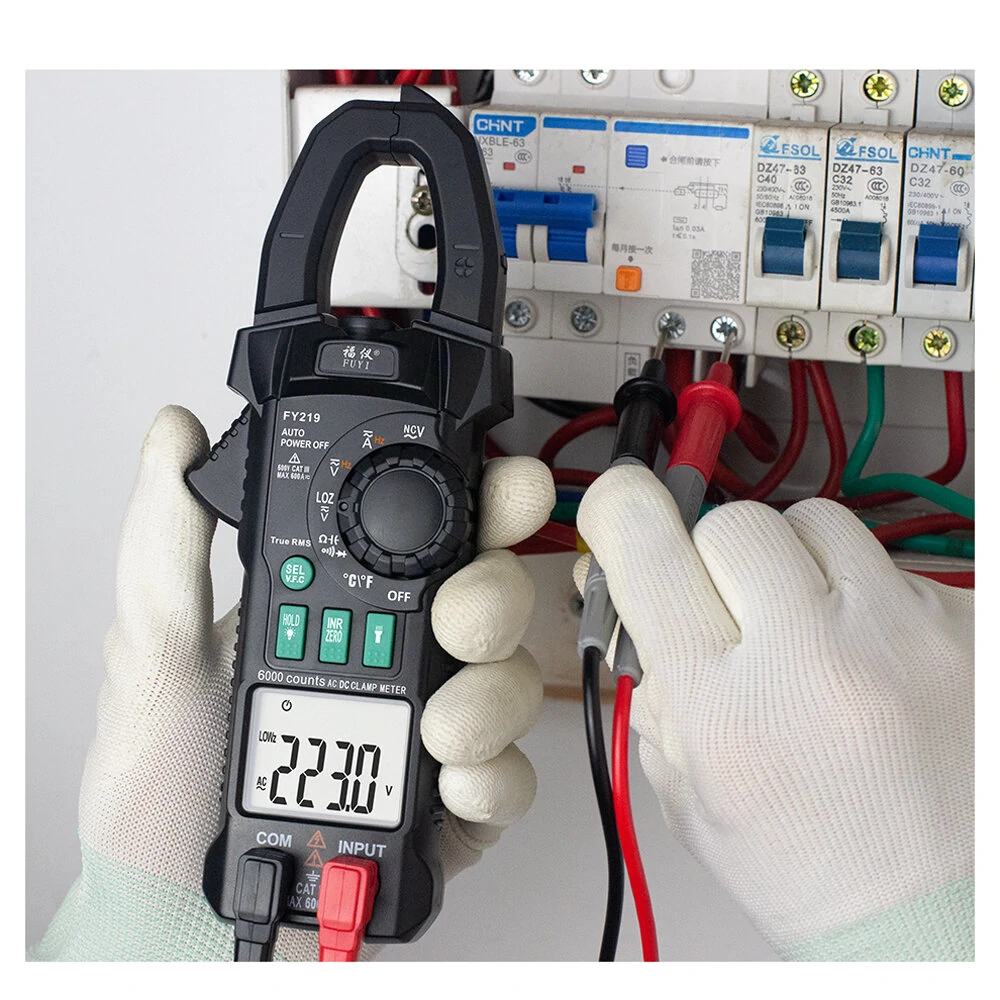

Feature: 1. This portable LCD clamp meter features with high reliability, high safety and easy operation. 2. Support for measurement of AC DC voltage, AC DC current, resistance, capacitance, and more. 3. Support for full range overload protection, a perfect electrical measurement instrument. 4. Support for V.F.C frequency conversion measurement and support for NCV strong electric induction. 5. Widely used in the detection, maintenance and repair of power equipment such as electric power and circuits.6. True RMS clamp meter and support for measurement inrush current(can measure the instant start current),low impedance voltage.
Specification:
Condition: 100% Brand NewItem Type: Clamp Meter
Material: ABS
| Model | Range | Resolution | Accuracy |
| DC Voltage | 600mV/6V/60V | 0.1mV/0.001V/0.01V | ?? (0.8% Reading + 3 Digits) |
| 600V | 0.1V | ?? (1.0% Reading + 3 Digits) | |
| AC Voltage | 6V/60V/600V | 0.001V/0.01V/0.1 | ?? (1.2% Reading + 5 Digits) |
| 200-600V (V.F.C) | 1V | ?? (1.5% Reading + 10 Digits) | |
| AC Current | 60A | 10mA | ?? (3.0% Reading + 10 Digits) V.F.C Mode ?? (4.0% Reading + 10 Digits) |
| 600A | 100mA | ||
| DC Current | 60A | 10mA | ?? (3.0% Reading + 10 Digits) |
| 600A | 100mA | ||
| Resistance | 600??/6K??/60K??/600K??/6M?? | 0.1??/0.001K??/0.01K??/0.1K??/0.001M?? | ?? (0.8% Reading + 3 Digits) |
| 60M?? | 0.1M?? | ?? (2.0% Reading + 5 Digits) | |
| Capacitance | 60nF/600nF/6??F/60??F/600??F/6mF/60mF | 0.01nF/0.1nF/0.001??F/0.01??F/0.1??F/0.001mF/0.01mF | ?? (4% Reading + 3 Digits) |
| Frequency (Clamp Frequency Measurement, A File) | 600Hz | 0.1Hz | ?? (1.5% Reading + 5 Digits) |
| 1KHz | 0.001KHz | ||
| Frequency (Clamp Frequency Measurement, V File) | 600Hz | 0.1Hz | ?? (1.5% Reading + 5 Digits) |
| 6KHz | 0.001KHz | ||
| Temperature | -30??-0?? | 1?? | ?? (5% Reading + 3 Digits) |
| 0??-400?? | ?? (1.0% Reading + 3 Digits) | ||
| 400??-1000?? | ?? (2.0% Reading + 2 Digits) | ||
| On-off Beep | 100?? | 1?? | The resistance is not more than 50 built-in buzzer continuous sounding |
| Diode | 0.001V | Display Approximate Diode Forward Voltage Value | |
| Other Parameters | |||
| Sampling Rate | About 3 Times/Sec | ||
| Jaw Opening Maximum Size | Approx. 25mm / 1in | ||
| Display | 5999 LCD Display | ||
| Battery | 2 x 1.5V AAA Battery (Not Included) | ||
| Product Size | 191 x 70 x 37 mm / 7.5 x 2.8 x 1.5 in | ||
| Weight | Approx. 405g / 14.3oz | ||
>>Please Click Here to Download the English User Manual<<
Package Includes: 1 x Clamp Meter (Battery Not Included) 1 x English Instruction Manual 1 x One Pair Test Leads 1 x Thermocouple Details Pictures:
