ETCR6800D Digital Clamp Meter - AC/DC Current Tester 1500A/2000A | Ammeter
Product Description
Description:
ETCR6800D AC/DC Clamp Current Meter is specially designed for measurement online of AC/DC current with voltage below 600V; by adopting up-to-date CT technology and digital integration technology, There is not metallic conductor outside the clamps, non-contact test to ensure save. It is a product with relatively small size, large clamp, high accuracy and perfect function, widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining. It is essential tool for electrician safety testing.
AC/DC Clamp Current Meter have the function of peaking holding, data holding data storage; obtains one USB interface. With the help of the software that we provide, many functions are available. For example, the meter can realize on-line monitoring, historical data inquiry, active curve drawing, indication of max, min and average value and indication, alarm value setting, indication of alarm value, historical data inquiry, export, and print.
Specification:
| Power supply | 9V??6LR61?? (Not inlcude) |
| Size of clamp | 68mm |
| LCD | 32mmx15mm |
| Range | AC 0.0A-1500A, DC 0.0A-2000A |
| Resolution | AC/DC 0.1A |
| Accuracy | ??2%rdg ??3dgt |
| data storage | 99 set |
| Data upload function | Store data can be uploaded to the computer, save and print |
| Auto power-off | 5 minutes off automatically |
| Working environment | -10??~50?棻20%rh~80%rh |
| Store environment | -10??~60?棻below 70%rh |
| measurement method | Clamp CT??Non-contact measurement |
| Frequency response | AC: 45Hz??400Hz ?? |
| Peak hold | Peak hold function, long press HOLD during test to show peak value |
| Data hold | Data retention function: "DH" symbol display |
| Overflow display | Overrange overflow function: "OLA" symbol display |
| Polarity indication | DC current detection automatically identified, display "-" sign |
| Line voltage | 600V and below circuit test |
| Shift | Automatic shifting |
| Measure time | 2 seconds/time |
| Voltage alarm | When battery voltage decreases to about 7.2V, battery voltage low icon will display |
| Insulation | AC2kV/rms(Between core and box) |
| Protection Type | IEC1010-1??IEC1010-2-032??Pollution 2??CAT ??(600V) |
| Weight | 500g (with battery) |
| Dimension | 224mm*115mm*43mm |
Package Includes:
1 x Clamp Meter (Battery Not Included)
1 x Cloth Bag
1 x USB Cable
1 x CD
1 x User Manual

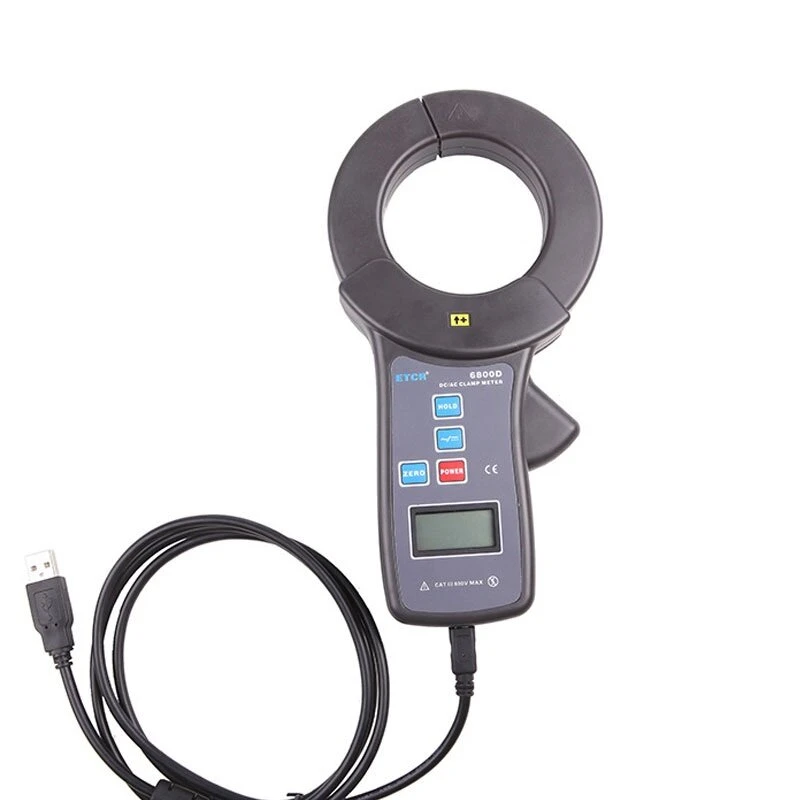

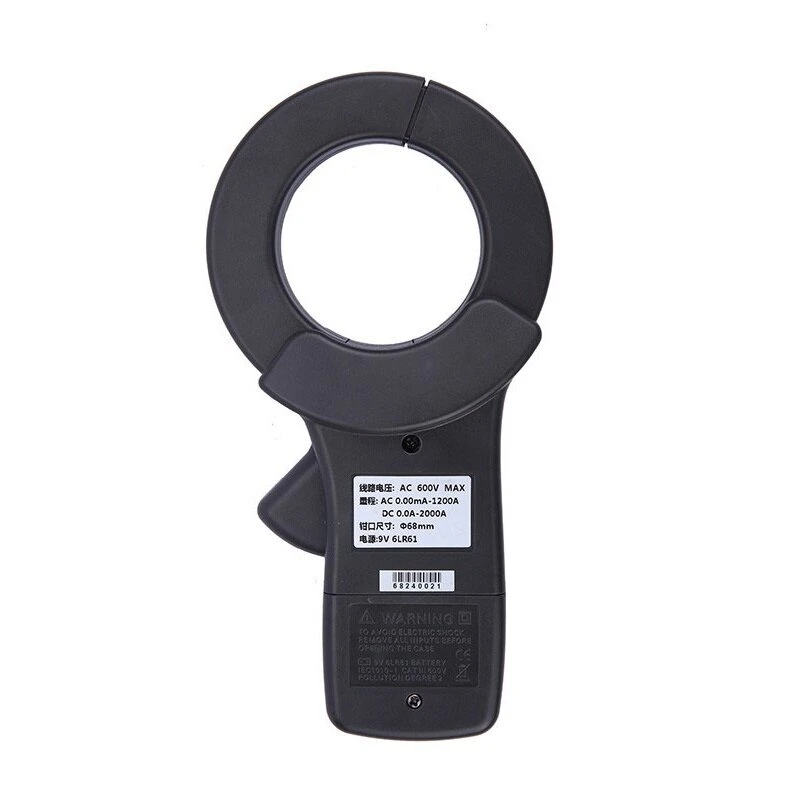

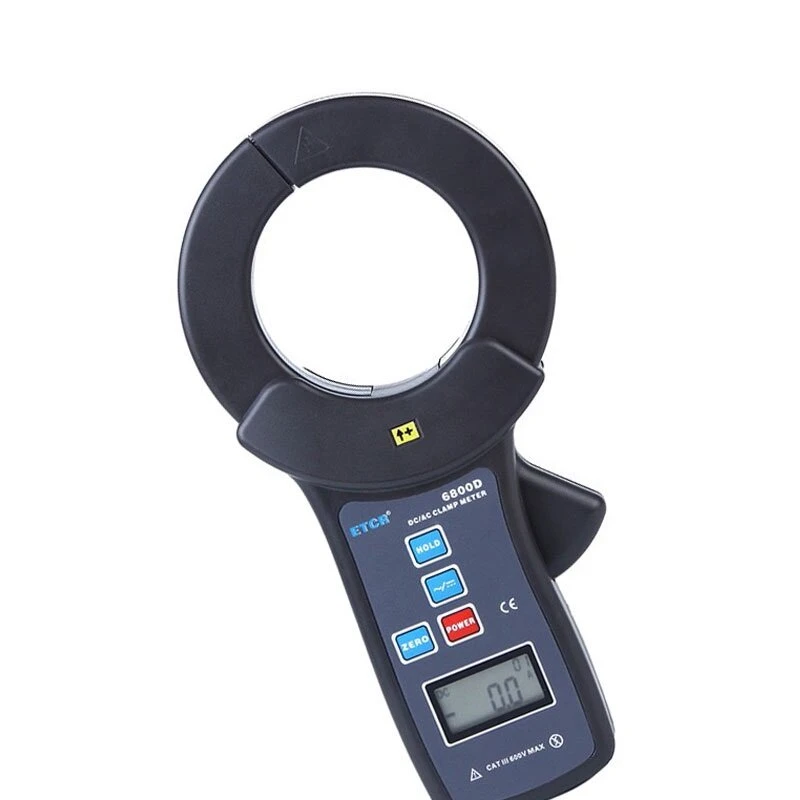

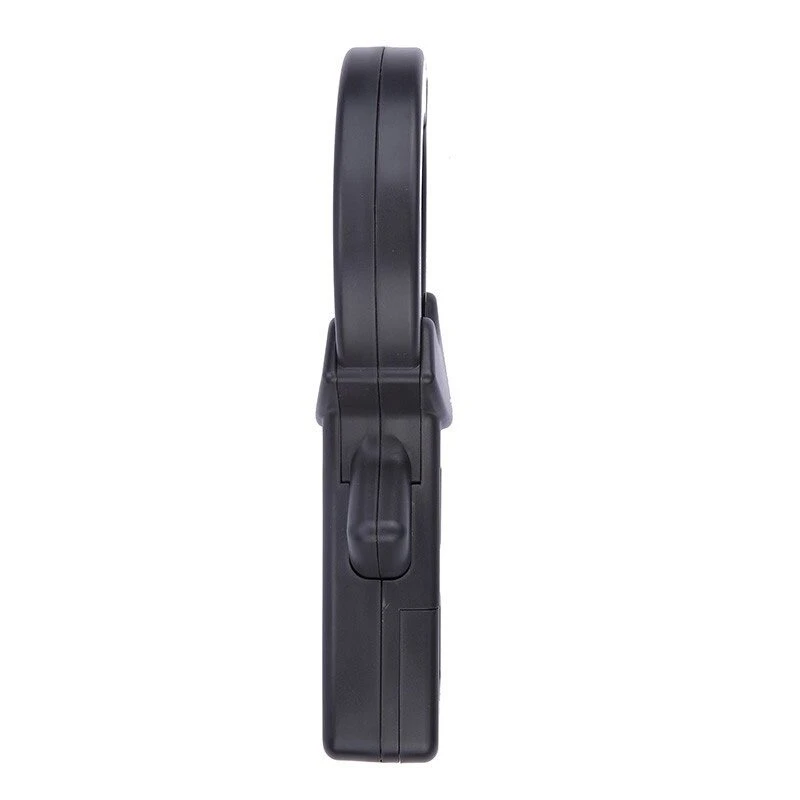

Details Picture:
