BSIDE S6 Smart Digital Multimeter Pen - Auto Range NCV Voltage Tester

Product Description

Features:

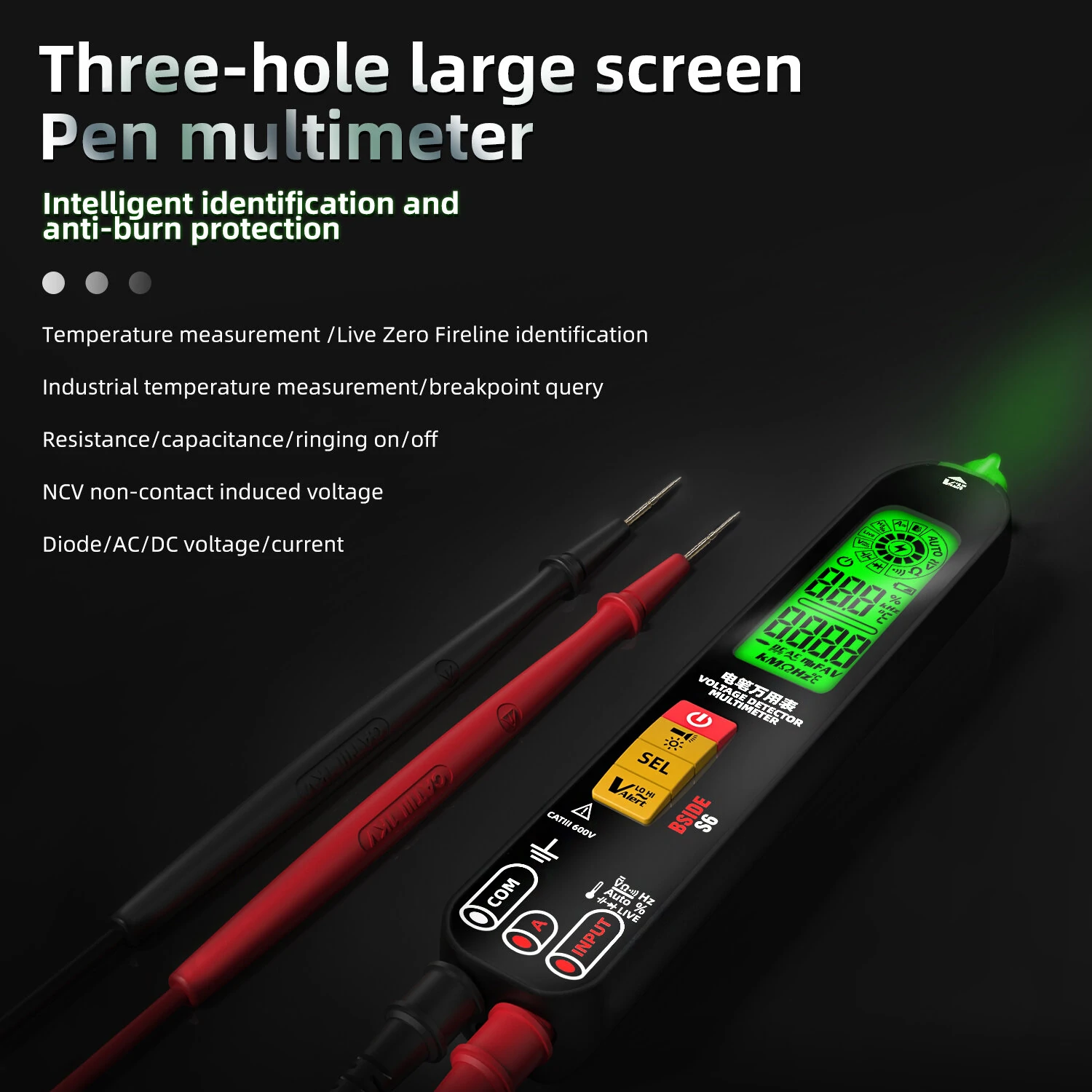

Intelligent Identification & Anti-Burn Protection: This multimeter comes with state-of-the-art technology, intelligently identifying different measurement needs while providing enhanced anti-burn safety measures. No more guesswork!

Temperature Measurement Capabilities: Whether it's for industrial purposes or checking ambient room temperature, this multimeter has got you covered. With a broad range from -50 to 999??, precision is at your fingertips.

LIVE ZERO FIRE LINE Detection: The LIVE mode in this single pen can quickly determine fire lines, signaling with a red screen and buzzer. This ensures a more straightforward and safer testing experience for users.

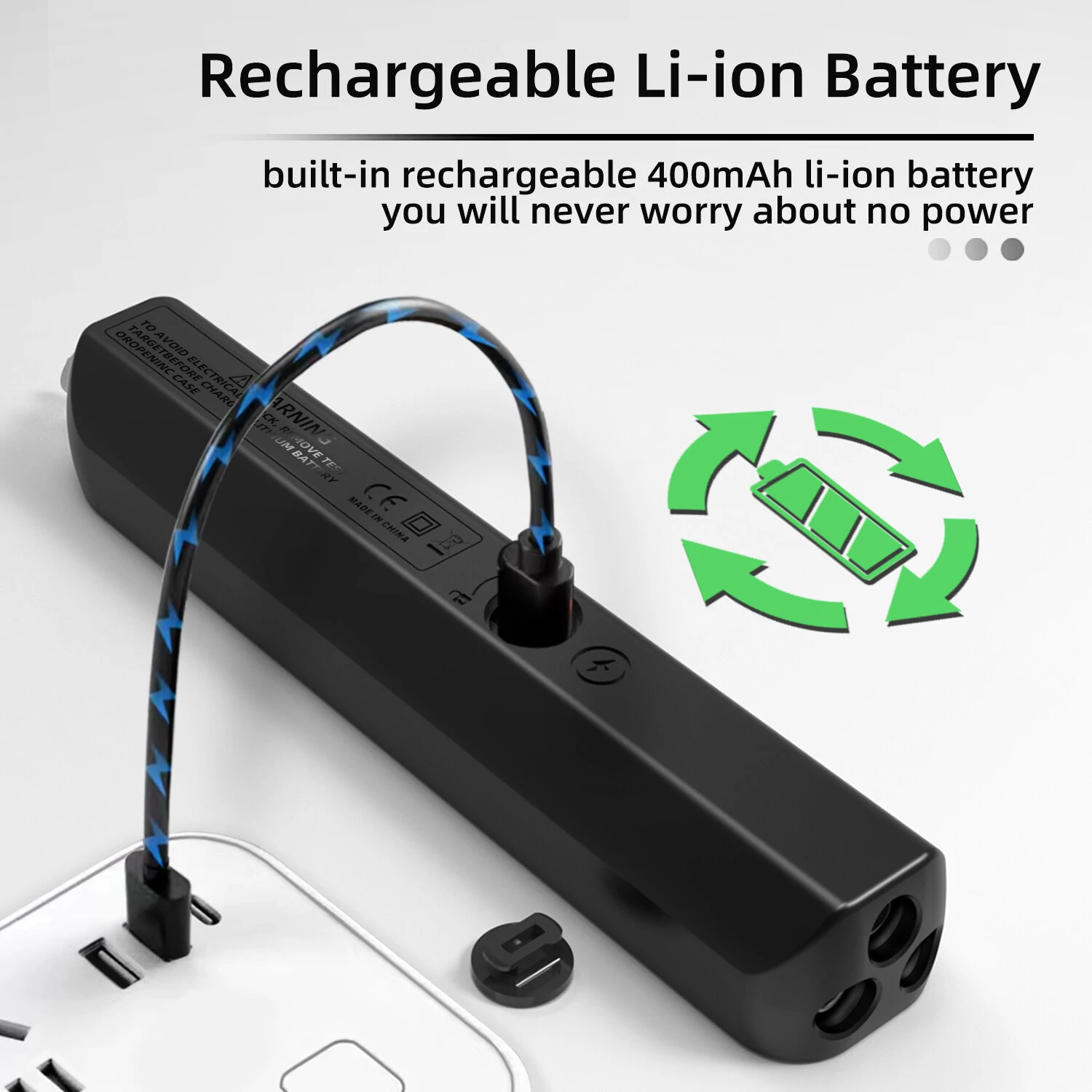

Rechargeable Li-ion Battery: The built-in 400mAh battery ensures that you never run out of power mid-task. Plus, with its eco-friendly rechargeable feature, you're not just saving money on batteries but also contributing to the environment.

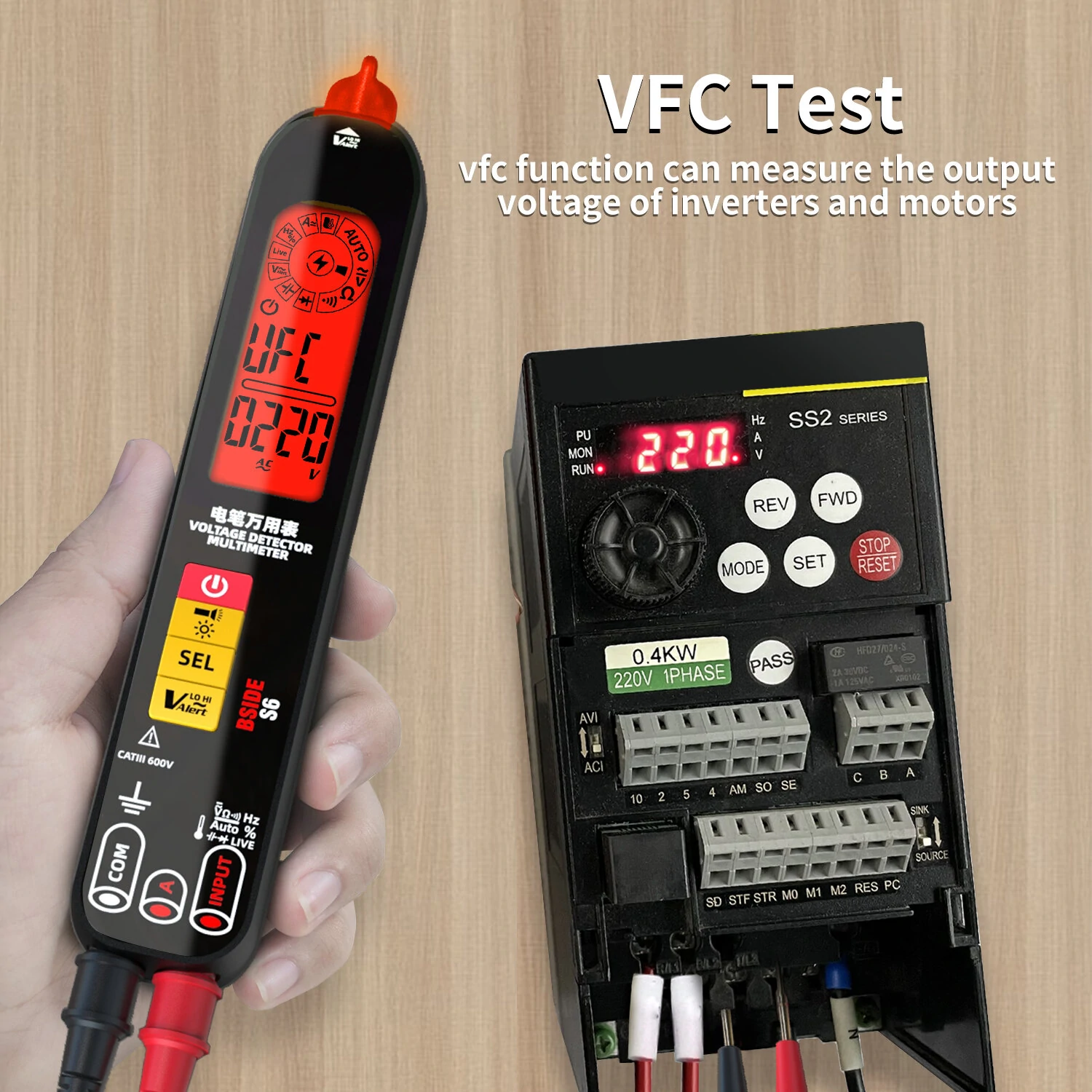

VFC Test Function: For professionals working with inverters and motors, the VFC function will be indispensable. Measure the output voltage of these devices effortlessly.

Specifications:

Voltage Measurement: DC Voltage range from 0 to 620V with 0.001V resolution and ??(0.8%+3) accuracy; AC Voltage with a similar range and 0.001V resolution, ??(1.2%+5) accuracy.

Current Measurement: DC Current auto mode from 1.0 to 610mA with 0.1mA resolution and ??(1.5??+3) accuracy; AC Current with the same range and accuracy.

Resistance & Capacitance: Measure resistance from 0.0?? to 60M?? with 0.1?? resolution and ??(3.5??+8) accuracy. Capacitance range is 1nF to 60mF.

Frequency: From 1Hz to 9.999MHz with 0.001Hz resolution. Measurement range is 900mVrms to 20Vrms with ??(1.5??+2) accuracy.

Temperature: Ranges from -50 to 999?? with a 1??/??F resolution. Ambient temperature from 0 to 50?? with 1?? resolution and ??2?? accuracy.

Additional Features: Ability to measure diodes within 3.0V. For continuity, if the resistance is 50??, a buzzer will sound.

Package Included:

1 x Three-hole large screen pen multimeter

1 x Rechargeable 400mAh li-ion battery

1 x Amp Smart Identification

1 x User manual
