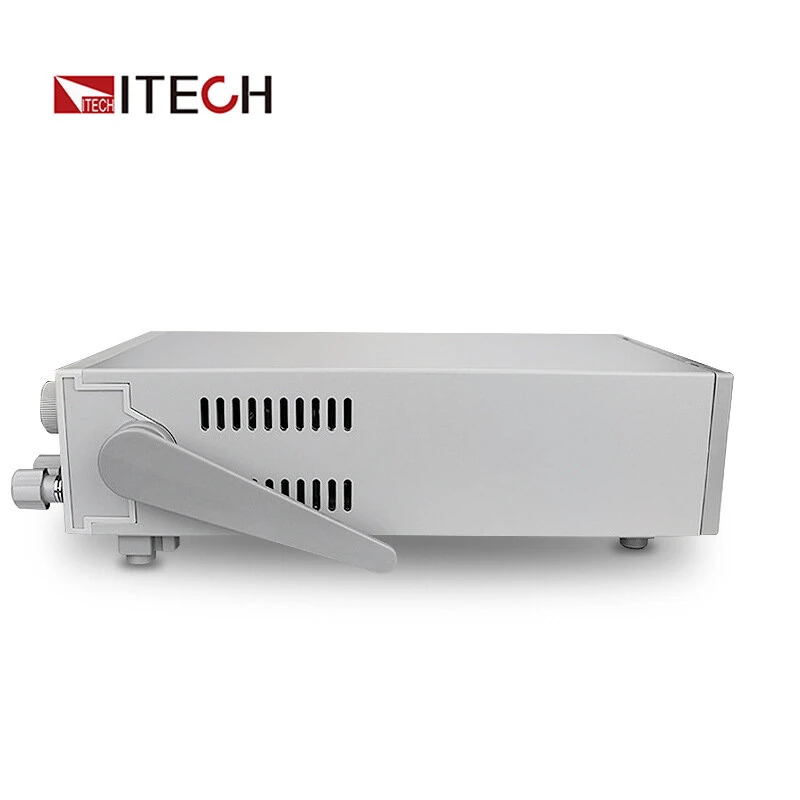

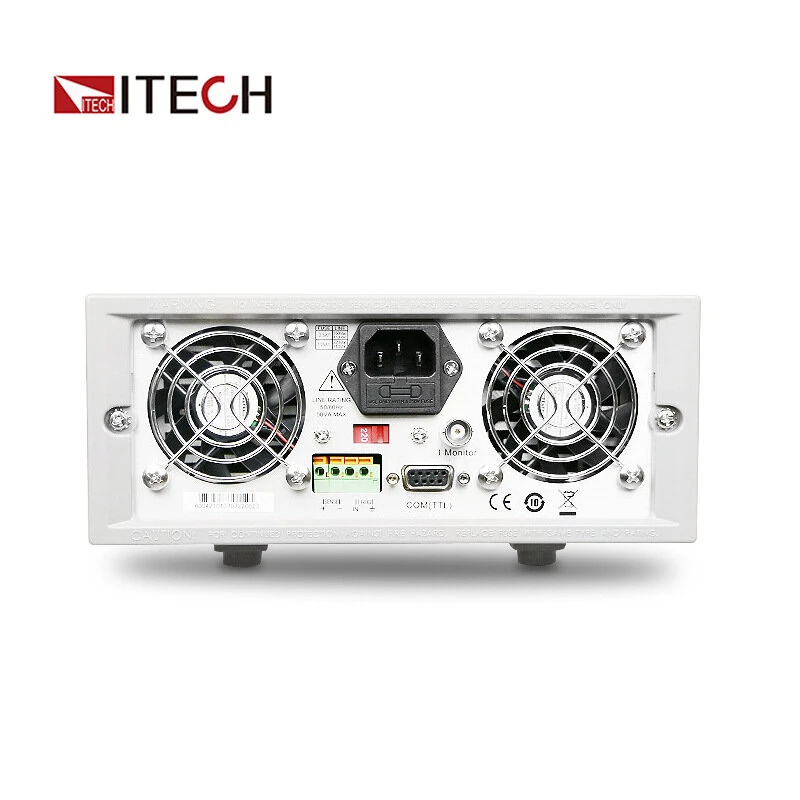

ITECH IT8513C+ Programmable DC Electronic Load - 120V 120A 600W Battery Tester | Remote Sensing

Product Description

Specifications:

- Model: IT8513C+

- Voltage: 120V

- Current: 120A

- Power: 600W

- Voltage Resolution: 0.1mV

- Current Resolution: 1mA

- Voltage Accuracy: ??(0.025%+0.025%FS)

- Current Accuracy: ??(0.05%+0.05%FS)

- Interface: DB9(TTL)

- Size: ? 2U

Features:

1. Dynamic Mode: The IT8500+ series supports dynamic mode testing up to 10KH for precise and versatile power supply evaluation.

2. Multiple Testing Modes: Four adjustable working modes including Constant Voltage (CV), Constant Current (CC), Constant Resistance (CR), and Constant Power (CP) for comprehensive testing options.

3. Enhanced Test Functions: Equipped with special tests such as battery testing, automatic testing, over-power protection (OPP), and over-current protection (OCP).

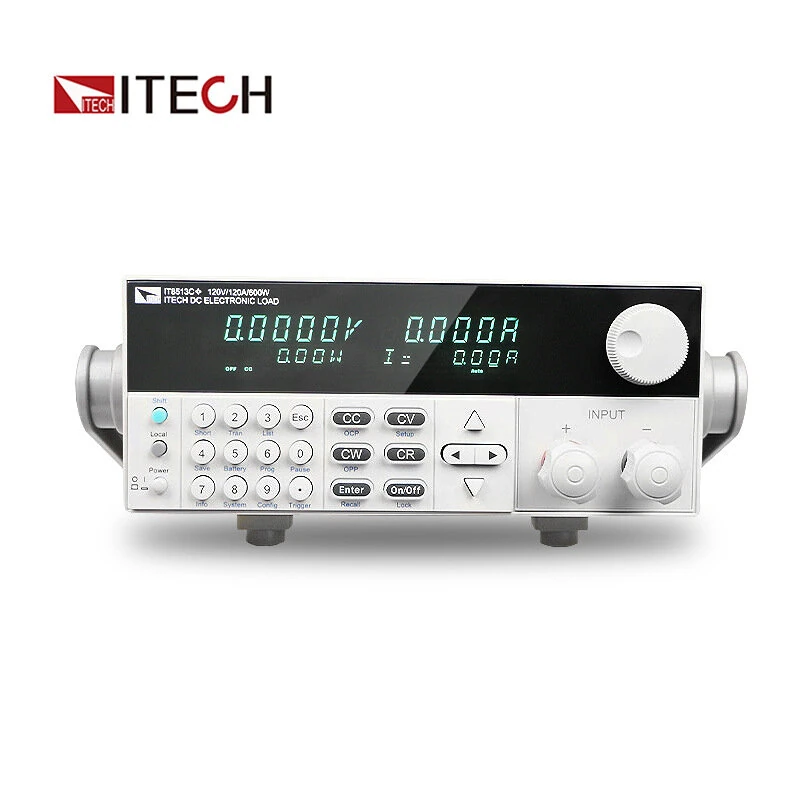

4. Convenient Operation: The front panel features a rotary coding switch for simplified operation and easy parameter adjustments.

5. Remote Sensing and Memory: Includes a remote sensing function and storage capability for up to 100 sets of test configurations, making repeated testing efficient.

Package Included:

1 x IT8513C+ DC Electronic Load
